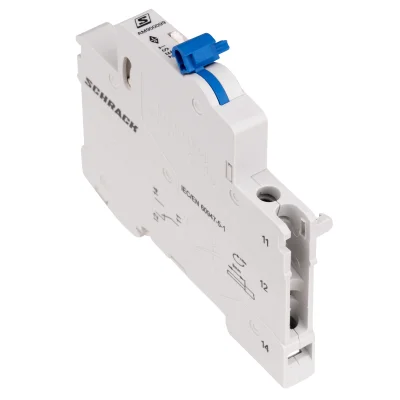

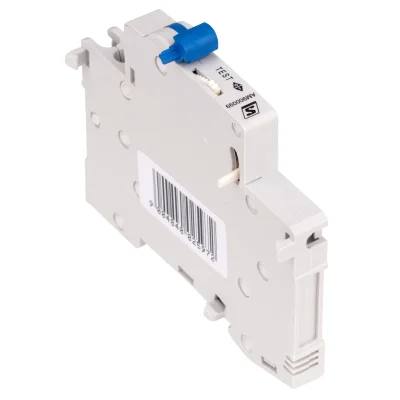

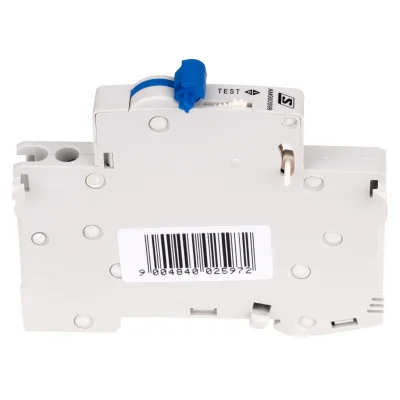

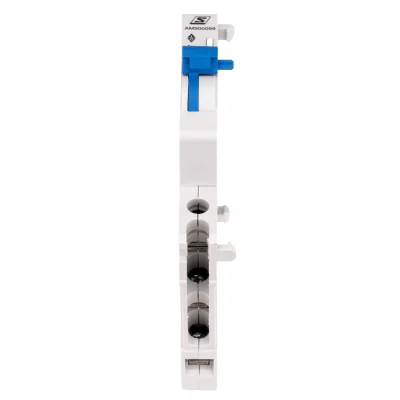

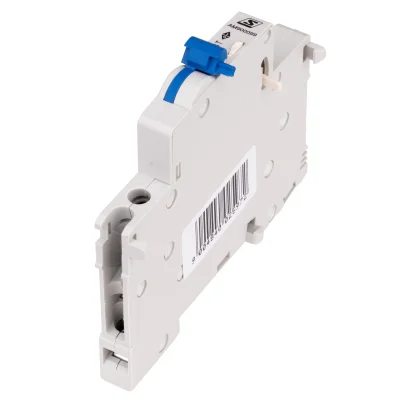

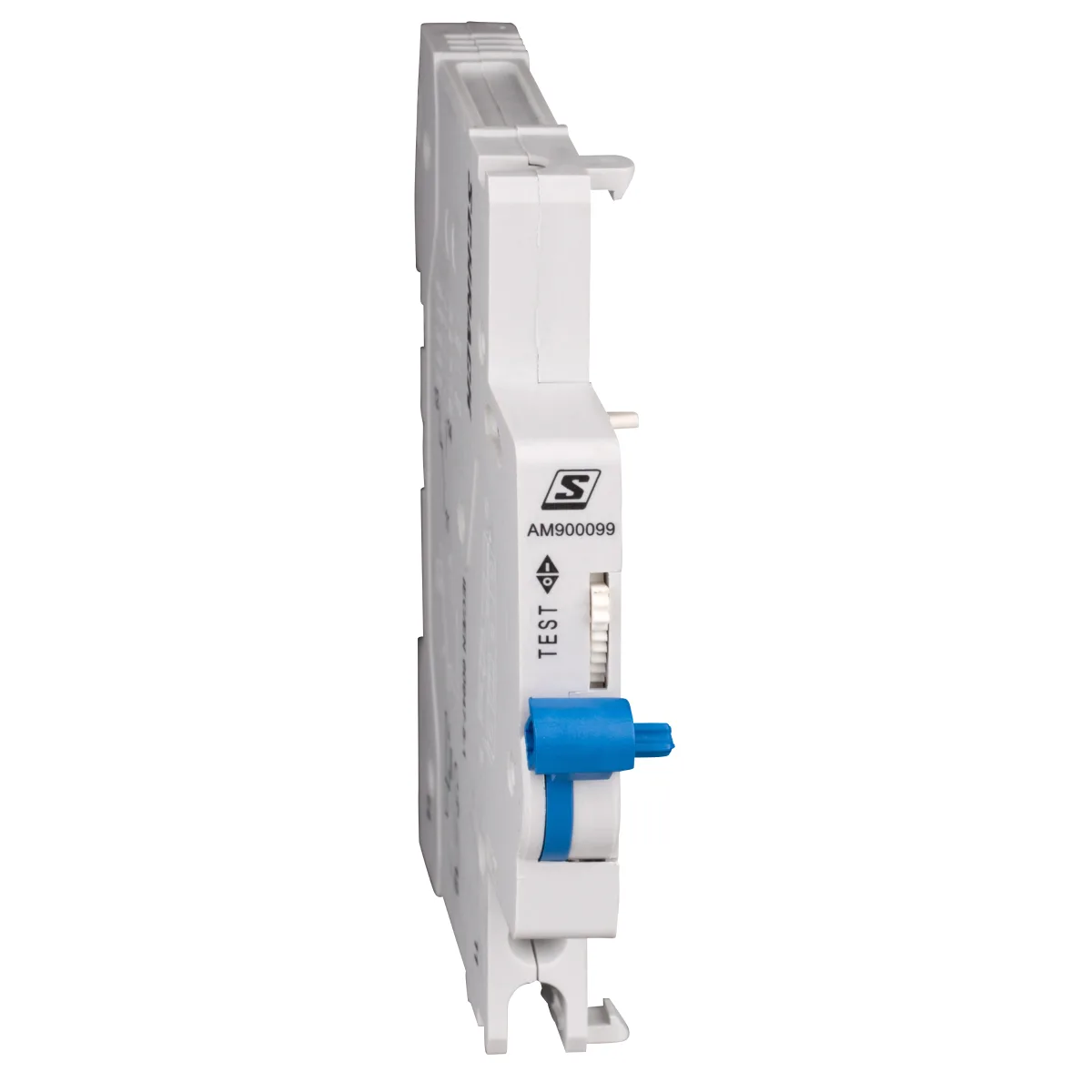

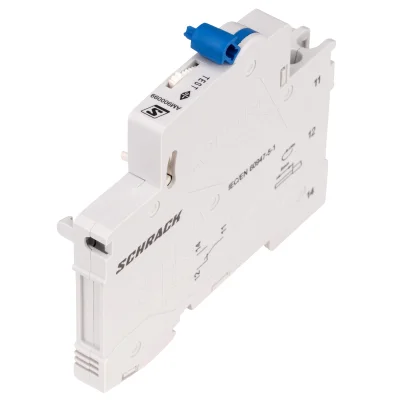

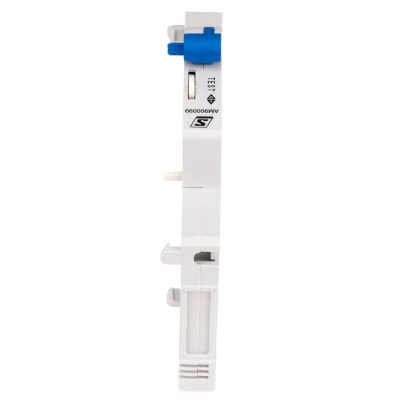

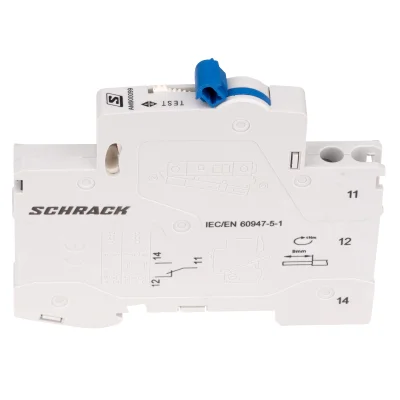

Auxiliary Contact 1CO, AM
1 / 9
Auxiliary Contact 1CO, AMAuxiliary Contact 1CO, AMAuxiliary Contact 1CO, AMAuxiliary Contact 1CO, AMAuxiliary Contact 1CO, AMAuxiliary Contact 1CO, AMAuxiliary Contact 1CO, AMAuxiliary Contact 1CO, AMAuxiliary Contact 1CO, AM

Auxiliary Contact 1CO, AM

Article: AM900099--

Аксессуары для авт.выкл.

3 121 ₸

In stock
WhatsAppTelegram

Auxiliary contact for use with AM series circuit breakers. It is an auxiliary module containing 1 normally open contact and 1 normally closed contact (1 changeover contact) for expanding the functionality of the main switching device.

Technical Parameters:

  • Type: Auxiliary contact
  • Configuration: 1 NO (normally open) + 1 NC (normally closed)
  • Manufacturer: Schrack
  • Standard: EN 60947-5-1:2017
  • Operating temperature range: from -25°C to +70°C
  • Dimensions: 86×9×77 mm
  • Weight: 0.03 kg

The contact is designed for installation on AM series circuit breakers and is used in control systems, alarm systems, and interlocking systems. Compatible with standard DIN rail and mounting bases of the specified series.

Packaging variants: 1 pcs., 14 pcs., 210 pcs.

EAN code9004840025972
Length net86.00 mm
Width net9.00 mm
Height net77.00 mm
Weight net0.03 kg
Minimum ambient temperature-25°C
Maximum ambient temperature70°C
For productLS/FI
Auxiliary contacts1 normally open contact + 1 normally closed contact
ExecutionAuxiliary contact
StandardEN 60947-5-1:2017
ManufacturerSchrack
Packaging1 pcs., 14 pcs., 210 pcs.
