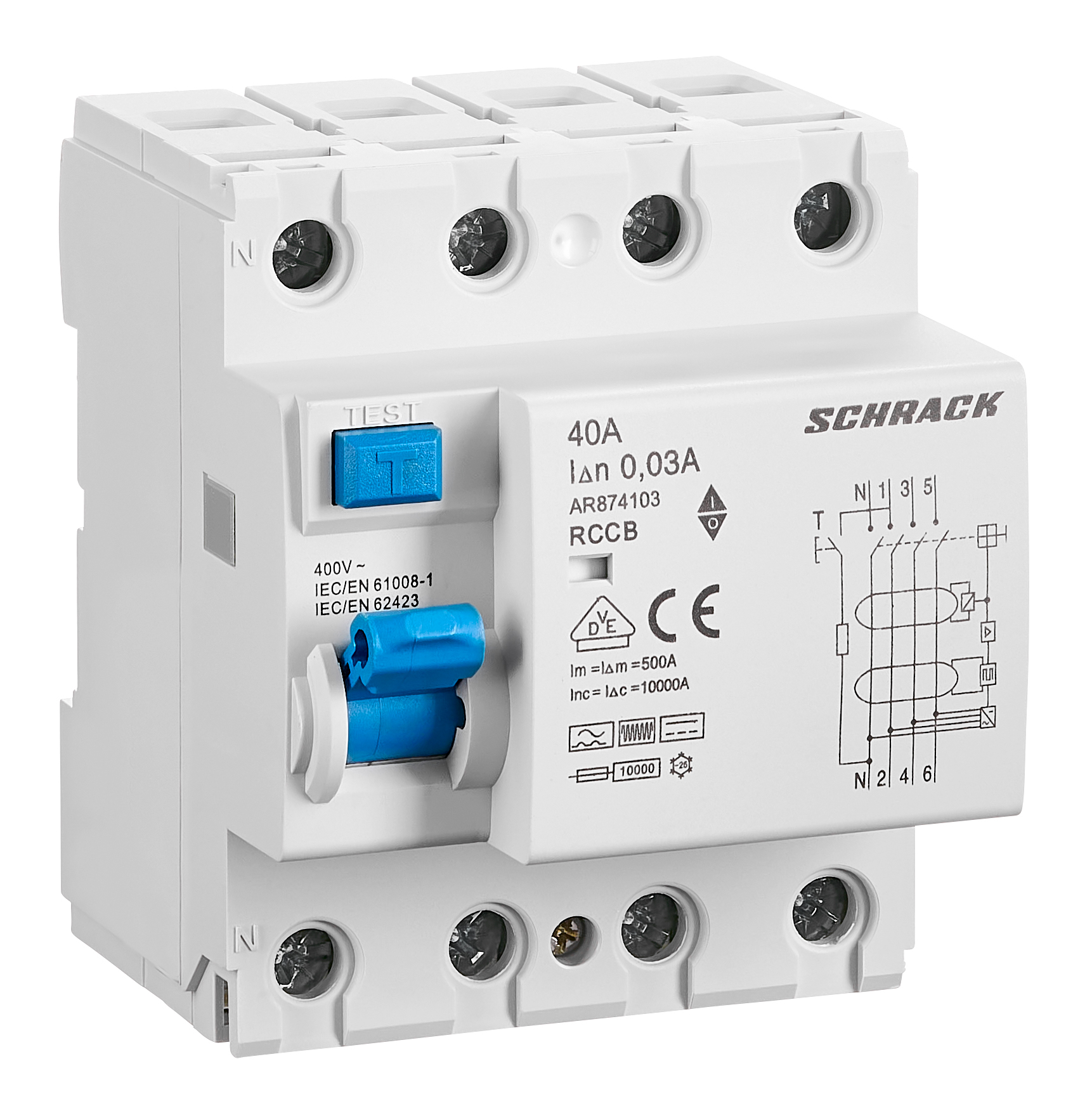

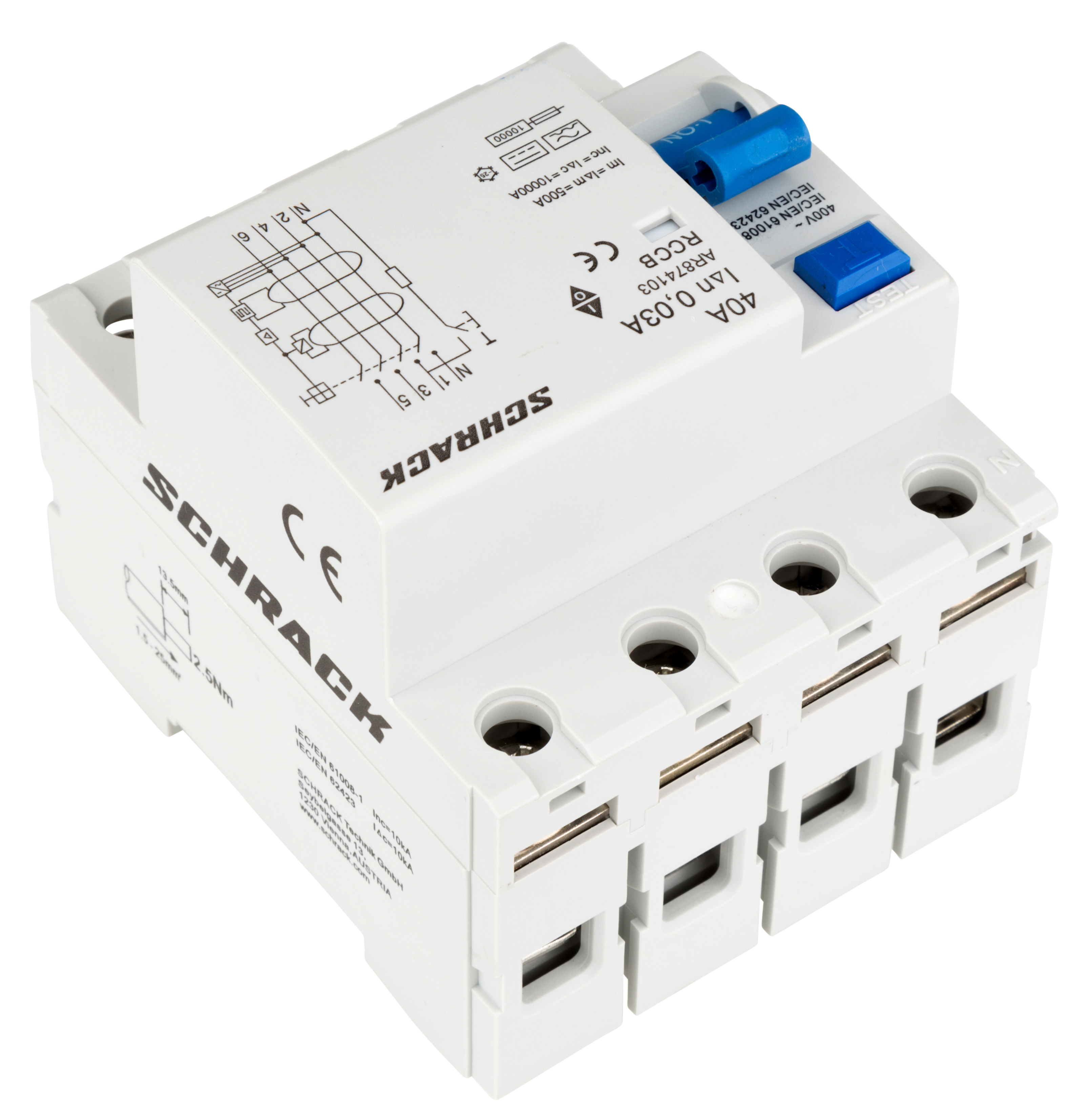

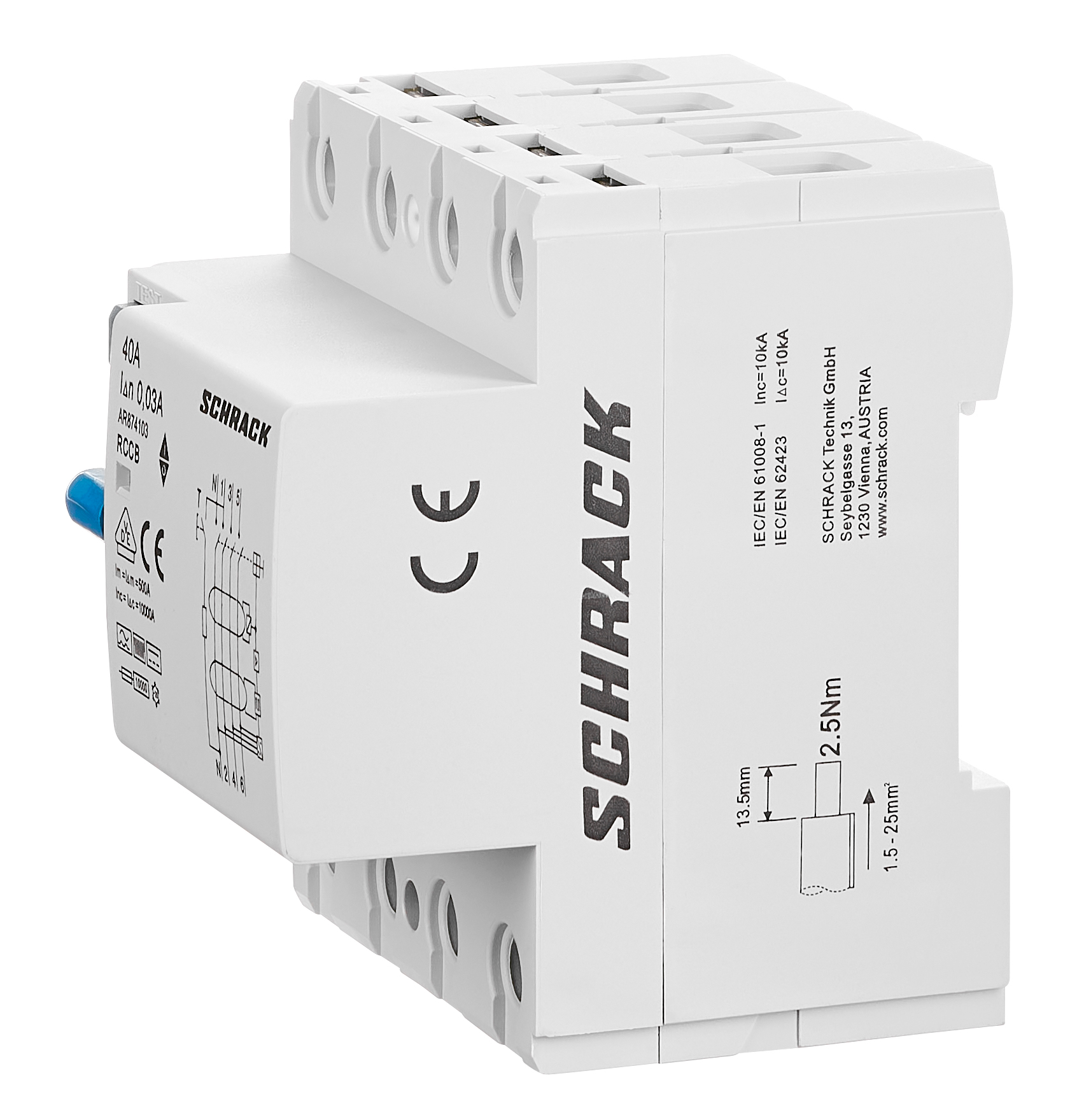

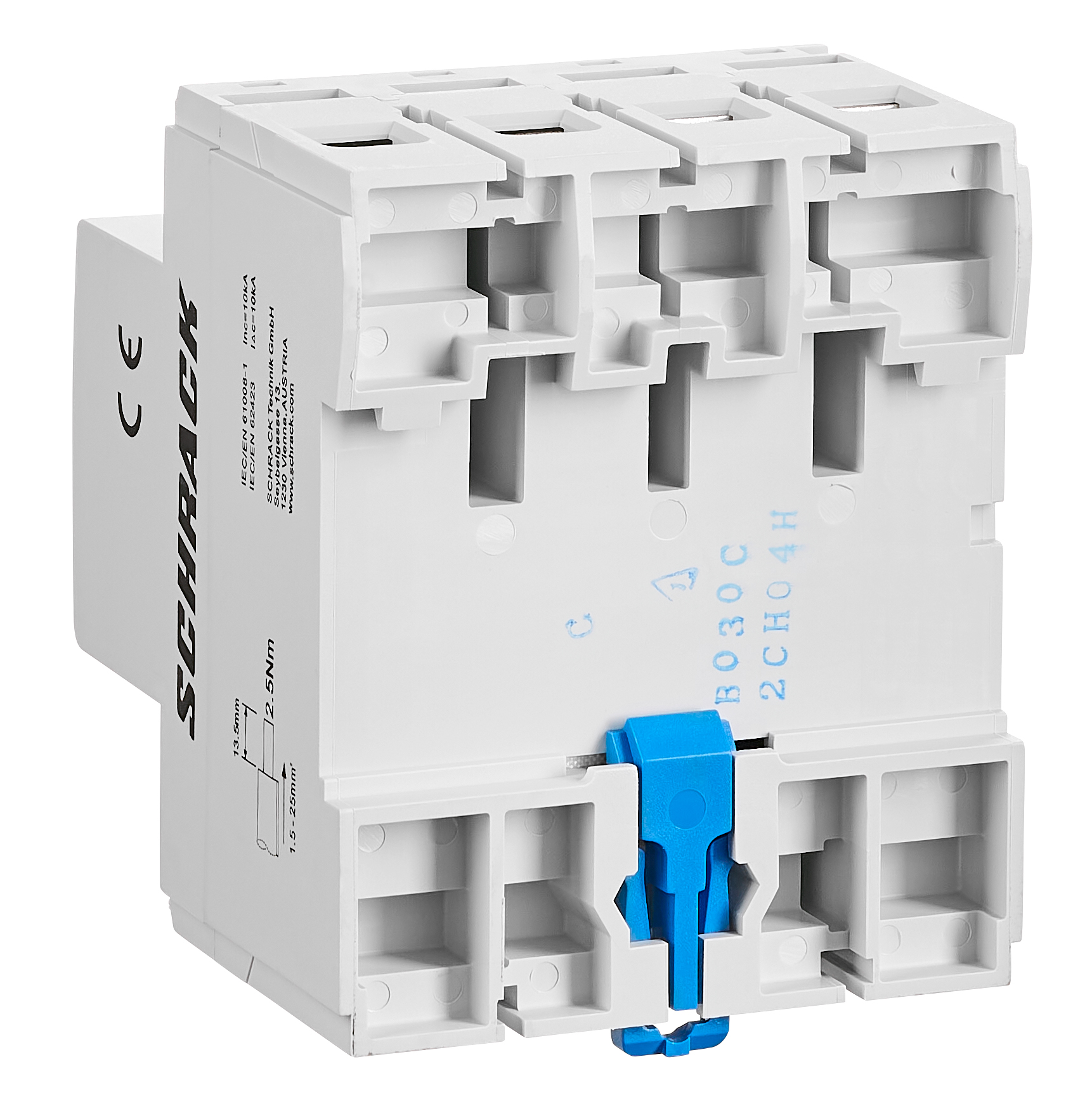

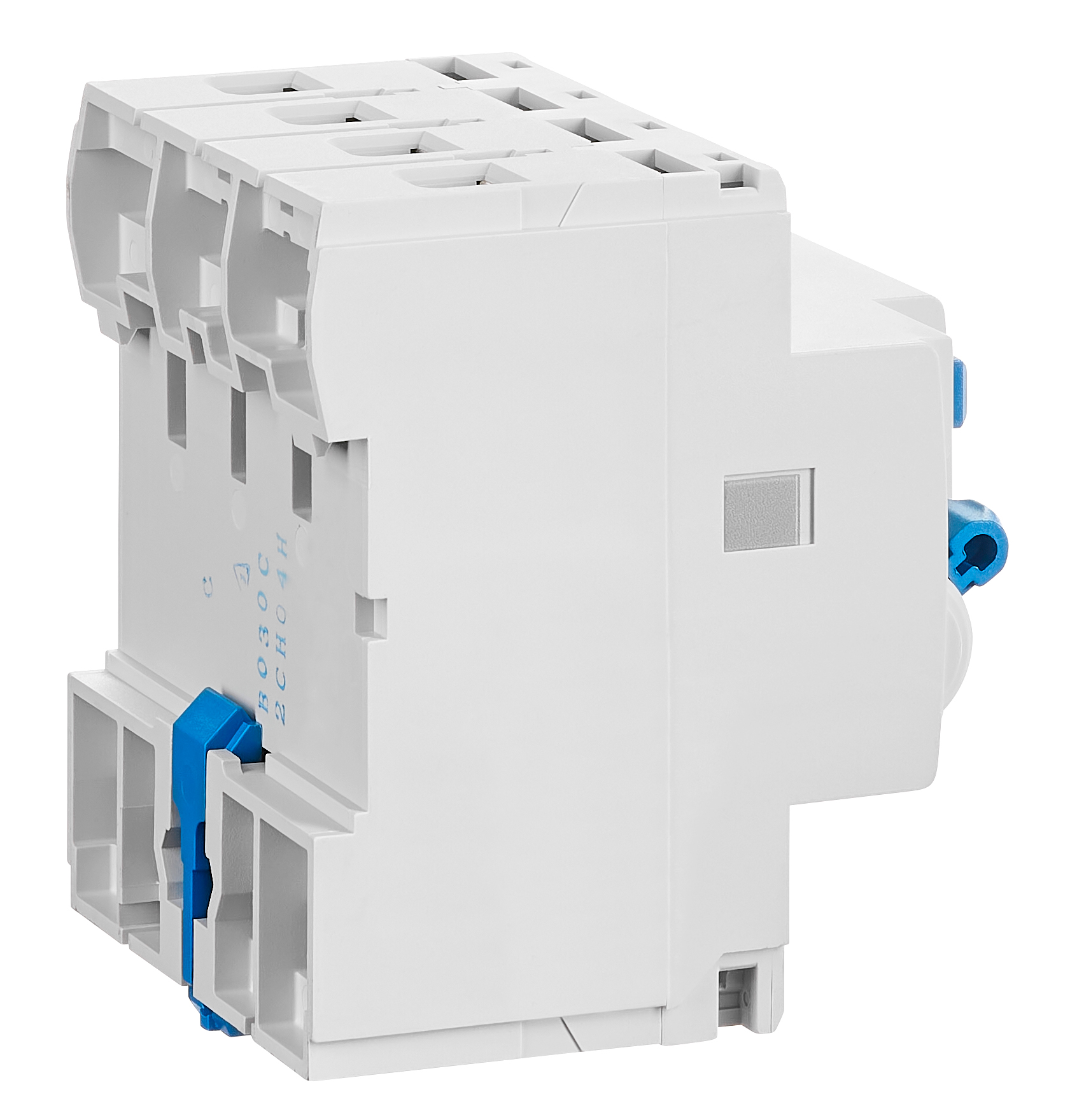

Residual Current Device (RCD) four-pole with neutral (N+3) from the AMPARO series manufactured by Schrack.
Main Technical Characteristics:
- Nominal Current: 40 A
- Trip Current (IΔn): 30 mA
- Trip Type: B (sensitive to both direct and alternating differential currents)
- Trip Characteristic: instantaneous (without delay)
- Breaking Capacity: 10 kA
- Number of Poles: N+3 (four-pole with neutral)
Operating Conditions:
- Temperature Range: from −25 °C to +60 °C
- Power Loss: 12.88 W
Dimensions and Weight:
- Net Dimensions: 49.5 × 72 × 84 mm
- Net Weight: 0.37 kg
- Standard width for DIN-rail installation
Normative Basis:
Complies with standards EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, EN 62423:2012.
Packaging: 1 piece or cardboard box of 45 pieces (EAN: 9004840566758)
| EAN Code | 9004840566758 |
|---|---|
| Net Length | 49.50 mm |
| Net Width | 72.00 mm |
| Net Height | 84.00 mm |
| Net Weight | 0.37 kg |
| Power Loss | 12.88 W |
| Minimum Ambient Temperature | −25 °C |
| Maximum Ambient Temperature | 60 °C |
| Type | B (sensitive to any current) |
| Trip Characteristic | instantaneous |
| Nominal Current | 40 A |
| Trip Current | 30 mA |
| Nominal Sensitivity IΔn | 30 mA |
| Pole | N+3 |
| Breaking Capacity | 10 kA |
| Standard | EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, EN 62423:2012 |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 piece, 45 pieces |
