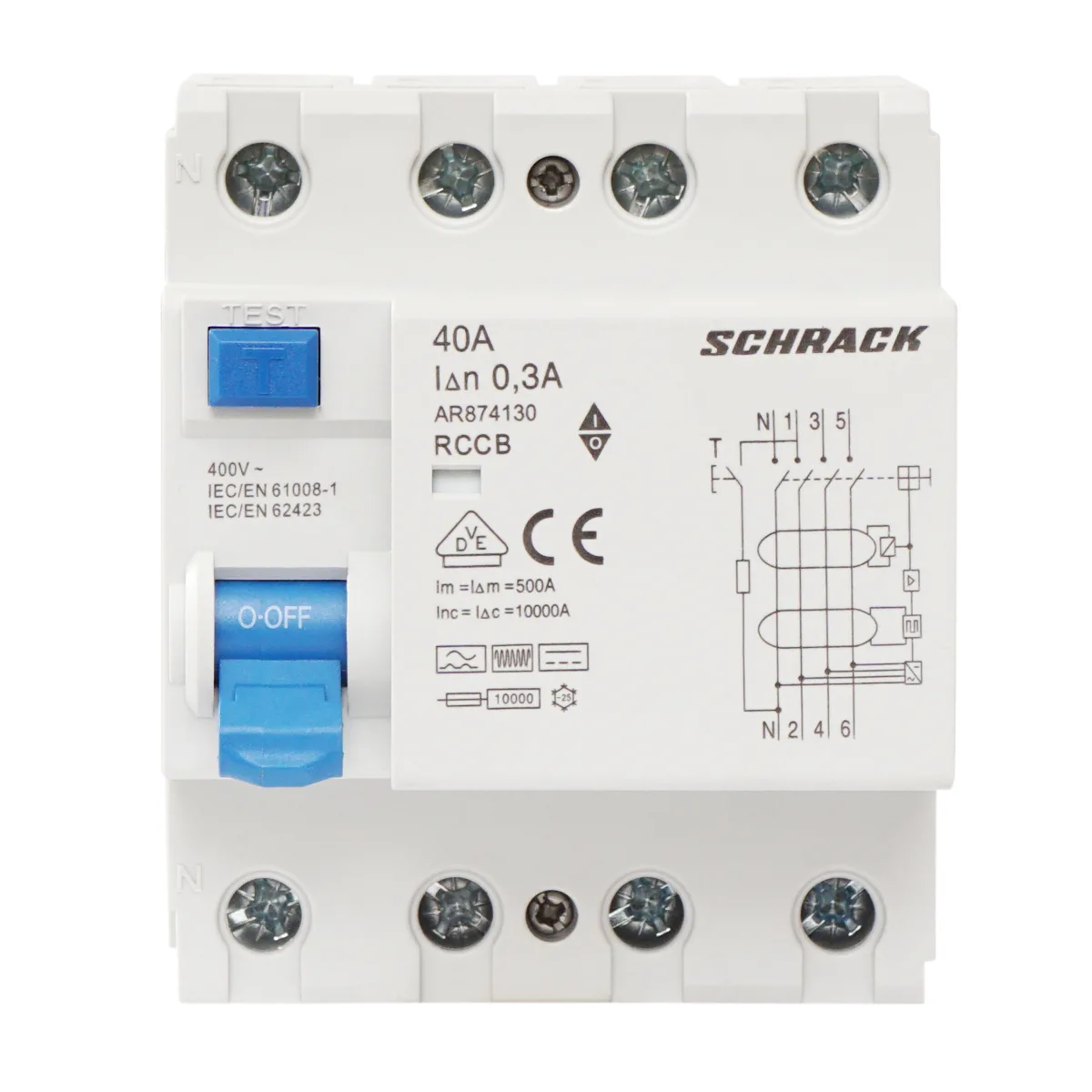

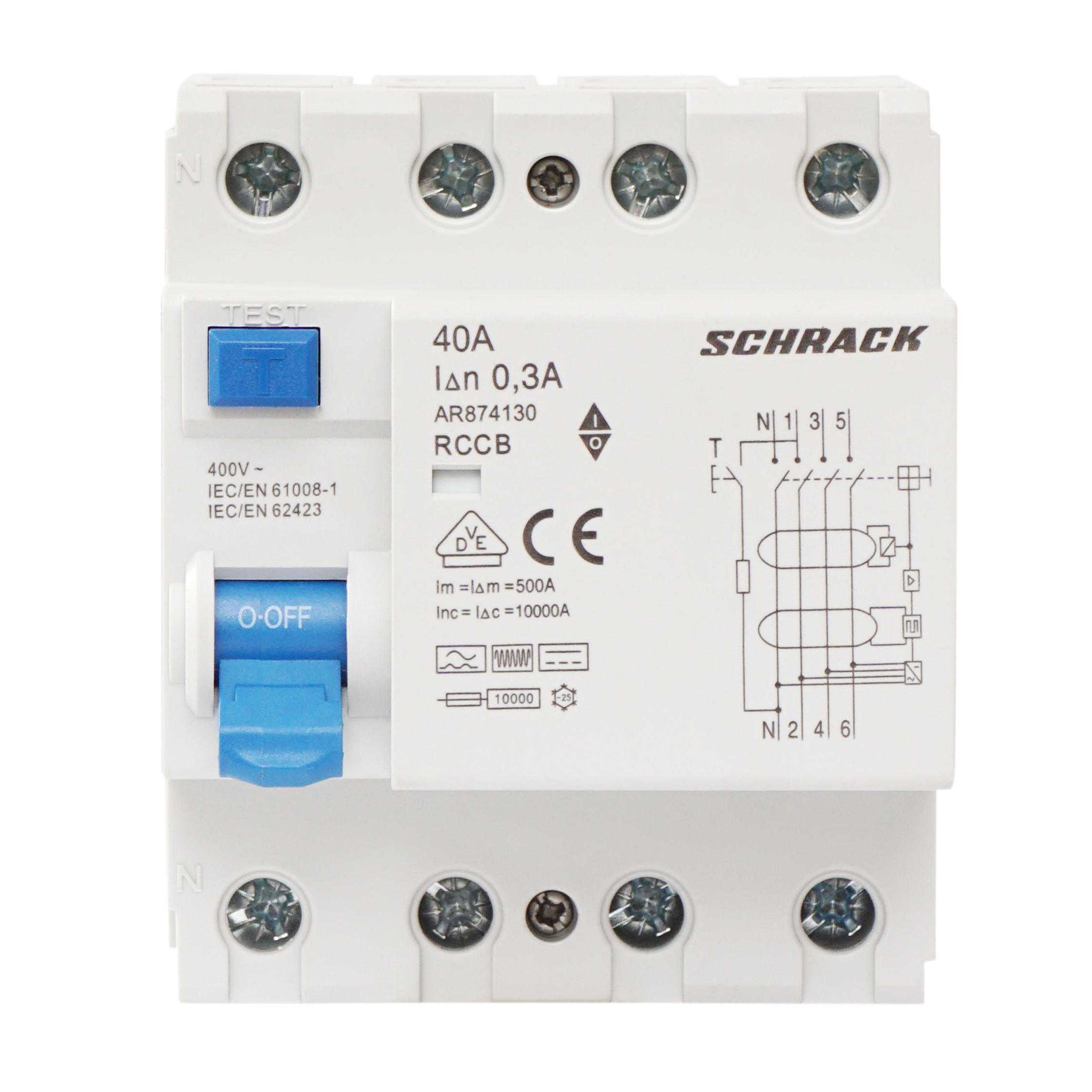

Residual Current Device (RCD) of the AMPARO series manufactured by Schrack.
Main technical characteristics:
- Rated current: 40 A
- Tripping current: 300 mA
- Rated sensitivity IΔn: 300 mA
- Type: B (sensitive to alternating and direct sinusoidal currents, including direct component)
- Tripping type: instantaneous (immediate disconnection)
- Switching capacity: 10 kA
- Pole configuration: N+3 (four-pole with neutral)
Operating parameters:
- Ambient temperature range: from −25 °C to +60 °C
- Power loss: 12.88 W
- Overall dimensions: 49.5 × 72.0 × 84.0 mm
- Net weight: 0.37 kg
Regulatory and technical basis:
The RCD complies with the requirements of EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, EN 62423:2012.
Packaging: 1 pcs., 45 pcs.
| EAN code | 9004840876345 |
|---|---|
| Length (net) | 49.50 mm |
| Width (net) | 72.00 mm |
| Height (net) | 84.00 mm |
| Net weight | 0.37 kg |
| Power loss | 12.88 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Type | B (sensitive to any current) |
| Tripping type | instantaneous |
| Rated current | 40 A |
| Tripping current | 300 mA |
| Rated sensitivity IΔn | 300 mA |
| Pole | N+3 |
| Switching capacity | 10 kA |
| Standard | EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, EN 62423:2012 |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 45 pcs. |
