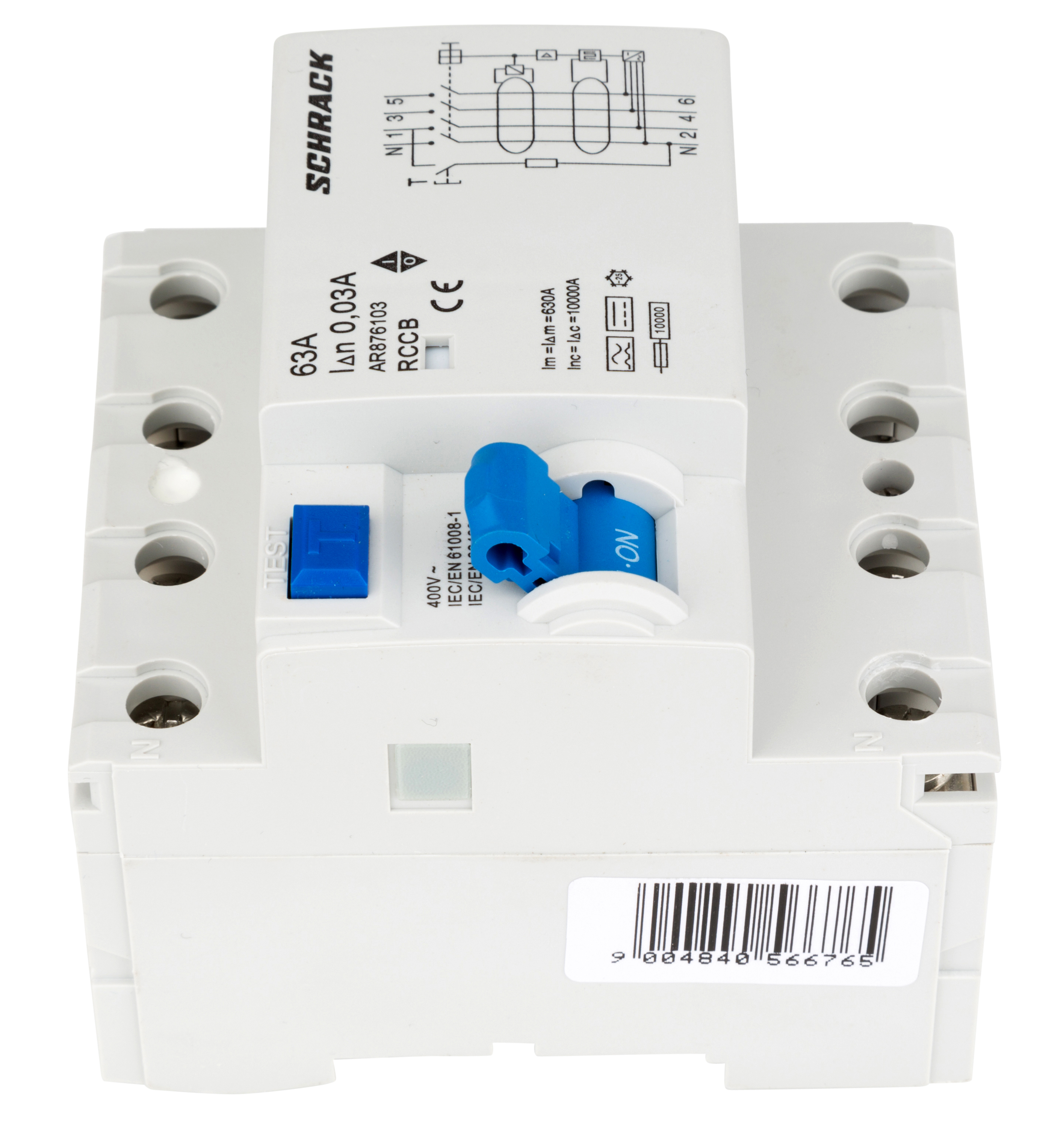

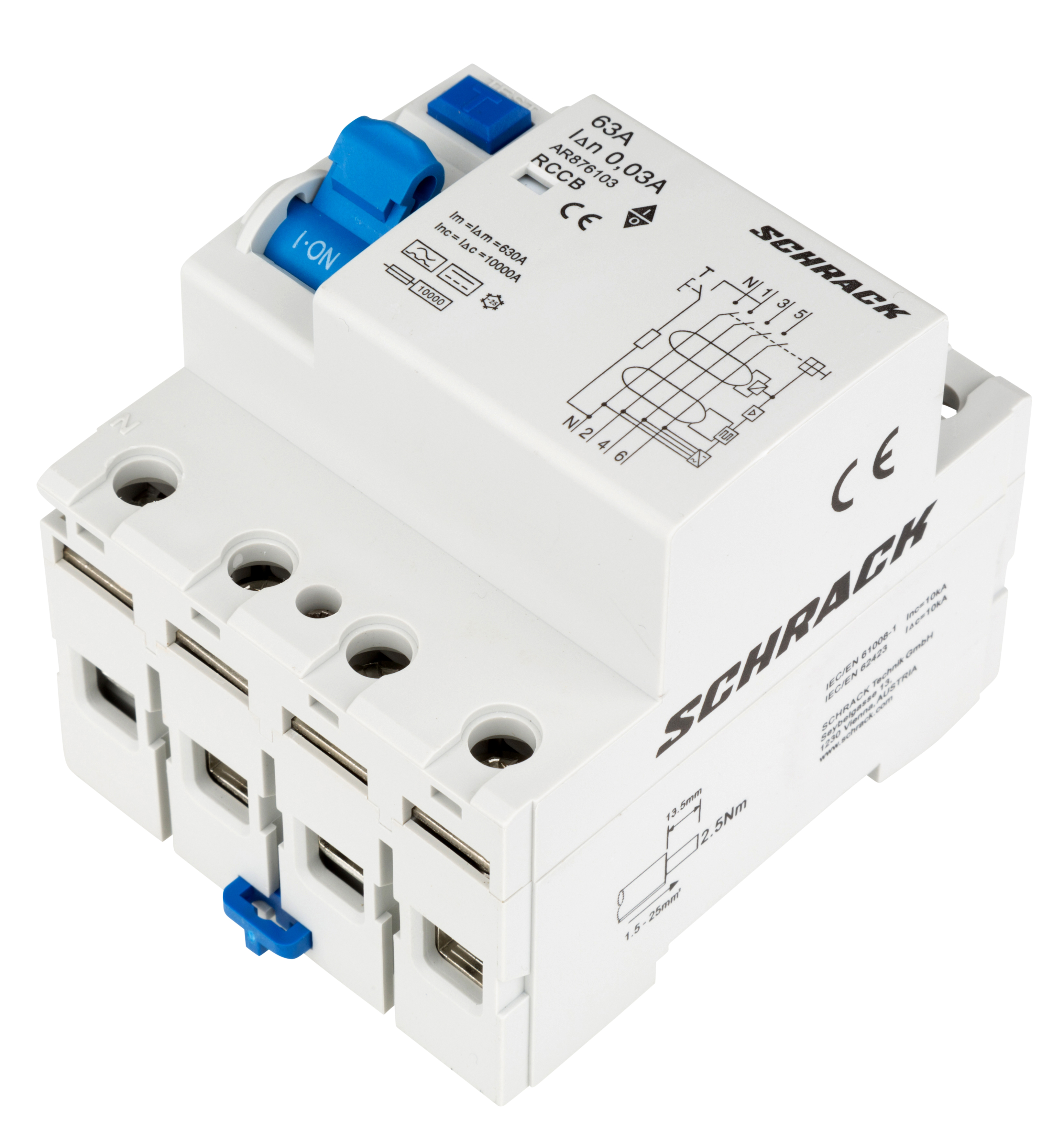

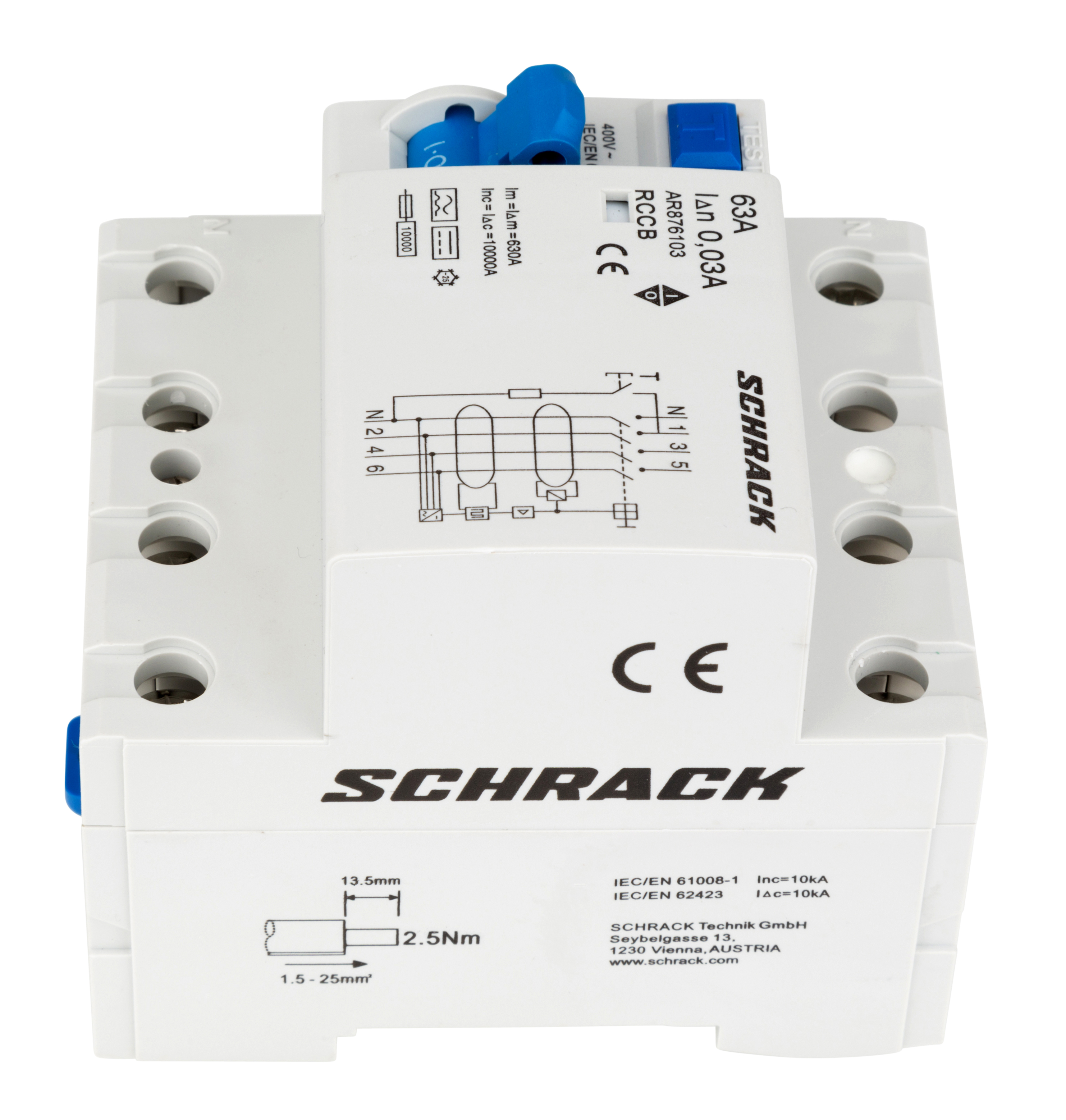

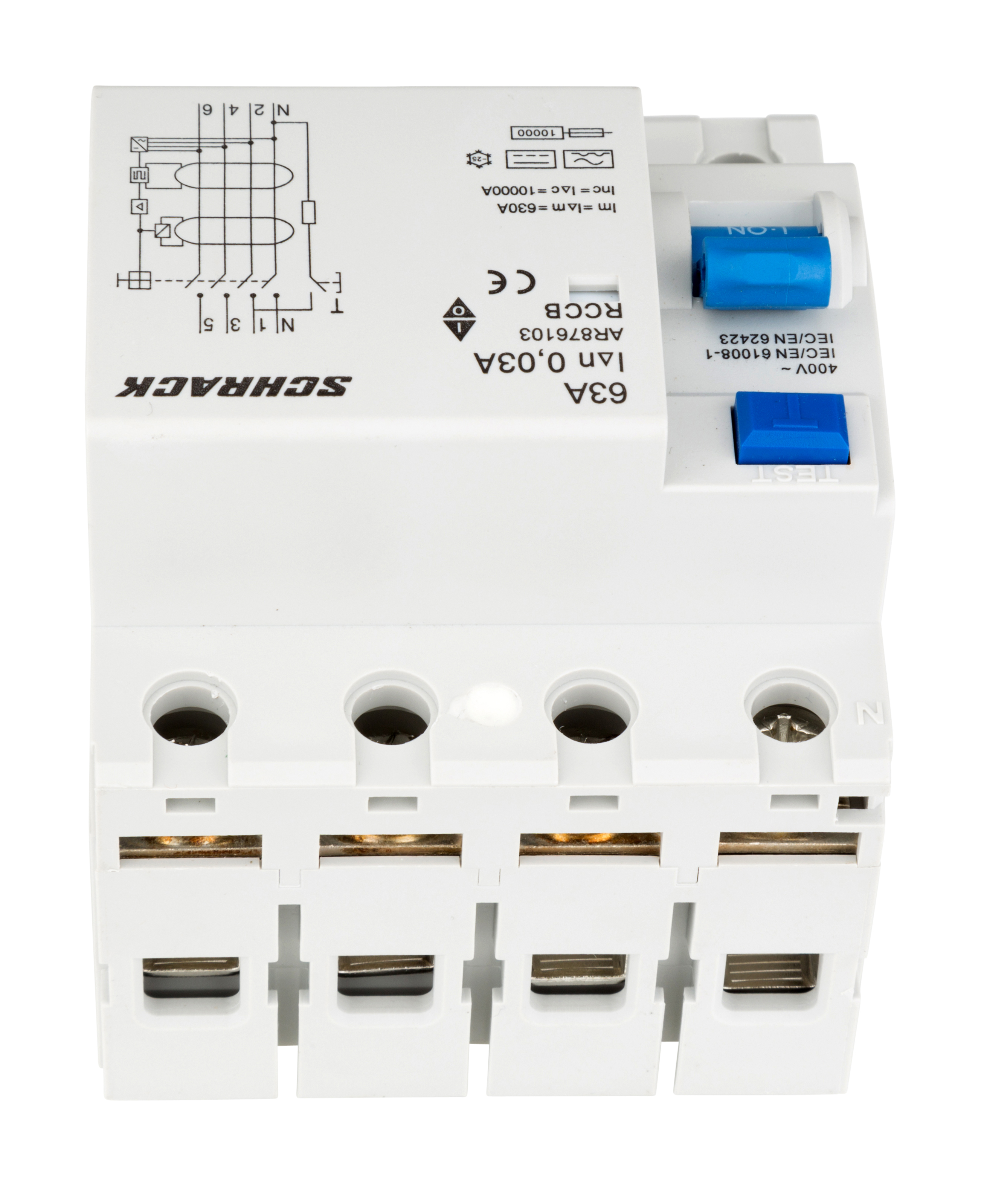

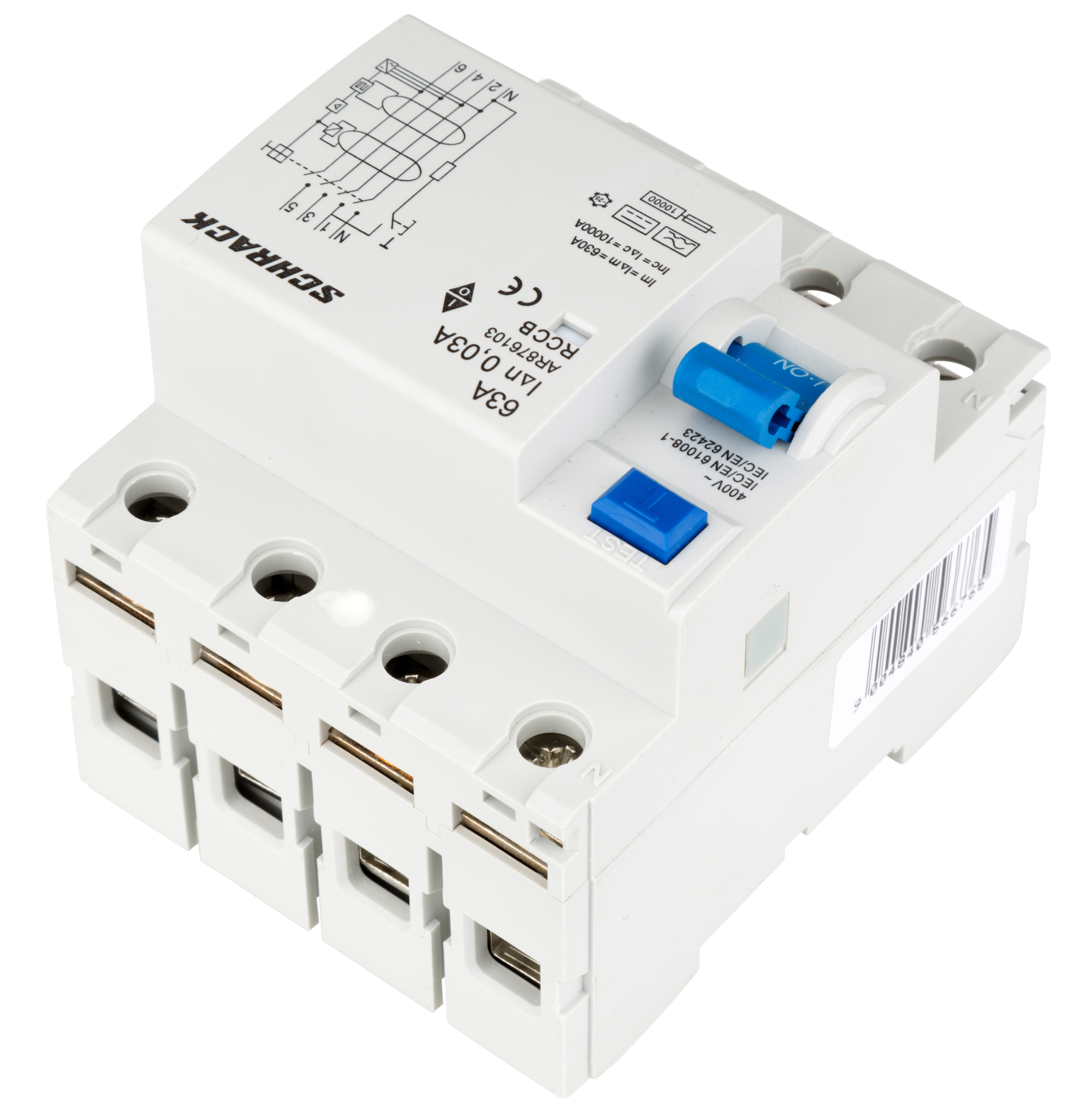

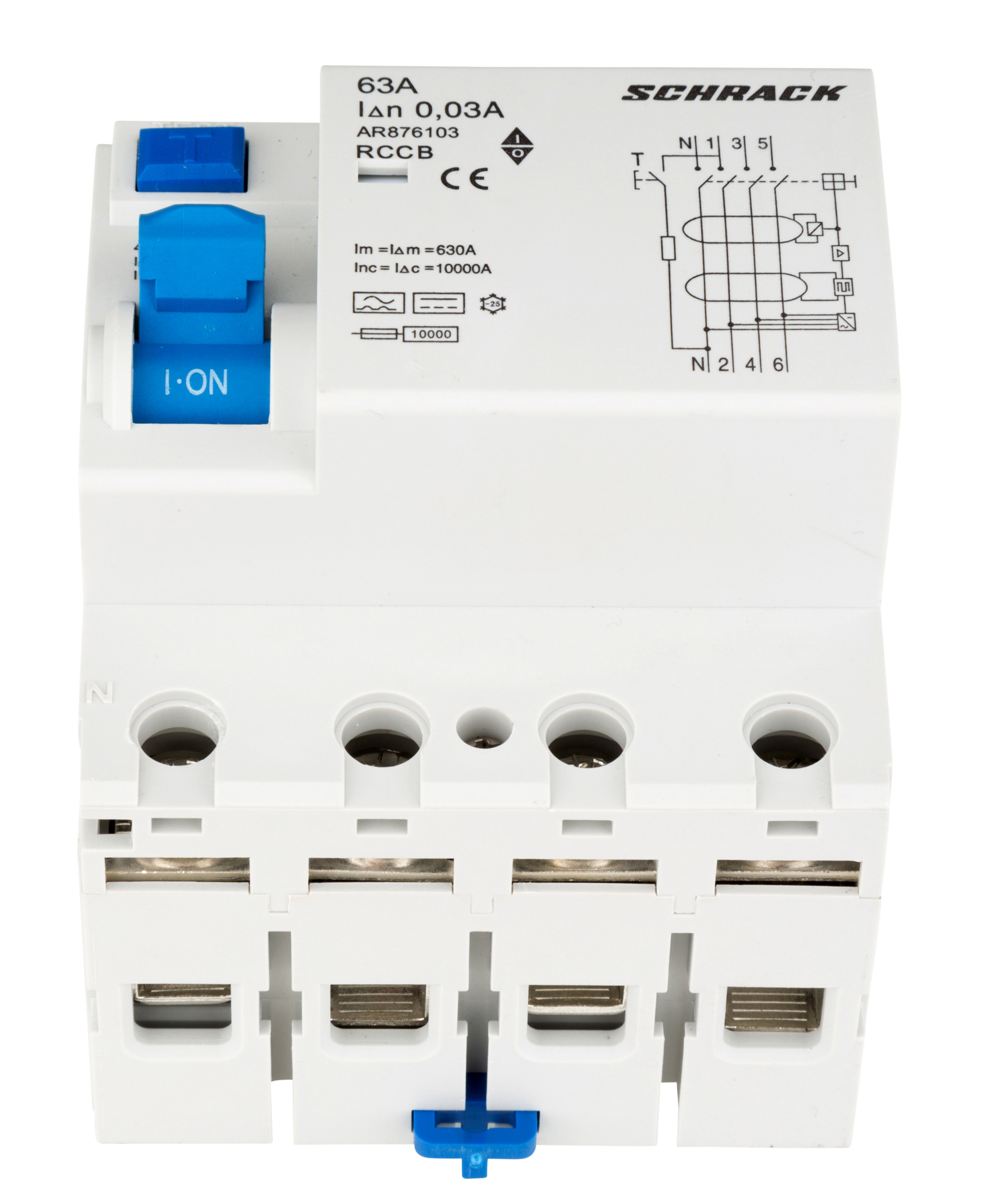

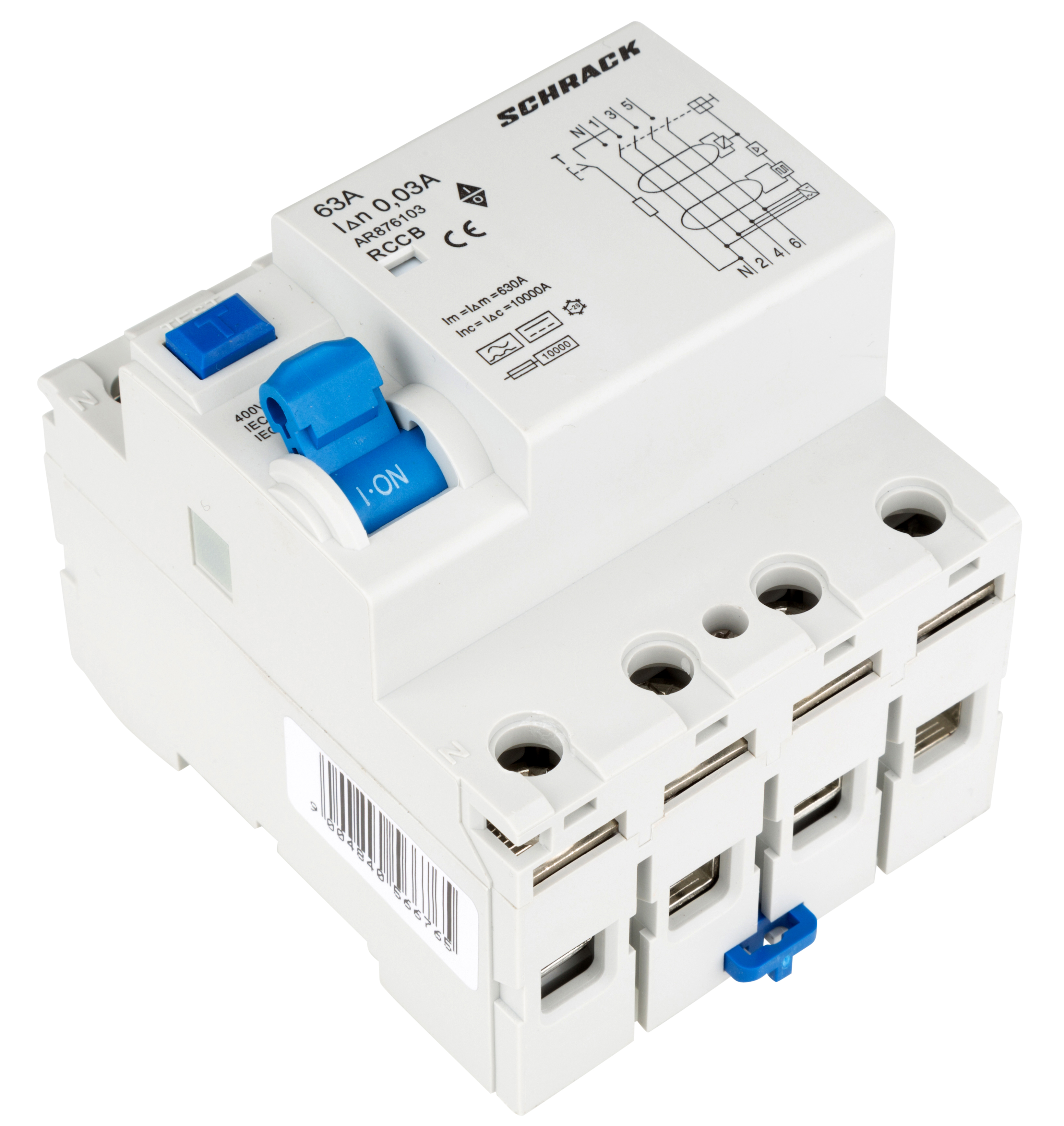

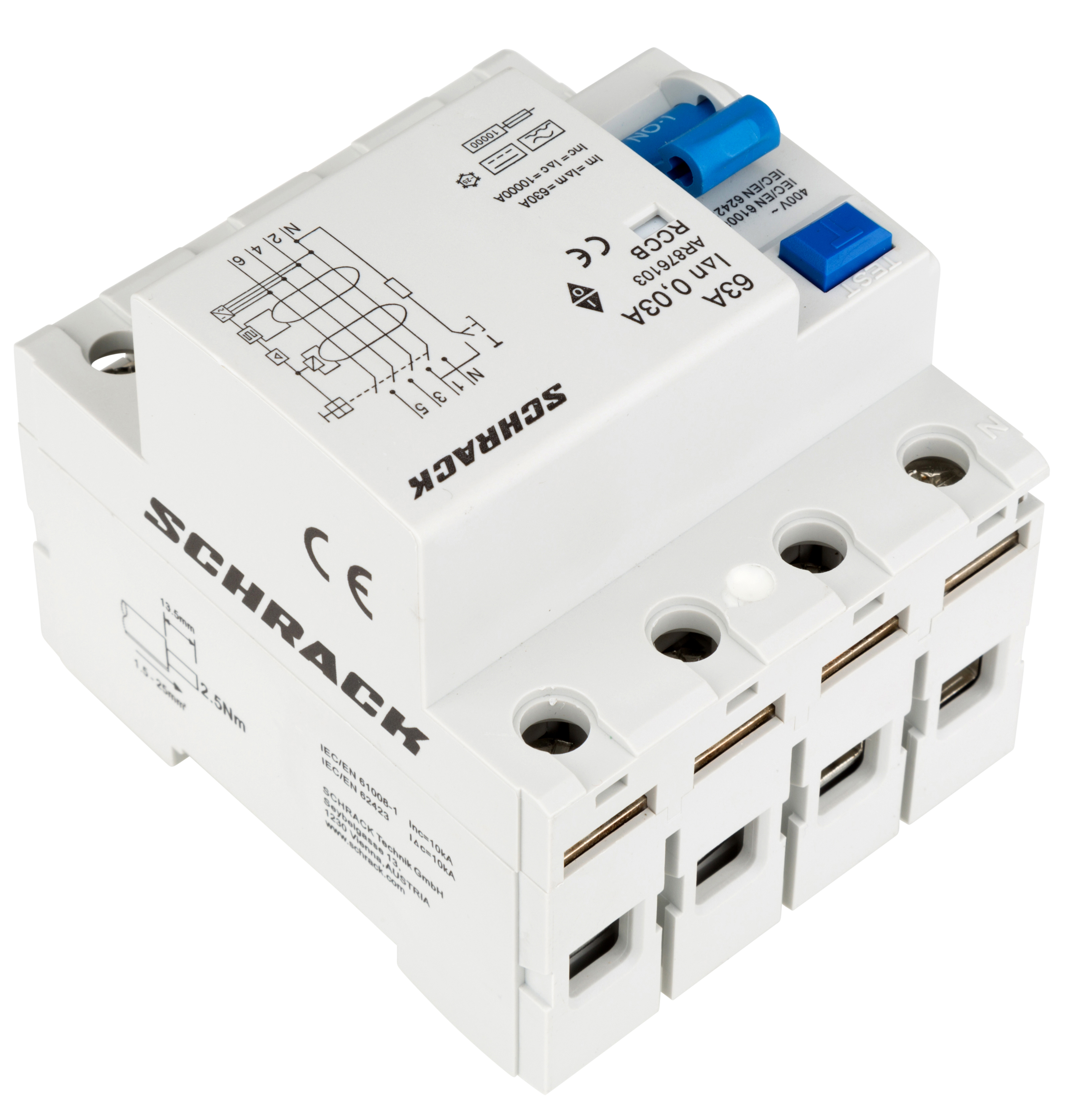

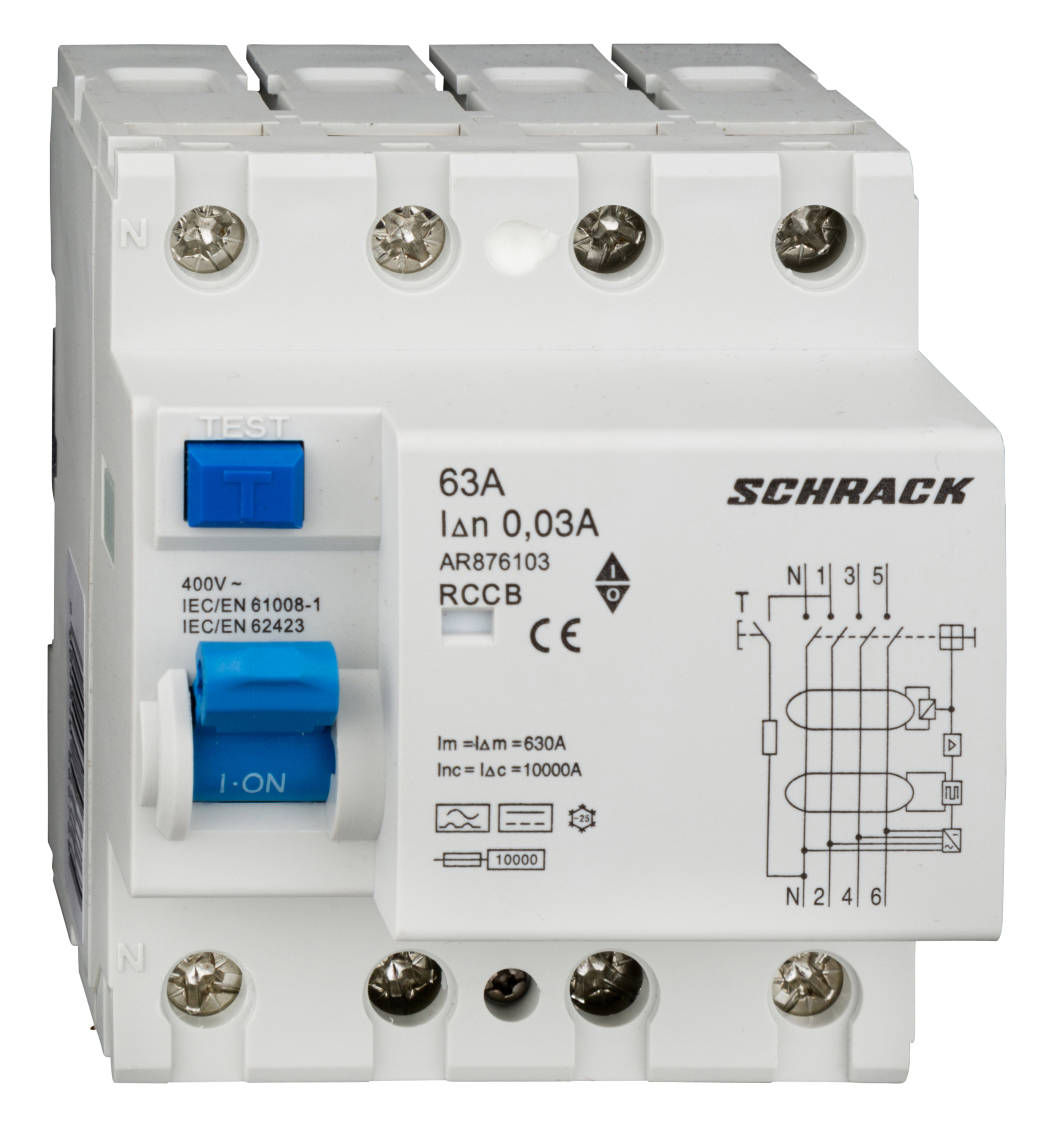

RCD 63A/4, 10kA, 30mA, Type B

Residual Current Device (RCD) of the AMPARO series from Schrack is designed to protect electrical circuits from electric shock and earth leakage currents.

Main Technical Characteristics:

• Rated Current: 63A
• Rated Differential Current (IΔn): 30mA
• Breaking Capacity: 10kA
• Type: B (sensitive to alternating, direct and pulsating currents)
• Operating Time: instantaneous
• Number of Poles: N+3 (four-pole)
• Standards Compliance: EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017; EN 61008-2-1:1994 + A11:1998; EN 62423:2012

Operating Parameters:

• Operating temperature range: from -25°C to +60°C
• Power loss at rated mode: 31,97W
• Net weight: 0,37kg
• Overall dimensions: 49,50 × 72,00 × 84,00mm
• EAN code: 9004840566765

Supply and Packaging: supplied in packaging of 1 unit or cardboard box of 45 units.

The RCD is intended for installation in distribution boards and mounting panels of standard DIN-rail width.
