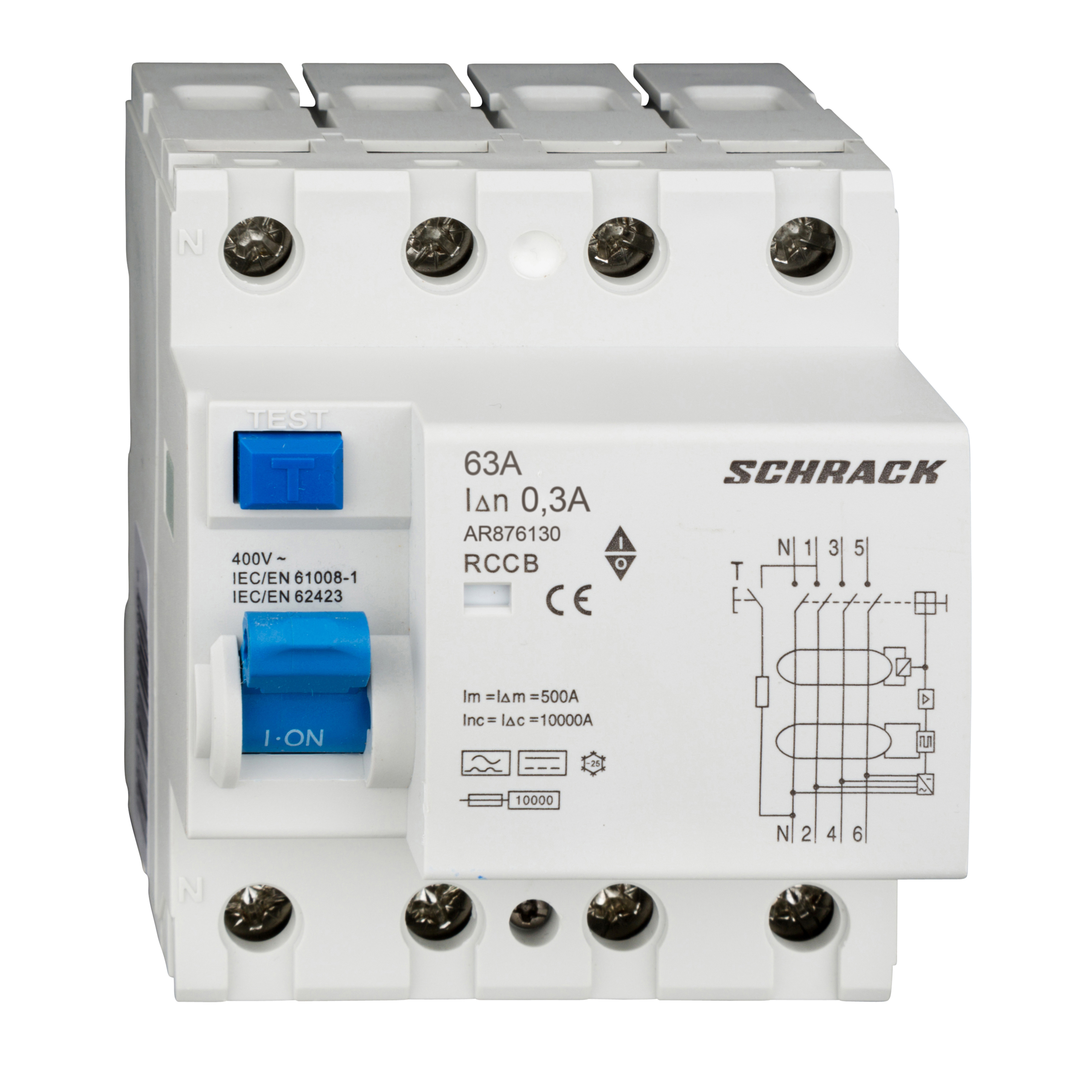

RCD 63A/4, 10kA, 300mA, Type B — four-pole differential residual current circuit breaker of the AMPARO series manufactured by Schrack for protection against electric shock and leakage currents to earth.
Main technical parameters:
- Rated current: 63 A
- Tripping current (IΔn): 300 mA
- Breaking capacity: 10 kA
- Type: B (instantaneous) — responds to all types of differential currents (alternating, direct, pulsating)
- Pole configuration: N+3 (four-pole)
- Sensitivity: 300 mA
Operating parameters:
- Operating temperature range: −25 °C to +60 °C
- Power loss: 31.97 W
- Dimensions: 72 × 84 × 49.5 mm
- Mass: 0.37 kg
Standards compliance:
The RCD is certified according to EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, EN 62423:2012.
Application:
Intended for installation in distribution boards and electrical supply systems of industrial and commercial facilities. Provides selective protection of circuits from leakage differential currents. Compatible with standard DIN-rails.
EAN: 9004840876352
| EAN code | 9004840876352 |
|---|---|
| Length net | 49.50 mm |
| Width net | 72.00 mm |
| Height net | 84.00 mm |
| Weight net | 0.37 kg |
| Power loss | 31.97 W |
| Minimum ambient temperature | -25 °C |
| Maximum ambient temperature | 60 °C |
| Type | B (sensitive to any current) |
| Type | instantaneous |
| Rated current | 63 A |
| Tripping current | 300 mA |
| Rated sensitivity IΔn | 300 mA |
| Pole | N+3 |
| Breaking capacity | 10 kA |
| Standard | EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, EN 62423:2012 |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 pc., 45 pc. |
