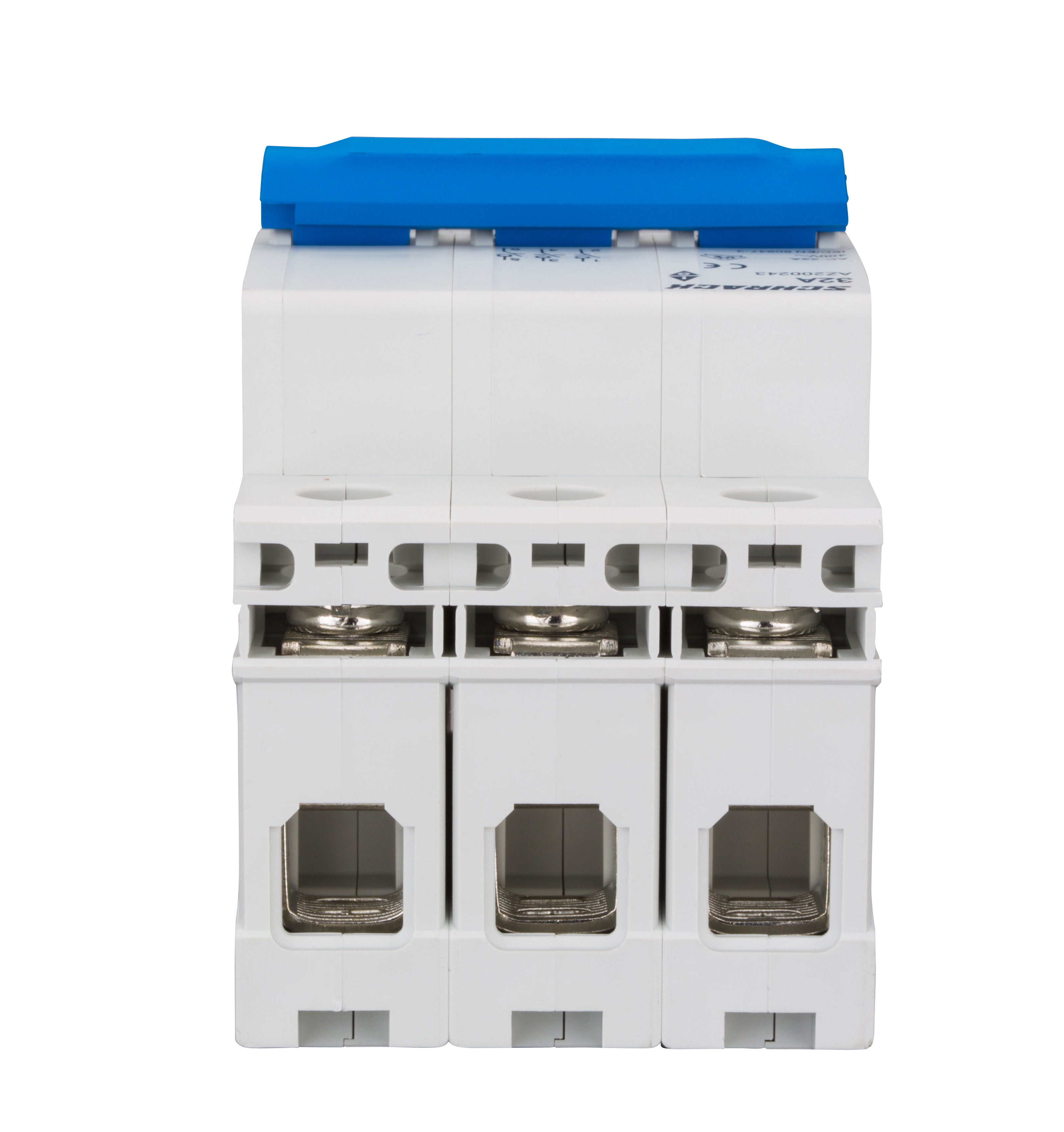

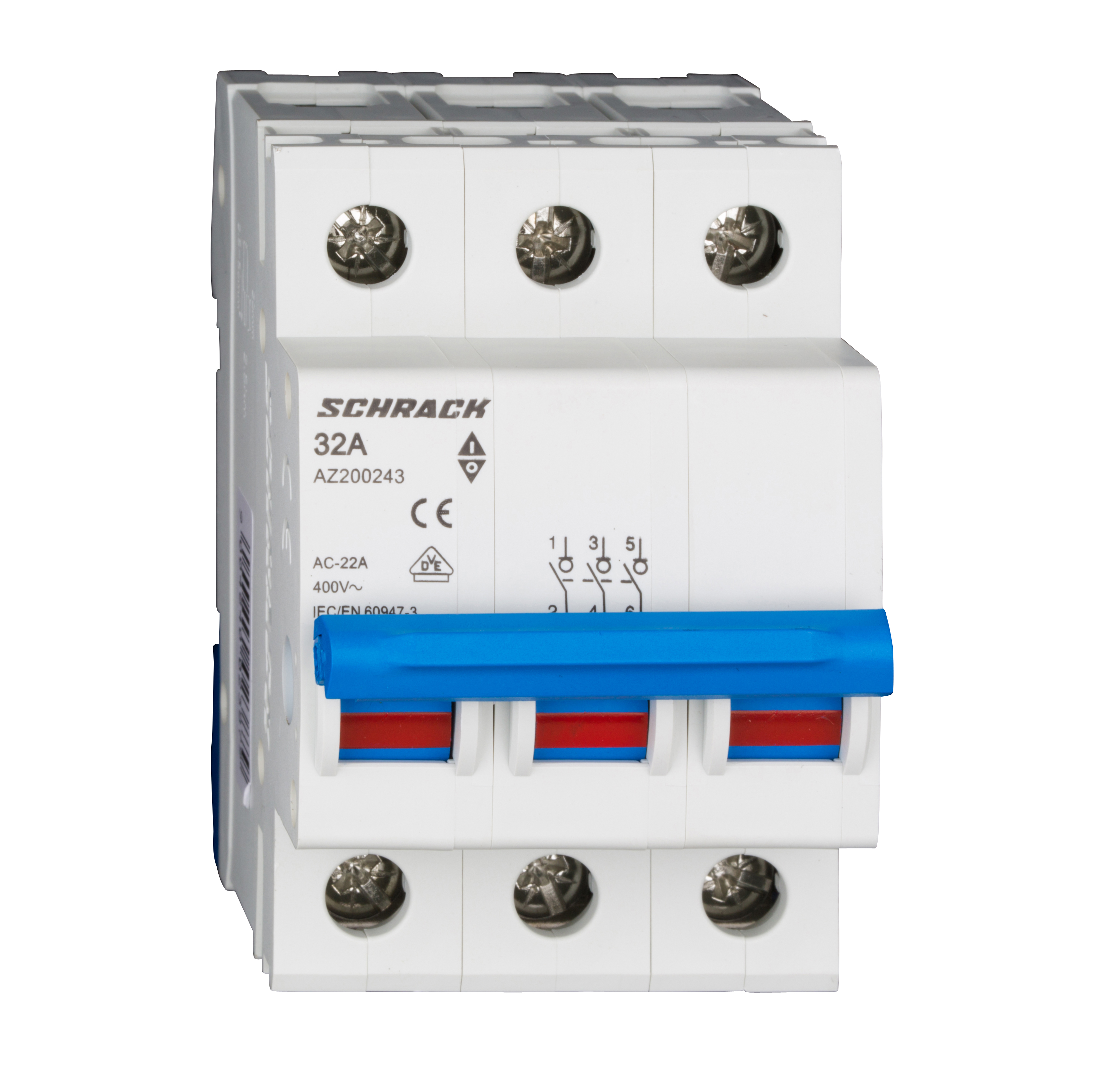

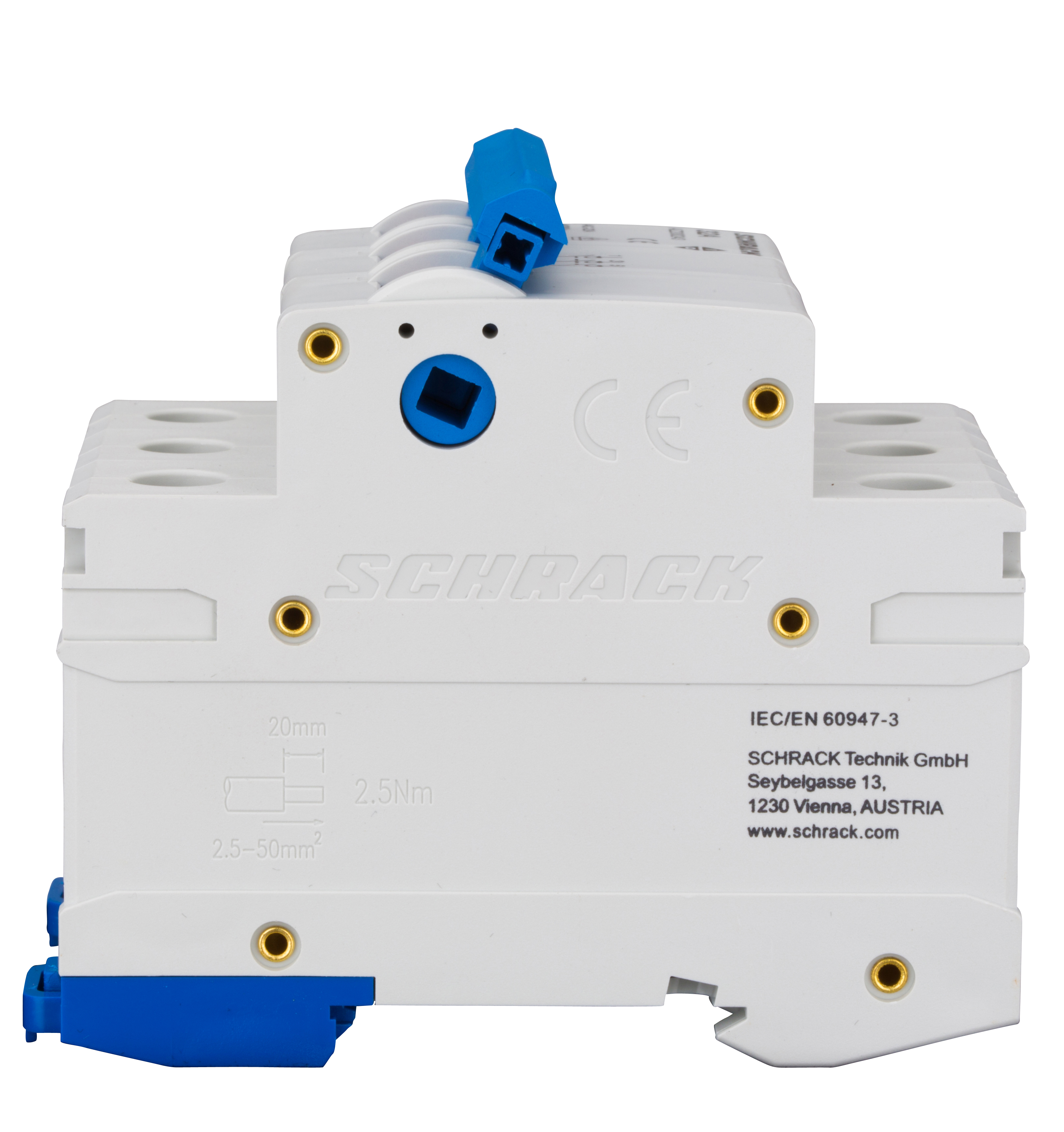

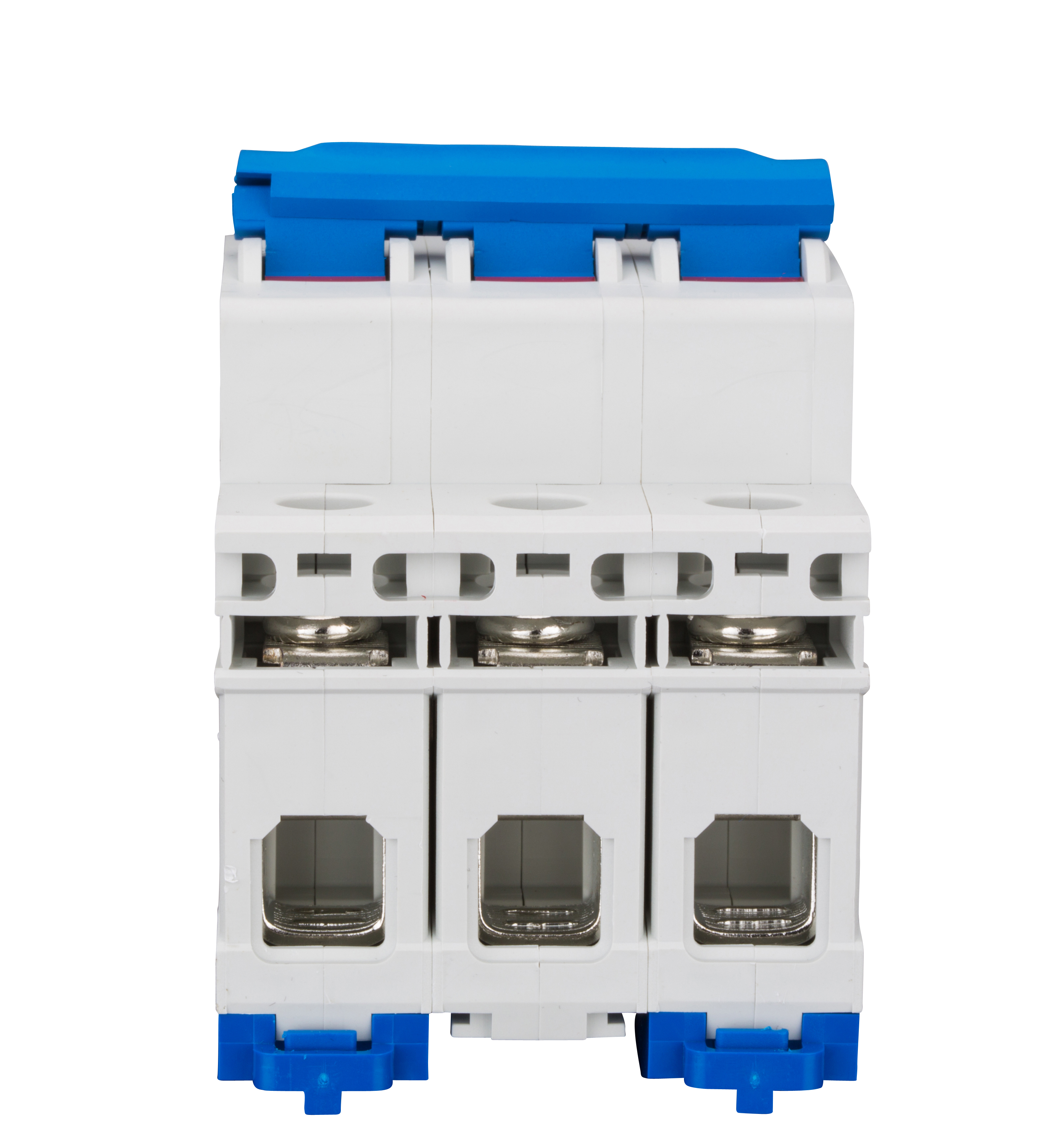

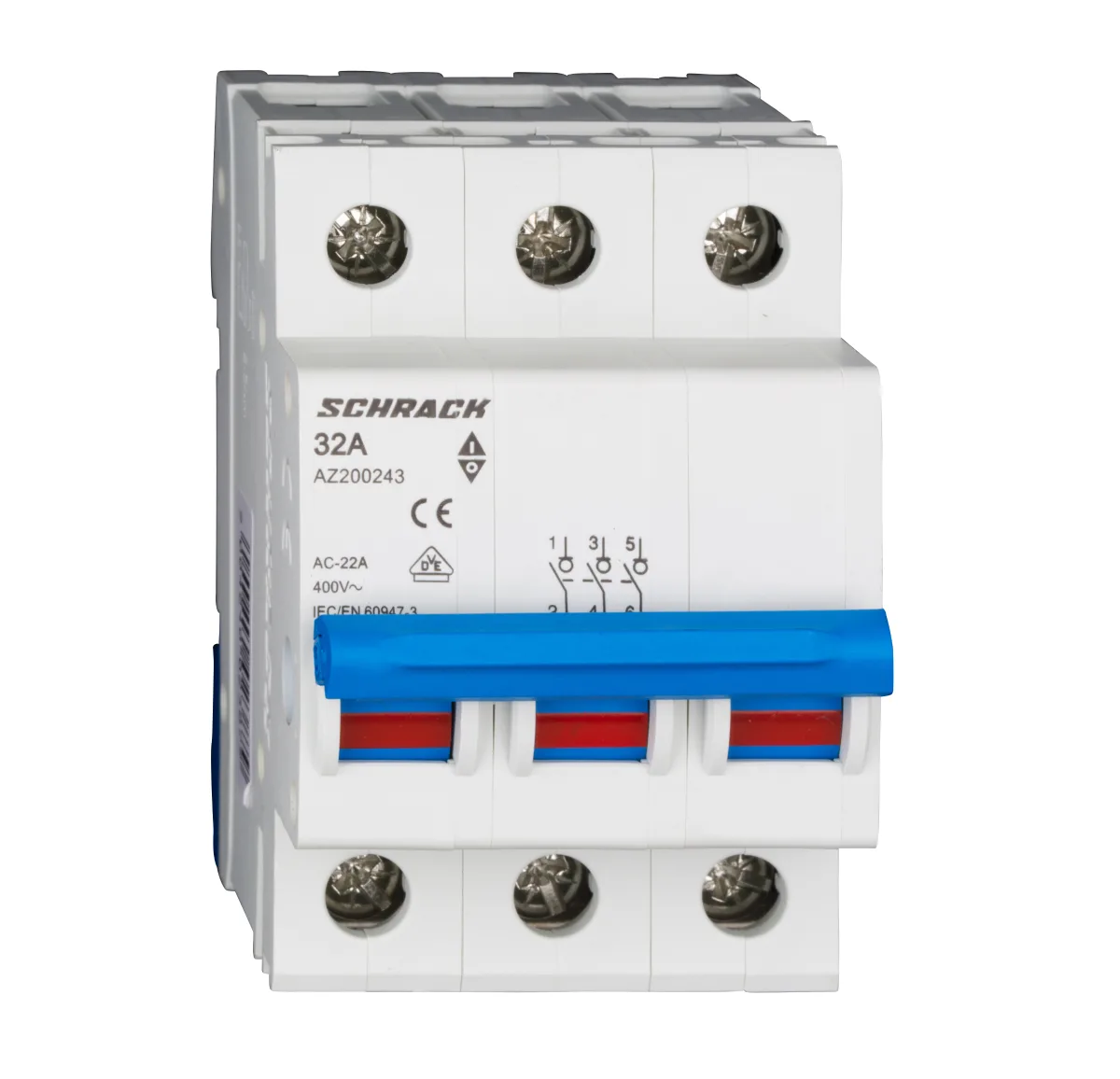

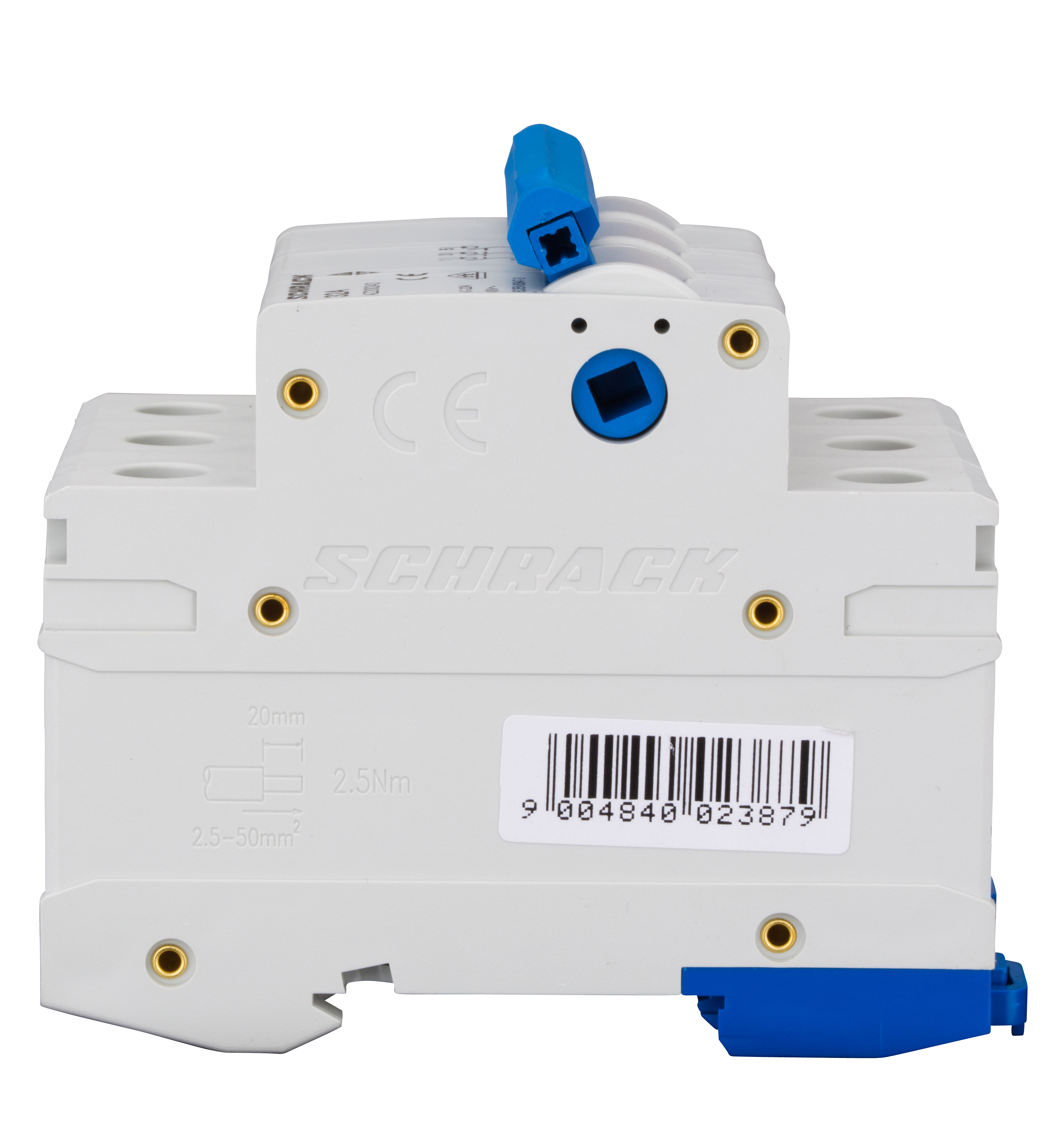

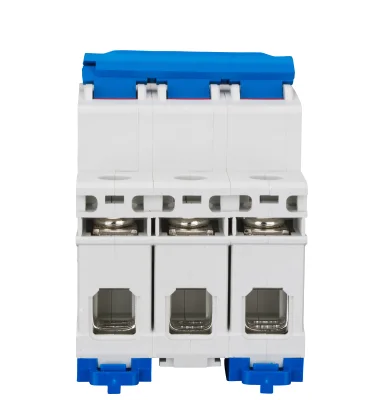

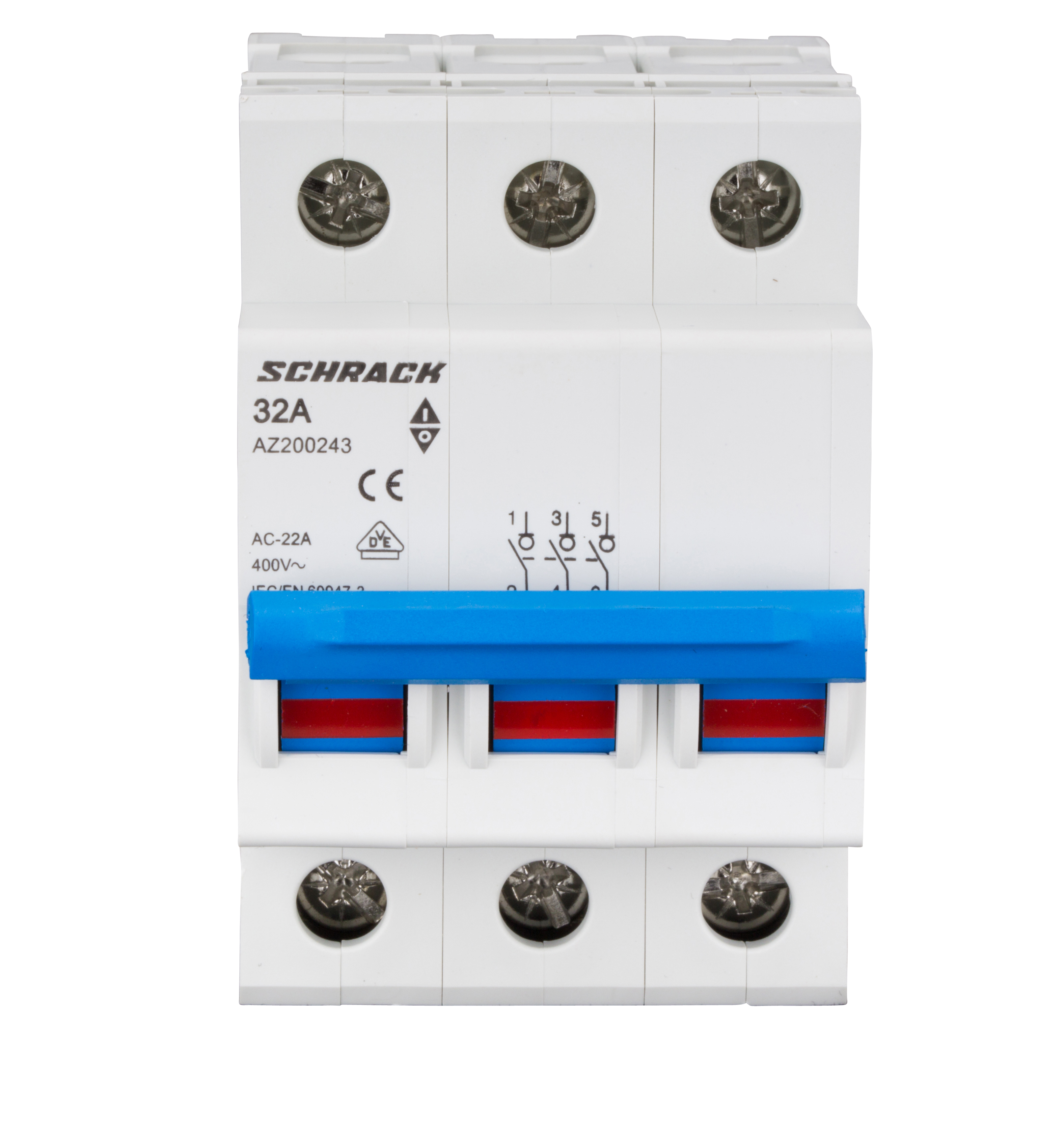

Load Disconnector Switch 32A/3
1 / 6
Load Disconnector Switch 32A/3Load Disconnector Switch 32A/3Load Disconnector Switch 32A/3Load Disconnector Switch 32A/3Load Disconnector Switch 32A/3Load Disconnector Switch 32A/3

Load Disconnector Switch 32A/3

Article: AZ200243--

Выключатели нагрузки, разъеденители

6 955 ₸

In stock
WhatsAppTelegram

A load disconnector switch designed for controlling and safely disconnecting electrical circuits. The device provides reliable load disconnection under normal network operating conditions.

Main Parameters:

  • Rated Current: 32A
  • Number of Poles: 3
  • Type of Execution: Isolator/Main Load Disconnector
  • Operating Temperature Range: -25°C to +55°C
  • Power Loss at Rated Current: 9W

Dimensional Data:

  • Length: 75mm
  • Width: 54mm
  • Height: 77mm
  • Weight: 0.25kg

Technical Characteristics:

The disconnector switch belongs to the AMPARO series by Schrack and is designed for use in electrical distribution systems and control panels. The construction ensures reliable contact and durability across a wide range of ambient temperature conditions.

Packaging Options: 1 pc., 4 pc., 60 pc.

EAN Code9004840023879
Length (Net)75.00mm
Width (Net)54.00mm
Height (Net)77.00mm
Weight (Net)0.25kg
Power Loss9.00W
Min. Ambient Temperature-25°C
Max. Ambient Temperature55°C
Execution TypeIsolator Main Load Disconnector
Poles3
SeriesAMPARO
Rated Current32A
ManufacturerSchrack
Packaging1 pc., 4 pc., 60 pc.
