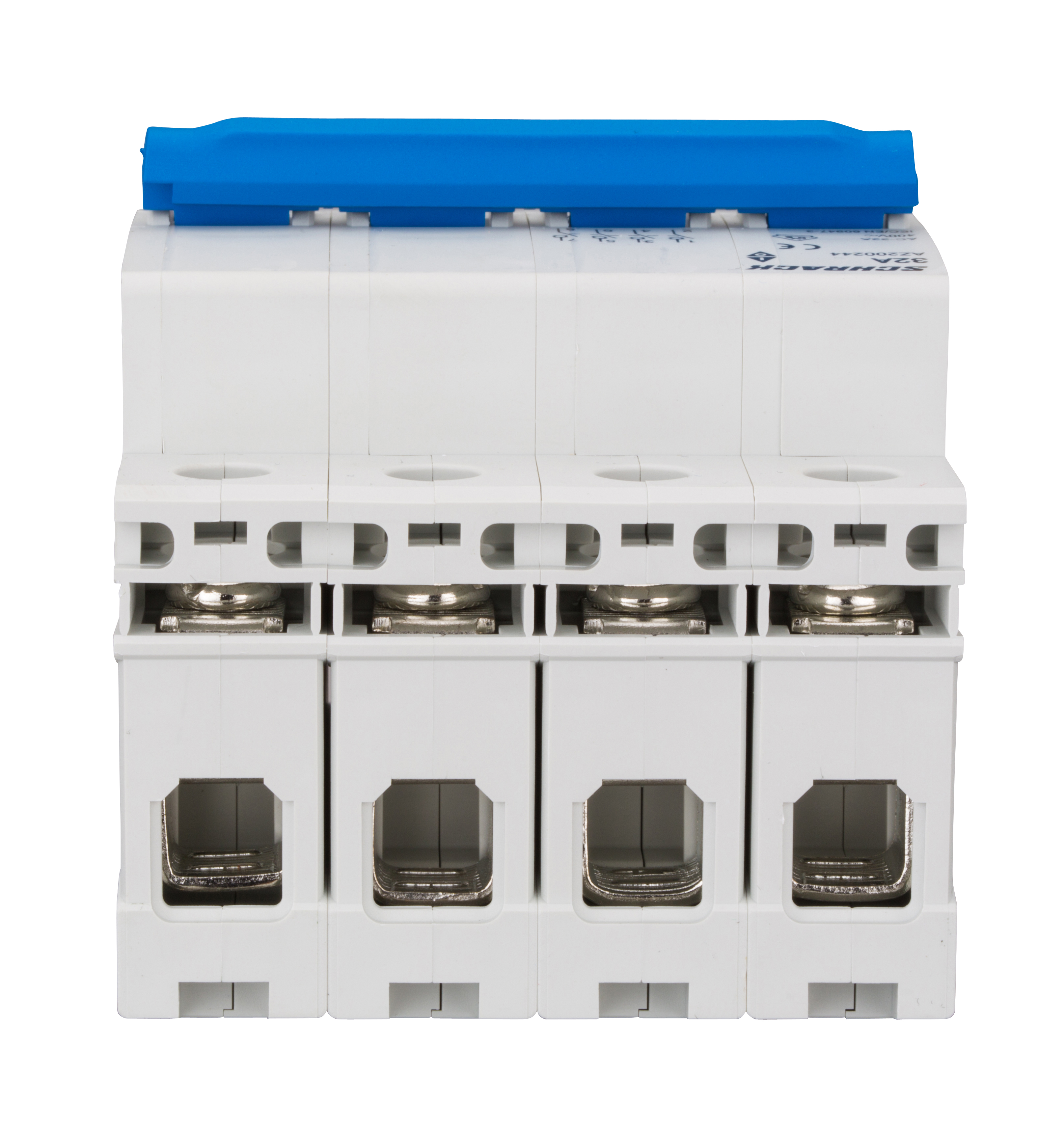

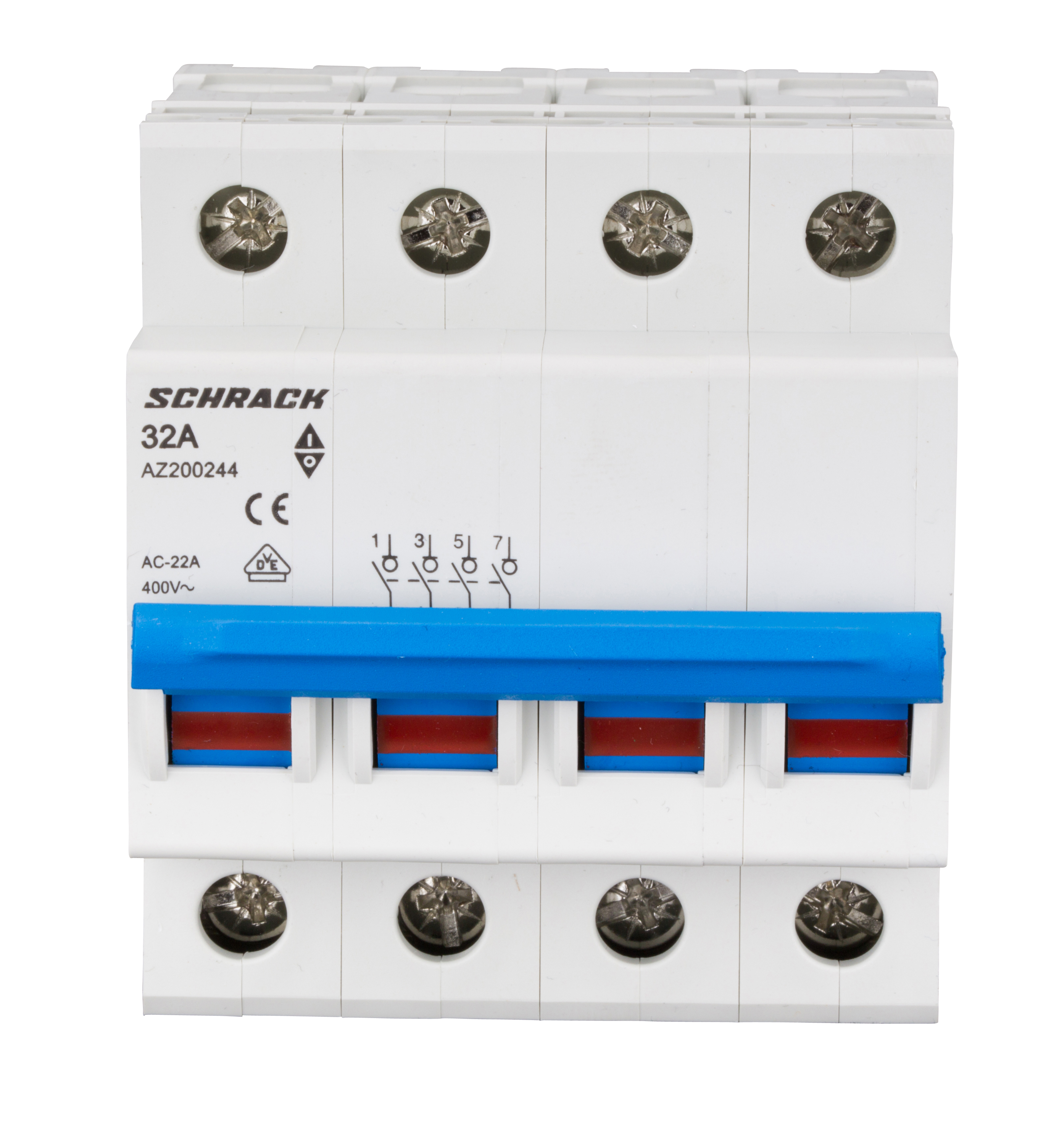

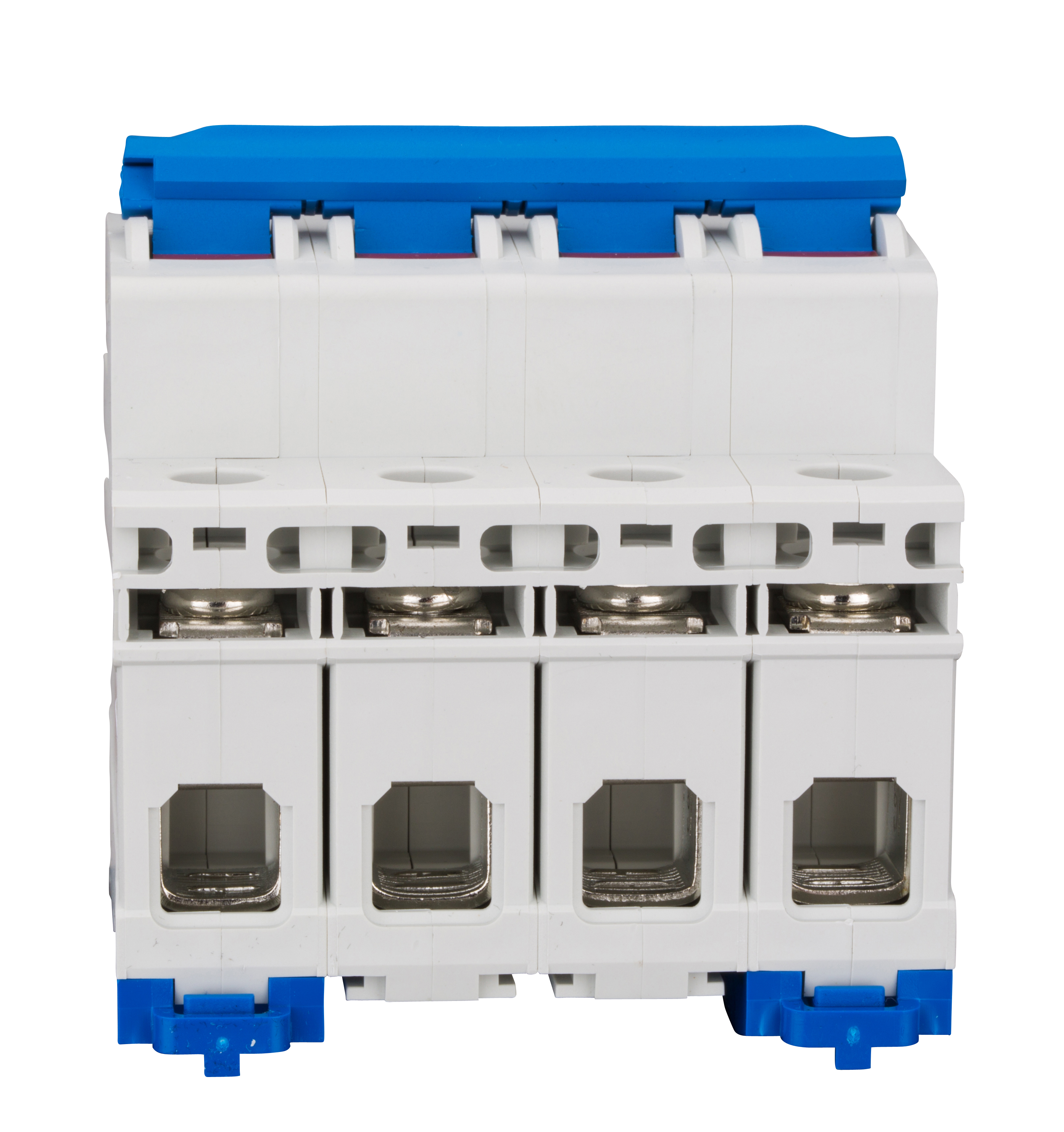

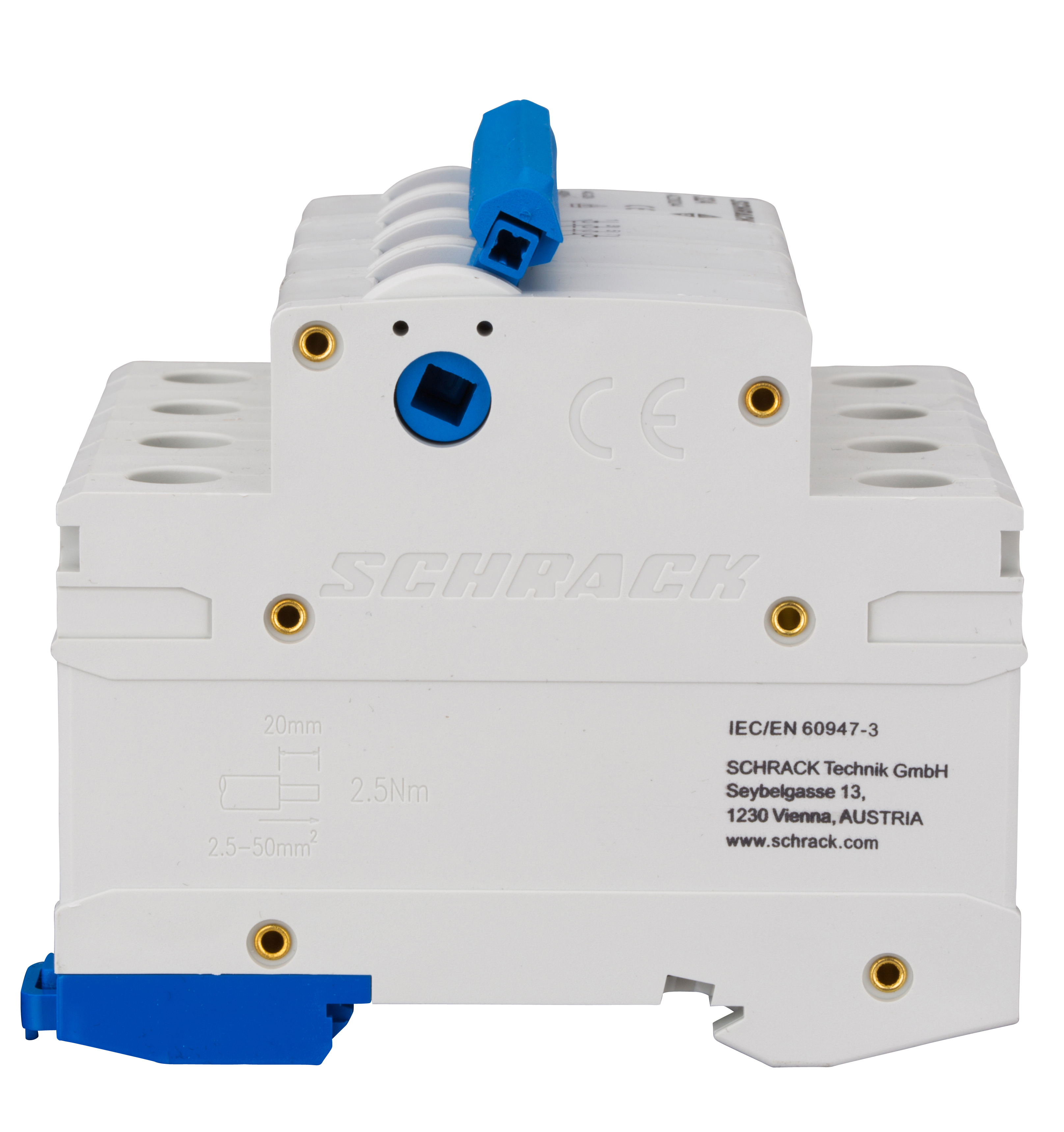

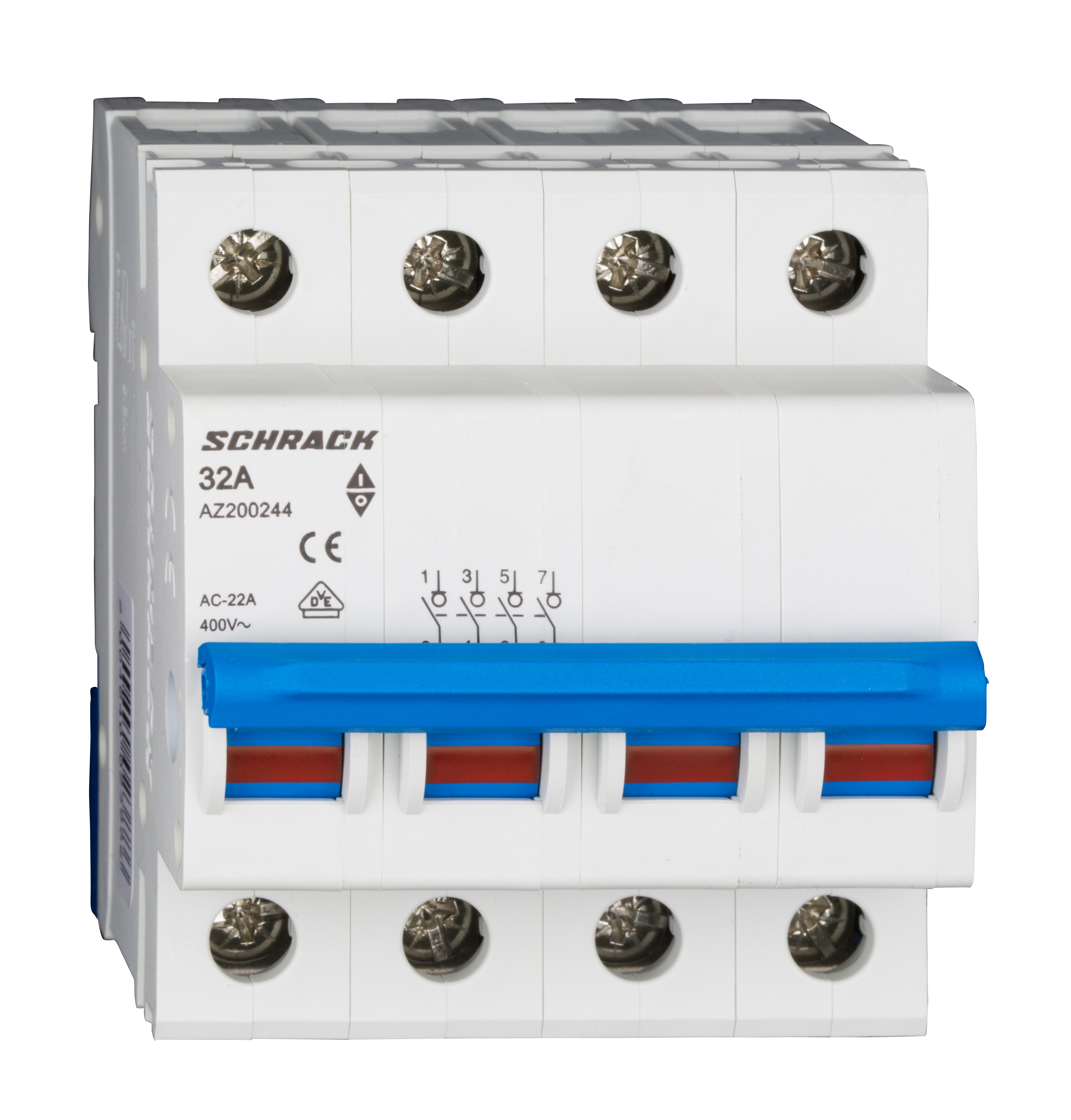

Four-pole load switch with rated current 32 A from Schrack's AMPARO series. Designed for switching and disconnection of electrical circuits under normal operating conditions.
Constructive Features:
- Design: isolating disconnector for main load
- Number of poles: 4
- Rated current: 32 A
- Protection degree IP20
Electrical Characteristics:
- Power loss at rated current: 12 W
- Rated voltage: according to AMPARO series standards
Environmental Parameters:
- Operating temperature range: from -25°C to +55°C
- Humidity: according to IEC 61439
Physical Dimensions and Weight:
- Length: 75 mm
- Width: 72 mm
- Height: 77 mm
- Mass: 0.35 kg
Supply Options: 1 pcs., 3 pcs., 45 pcs.
This switch is used in distribution panels and distribution devices for load control and to ensure safe disconnection during equipment maintenance.
| EAN Code | 9004840023886 |
|---|---|
| Net Length | 75.00 mm |
| Net Width | 72.00 mm |
| Net Height | 77.00 mm |
| Net Weight | 0.35 kg |
| Power Loss | 12.00 W |
| Minimum Ambient Temperature | -25°C |
| Maximum Ambient Temperature | 55°C |
| Design | Isolating Disconnector Main Load |
| Poles | 4 |
| Series | AMPARO |
| Current Rating | 32 A |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 3 pcs., 45 pcs. |
