Load disconnect switch designed for switching and disconnection of electrical circuits under load. The device belongs to the AMPARO series by manufacturer Schrack and provides reliable control of three-phase electrical systems.
Main technical parameters:
- Rated current: 63A
- Number of poles: 3
- Power loss: 21W
- Operating temperature range: -25°C to +55°C

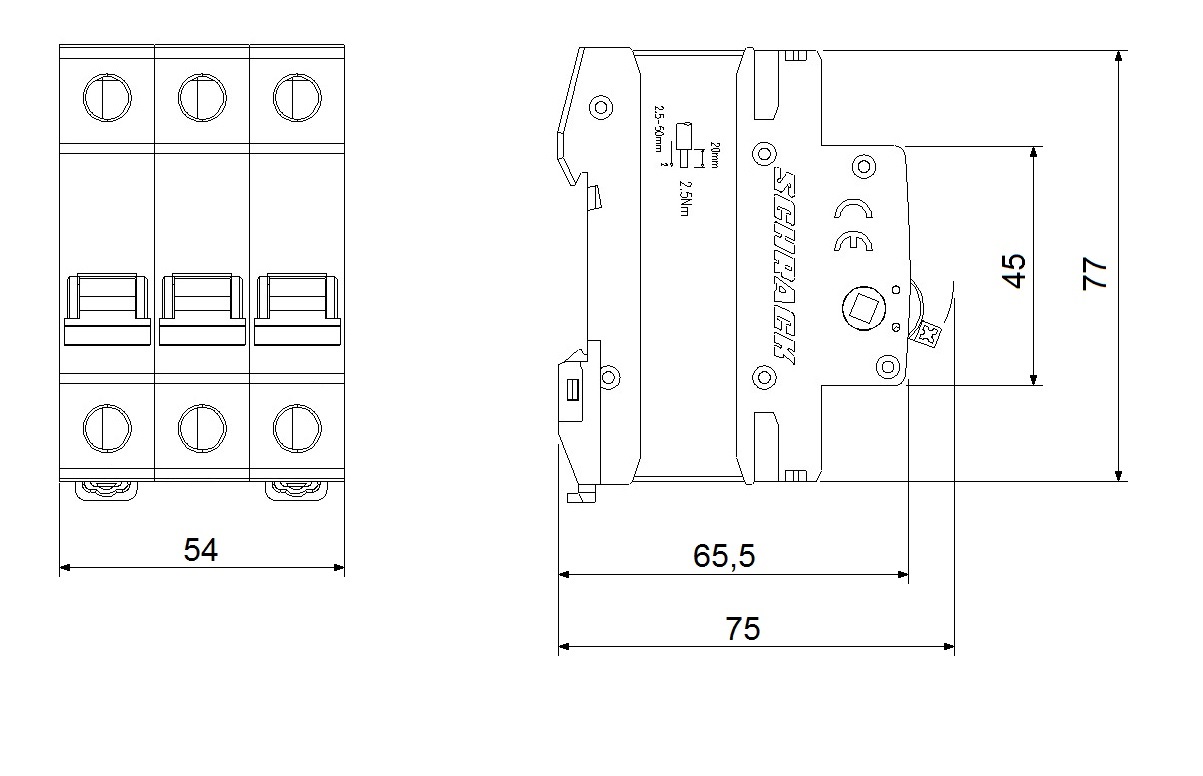

- Dimensions: 75 × 54 × 77 mm
- Weight: 0.25 kg
Design features:
The switch is executed as a main load disconnect switch with insulating construction. This ensures complete circuit disconnection and safety during maintenance of electrical equipment. Compact dimensions and light weight allow integration of the device into distribution cabinets with space optimization.
Operating conditions:
The device is rated for operation in an ambient temperature range from minus 25°C to plus 55°C, which ensures universal application both in indoor premises and in open areas in temperate and hot climate conditions.
| EAN code | 9004840023916 |
|---|---|
| Length net | 75.00 mm |
| Width net | 54.00 mm |
| Height net | 77.00 mm |
| Weight net | 0.25 kg |
| Power loss | 21.00 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 55°C |
| Design | Insulating Disconnect Main Load |
| Poles | 3 |
| Series | AMPARO |
| Current rating | 63A |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 4 pcs., 60 pcs. |

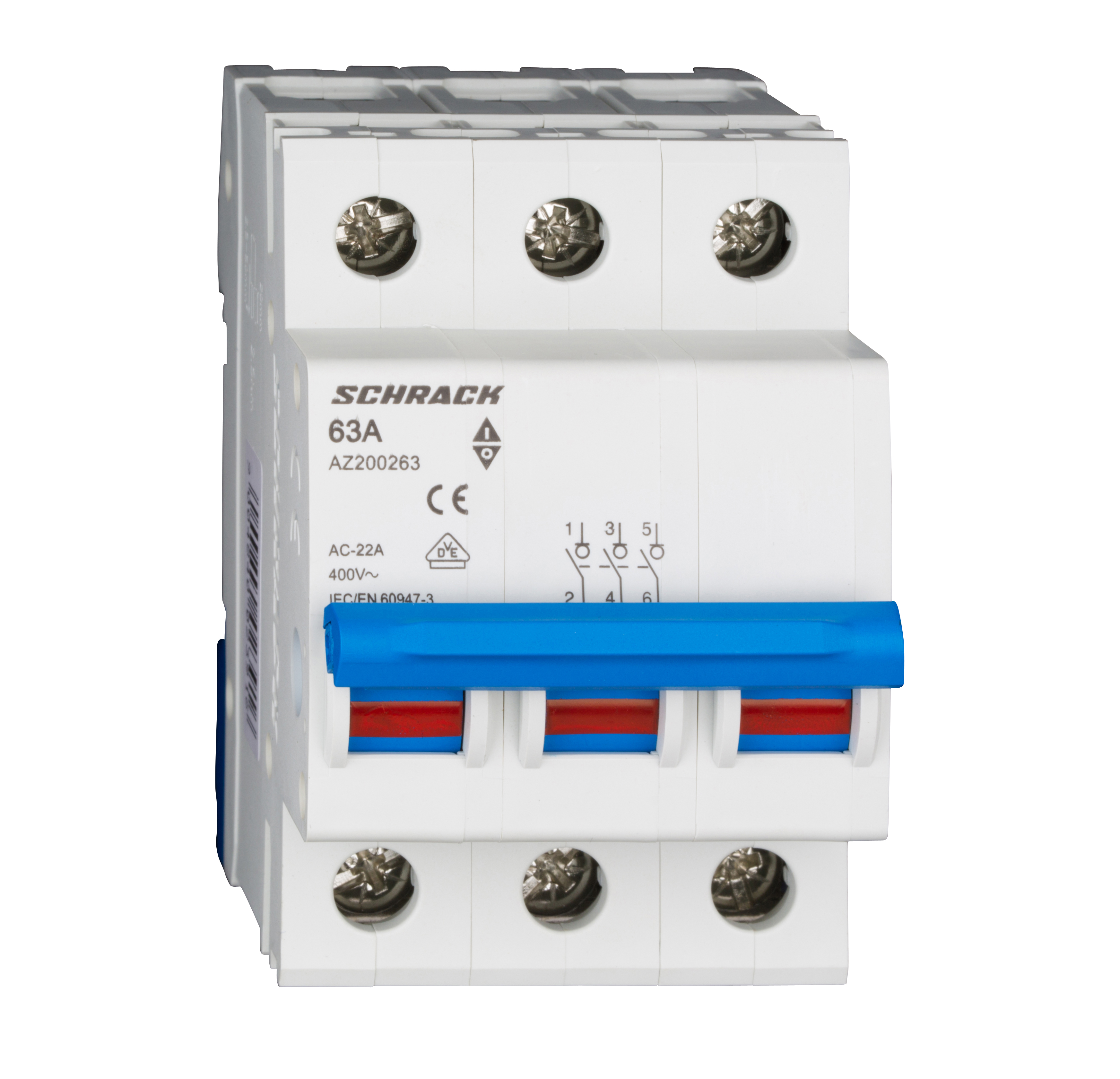

- Photo 1: Load Disconnect Switch 63A/3 (JPG, 2.3 MB)

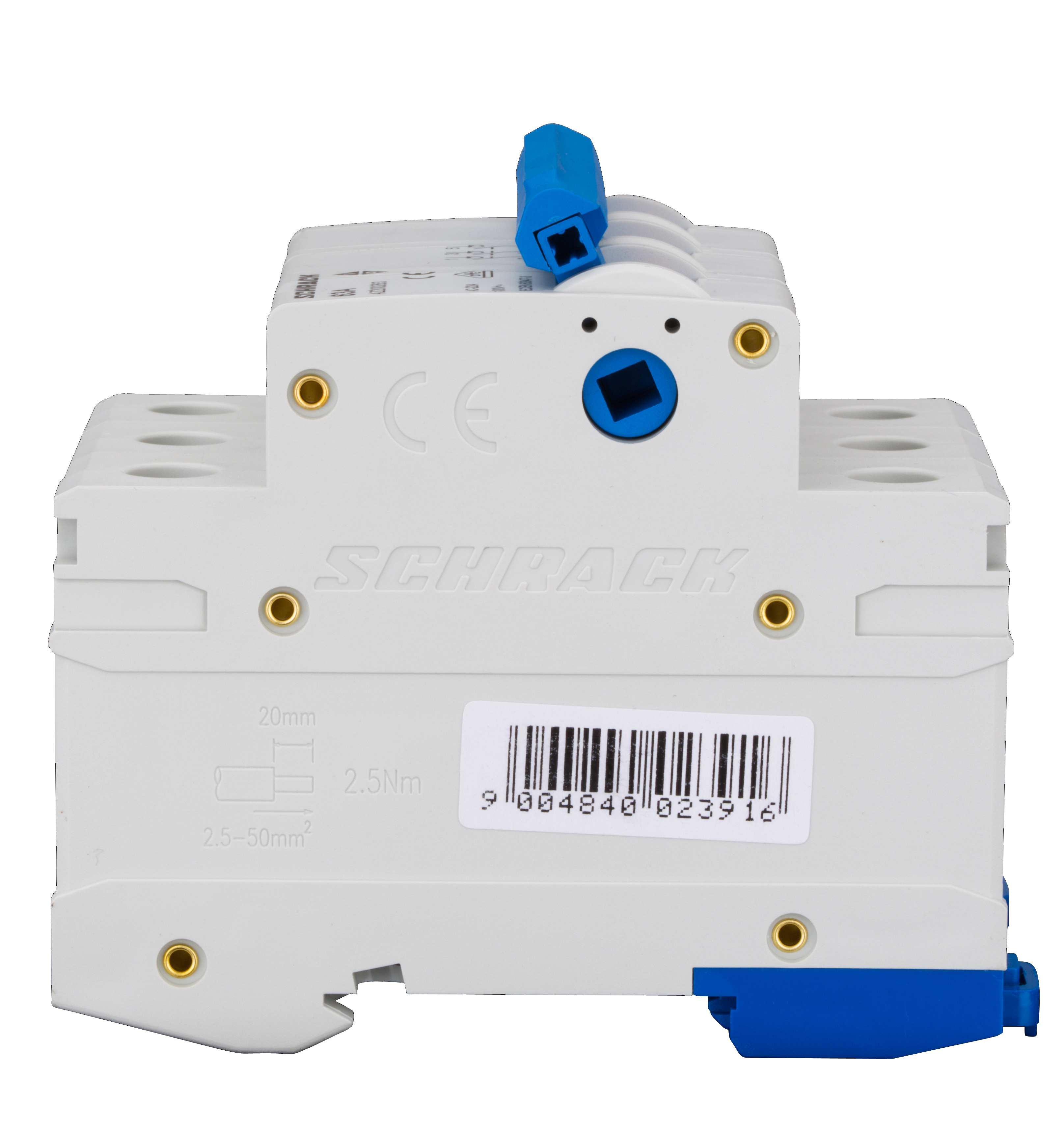

- Photo 2: Load Disconnect Switch 63A/3 (JPG, 2.4 MB)

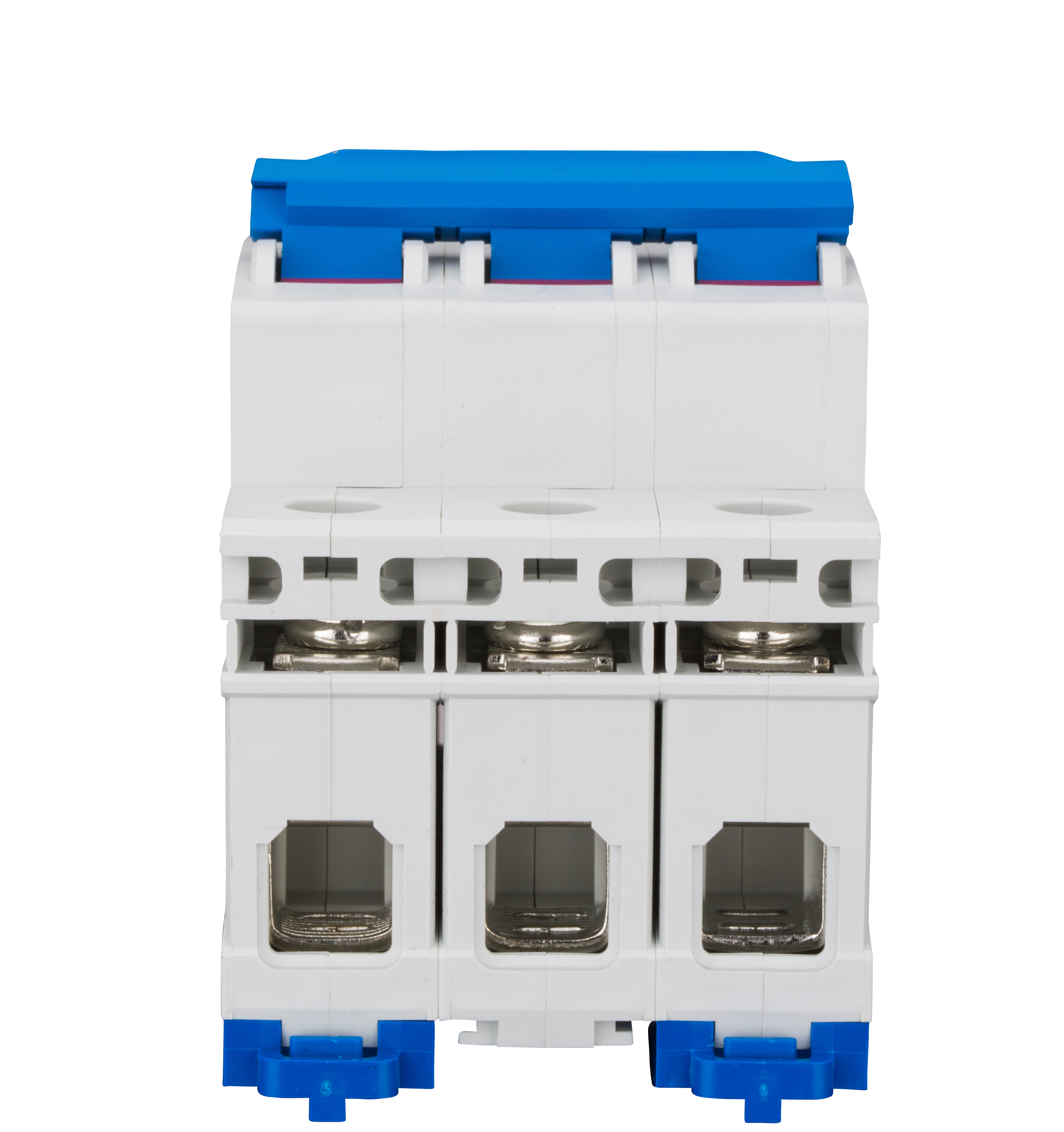

- Photo 3: Load Disconnect Switch 63A/3 (JPG, 2.6 MB)

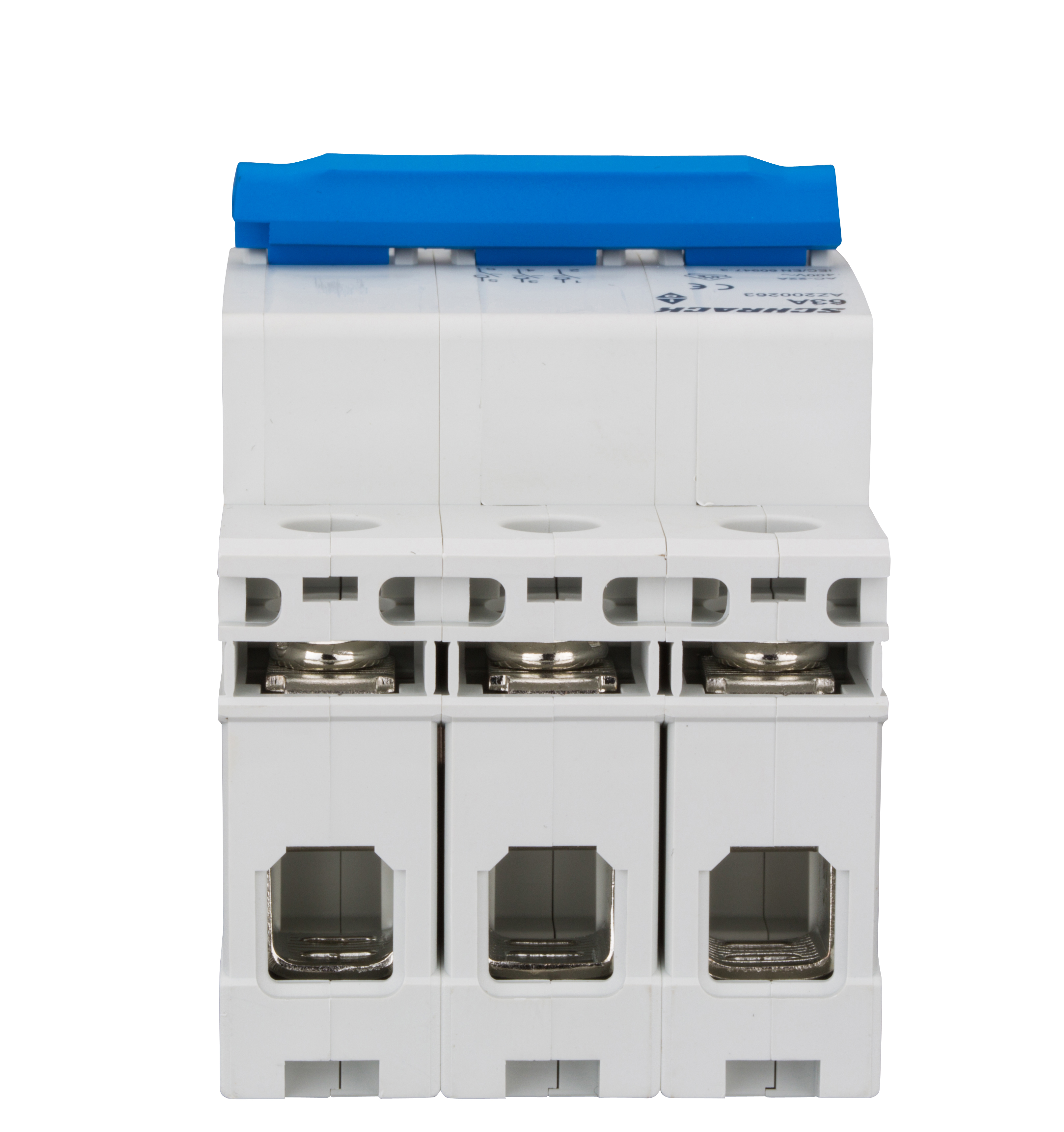

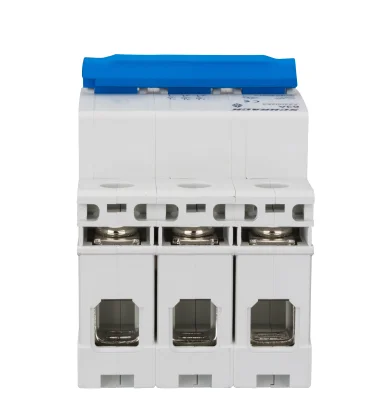

- Photo 4: Load Disconnect Switch 63A/3 (JPG, 2.4 MB)

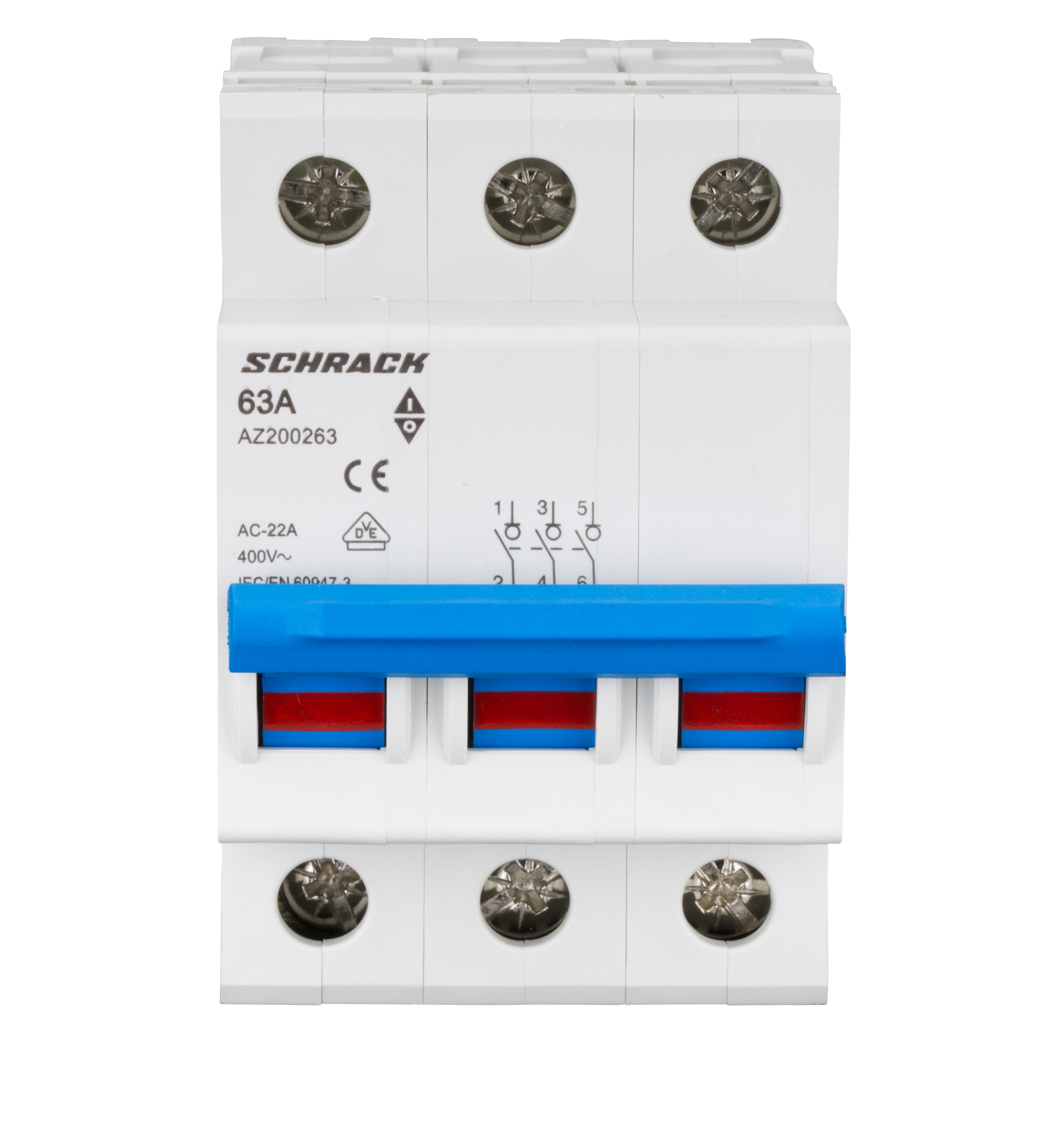

- Photo 5: Load Disconnect Switch 63A/3 (JPG, 2.8 MB)

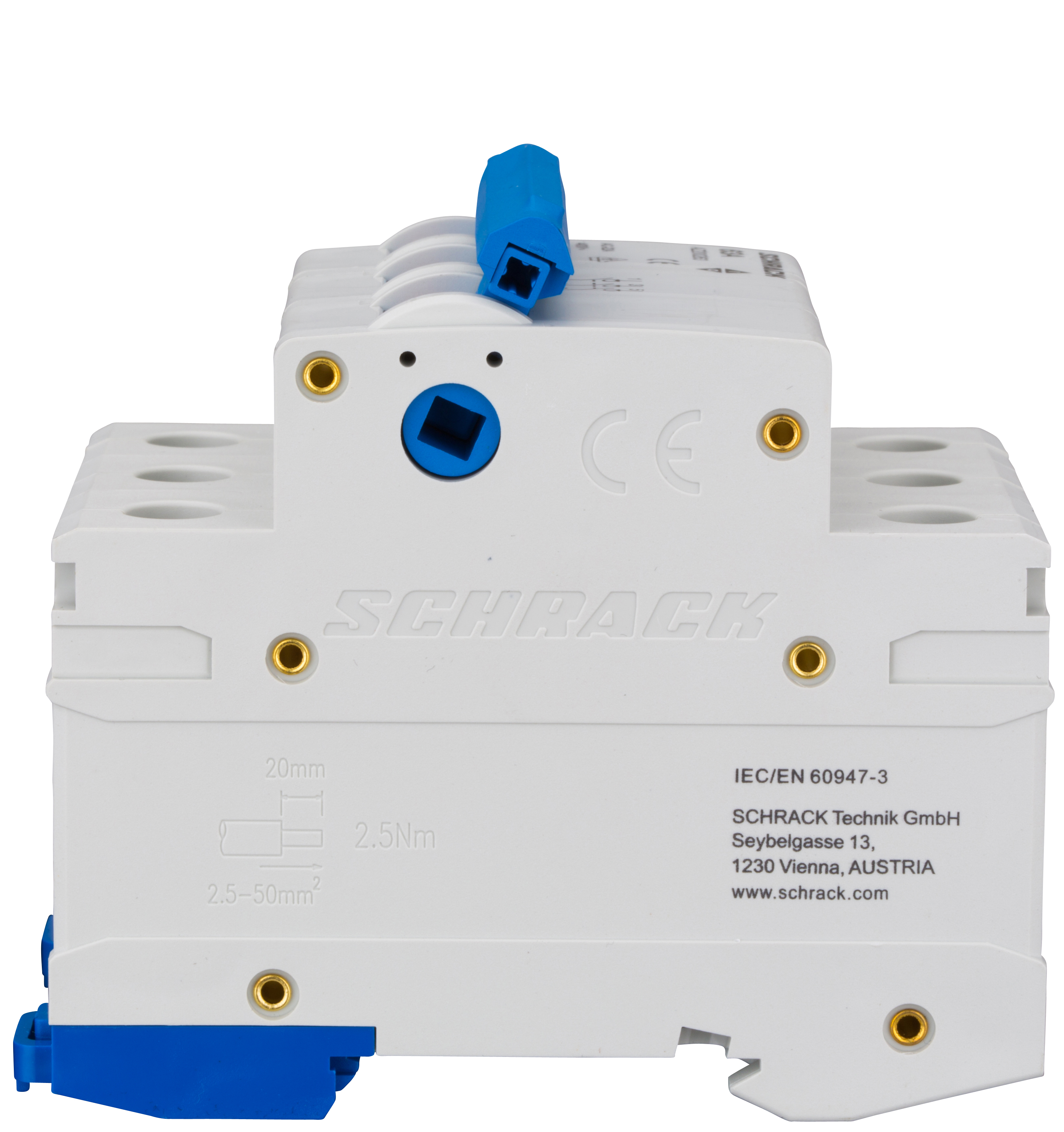

- Photo 6: Load Disconnect Switch 63A/3 (JPG, 2.4 MB)
