Independent Release Device for BR Series, 110-415V AC
Article: BR900003--
22 690 ₸
In stock
Independent release device for BR series automatic circuit breakers rated 110-415 V AC. Designed to expand the functionality of BR series high-current circuit breakers by adding a working current release function.
Key Specifications:
- Rated Voltage: 110-415 V AC
- Release Type: Working Current Release
- Power Loss: 0.20 W
- Operating Temperature Range: -25°C to +55°C

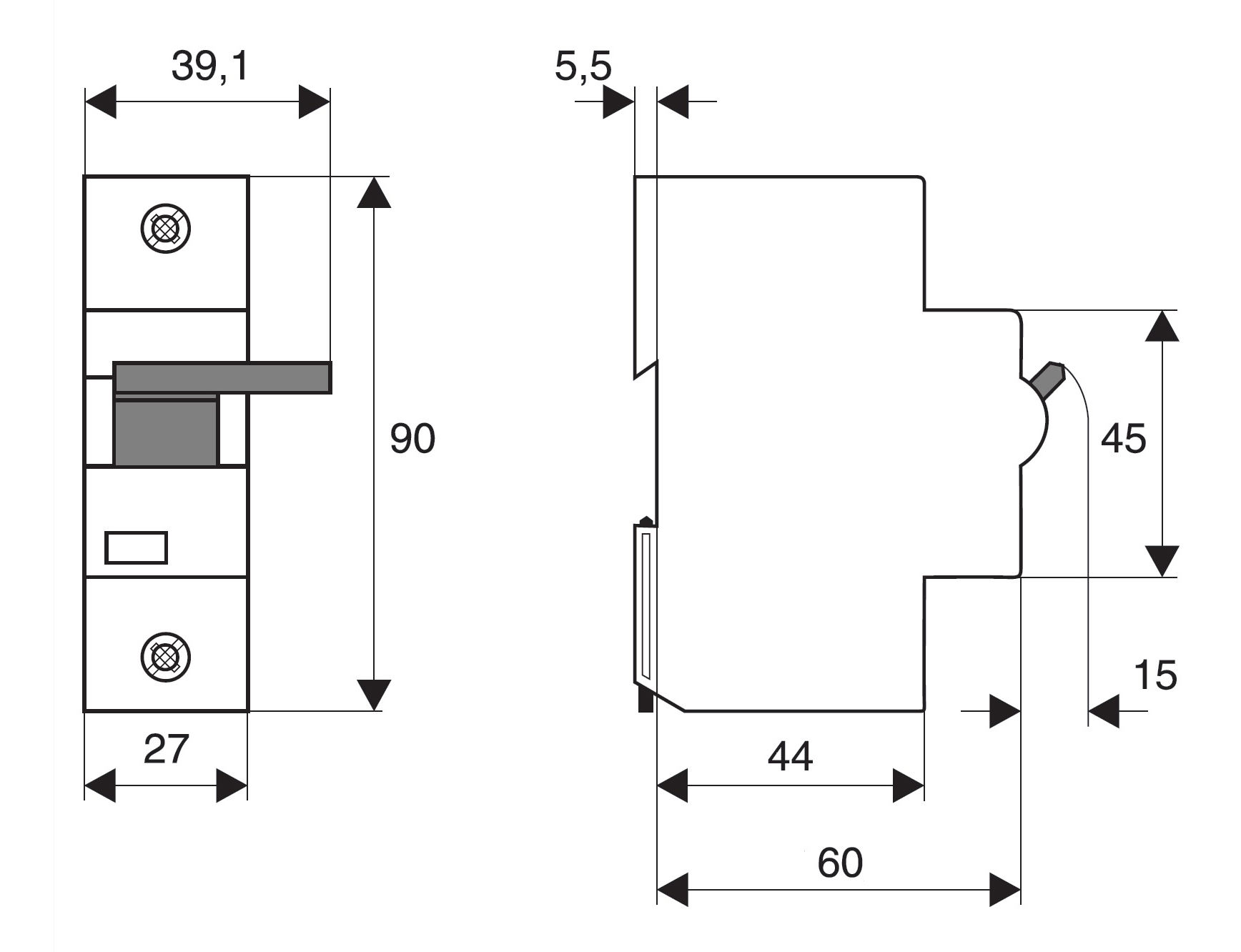

- Dimensional Specifications: width 27 mm, height 90 mm, depth 75 mm
- Net Weight: 0.16 kg
Standards Compliance:
The device is manufactured in accordance with EN 60947-1:2007 + A1:2011 and EN 60947-2:2006 + A1:2009 + A2:2013 standards.
Application:
The release device is mounted on BR series multi-ampere automatic circuit breakers and provides additional protection of electrical circuits against overload conditions.
| EAN Code | 9004840267242 |
|---|---|
| Net Width | 27.00 mm |
| Net Height | 90.00 mm |
| Net Depth | 75.00 mm |
| Net Weight | 0.16 kg |
| Power Loss | 0.20 W |
| Minimum Ambient Temperature | -25°C |
| Maximum Ambient Temperature | 55°C |
| For Product | Multi-ampere Circuit Breaker BR |
| Release Device | Working Current Release |
| Standard | EN 60947-1:2007 + A1:2011, EN 60947-2:2006 + A1:2009 + A2:2013 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 8 pcs. |
