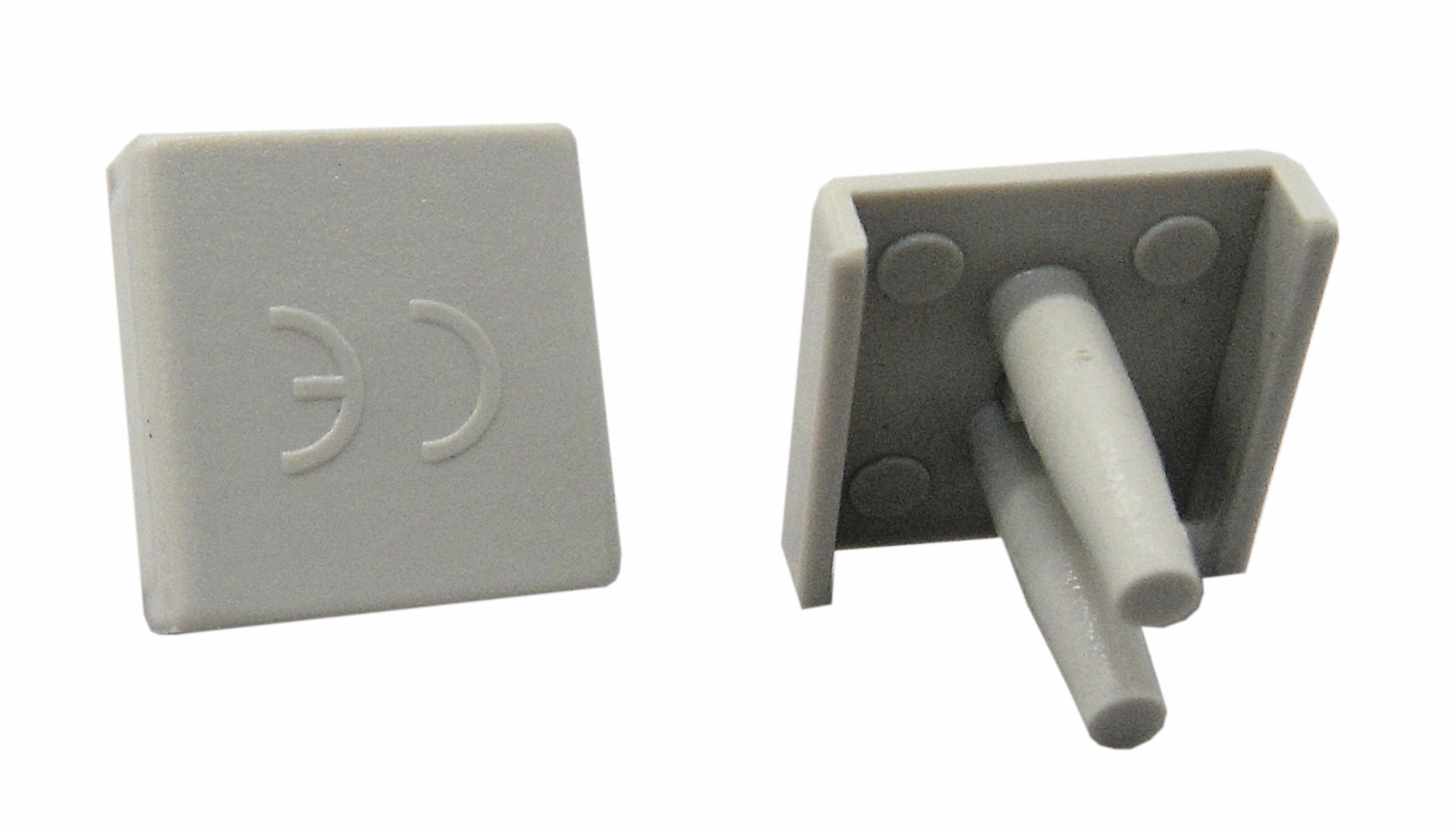

End cap designed for protection and insulation of 2-pole busbars. Used in electrical distribution systems for sealing open contacts and preventing accidental contact. Compatible with fork-type and pin-type designs with a pitch of 17.8 mm.
Key characteristics:
- Number of poles: 2
- Cross-section: 16 mm², 10 mm²
- Insert types: LS, FI, LS/FI
- Design: Fork-type, Pin-type
- Operating temperature range: -35°C to +70°C
- Material: End cap (protective element)
Dimensions and weight:
- Length: 10 mm
- Width: 11 mm
- Height: 12 mm
- Net weight: 0.01 kg
Manufacturer: Schrack
Packaging options: 1 pcs, 1000 pcs
| EAN code | 9004840013498 |
|---|---|
| Length (net) | 10.00 mm |
| Width (net) | 11.00 mm |
| Height (net) | 12.00 mm |
| Weight (net) | 0.01 kg |
| Min. ambient temperature | -35°C |
| Max. ambient temperature | 70°C |
| Series | Accessories |
| Insert | LS, FI, LS/FI (pitch 17.8 mm) |
| Design | Fork-type, Pin-type |
| Poles | 2 |
| Cross-section | 16 mm², 10 mm² |
| Accessories | End cap |
| Manufacturer | Schrack |
| Packaging | 1 pcs, 1000 pcs |
