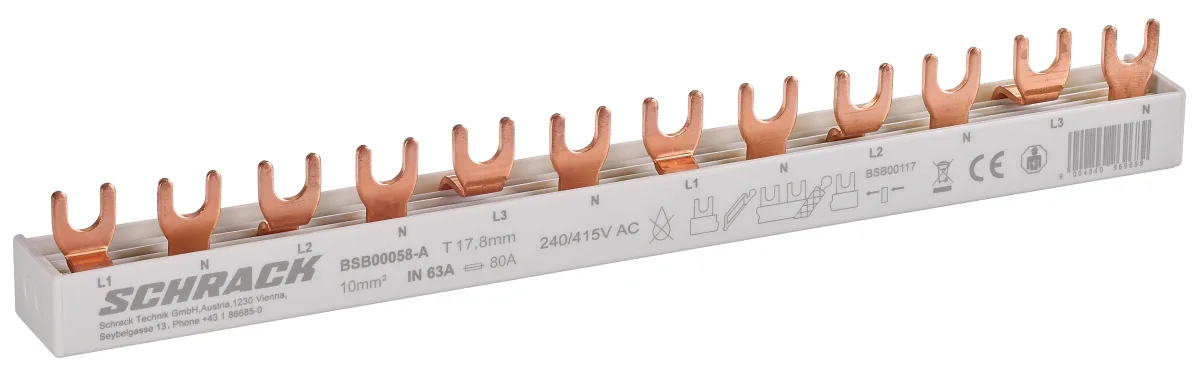

Fork-type busbar L1N/L2N/L3N 10 mm², 12 modules, BSB
6 190 ₸
Fork-type busbar for electrical distribution boards, designed for connecting modular devices in electrical supply systems. Key parameters: three-phase design (L1, L2, L3) and neutral (N) with cross-sectional area of 10 mm², rated for 12 modules with 17.8 mm pitch. Material: copper contacts with copper content of 94 g, ensuring reliable contact and minimal power losses. Electrical characteristics: power loss of 4.5 W under rated load. Operating conditions: operates in temperature range from -35°C to +70°C. Compatibility: designed for installation in distribution boards of series BC, BM and BO, suitable for LS, FI and combined LS/FI inserts. Normative basis: complies with standard EN 61439-1. Design: fork-type execution with contact terminals for modular circuit breakers and other protective devices. Manufacturer: Schrack (high level of reliability and quality).
| EAN code | 9004840969689 |
|---|---|
| Length net | 210.00 mm |
| Height net | 28.20 mm |
| Depth net | 12.00 mm |
| Net weight | 0.11 kg |
| Copper content | 94.0000 g |
| Power loss | 4.50 W |
| Min. ambient temperature | -35°C |
| Max. ambient temperature | 70°C |
| Series | BC, BM, BO |
| Insert | LS, FI, LS/FI (pitch size 17.8 mm) |
| Design | Fork-type design |
| Poles | 4 |
| Cross-sectional area | 10 mm² |
| Standard | EN 61439-1 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 20 pcs. |
