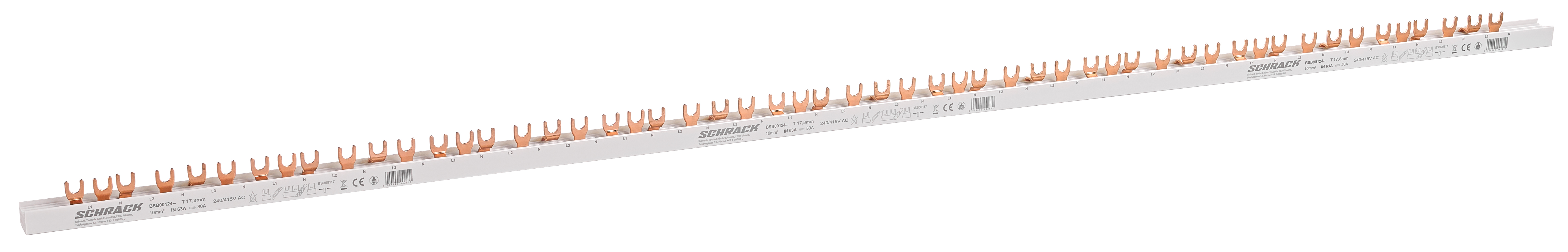

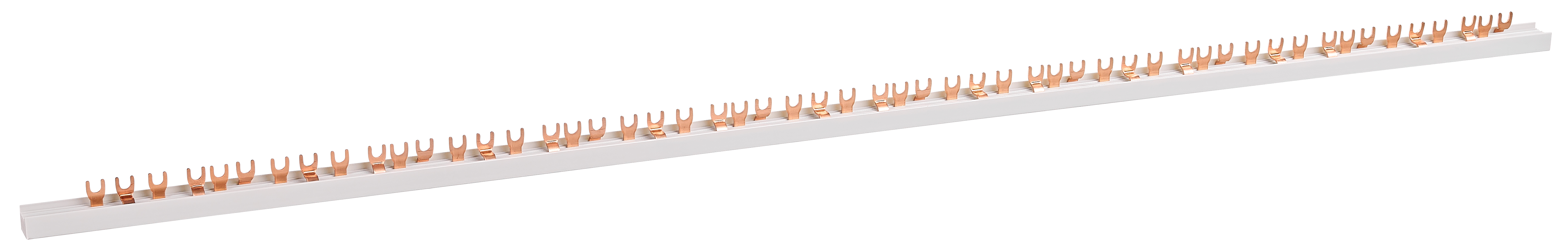

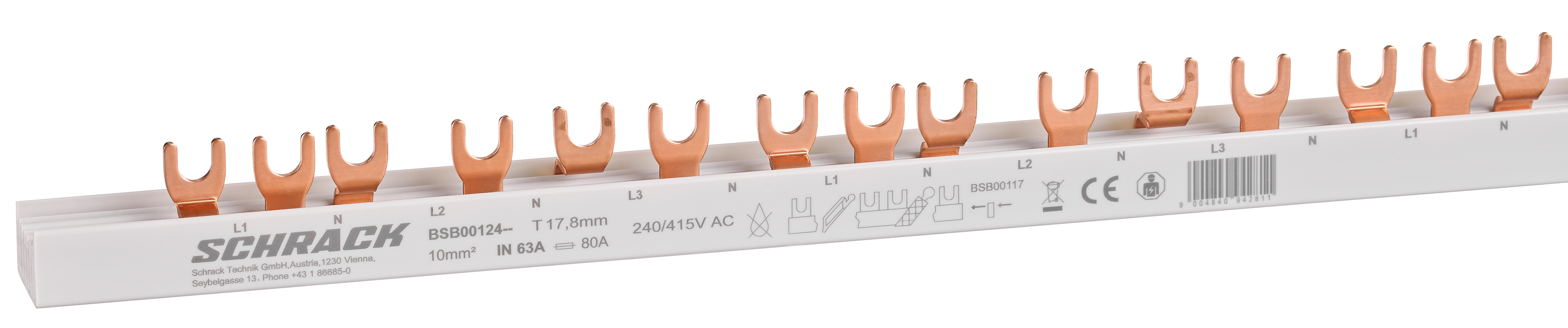

Fork Rail L1N/L2N/L3N 10mm², 1 meter, BSB
Article: BSB00124--
26 360 ₸
In stock
Comb rail for connecting devices with the following elements: dual-purpose terminal, screw terminal, screw connection, flat terminal. Pitch device 17.8 mm. 12 MВт. Phase sequence: L1, N, L2, N, L3, N. End caps are not required
| EAN code | 9004840942811 |
|---|---|
| Net length | 1016.00 mm |
| Net height | 26.80 mm |
| Net depth | 20.20 mm |
| Net weight | 0.90 kg |
| Copper content | 685.0000 g |
| Power loss | 20.60 W |
| Min. ambient temperature | -35°C |
| Max. ambient temperature | 70°C |
| Series | BC, BM, BO |
| Insert | LS, FI, LS/FI (pitch size 17.8 mm) |
| Design | Fork design |
| Pole | 1+N |
| Cross-section | 10 mm² |
| Accessories | Assembled rail |
| Standard | EN 61439-1 |
| Manufacturer | Schrack |
| Packaging | 1 pc., 15 pc. |
