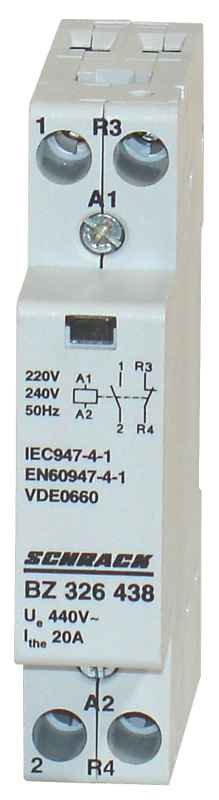

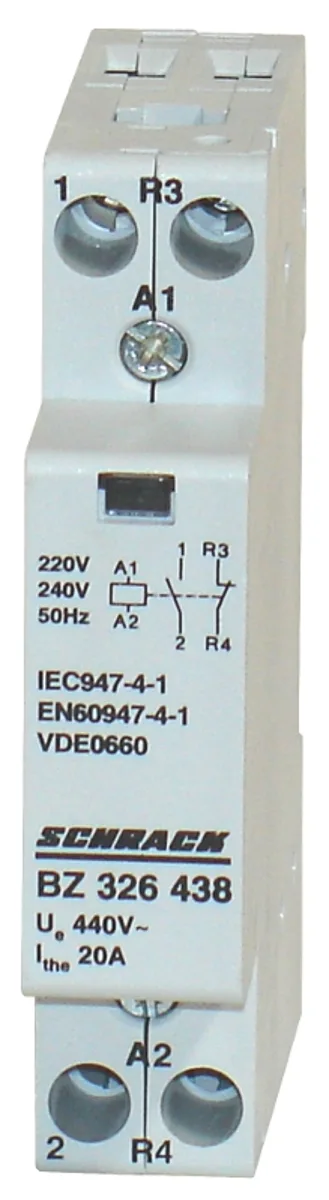

Modular Contactor 20A/1NO+1NC/230VAC/1MW
Article: BZ326438--
20 120 ₸
To order
Modular contactor designed for switching alternating current electrical circuits in automation and control systems. The design allows installation on standard DIN rail in distribution panels and control cabinets.
Main parameters:
- Nominal current: 20A at AC-1/440V
- Nominal power: 1.10 kW (AC-3/230V)
- Coil voltage: 230V alternating current
- Operating voltage: 440V AC
- Contacts: 1 normally open (NO) + 1 normally closed (NC)
- Power loss: 2.0 W
- Temperature range: from −20°C to +60°C
Design and dimensions: Installation contactor with compact form factor: width 35 mm, height 85 mm, depth 65 mm. Weight of 0.13 kg ensures convenient installation. Manufacturer: Schrack (Austria), guarantee of reliability and durability.
| EAN code | 9004840015591 |
|---|---|
| Width net | 35.00 mm |
| Height net | 85.00 mm |
| Depth net | 65.00 mm |
| Weight net | 0.13 kg |
| Power loss | 2.00 W |
| Min. ambient temperature | −20°C |
| Max. ambient temperature | 60°C |
| Design | Installation contactor |
| Main contacts | 1 normally open contact + 1 normally closed contact |
| Nominal power AC-3/230V | 1.10 kW |
| Nominal current AC-1/440V | 20A |
| Operating voltage AC | 440V |
| Coil voltage AC | 230V alternating current |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 120 pcs. |
