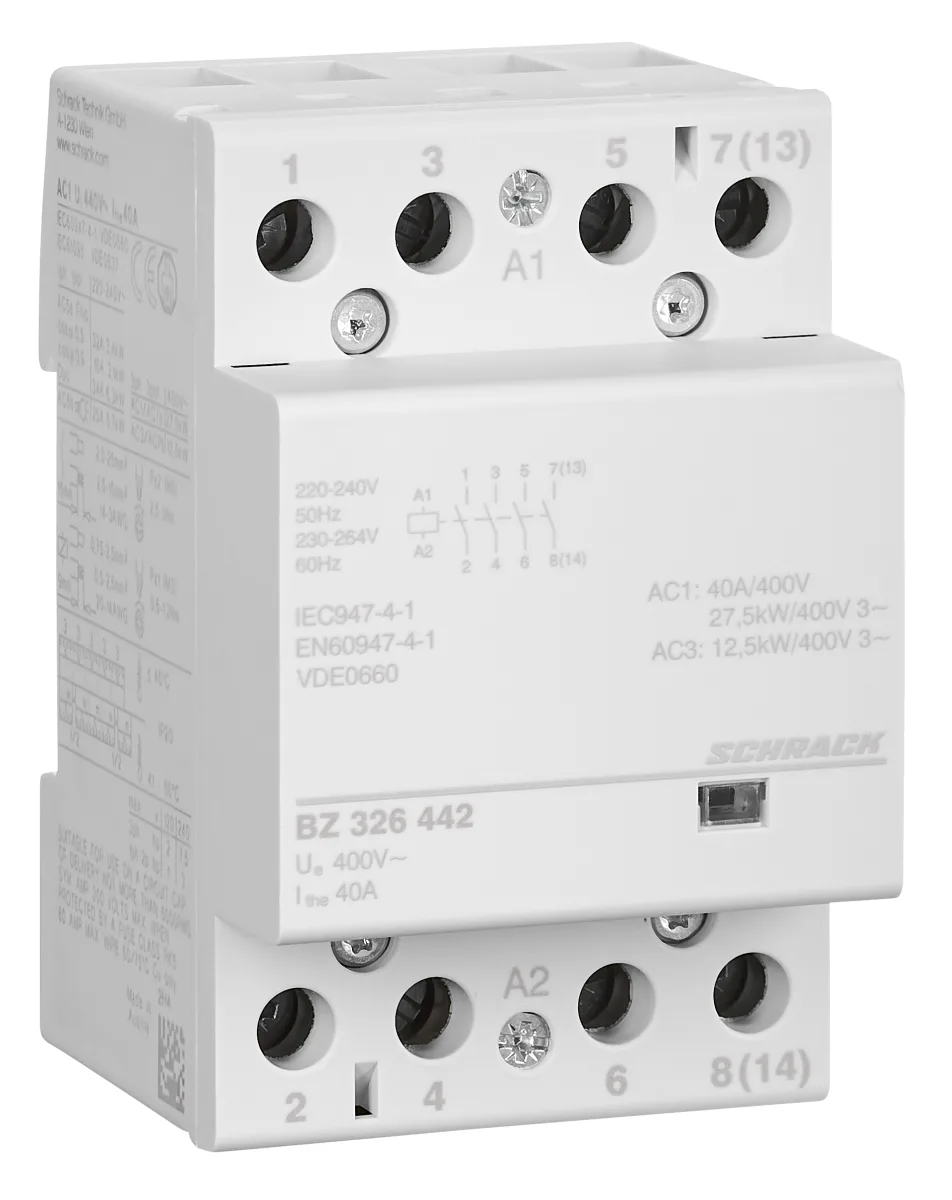

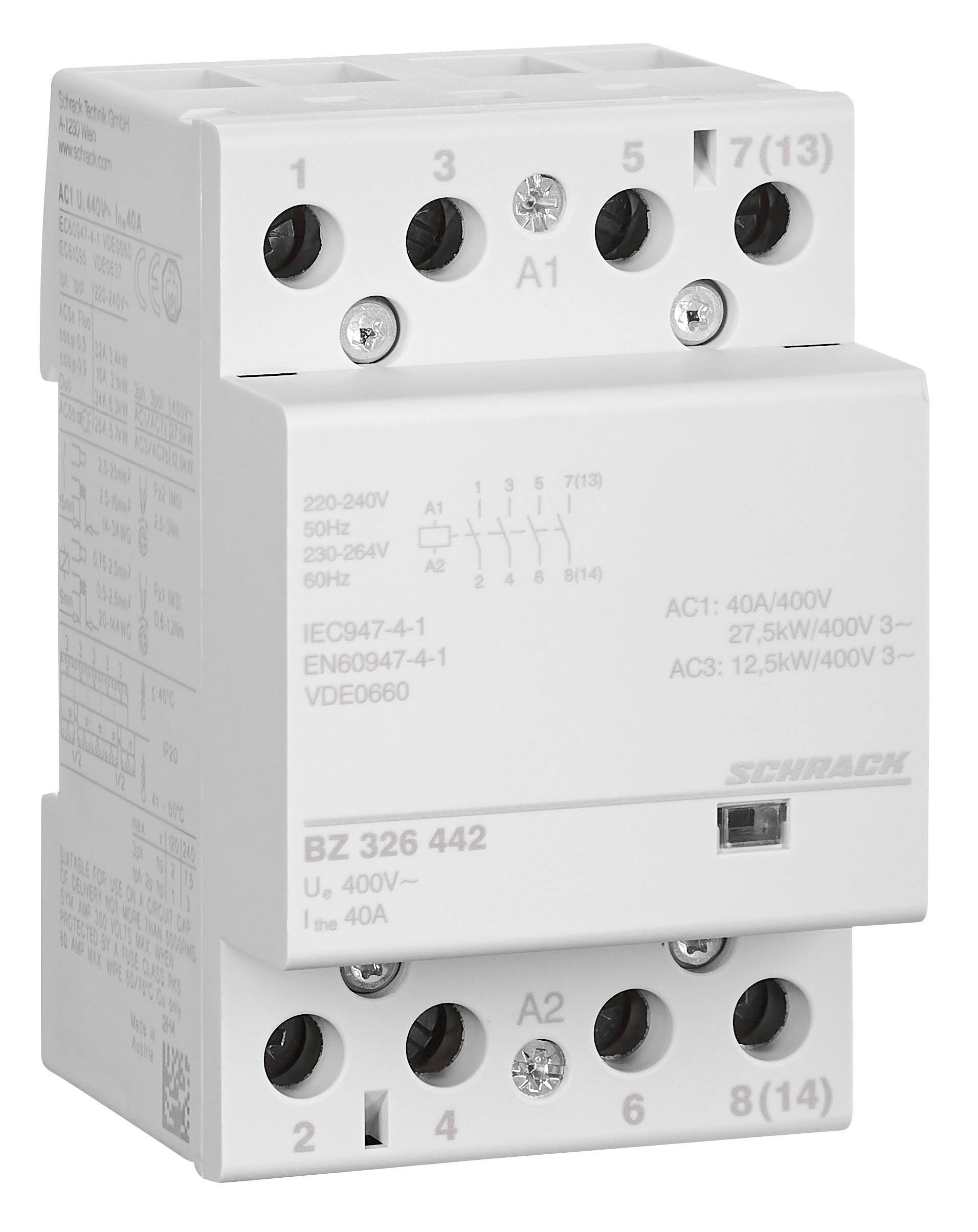

Modular Contactor 40A/4NO/230VAC/3MW

Modular contactor is designed for switching electrical circuits in industrial and distribution systems. The device is mounted on a standard DIN rail with a size of 3TE and provides reliable control of AC load switching.

Main parameters:

• Rated current: 40A
• Main contacts: 4 normally open contacts (4NO)
• Coil voltage: 230V AC (alternating current)
• Operating voltage AC: 440V
• Rated power:
  • AC-3/230V: 2.60kW
  • AC-3/400V: 12.50kW
  • AC-1/440V: 40A
• Power loss: 12.00W
• Degree of protection: IP20
• Temperature range: from -20°C to +60°C

Physical parameters:

• Dimensions (W×H×D): 52.50 × 87.50 × 65.00 mm
• Net weight: 0.36 kg
• EAN code: 9004840015638

Manufacturer: Schrack

The contactor is designed for installation in electrical cabinets and control panels, compatible with standard DIN rails. Suitable for controlling asynchronous motors and other inductive loads in AC networks.
