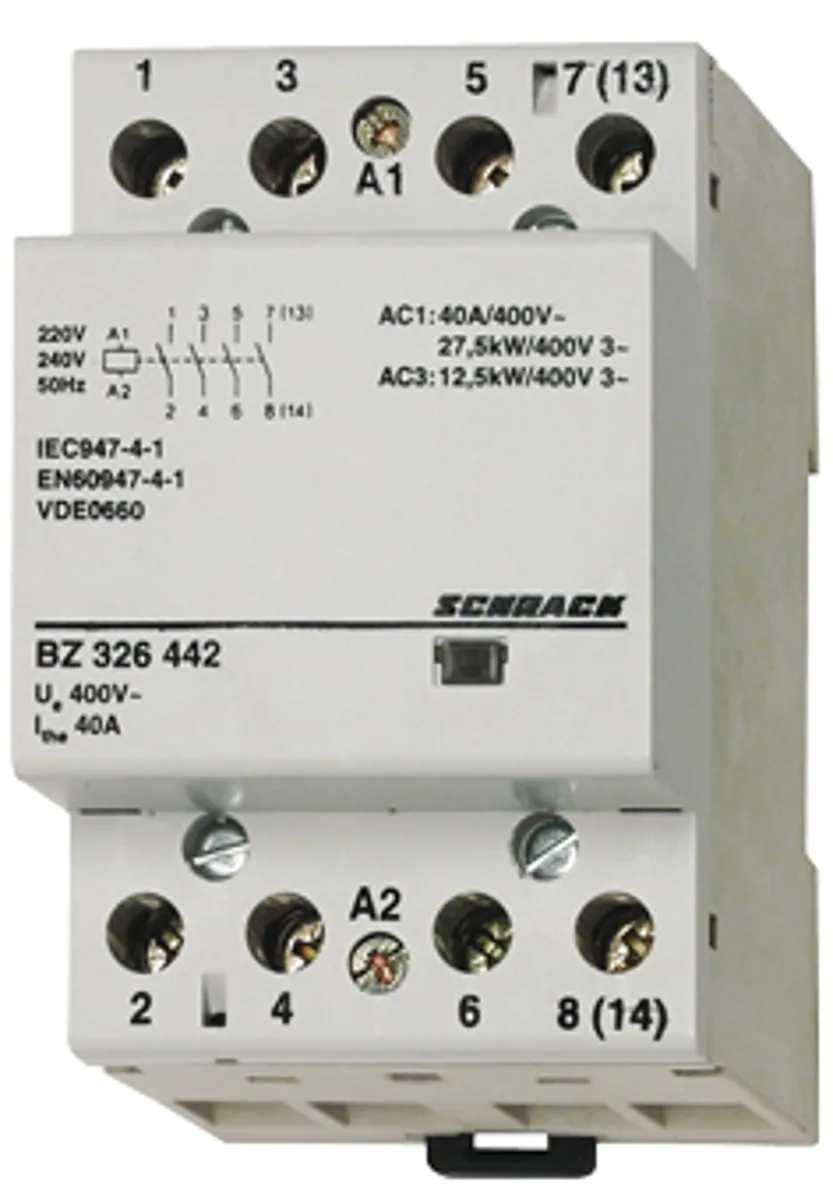

Modular Contactor 40A/4NO/24VAC/3MW
Article: BZ326443--
62 570 ₸
To order
Modular contactor designed for switching alternating current electrical circuits in industrial power distribution systems. The device is implemented as a mounting contactor with four normally-open contacts (4NO) and rated for nominal current of 40A.
Electrical characteristics:
- Coil voltage: 24V AC
- Working voltage AC: 440V
- Nominal power AC-3 at 230V: 2.60 kW
- Nominal power AC-3 at 400V: 12.50 kW
- Nominal current AC-1 at 440V: 40A
- Power loss: 12 W
Design parameters:
- Dimensions (W×H×D): 52.50 × 87.50 × 65.00 mm
- Net weight: 0.36 kg
- Operating temperature range: from -20°C to +60°C
- Manufacturer: Schrack
- EAN code: 9004840015645
The contactor is designed for mounting on standard DIN-rail and is used in control systems for asynchronous motors and other electrical consumers of AC-3 category.
| EAN code | 9004840015645 |
|---|---|
| Net width | 52.50mm |
| Net height | 87.50mm |
| Net depth | 65.00mm |
| Net weight | 0.36kg |
| Power loss | 12.00W |
| Min. ambient temperature | -20°C |
| Max. ambient temperature | 60°C |
| Design | Mounting contactor |
| Main contacts | 4 normally-open contacts |
| Nominal power AC-3/230V | 2.60kW |
| Nominal power AC-3/400V | 12.50kW |
| Nominal current AC-1/440V | 40A |
| AC working voltage | 440V |
| AC coil voltage | 24V AC |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 4 pcs. |
