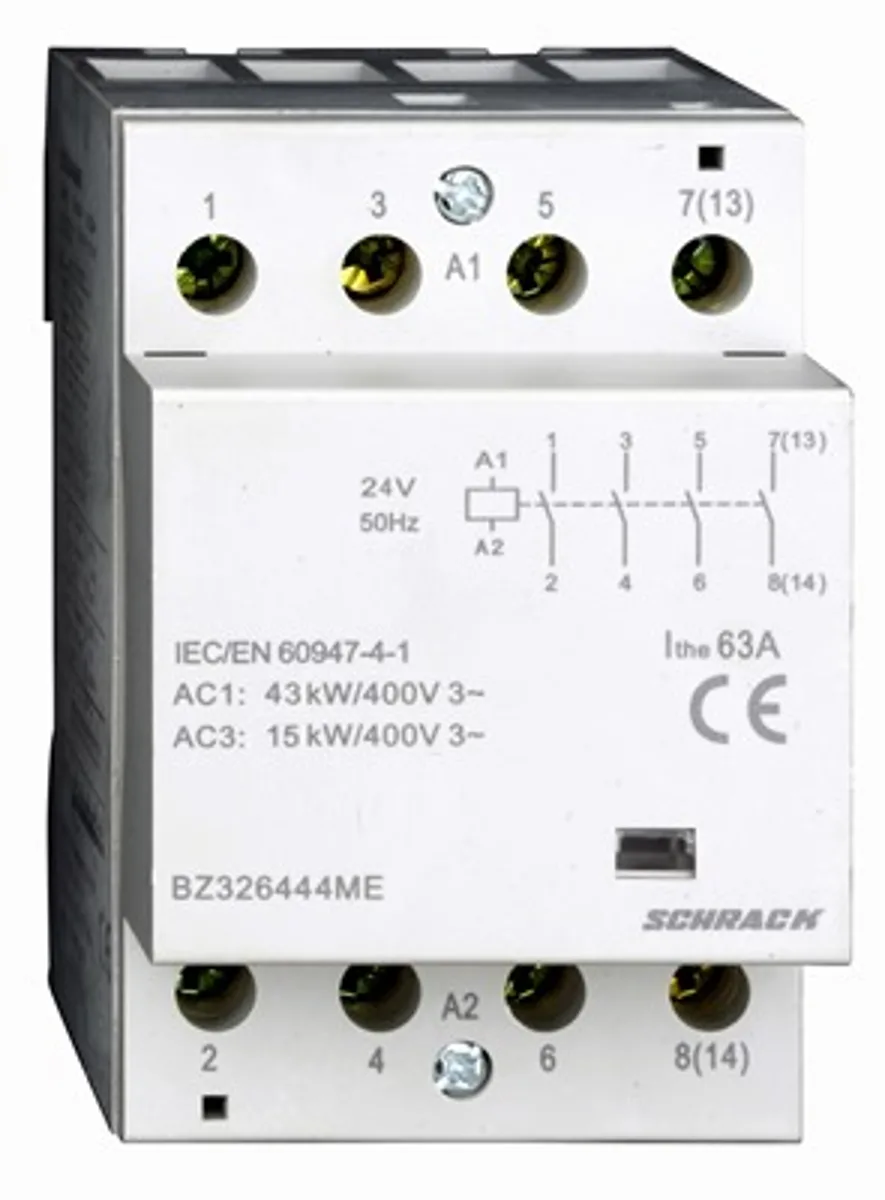

The contactor is designed for switching three-phase asynchronous electric motors and other electrical consumers in industrial AC power networks. The device features 4 closing main contacts and is rated for nominal current of 63A at 230VAC coil voltage.
Technical Specifications:
- Nominal Current: 63A
- Main Contacts: 4 closing contacts (4NO)
- Coil Voltage (AC): 230V alternating current
- Rated Power AC-3 at 230V: 5kW
- Rated Power AC-3 at 400V: 15kW
- Nominal Current AC-1 at 440V: 63A
- AC Operating Voltage: 440V
- Standard Size: 3TE (three-module)
- Power Loss: 28.00W
- Operating Temperature Range: -20°C to +60°C
Mechanical Parameters:
- Width: 53.30mm
- Height: 84.00mm
- Depth: 65.50mm
- Weight: 0.36kg
Manufacturer: Schrack (series of modular contactors for DIN rail)
Packaging: available in variants of 1 pcs., 4 pcs., 40 pcs.
| EAN Code | 9004840114942 |
|---|---|
| Width (net) | 53.30mm |
| Height (net) | 84.00mm |
| Depth (net) | 65.50mm |
| Weight (net) | 0.36kg |
| Power Loss | 28.00W |
| Min. Ambient Temperature | -20°C |
| Max. Ambient Temperature | 60°C |
| Size | 3TE |
| Type | Mounting Contactor |
| Nominal Current | 63A |
| AC Coil Voltage | 230V alternating current |
| Main Contacts | 4 closing contacts |
| Rated Power AC-3/230V | 5kW |
| Rated Power AC-3/400V | 15kW |
| AC Operating Voltage | 440V |
| Nominal Current AC-1/440V | 63A |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 4 pcs., 40 pcs. |
