Electromagnetic contactor designed for switching alternating current circuits. The device contains 2 main closing contacts with a rated current of 20A at 440V AC voltage (AC-1). The rated power at AC-3/230V is 1.10 kW, which allows the contactor to be used for controlling asynchronous motors with direct-on-line starting.
Control is provided by an alternating current coil with a voltage of 24V, which ensures operator safety and compatibility with low-voltage control systems. The contactor is equipped with 2 auxiliary closing contacts for organizing signaling and interlock circuits.
Main parameters:
- Operating voltage: 440V AC
- Rated current of main contacts: 20A
- Power at AC-3/230V: 1.10 kW
- Control voltage: 24V AC
- Power loss in coil: 4.0 W
- Operating temperature range: from -20°C to +60°C
Design characteristics:

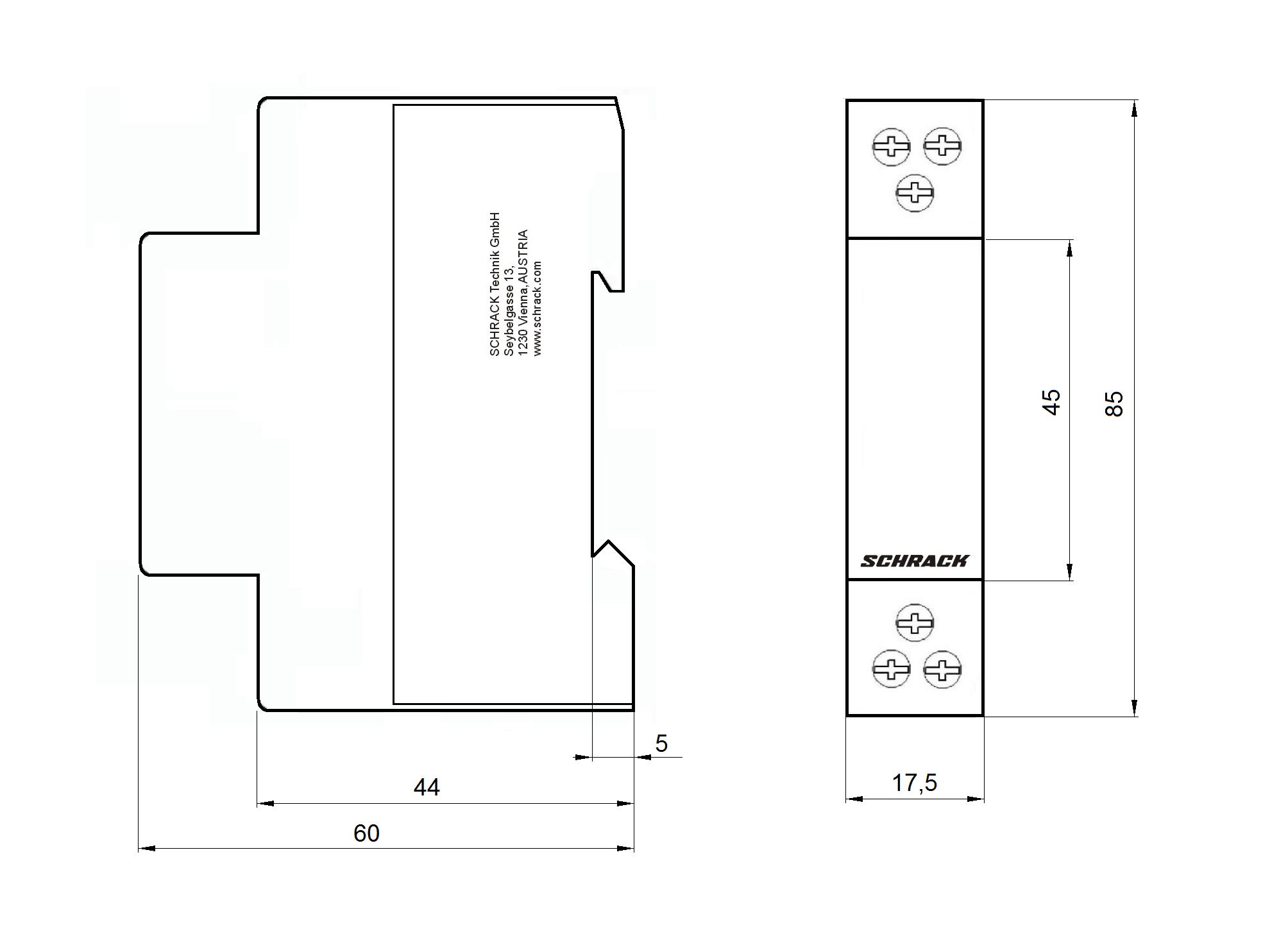

- Dimensions: 17.5 × 85 × 65 mm
- Weight: 0.13 kg
- Manufacturer: Schrack (Austrian leader in electrical engineering)
- Available packages: 1 pc, 12 pc, 120 pc
The contactor is designed for stationary installation on DIN-rail and is used in industrial distribution devices, control panels, and automation systems.
| EAN code | 9004840114652 |
|---|---|
| Net width | 17.50mm |
| Net height | 85.00mm |
| Net depth | 65.00mm |
| Net weight | 0.13kg |
| Power loss | 4.00W |
| Min. ambient temperature | -20°C |
| Max. ambient temperature | 60°C |
| Main contacts | 2 closing contacts |
| Rated power AC-3/230V | 1.10kW |
| Rated current AC-1/440V | 20A |
| AC operating voltage | 440V |
| AC coil voltage | 24V AC |
| Auxiliary contacts | 2 closing contacts |
| Manufacturer | Schrack |
| Packaging | 1 pc, 12 pc, 120 pc |
