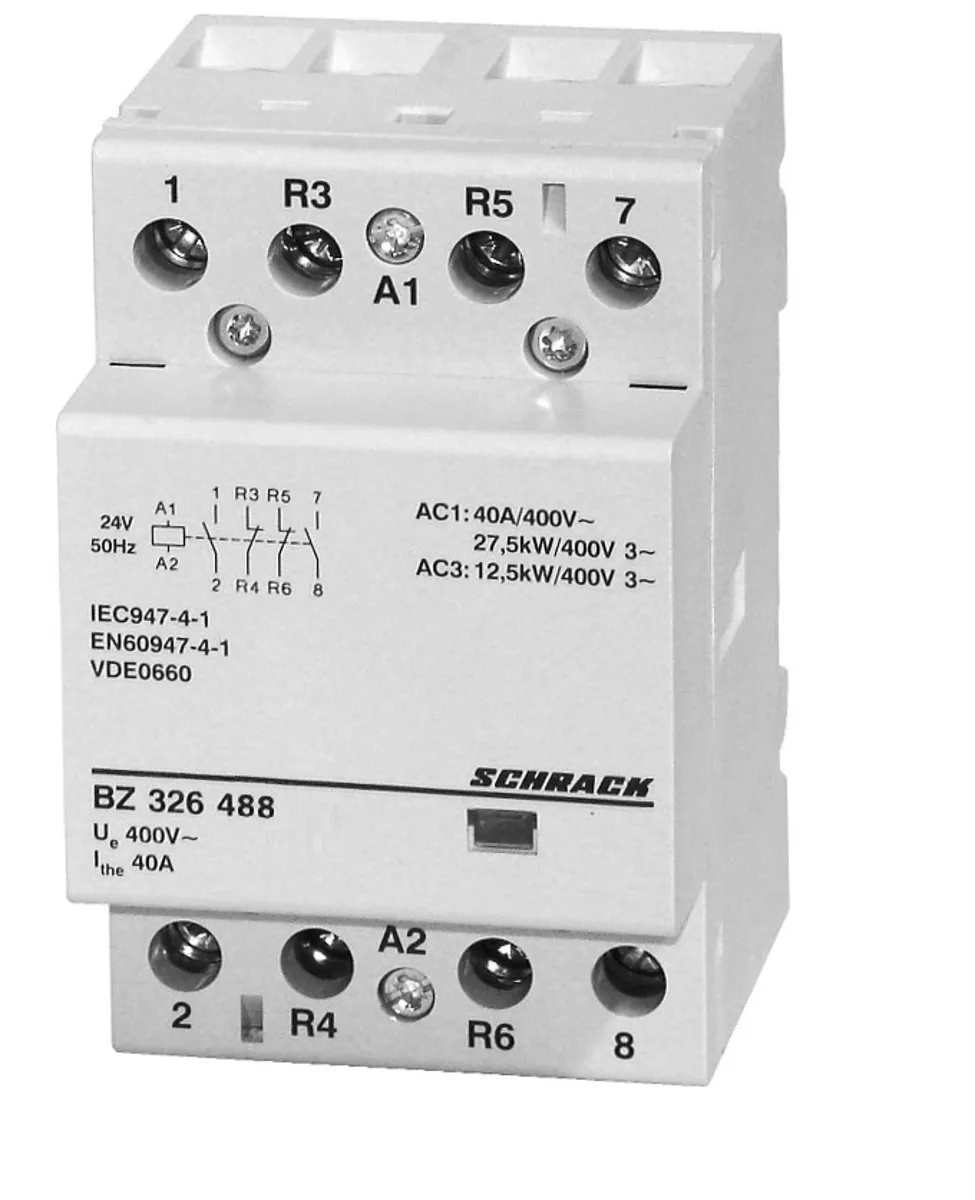

Modular Contactor 40A/2NO+2NC/24VAC/3MW
Article: BZ326488--
85 880 ₸
To order
Modular contactor is designed to control alternating current circuits in industrial and domestic electrical installations. Manufactured as a mounting contactor with attachment to a standard DIN rail.
Construction and contacts:
- Main contacts: 2 normally open (NO) + 2 normally closed (NC)
- Rated operating current: 40A at category AC-1/440V
- Rated switched power: 2.60 kW (AC-3/230V) or 12.50 kW (AC-3/400V)
Control:
- Control voltage: 24V alternating current (AC)
- Tripping voltage optimised for reliable operation in 440V networks
Technical parameters:
- Power consumption: 6.00 W
- Operating temperature range: from -20°C to +60°C
- Compact dimensions allow integration of the contactor into narrow cabinets: width 52.50 mm, height 87.50 mm, depth 65.00 mm
- Weight: 0.36 kg
Manufacturer: Schrack — reliable quality of Austrian electrical engineering.
| EAN code | 9004840669183 |
|---|---|
| Width net | 52.50 mm |
| Height net | 87.50 mm |
| Depth net | 65.00 mm |
| Weight net | 0.36 kg |
| Power loss | 6.00 W |
| Min. ambient temperature | -20°C |
| Max. ambient temperature | 60°C |
| Design | Mounting contactor |
| Main contacts | 2 normally open contacts + 2 normally closed contacts |
| Rated power AC-3/230V | 2.60 kW |
| Rated power AC-3/400V | 12.50 kW |
| Rated current AC-1/440V | 40A |
| Operating voltage AC | 440V |
| Coil voltage AC | 24V AC |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 20 pcs. |
