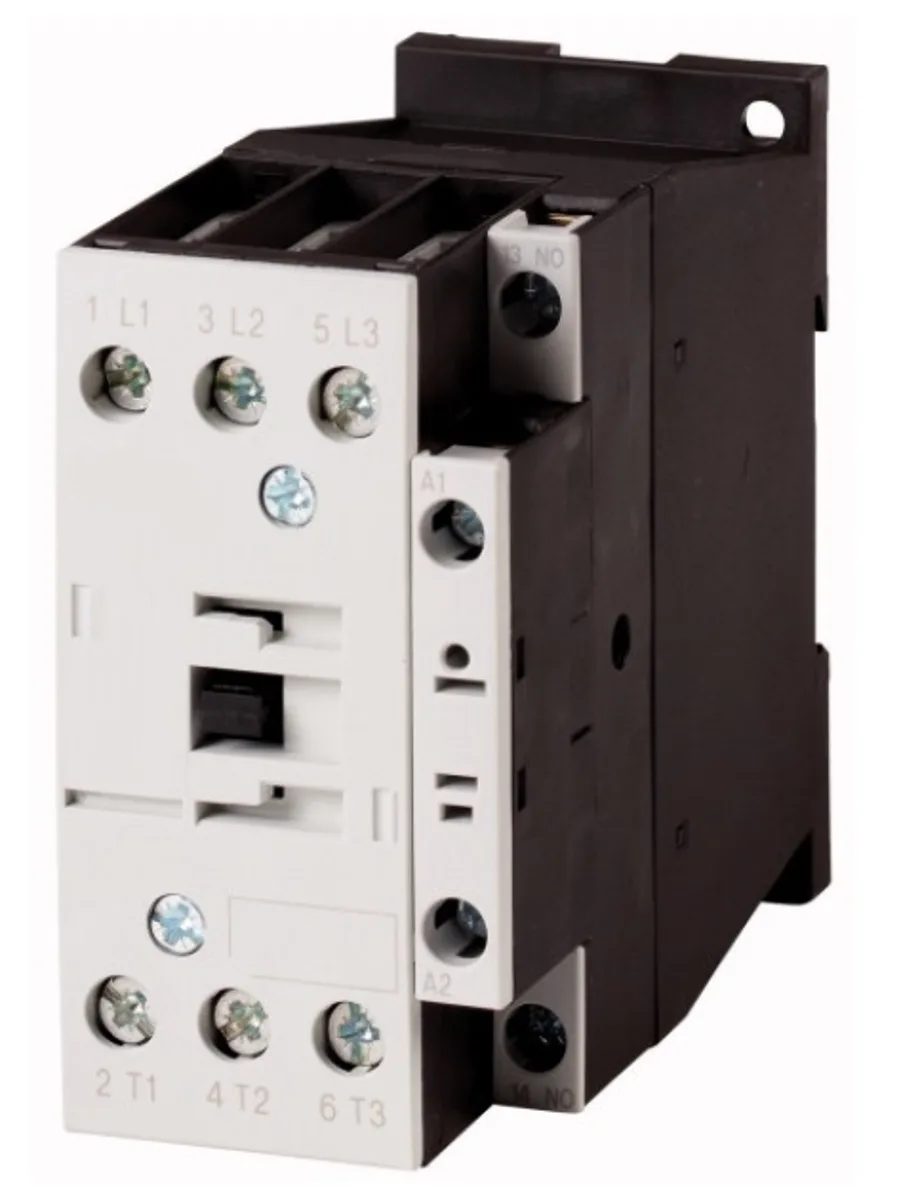

Contactor 15kW/400V/32A/1NO, coil 110VAC
Article: LTD13212--
47 630 ₸
To order
Power contactor designed for switching three-phase AC circuits in industrial applications. The contactor is equipped with 3 main closing contacts for controlling power loads and 1 auxiliary closing contact for control circuits.
Main parameters:
- Rated current: 32A at AC-3 (380/400V)
- Switching capacity: 15kW at 380-400V AC voltage
- Coil voltage: 110V AC
- Main contacts: 3 closing (3NO)
- Auxiliary contacts: 1 closing (1NO)
Technical specifications:
- Power dissipation on contacts: 12.40W
- Housing size: compact modular format
- Weight: 0.43kg
- Dimensions: 45×85×97.40mm (width × height × depth)
Manufacturer: Schrack — Austrian manufacturer of electrical equipment.
The contactor is designed for installation on standard DIN rail and ensures reliable switching in industrial control panels.
| EAN code | 9004840840605 |
|---|---|
| Width (net) | 45.00mm |
| Height (net) | 85.00mm |
| Depth (net) | 97.40mm |
| Weight (net) | 0.43kg |
| Power dissipation | 12.40W |
| Size | 1 |
| Type | Power contactor |
| Auxiliary contacts | 1 closing contact |
| Coil voltage AC | 110V AC |
| Rated current | 32A |
| Main contacts | 3 closing contacts |
| Manufacturer | Schrack |
| AC-3 380V 400V [P] | 15kW |
| Packaging | 1 piece, 64 pieces |
