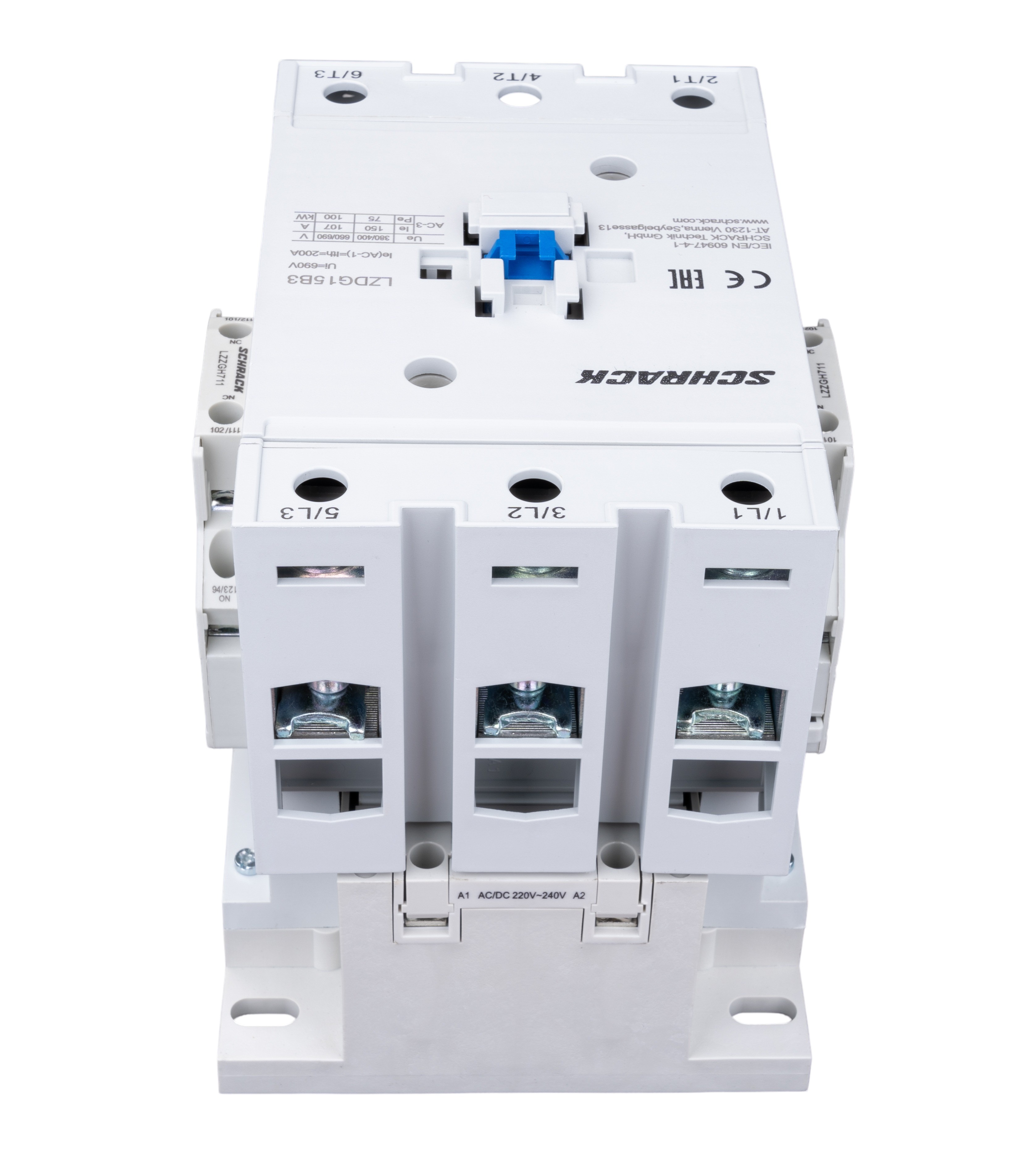

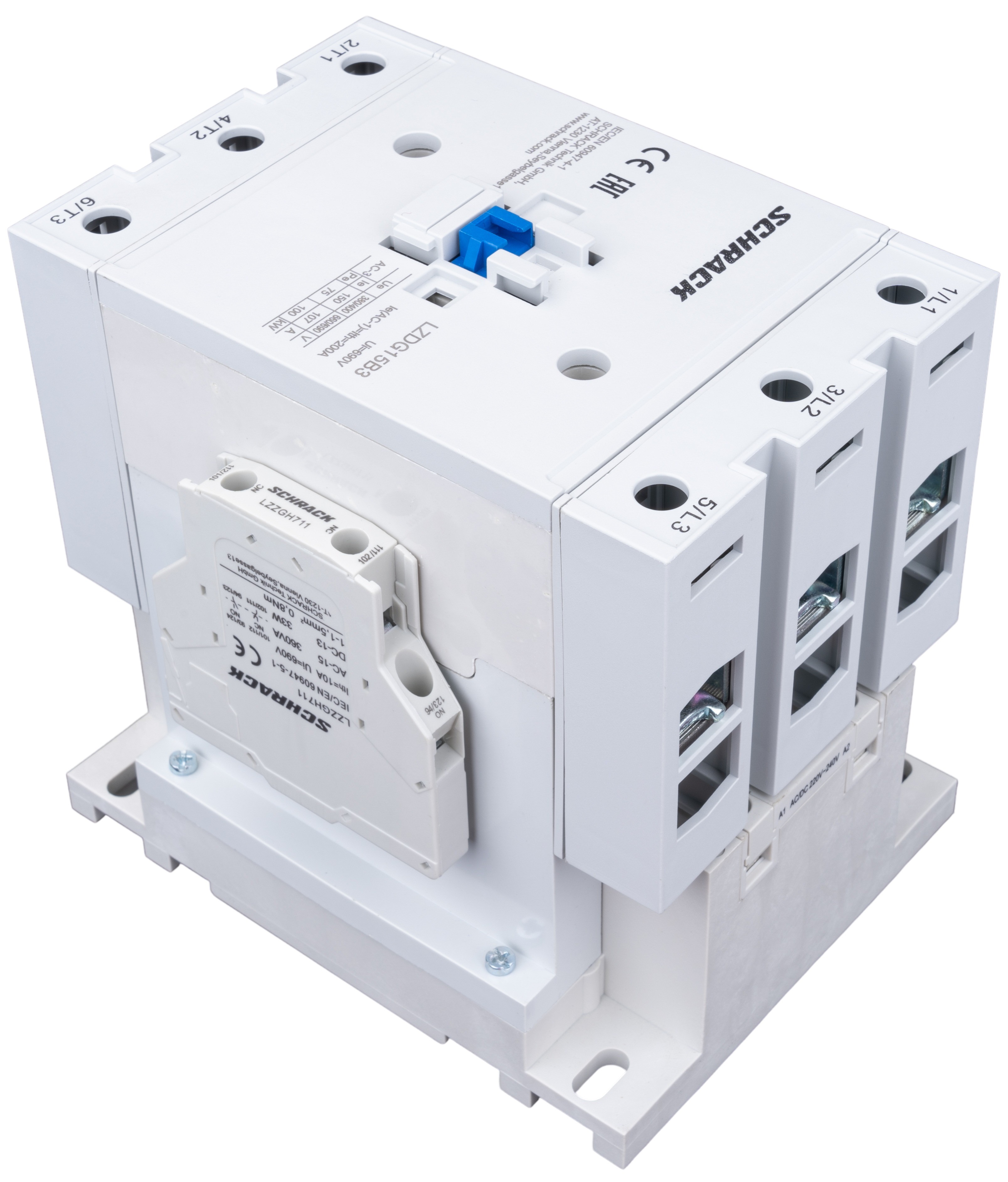

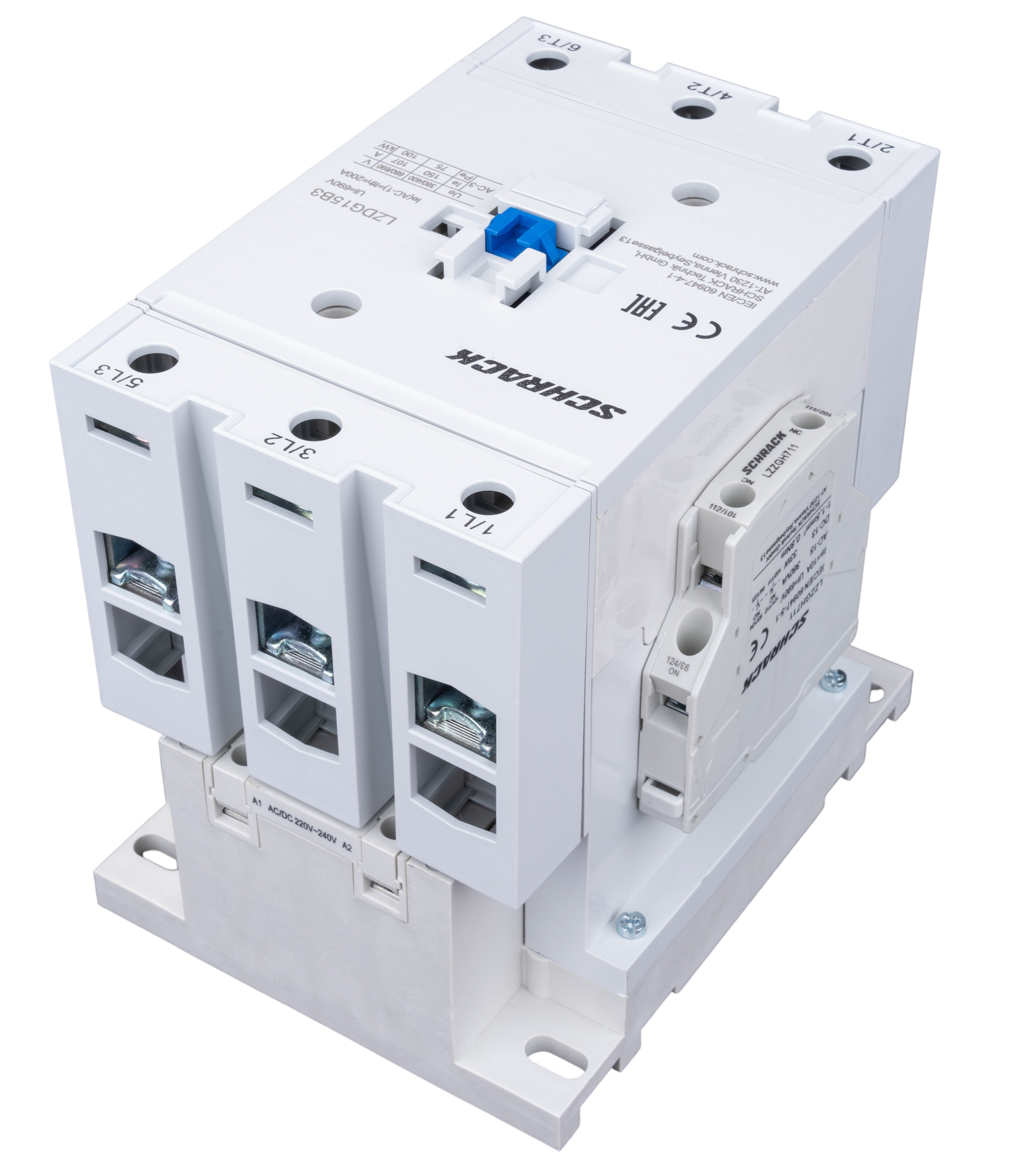

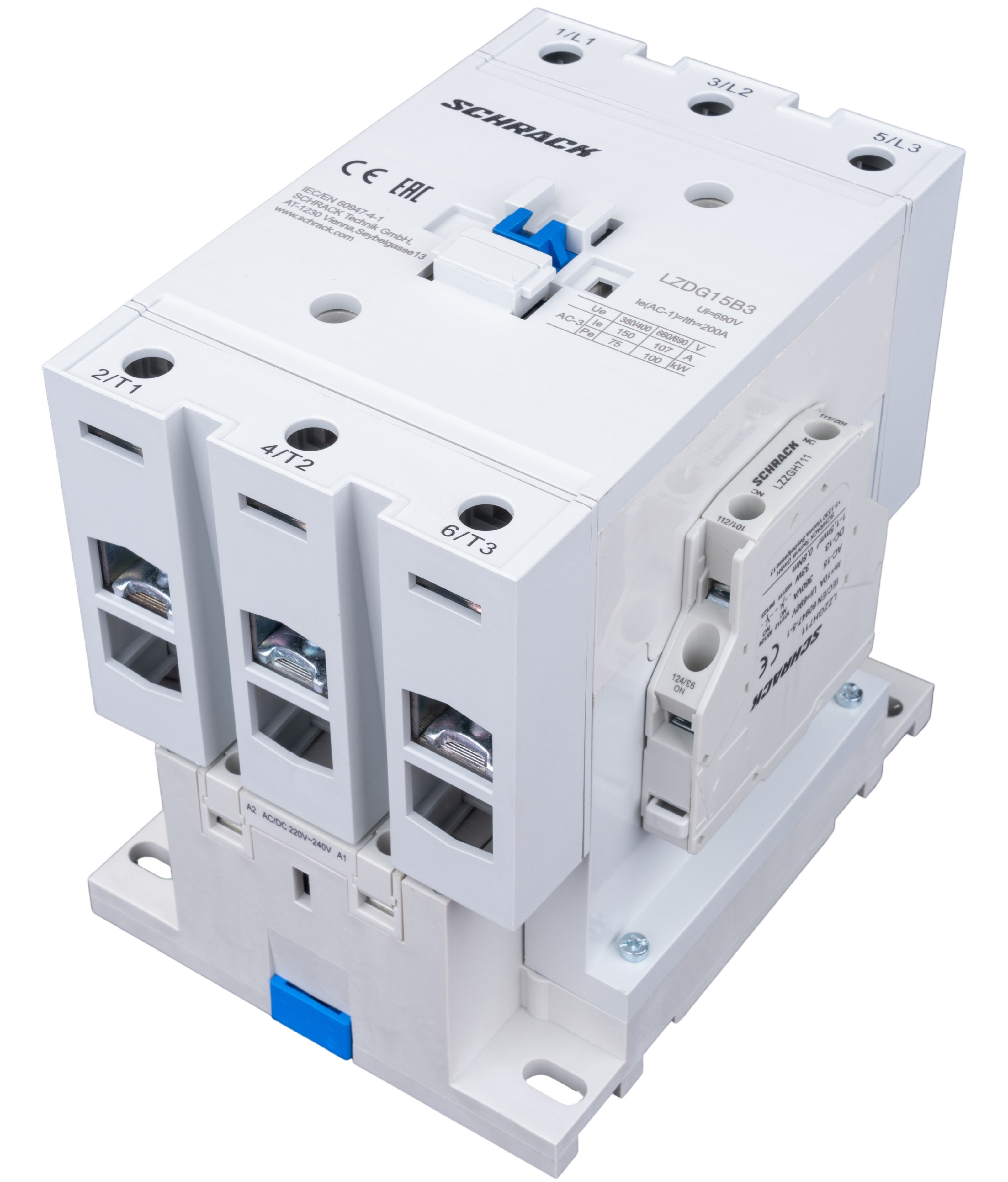

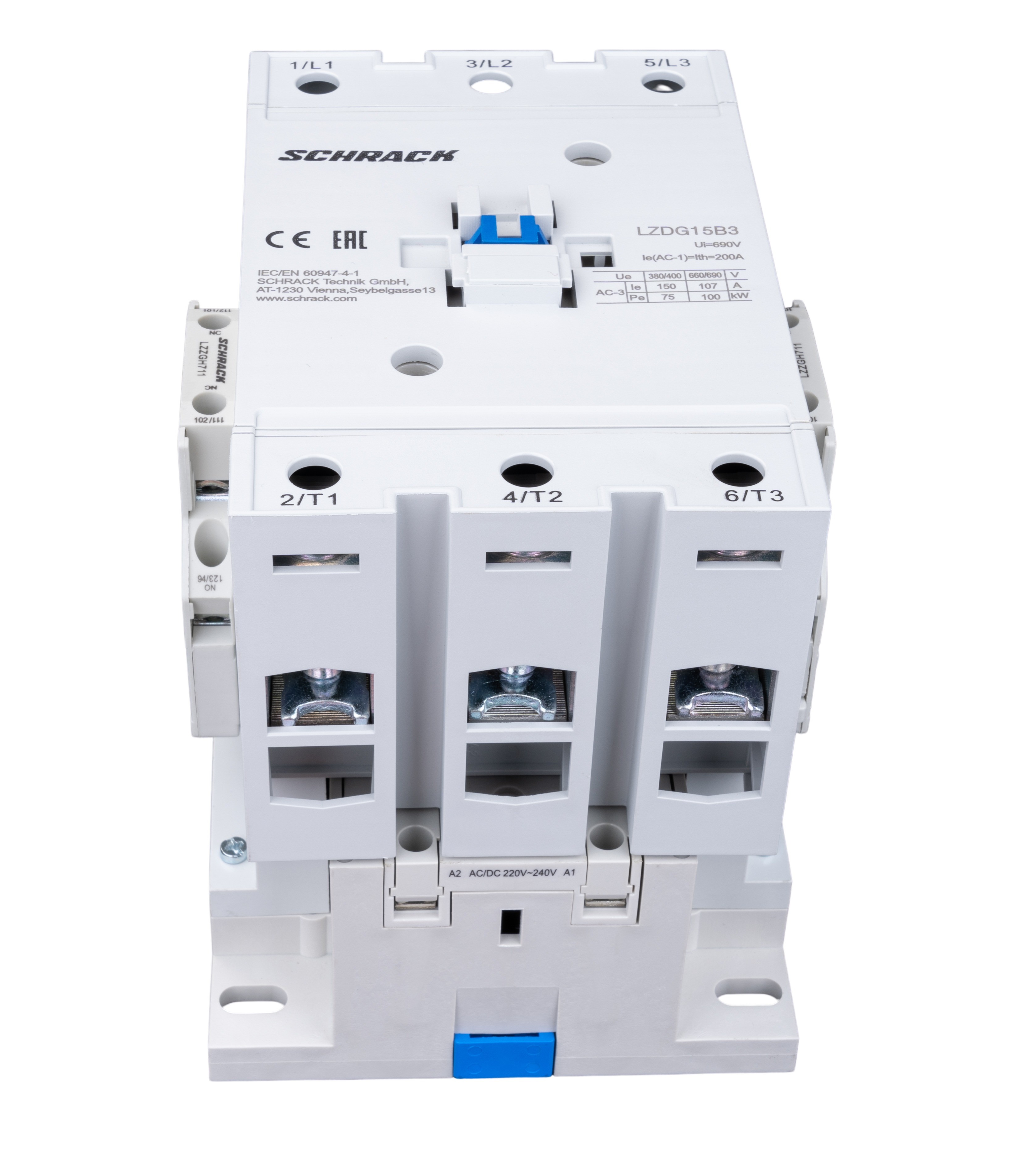

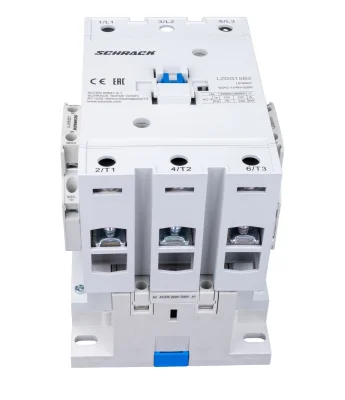

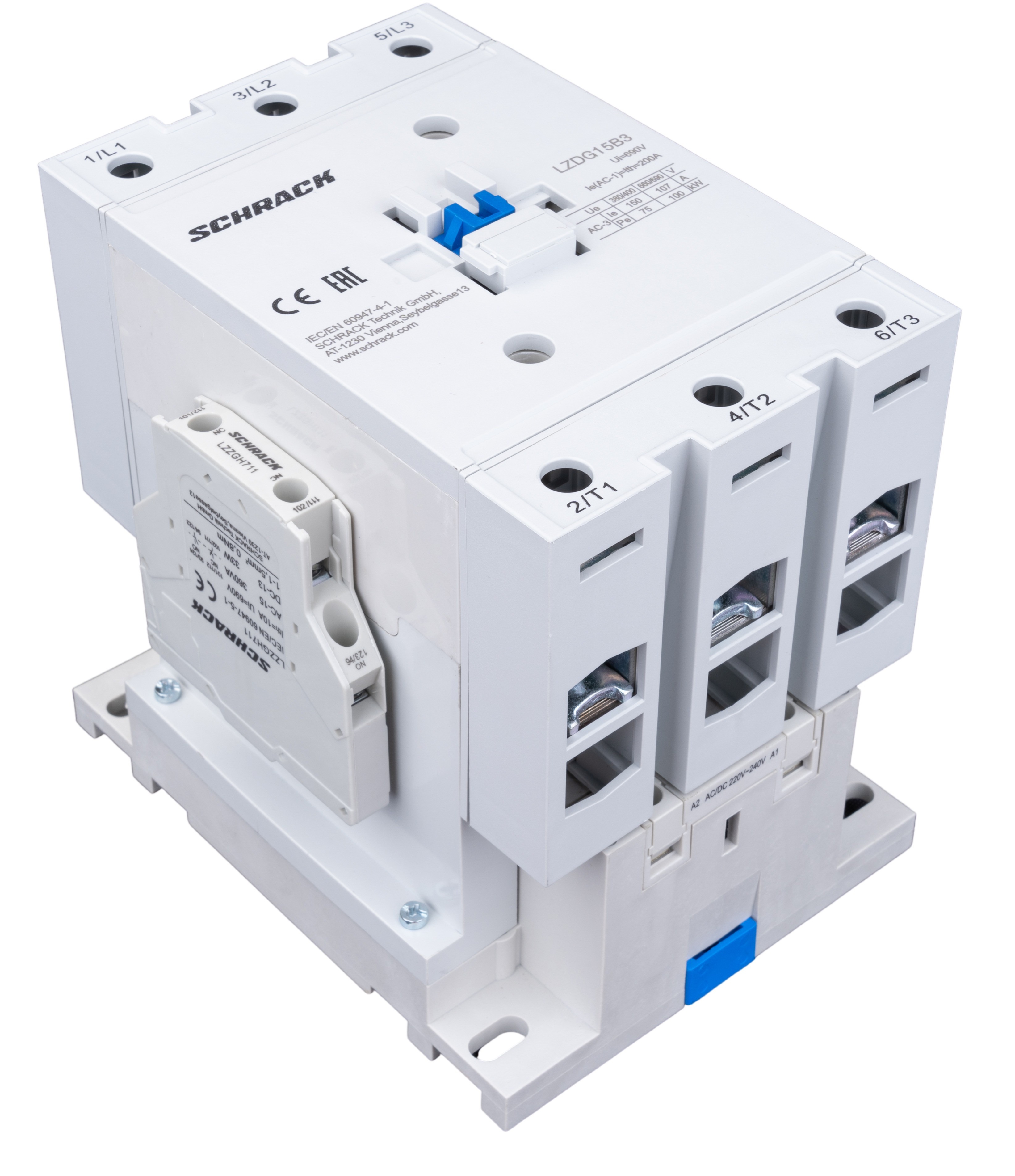

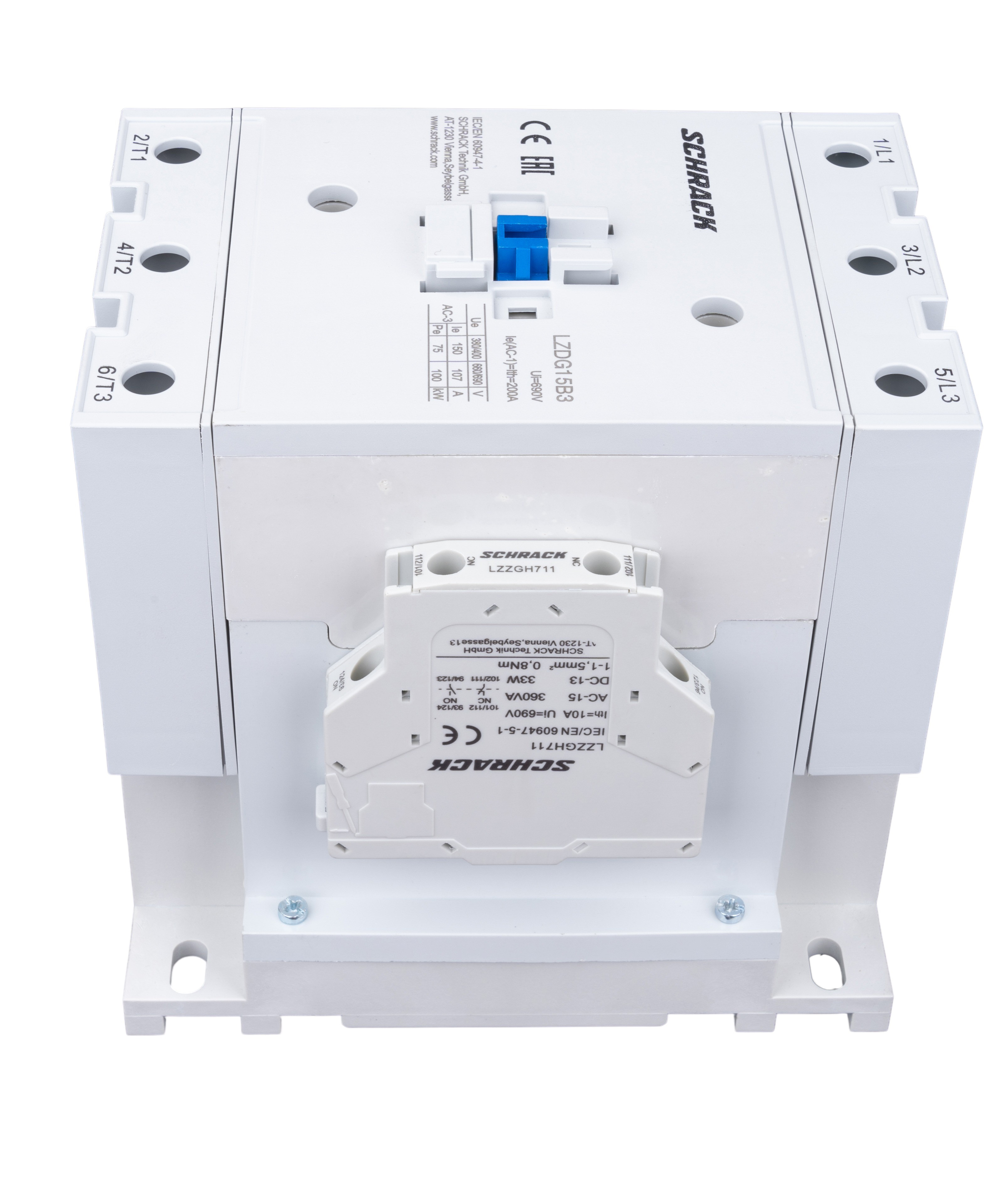

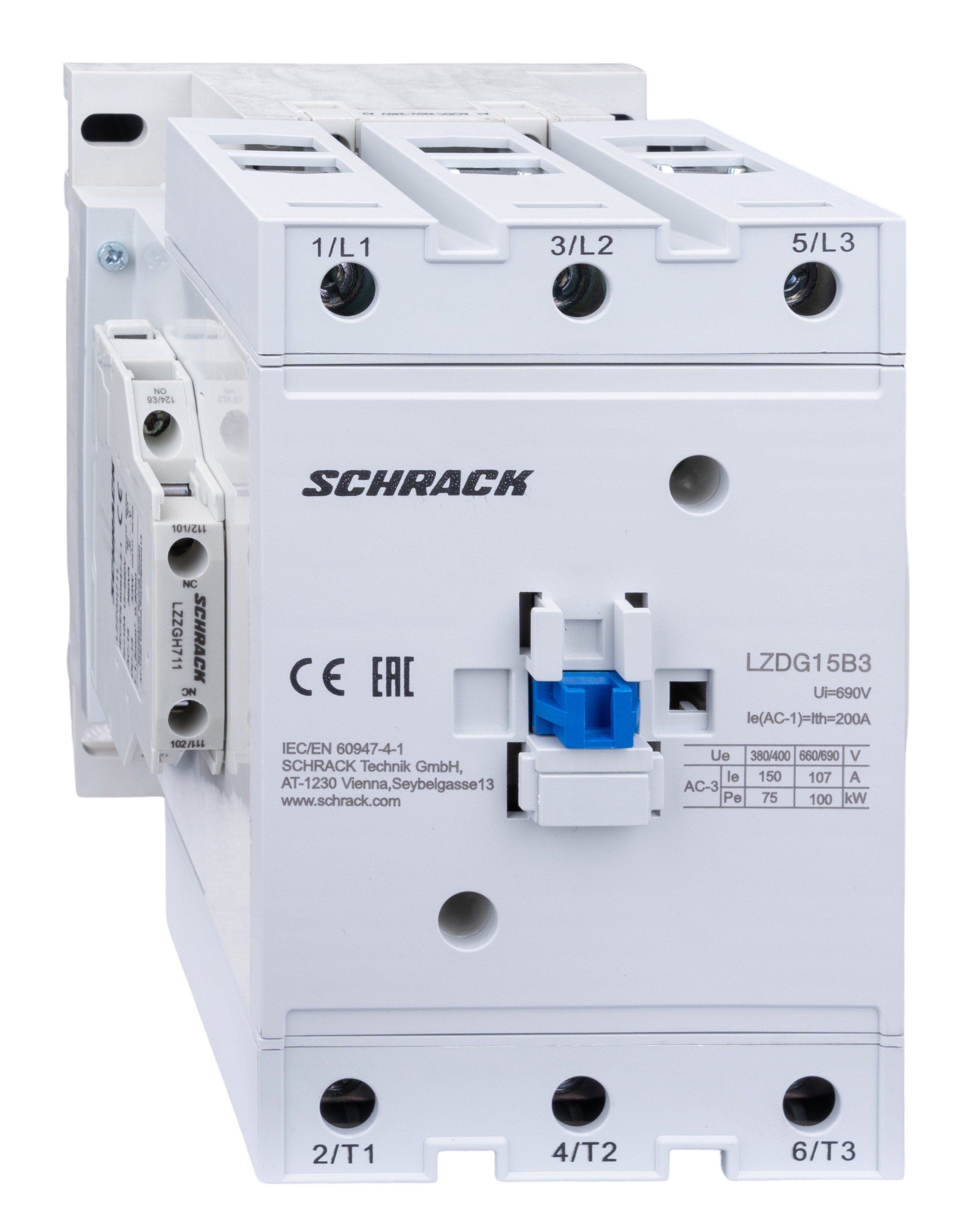

CUBICO Grand Contactor 75kW/400V/150A/1NO+1NC/230VAC

Article: LZDG15B3--

Контакторы CUBICO Grand

151 100 ₸

To order

CUBICO Grand power contactor is designed for switching electrical circuits in industrial power supply systems. The contactor is rated for three-phase networks at 400V voltage and ensures reliable control of loads up to 75 kW.

Main parameters:

  • Rated current: 150A
  • Rated power (AC-3/400V category): 75 kW
  • Control voltage: 230V alternating current

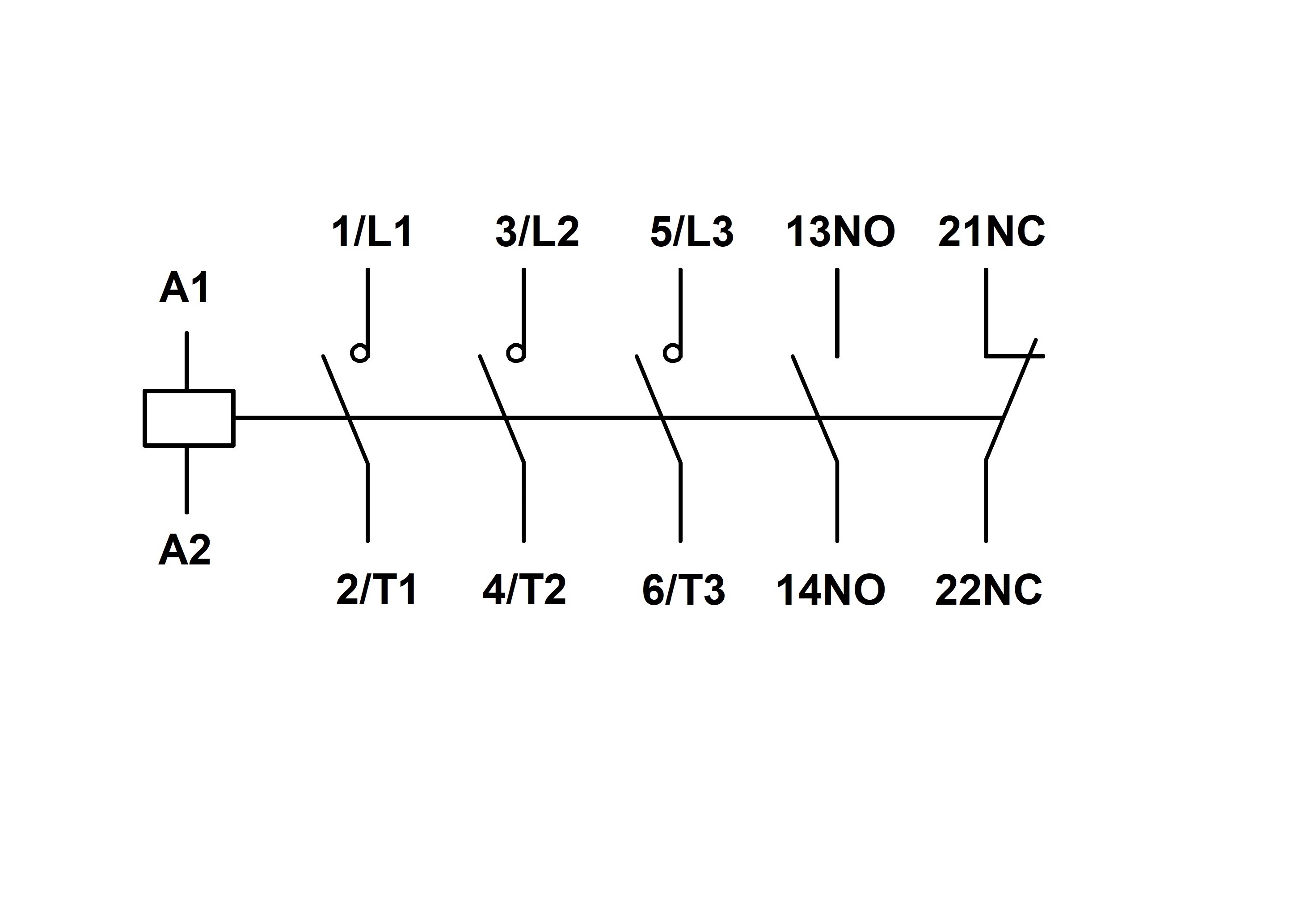

  • Contact configuration: 1 normally open + 1 normally closed (1NO+1NC)
  • Power loss at rated current: 35 W
  • Enclosure size: Grand (120×155×156 mm)
  • Operating temperature range: -25°C to +60°C

Applications:

The contactor is used for remote control of electric motors, heating elements and other electrical consumers as part of distribution cabinets and control panels. Robust construction ensures long service life under industrial production conditions.

Technical specifications:

  • Weight: 3.39 kg

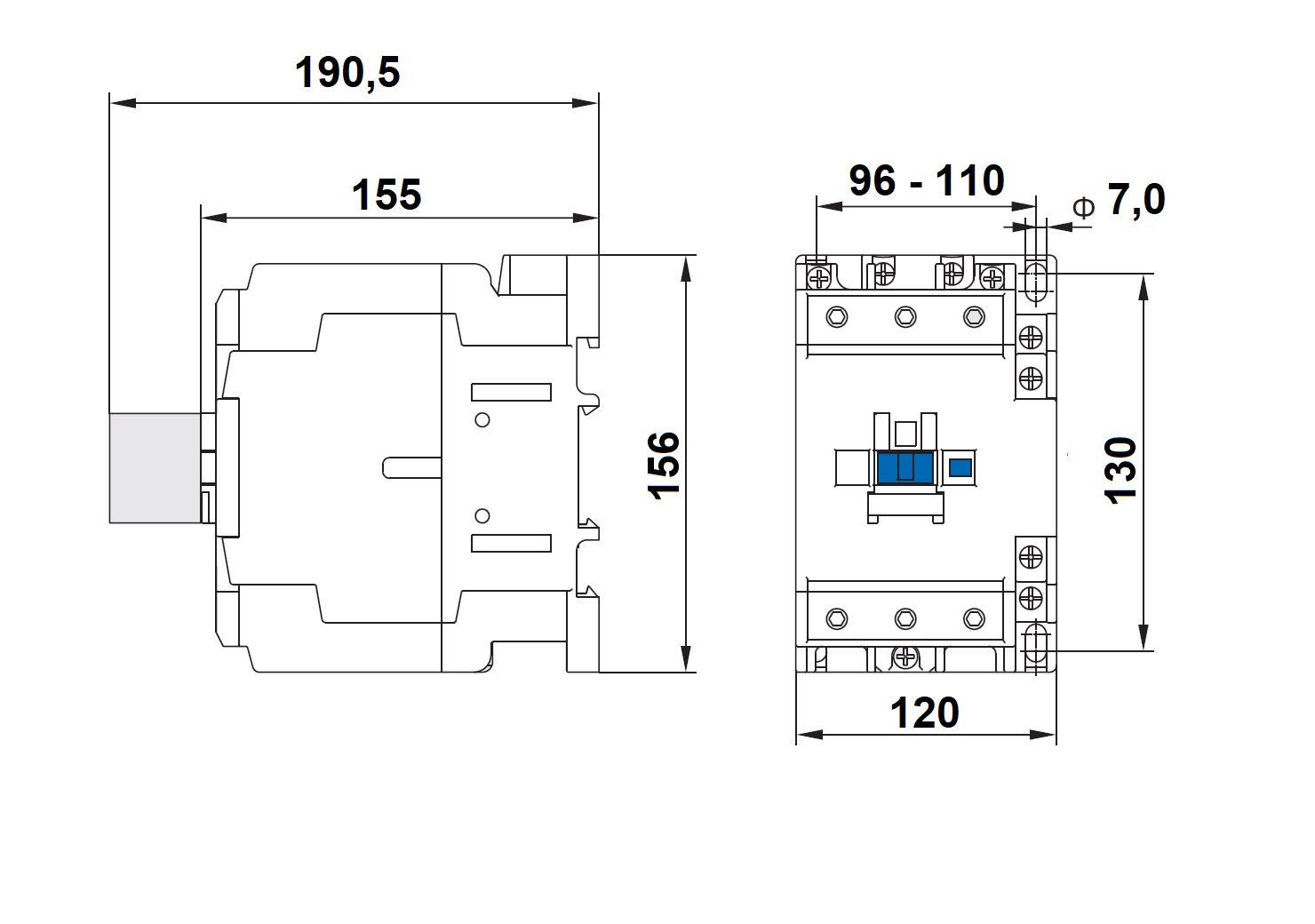

  • Net dimensions: 120 mm (width) × 155 mm (depth) × 156 mm (height)
  • EAN code: 9004840845549
  • Packaging options: 1 pc. or 2 pcs.
EAN code9004840845549
Net width120.00 mm
Net height156.00 mm
Net depth155.00 mm
Net weight3.39 kg
Power loss35.00 W
Min. ambient temperature-25°C
Max. ambient temperature60°C
SizeGrand
TypePower contactor
Coil voltage AC230V alternating current
Rated current150A
Rated power AC-3/400V75 kW
Packaging1 pc., 2 pcs.
