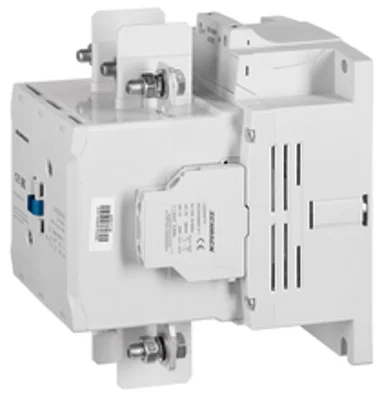

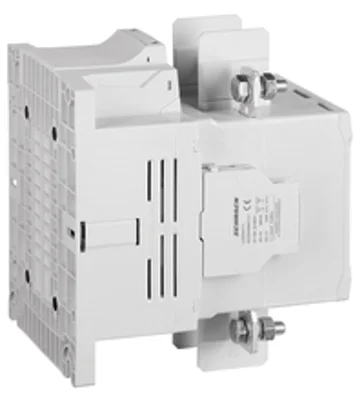

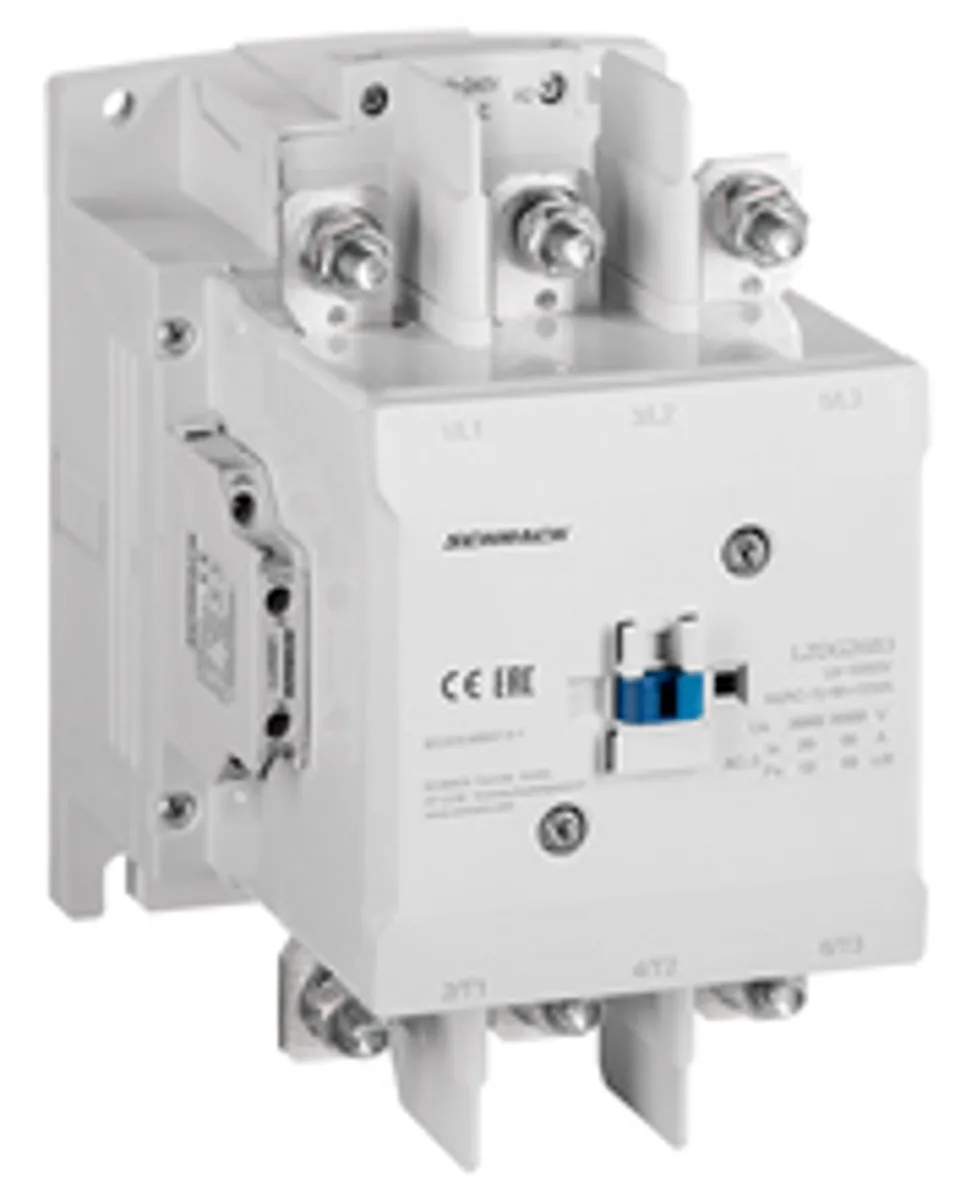

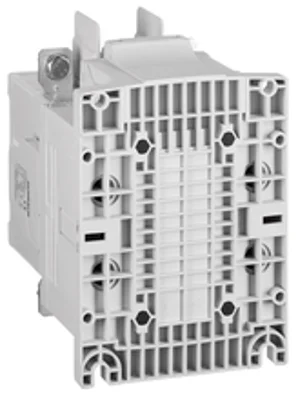

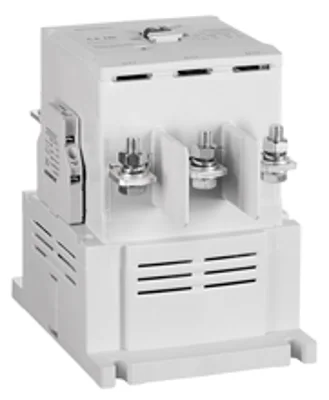

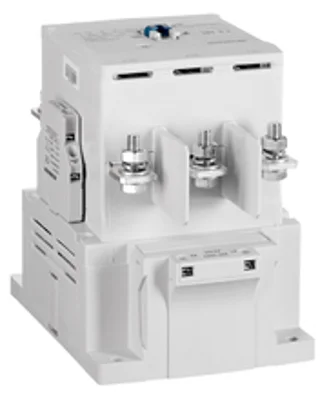

CUBICO Grand 132kW/400V/265A/2NO+2NC/230VAC Contactor

CUBICO Grand power contactor is designed for switching alternating current circuits in industrial electrical installations. The contactor ensures reliable control of high-power electric motors and other equipment with rated power up to 132 kW at voltage 400V.

Main parameters:

• Rated current: 265A
• Contact configuration: 2NO+2NC (2 normally open + 2 normally closed contacts)
• Control voltage: 230V alternating current
• Rated power (AC-3/400V): 132 kW
• Power loss at rated current: 67W

Operating conditions: The contactor is designed to operate in the ambient temperature range from -25°C to +60°C, which allows its use in both heated and unheated industrial facilities.

Design features: Compact Grand size (150×235×207 mm) with weight 6.55 kg ensures convenient installation in distribution cabinets and control panels. The contactor is supplied in packaging of 1 or 2 units.

Application: Used in direct-on-line motor starting circuits, reversing circuits, circuits with protective devices, and other control systems requiring reliable switching of high-power loads.
