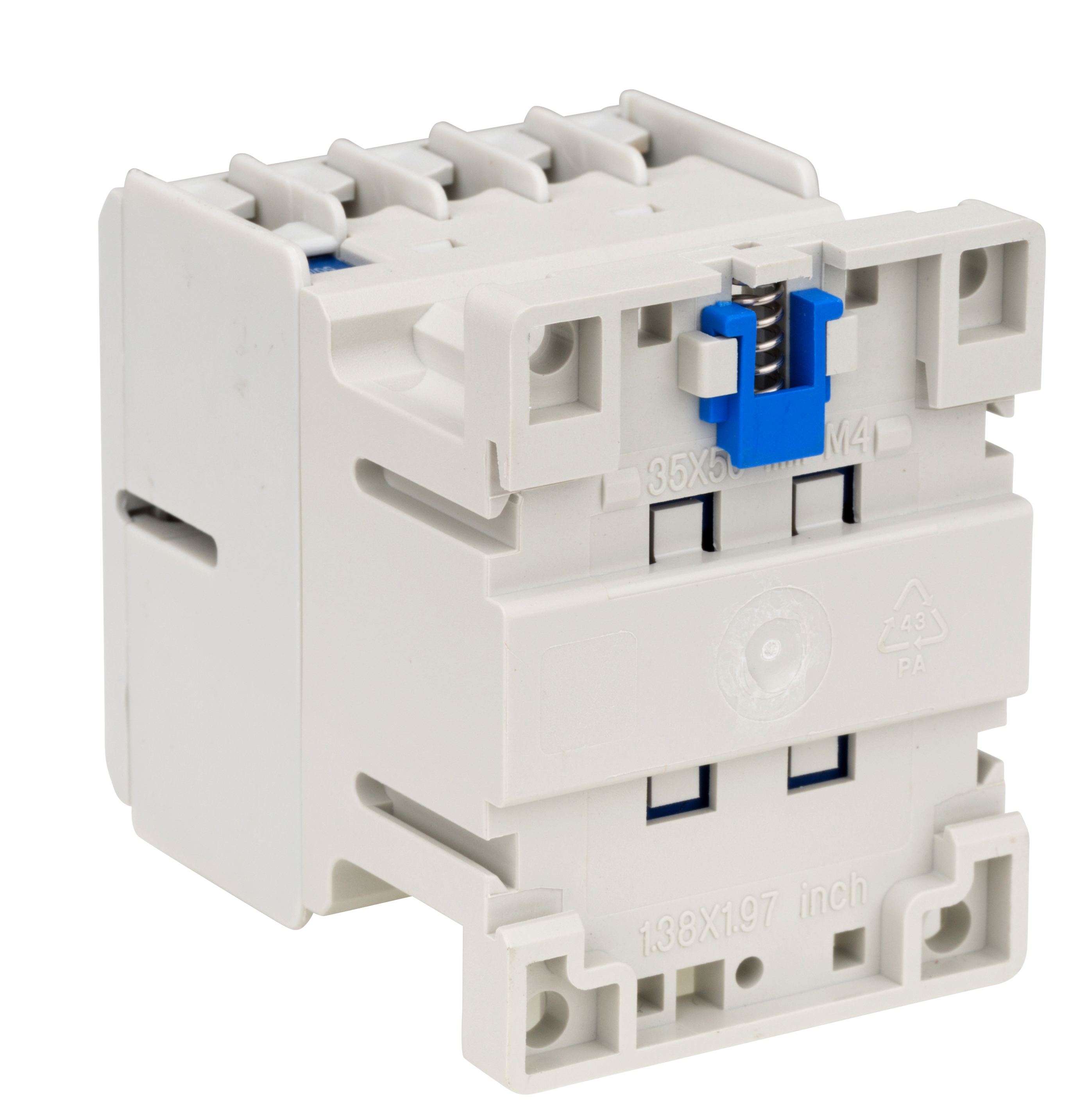

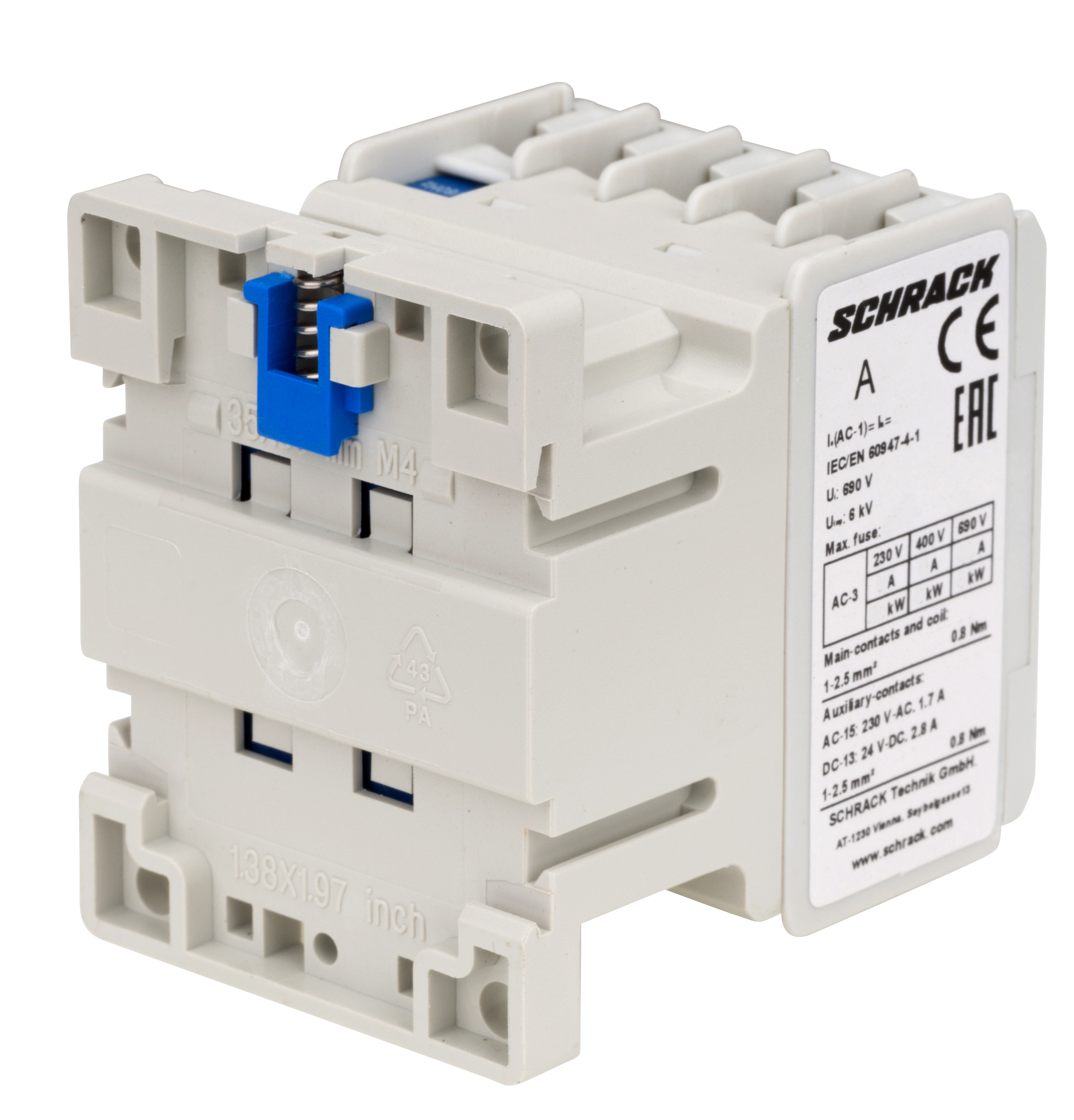

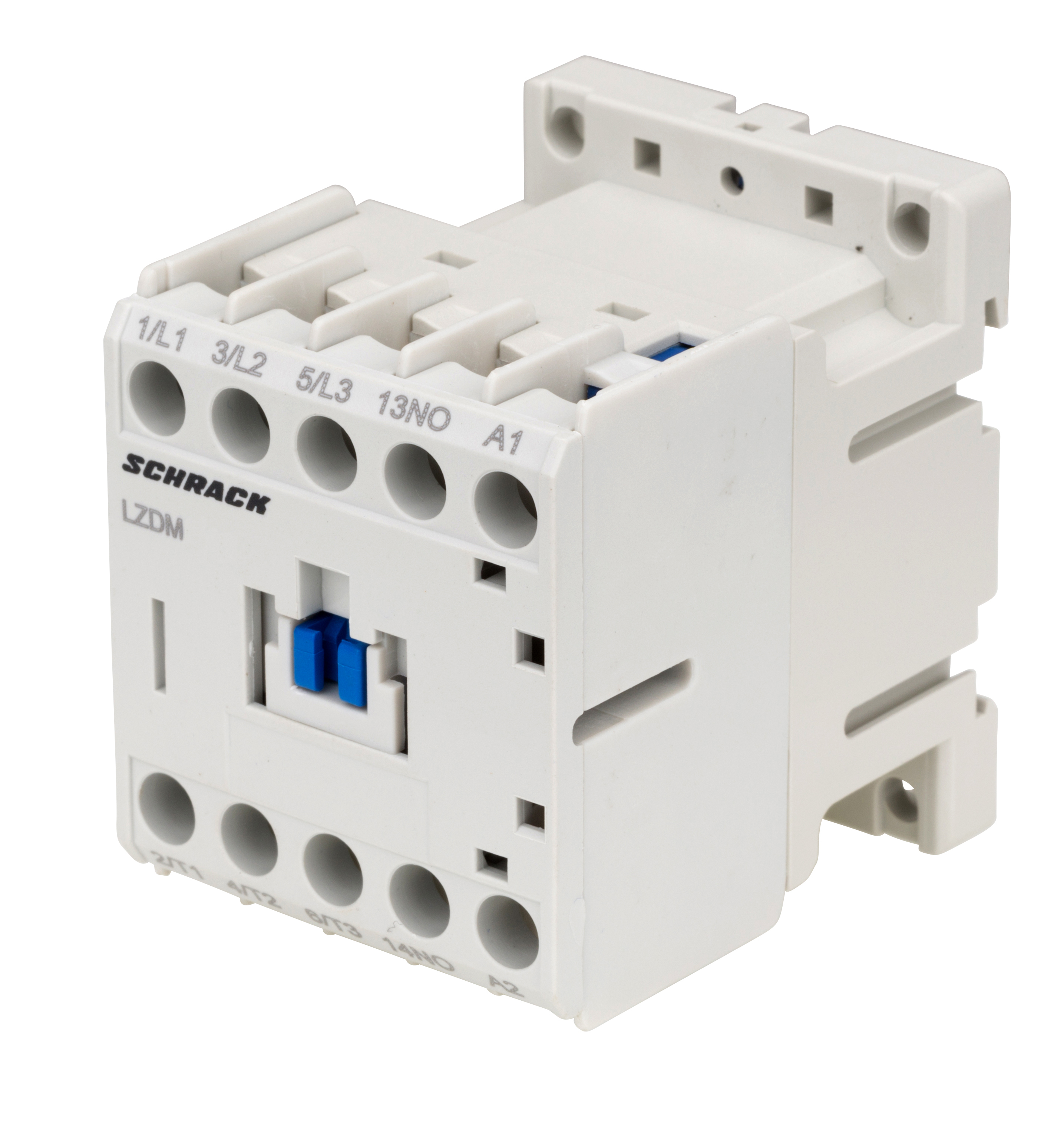

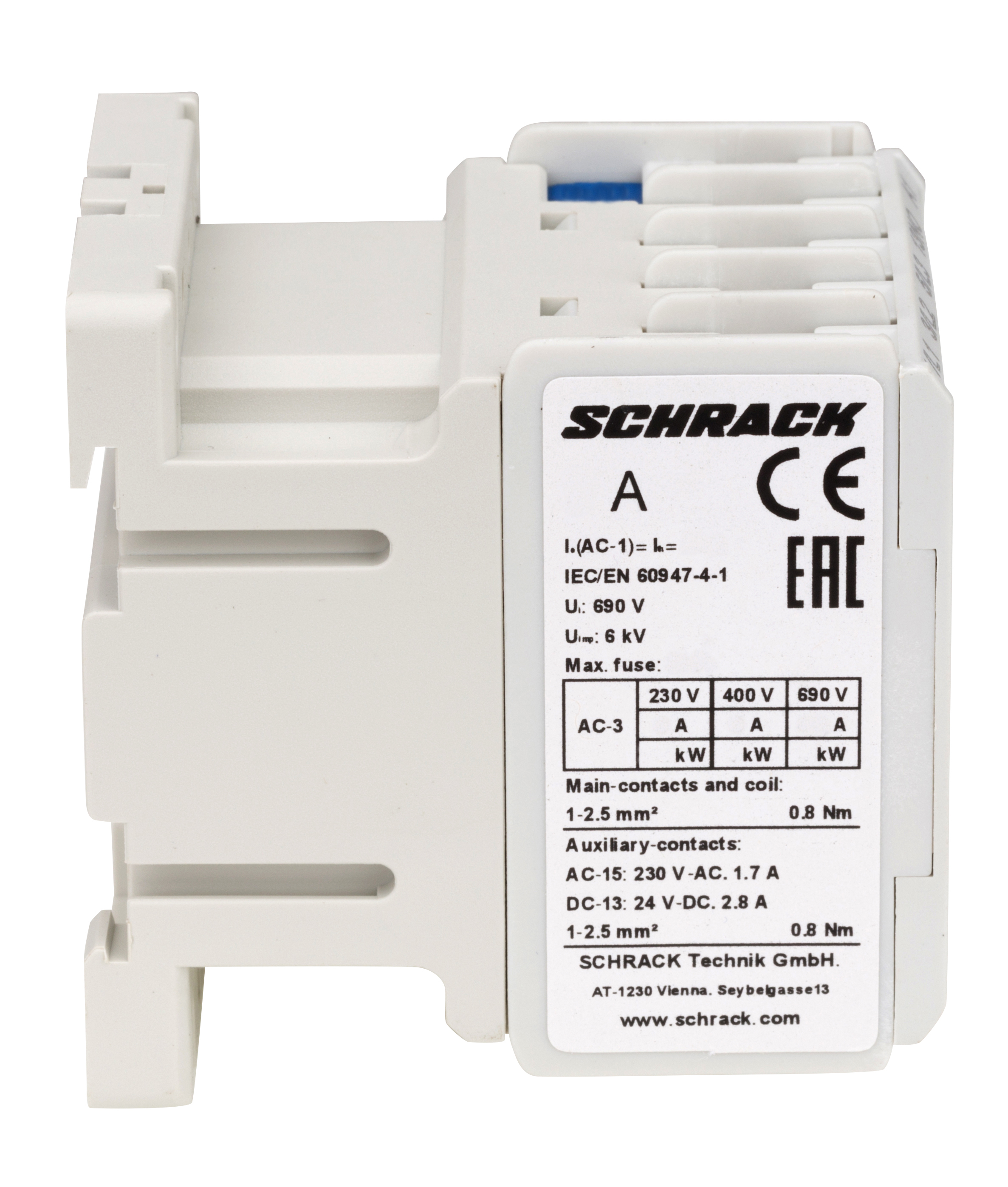

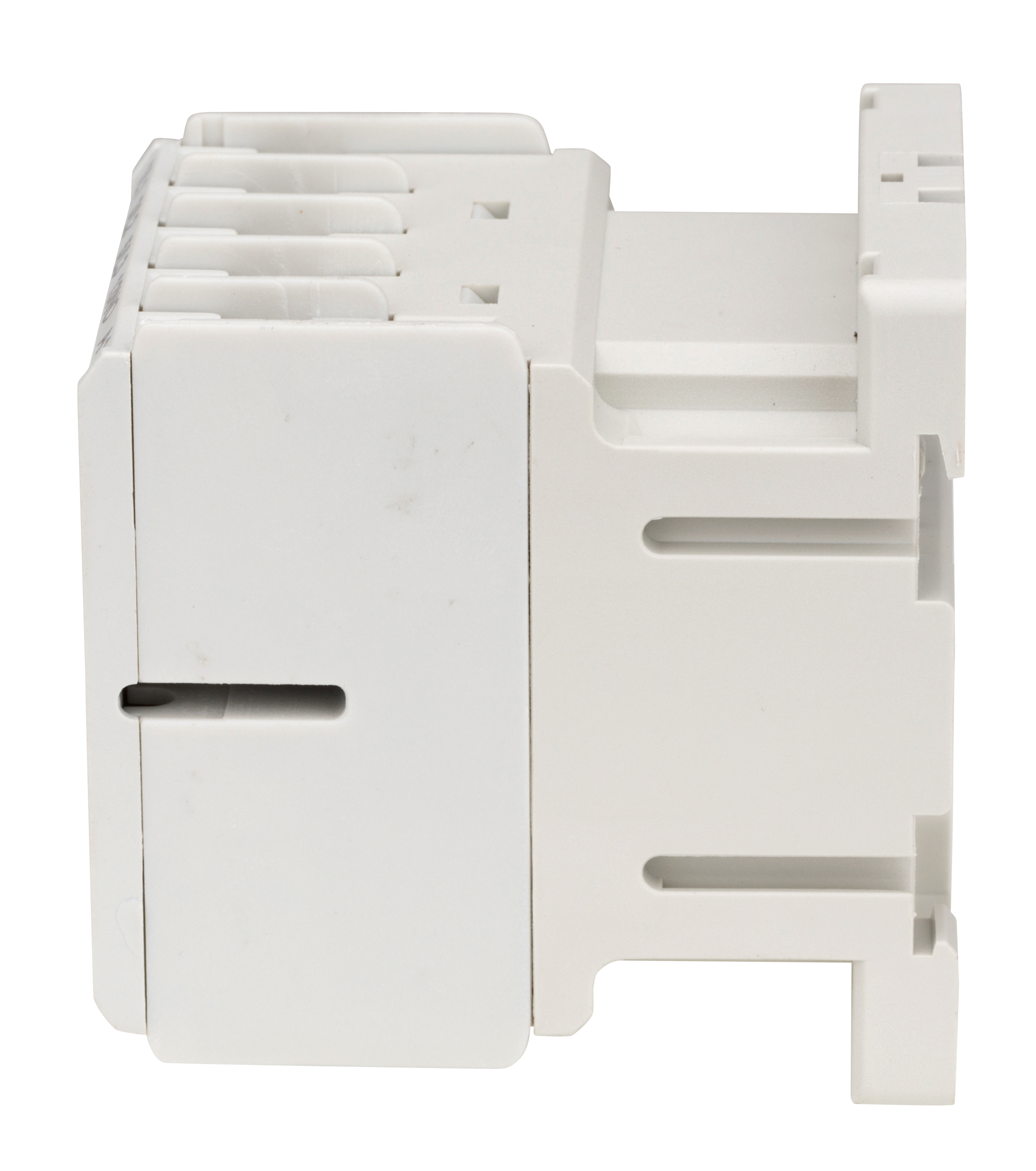

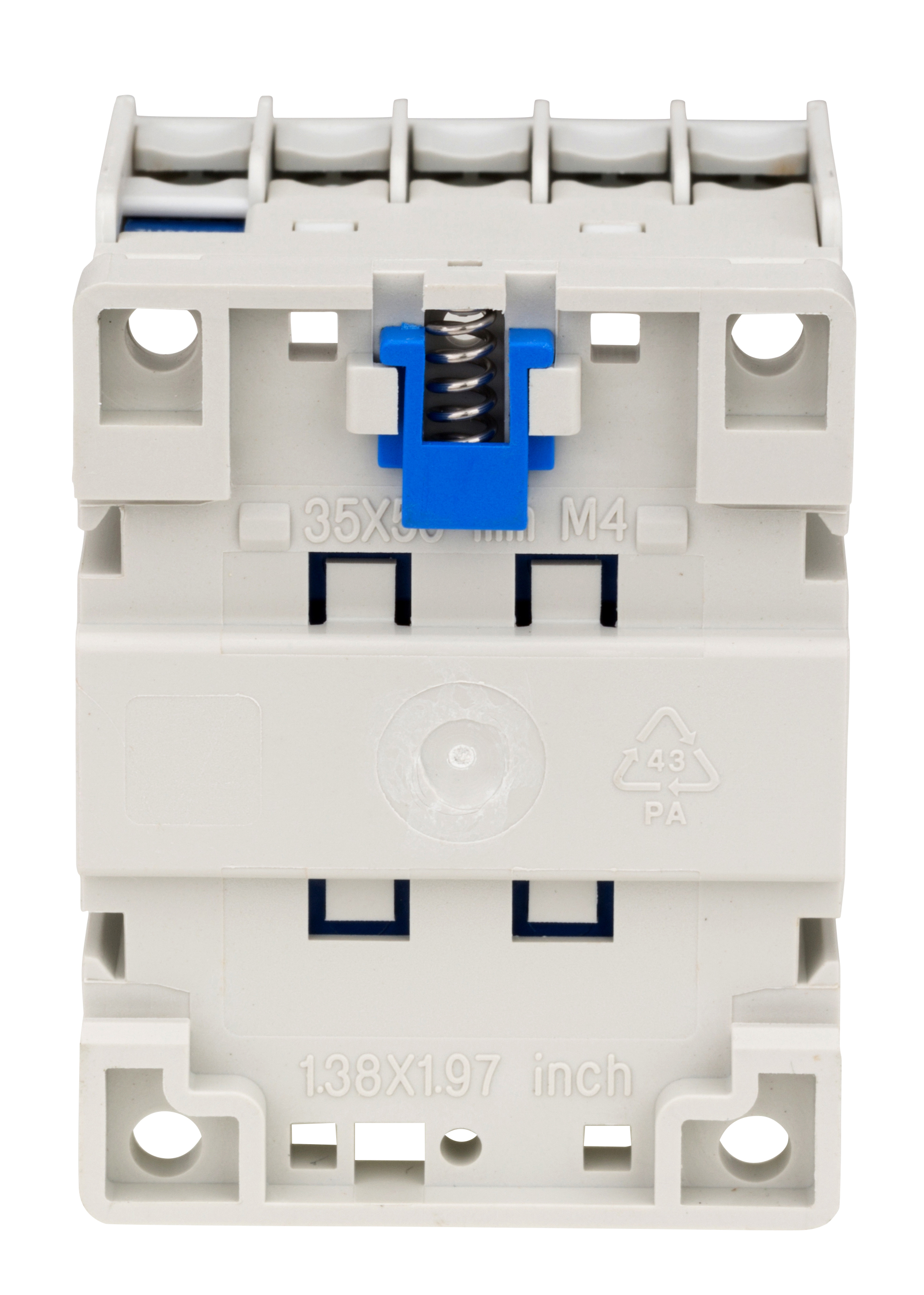

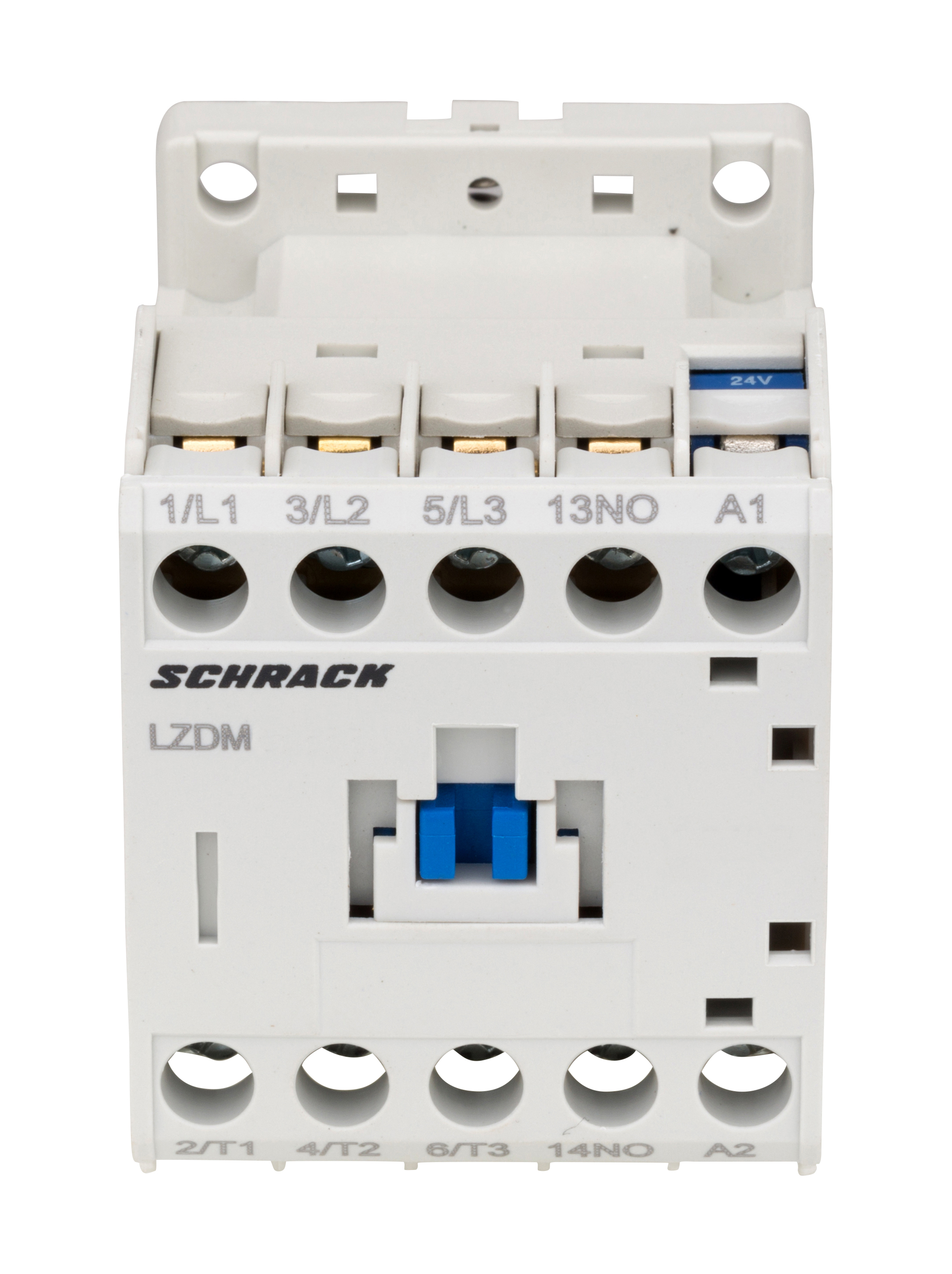

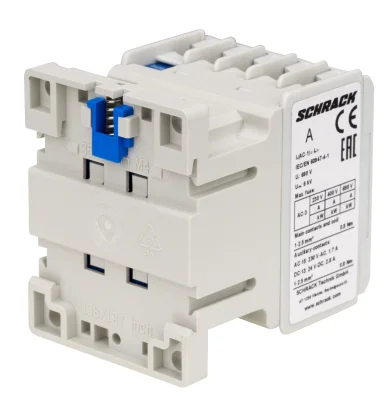

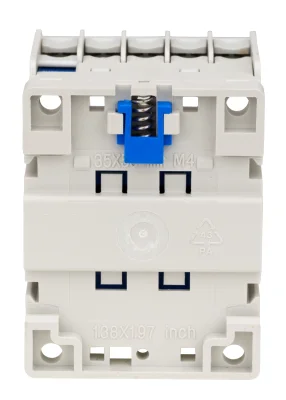

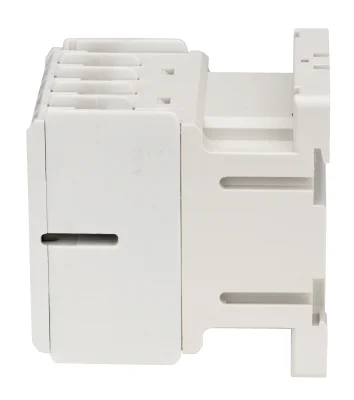

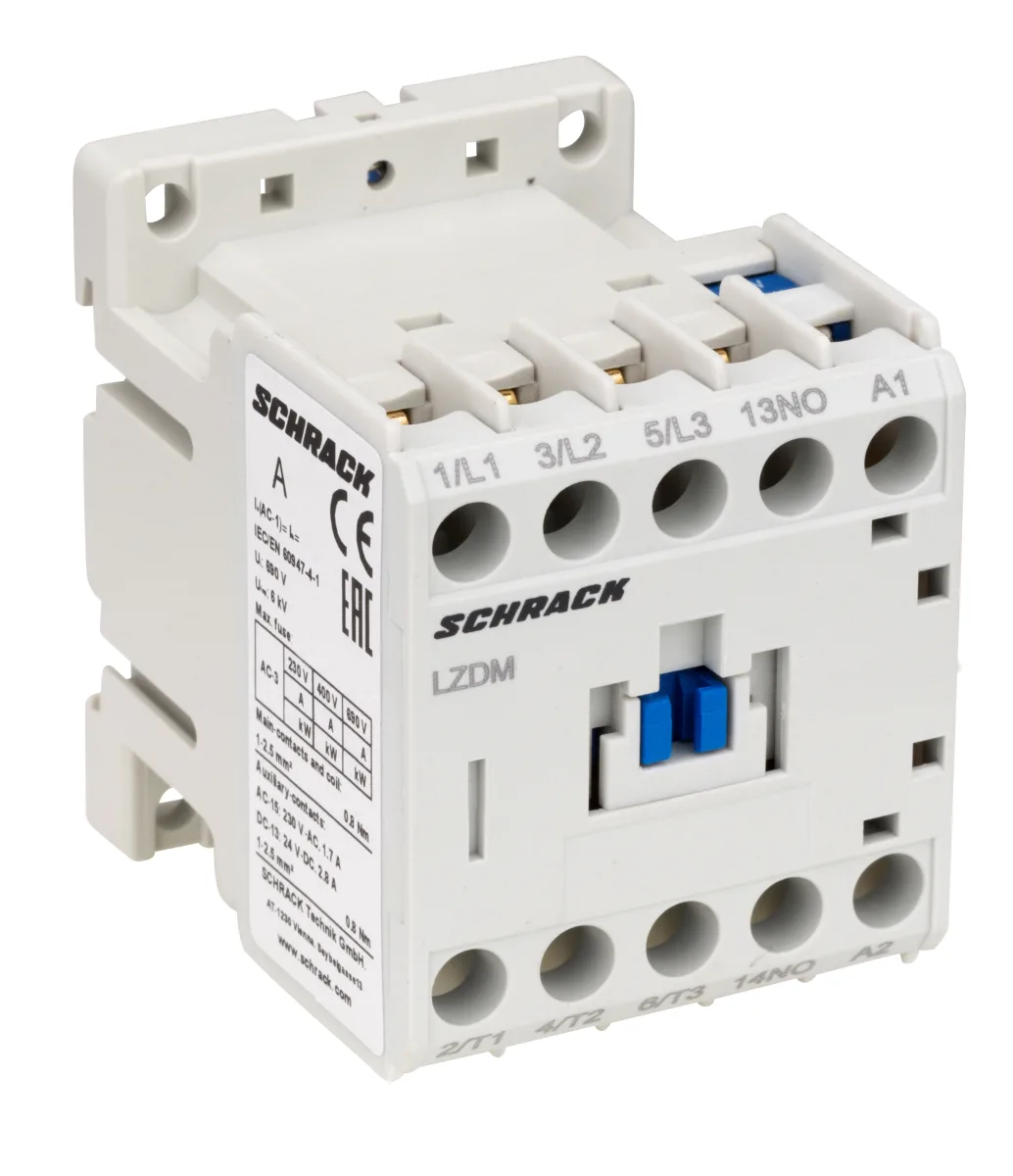

CUBICO Mini Contactor 5.5kW/AC3/12A/1NO Coil 24VDC

The CUBICO Mini miniature contactor is designed for switching three-phase alternating current circuits of industrial frequency. The device provides reliable control of electrical loads in automation and power distribution systems.

Key characteristics:

• Rated power: 5.5 kW at AC-3/400V
• Rated current: 12 A (AC-3/400V), 20 A (AC-1/690V)
• Main contacts: 3 closing contacts
• Auxiliary contacts: 1 closing contact (1NO)
• Coil voltage: 24 VDC
• Power loss: 7.50 W
• Ambient temperature range: from -25°C to +60°C

Dimensions:

• Width: 46 mm
• Height: 59 mm
• Depth: 70 mm
• Weight: 0.27 kg

Manufacturer: Schrack

Packaging: 1 piece or 84 pieces

The compact size and low power dissipation of the CUBICO Mini contactor make it an ideal solution for control panels and distribution cabinets with limited space.
