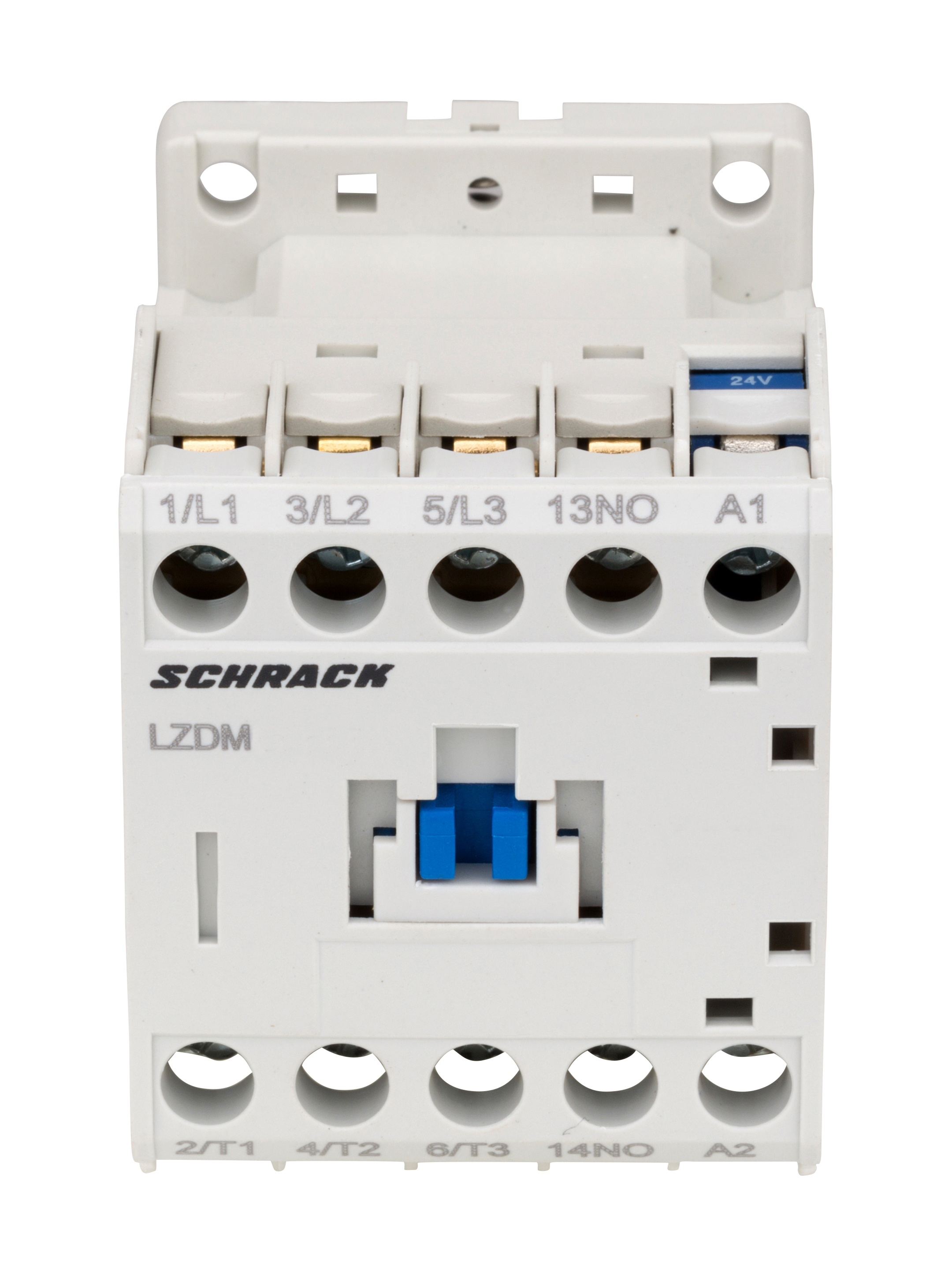

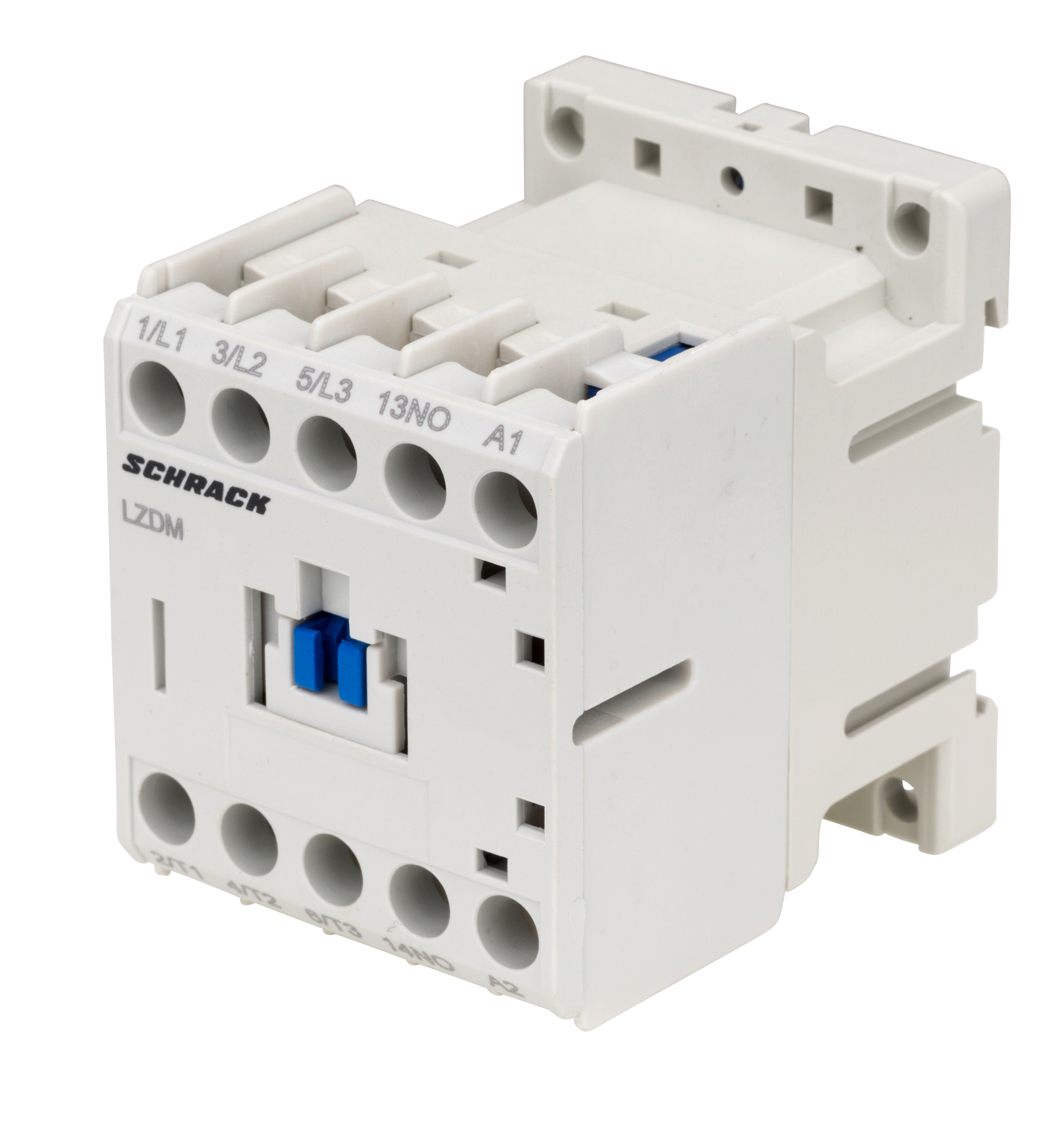

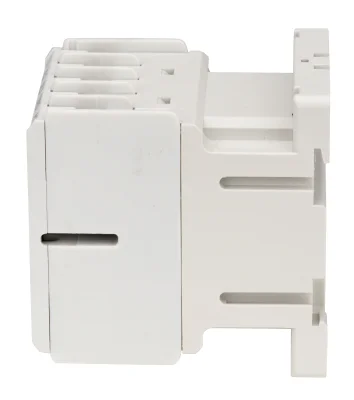

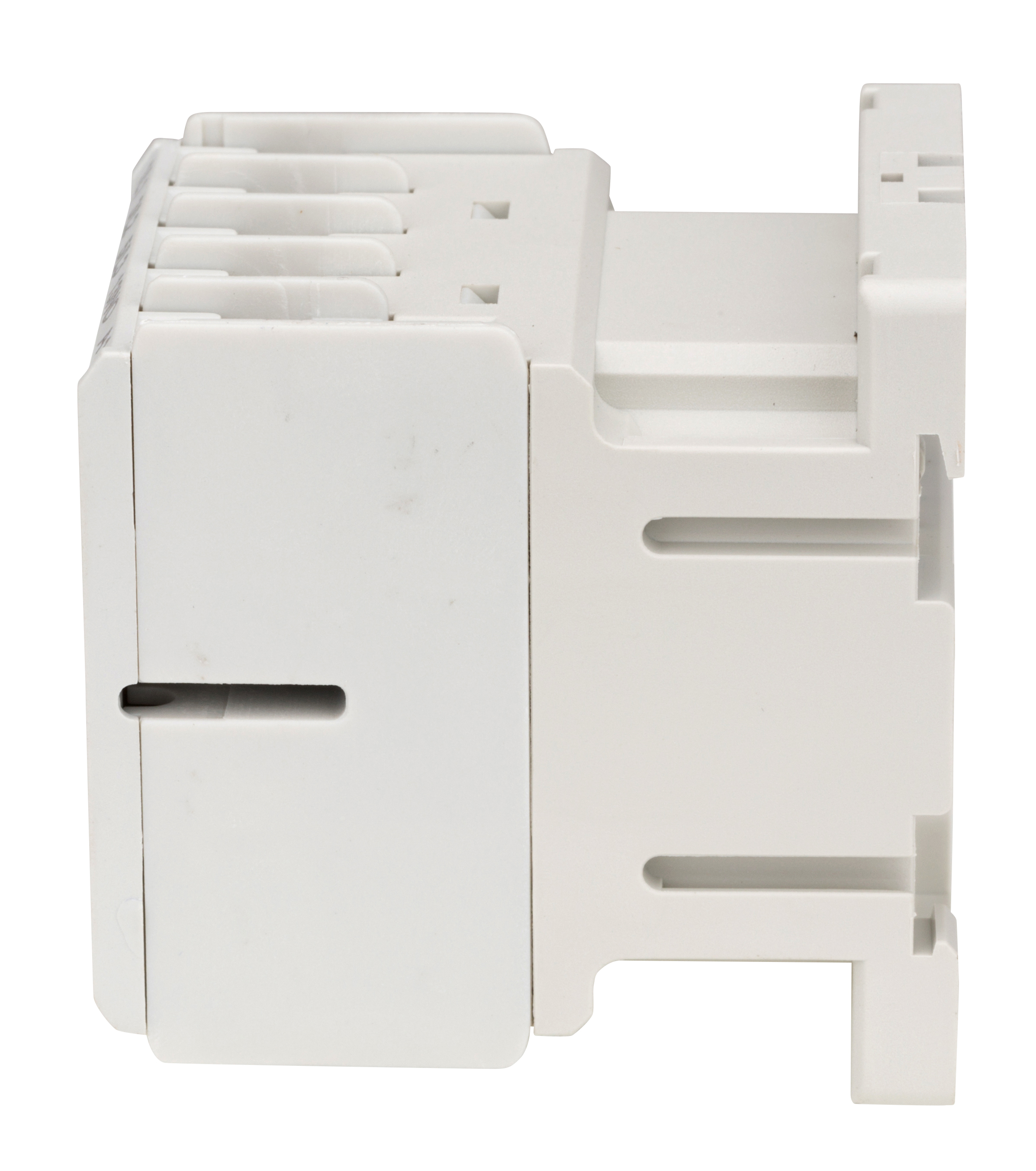

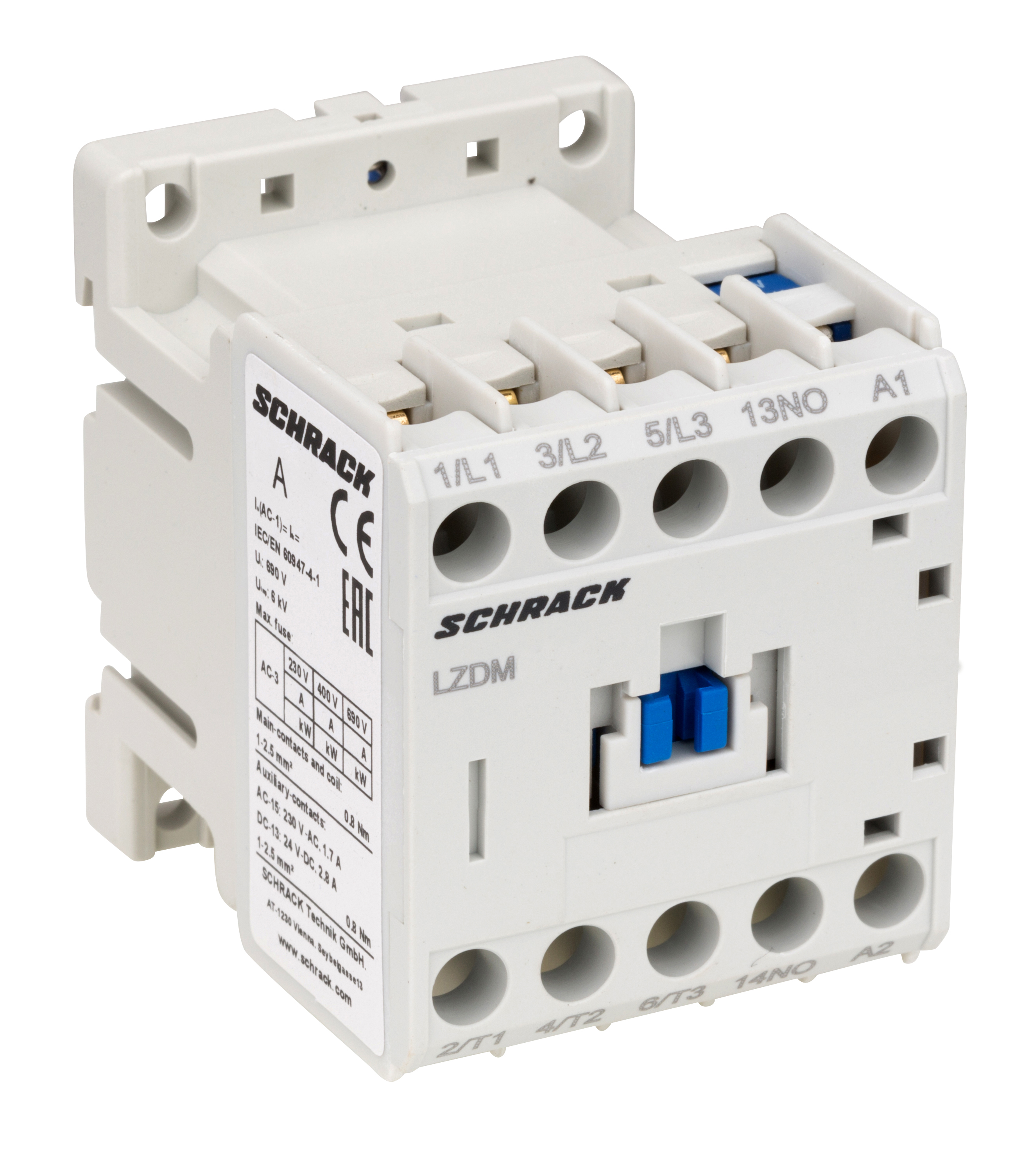

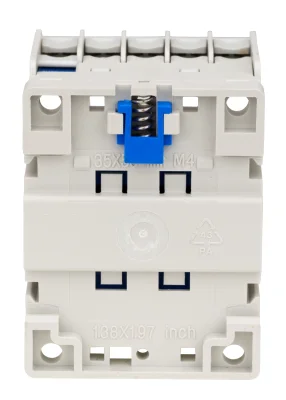

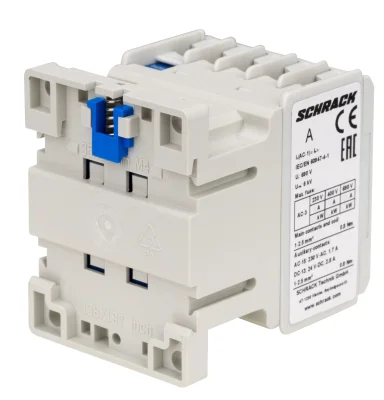

CUBICO Mini Contactor 5.5kW/AC3/12A/1NC Coil 24VDC

CUBICO Mini contactor is designed for controlling three-phase electrical circuits in industrial applications. The device provides reliable switching of loads with a rated power of up to 5.5 kW at 400 V alternating current in the AC-3 category.

Main technical parameters:

• Rated current: 12 A at AC-3/400 V
• Rated current AC-1/690 V: 20 A
• Control coil voltage: 24 V direct current
• Main contacts: 3 closing contacts (3NO)
• Auxiliary contacts: 1 opening contact (1NC)
• Power loss: 6.30 W

Structural characteristics:

• Size: Mini (compact design)
• Dimensions: 46 × 59 × 70 mm
• Weight: 0.27 kg
• Operating temperature: from −25 °C to +60 °C

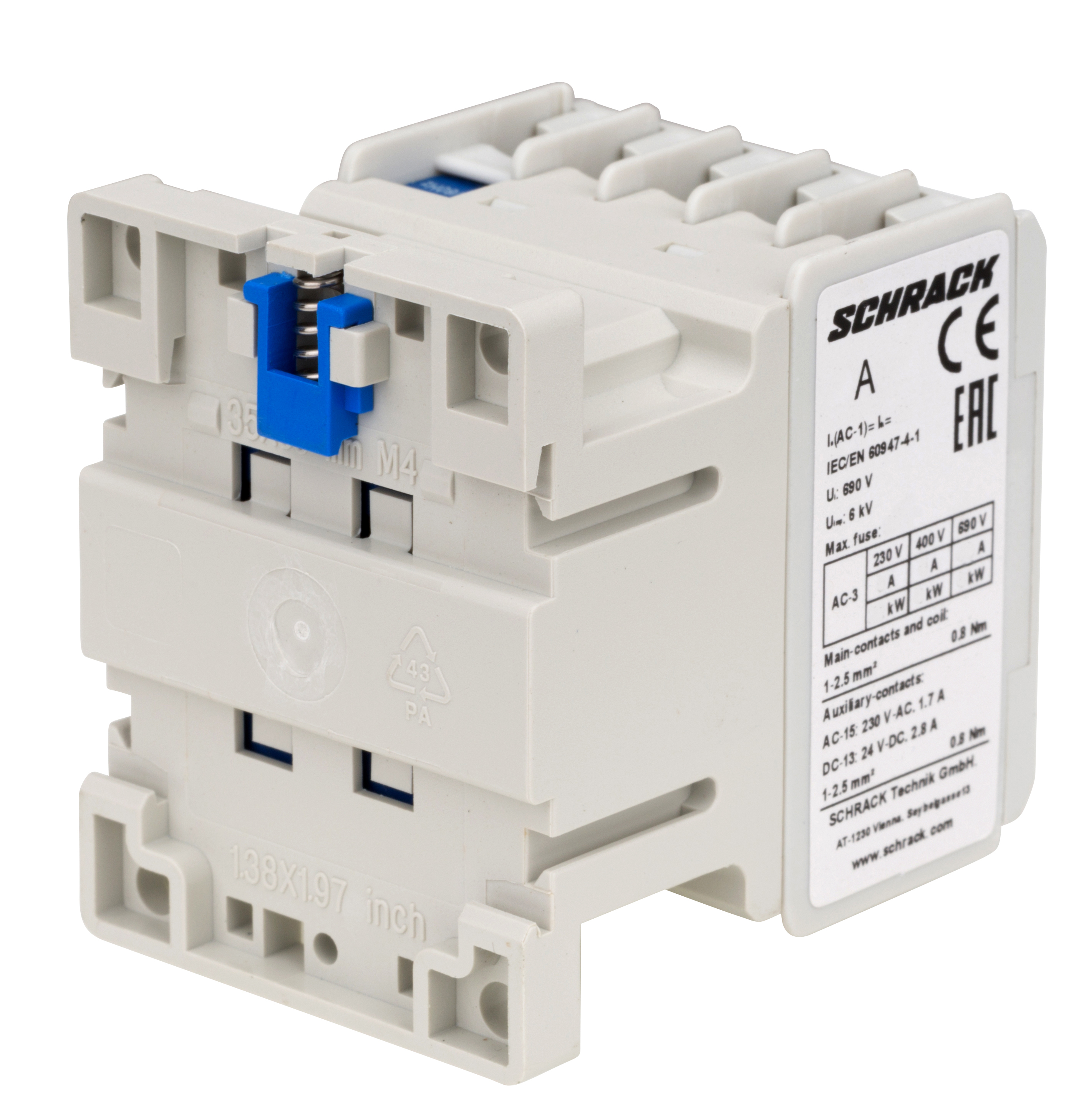

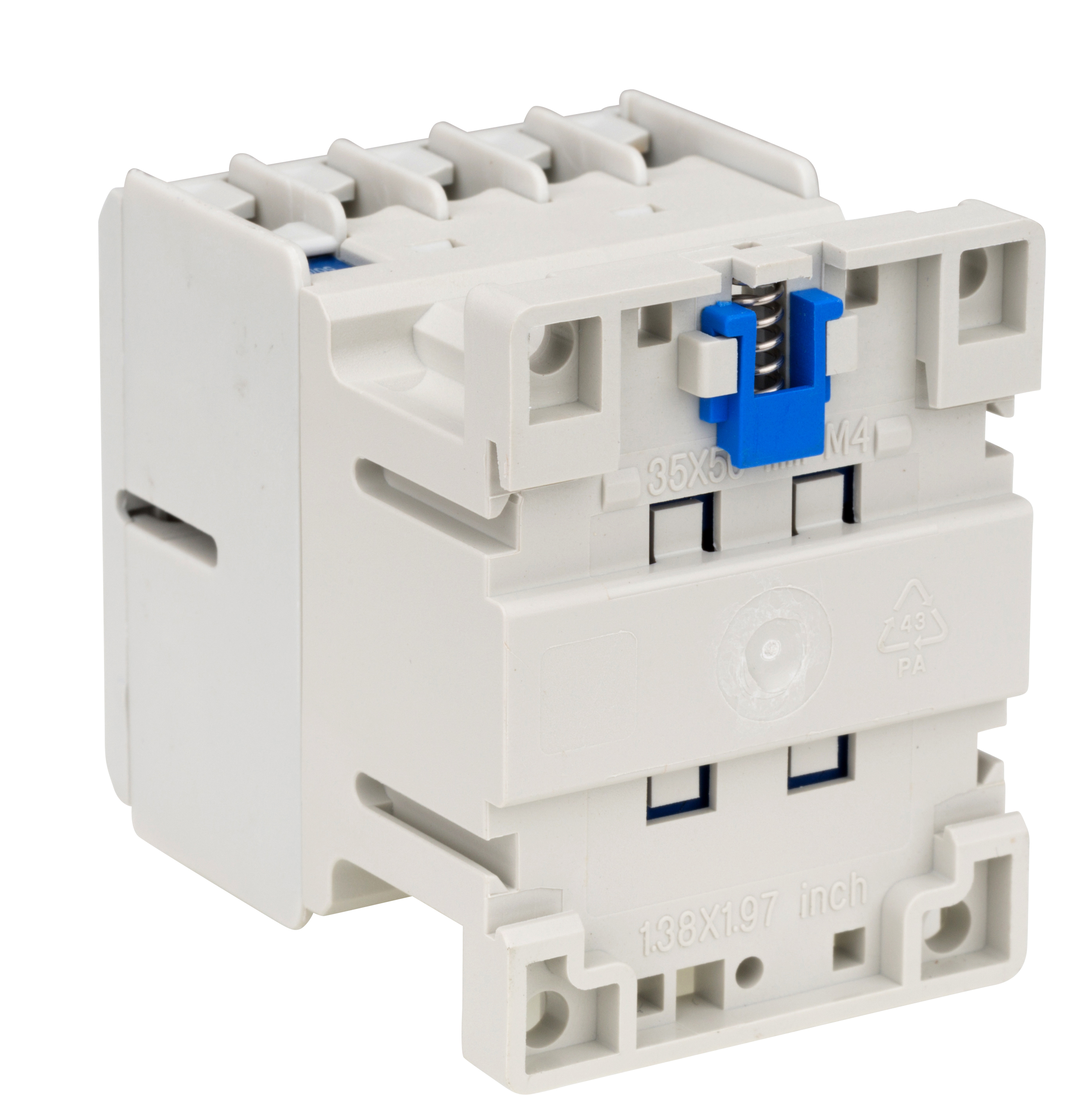

The contactor is designed for installation on a DIN rail and is compatible with low-voltage automation and control systems. Manufacturing by Schrack ensures high quality and reliability under frequent switching conditions.
