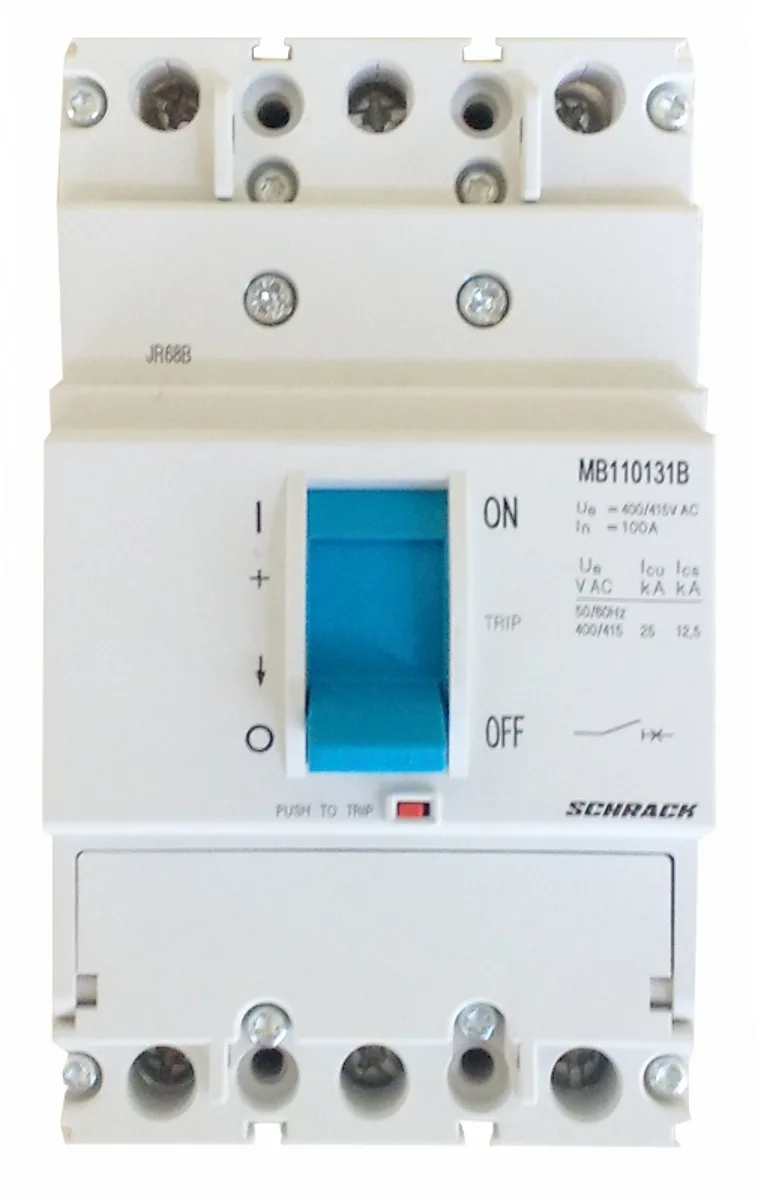

Automatic Circuit Breaker 100/3, 18kA
Article: MB110831B-
50 710 ₸
In stock
Three-pole automatic circuit breaker with a rated current of 100 A and a short-circuit breaking capacity of 18 kA. Designed to protect electrical circuits from overloads and short-circuit currents.
Key specifications:
- Rated current: 100 A
- Breaking capacity: 18 kA
- Release type: Thermo-magnetic protection device
- Design: Power circuit breaker, 3 normally open contacts
- Operating temperature range: -25°C to +60°C
- Power dissipation: 24 W
- Size: 1 module
- Net dimensions: width 75 mm × height 130 mm
- Weight: 0.70 kg
- EAN code: 9004840538823
- Manufacturer: Schrack
- Packaging: 1 piece
The circuit breaker provides reliable protection against overloads and fault conditions through its combined thermo-magnetic release mechanism.
| EAN code | 9004840538823 |
|---|---|
| Net width | 75.00 mm |
| Net height | 130.00 mm |
| Net weight | 0.70 kg |
| Power dissipation | 24.00 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Device type | Power circuit breaker |
| Rated current | 100 A |
| Short-circuit breaking capacity | 18 kA |
| Size | 1 |
| Main contacts | 3 normally open contacts |
| Release mechanism | A thermo-magnetic protection device for equipment and cables |
| Manufacturer | Schrack |
| Packaging | 1 piece |
