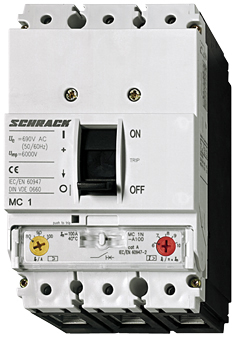

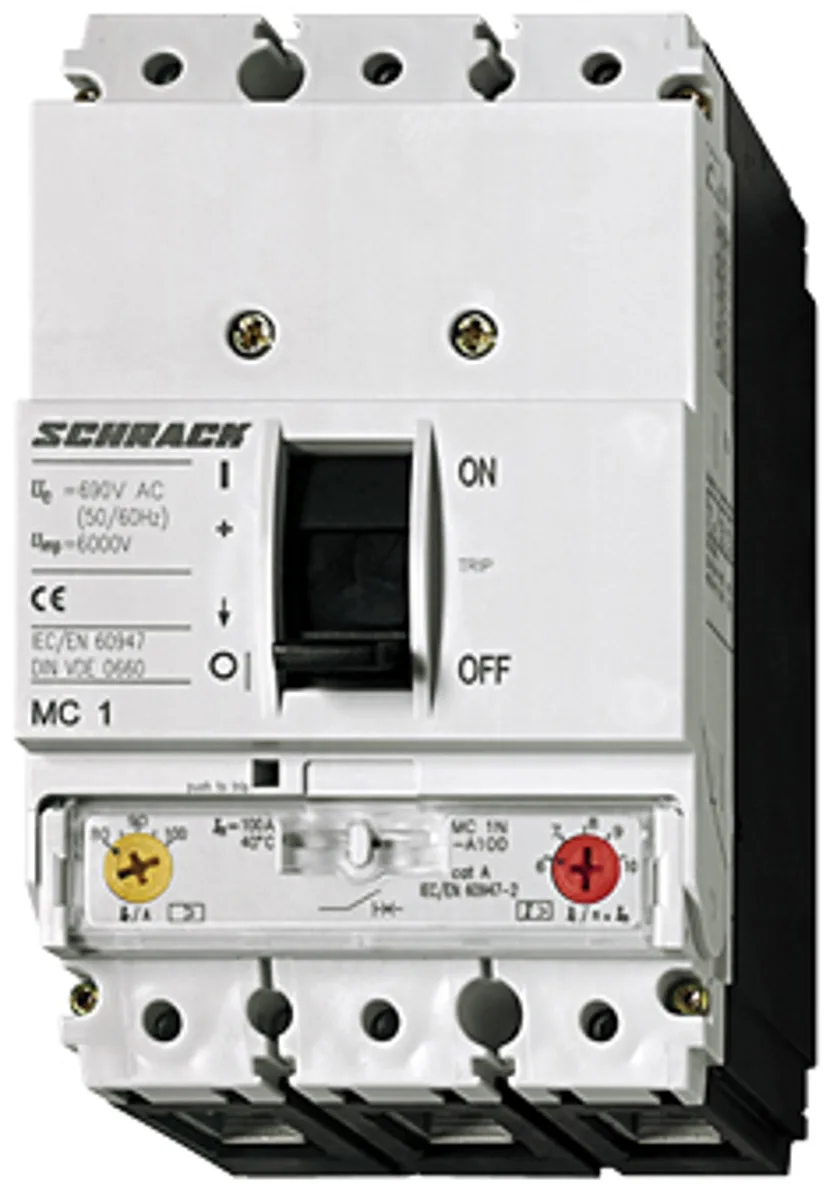

Automatic Circuit Breaker 25A/3, 25kA, Type A
Article: MC125131--
90 310 ₸
To order
A three-pole automatic circuit breaker designed to protect electrical circuits from overloads and short-circuit currents. Equipped with a combined thermal-magnetic release device type A, providing selective protection for equipment and cable lines.
Main Parameters:
- Rated Current: 25 A
- Switching Capacity: 25 kA
- Release Characteristic: Type A (tripping when rated current is exceeded by 2–3 times for protection of semiconductor devices)
- Number of Poles: 3 poles
- Power Loss: 8.80 W
- Operating Temperature Range: from –25 °C to +60 °C
Dimensions and Weight:
- Width: 90 mm
- Height: 145 mm
- Net Weight: 1.05 kg
- Installation Width on DIN Rail: 1 module (18 mm)
The circuit breaker manufactured by Schrack complies with IEC standards and is designed for installation in distribution cabinets and electrical panels. Operates reliably in industrial and utility electrical networks.
| EAN Code | 9004840403275 |
|---|---|
| Net Width | 90.00 mm |
| Net Height | 145.00 mm |
| Net Weight | 1.05 kg |
| Power Loss | 8.80 W |
| Min. Ambient Temperature | –25 °C |
| Max. Ambient Temperature | 60 °C |
| Device | Power Switch |
| Rated Current | 25 A |
| Short-Circuit Switching Capacity | 25 kA |
| Size | 1 |
| Release | Type A thermal-magnetic protective device for equipment and cables |
| Manufacturer | Schrack |
| Packaging | 1 pcs. |
