RCD 4-pole, up to 3A for MC1, right-hand installation
Article: MC194608--
364 500 ₸
To order
Four-pole residual current device (RCD) with a rated current of up to 3A, designed for integration with MC1 series controllers. Installation is carried out on the right side of the main module.
Main characteristics:
- Number of poles: 4
- Rated current: up to 3A
- Function: Leakage current registration
- Power loss: 15 W
- Operating temperature range: -5°C to +40°C
- Type: Accessory for MC1

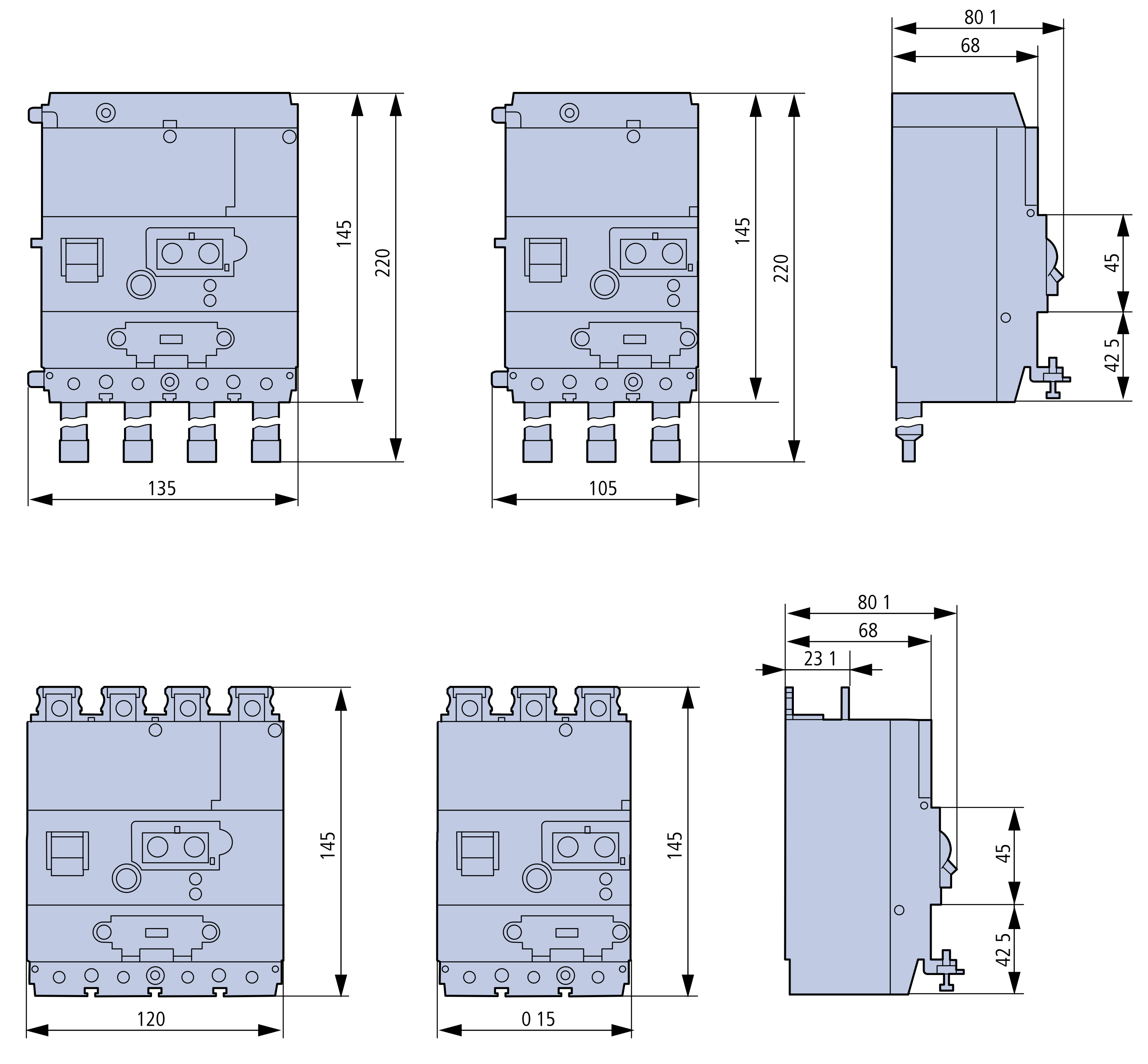

Physical parameters:
- Width: 130 mm
- Height: 145 mm
- Weight: 0.84 kg
- EAN: 9004840507485
Packaging: 1 pc or 7 pcs.
The RCD manufactured by Schrack provides reliable protection against dangerous leakage currents, featuring compact dimensions for convenient placement in distribution cabinets and control panels.
| EAN code | 9004840507485 |
|---|---|
| Net width | 130.00 mm |
| Net height | 145.00 mm |
| Net weight | 0.84 kg |
| Power loss | 15.00 W |
| Min. ambient temperature | -5°C |
| Max. ambient temperature | 40°C |
| Device type | Accessories |
| Size | 1 |
| Accessories | Leakage current registration |
| Manufacturer | Schrack |
| Packaging | 1 pc, 7 pcs |
