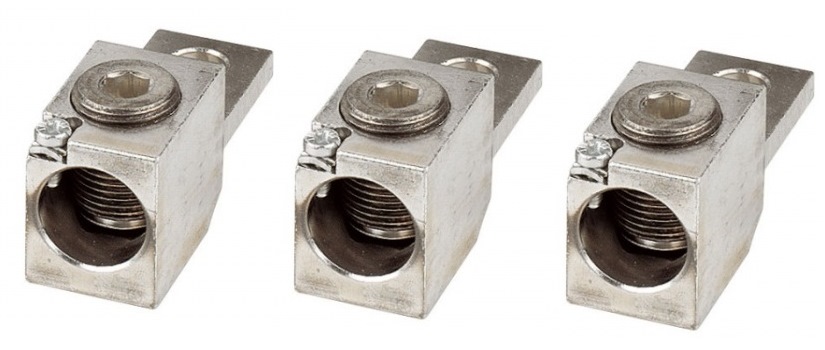

Tunnel Terminal 90mm² 3-pole for MC1
Article: MC196730--
20 380 ₸
In stock
Tunnel terminal designed for connecting conductors up to 90 mm² in electrical power distribution systems. The three-pole construction ensures simultaneous connection of three phases or lines. The terminal is compatible with MC1 modular systems and intended for installation in distribution devices and control panels.
Technical Parameters:
- Rated Current: 160 A
- Connected Conductor Cross-Section: up to 90 mm²
- Number of Poles: 3
- Operating Temperature Range: from -25°C to +60°C
- Material and Design: tunnel type for reliable contact
- Manufacturer: Schrack
Physical Dimensions:
- Length: 94 mm
- Width: 96 mm
- Height: 148 mm
- Weight: 0.13 kg
The terminal is supplied in packages of 1 or 15 pieces and is designed for use as a component in electrical distribution systems.
| EAN Code | 9004840263749 |
|---|---|
| Length (net) | 94.00 mm |
| Width (net) | 96.00 mm |
| Height (net) | 148.00 mm |
| Weight (net) | 0.13 kg |
| Minimum Ambient Temperature | -25°C |
| Maximum Ambient Temperature | 60°C |
| Device Type | Accessories |
| Rated Current | 160 A |
| Size | 1 |
| Accessories Category | Connection Technology |
| Manufacturer | Schrack |
| Packaging | 1 pc, 15 pc |
