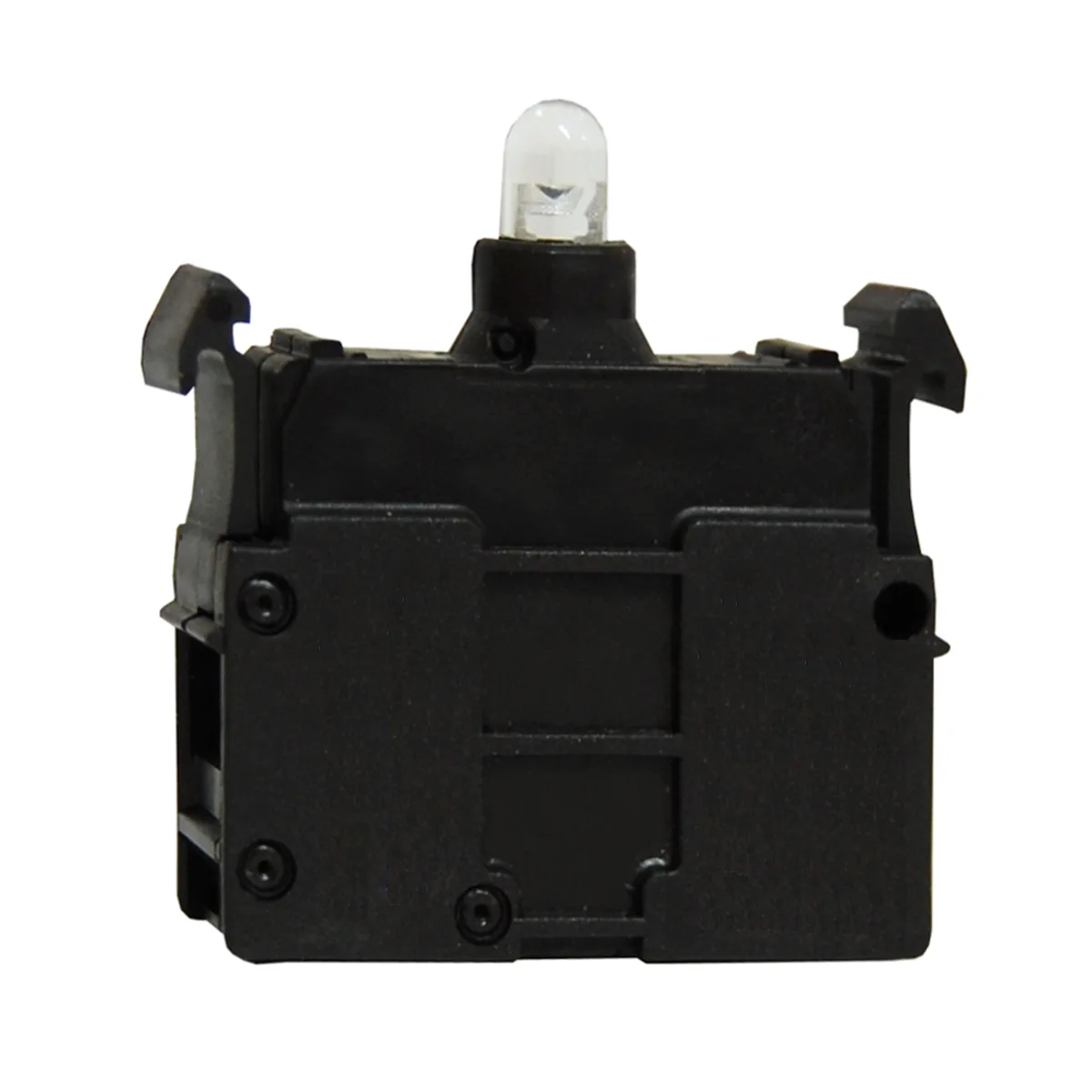

LED Indicator 18-30VAC/DC, Front Panel Mount, Green
Article: MM216559--
3 886 ₸
In stock
LED Indicator 18-30 VAC/DC, MM series, manufactured by Schrack. Compact signalling element for front panel mounting in distribution equipment and control panels.
Main characteristics:
- Rated voltage: 18–30 VAC/DC
- Indication colour: green
- Design: LED with screw terminal connection
- Degree of protection: IP20
- Power consumption: 0.26 W
Electrical parameters:
- Rated insulation voltage [Ui]: 500 V
- Rated impulse withstand voltage [Uimp]: 6000 V
- Overvoltage category/pollution degree: III / 3
- Compliance standards: IEC EN 60947, VDE 0660
Connection:
- Cross-section (solid conductor): 0.75–2.5 mm²
- Cross-section (stranded conductor): 0.5–2.5 mm²
- Mounting position: any
Mechanical characteristics:
- Dimensions: 37 × 10 × 32 mm (H × W × D)
- Weight: 0.01 kg
- Shock resistance: 30G
- Operating temperature range: –25…+70 °C
Completeness and packaging: 1 piece; supplied in packages of 1400 pieces.
| EAN code | 9004840176353 |
|---|---|
| Length net | 37.00 mm |
| Width net | 10.00 mm |
| Height net | 32.00 mm |
| Weight net | 0.01 kg |
| Power loss | 0.26 W |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 70 °C |
| Series | MM |
| Design | Screw terminal |
| Illumination | Yes |
| Colour | Green |
| Form | LED |
| Degree of protection | IP20 |
| Rated impulse withstand voltage [Uimp] | 6000 V |
| Rated insulation voltage [Ui] | 500 V |
| Overvoltage category/pollution degree | III / 3 |
| Shock resistance | 30G |
| Ambient temperature in open conditions | -25 °C...+70 °C |
| Standard | IEC EN 60947, VDE 0660 |
| Mounting position | Any |
| Cross-section, solid conductor | 0.75 - 2.5 mm² |
| Cross-section, stranded conductor | 0.5 - 2.5 mm² |
| Manufacturer | Schrack |
| Packaging | 1 piece, 1400 pieces |
