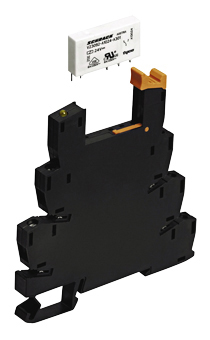

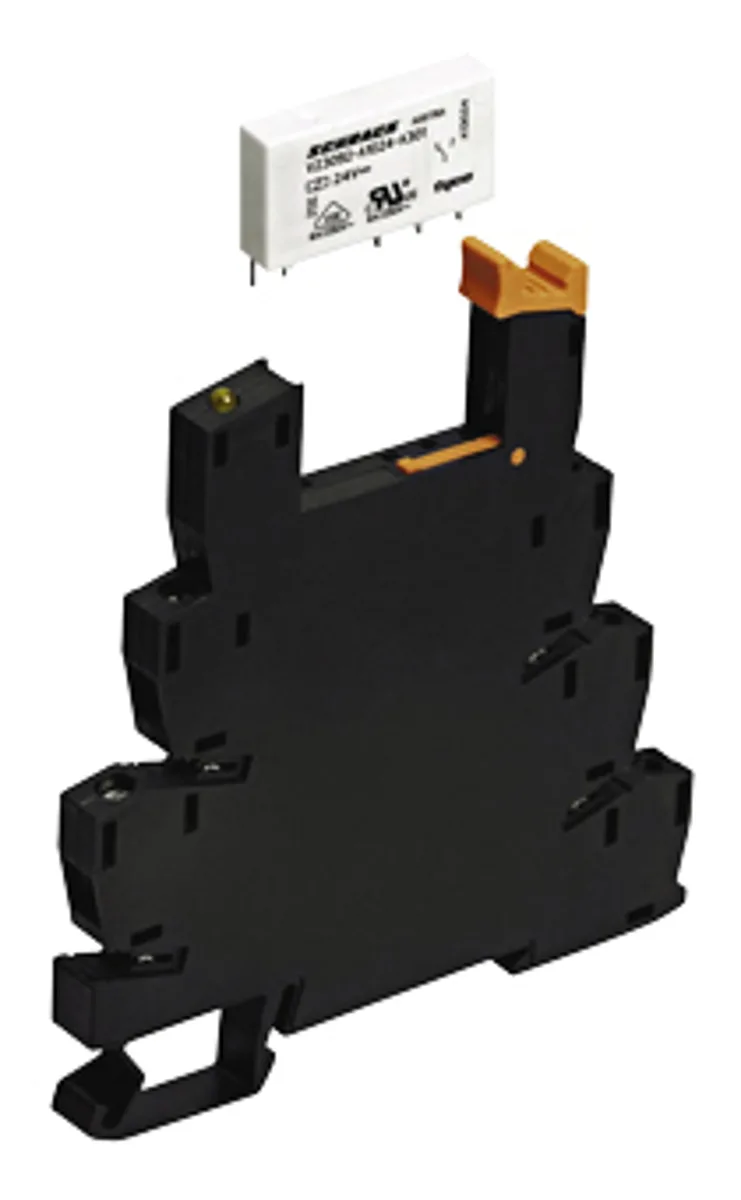

SNR Assembly Relay with Base — complete module for installation on DIN rail or distribution cabinet. Combines an electromagnetic relay and socket base in a single construction.
Electrical Parameters:
- Coil voltage: 24V DC
- Switched current: 6A at one changeover contact (1 changeover contact)
- Power consumption: 0.17W
- Contact system: 1 relay with changeover contact (capability to control two independent circuits)
Constructive Features:
- Screw terminals for safe wire connection
- Integrated LED for visual indication of actuation
- Compact dimensions: width 5 mm, height 80 mm
- Weight: 0.03 kg
Operating Conditions:
- Operating temperature range: –25 to +55°C
- Resistant to climatic fluctuations in industrial environment
Supply: packaging variants available in 1 piece and 10 pieces (EAN: 9004840408553)
Perfectly suitable for automation control, signaling, and load switching in 24V DC systems.
| EAN Code | 9004840408553 |
|---|---|
| Net Width | 5.00 mm |
| Net Height | 80.00 mm |
| Net Weight | 0.03 kg |
| Power Loss | 0.17 W |
| Min. Ambient Temperature | -25°C |
| Max. Ambient Temperature | 55°C |
| Product Family | SNR |
| Working Contacts | 1 relay with changeover contact |
| Contact Current | 6A |
| DC Coil | 24V |
| Equipment | LED |
| Packaging | 1 piece, 10 pieces |
