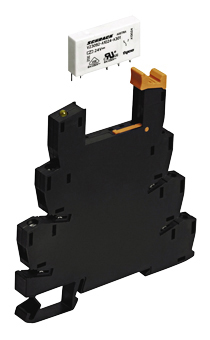

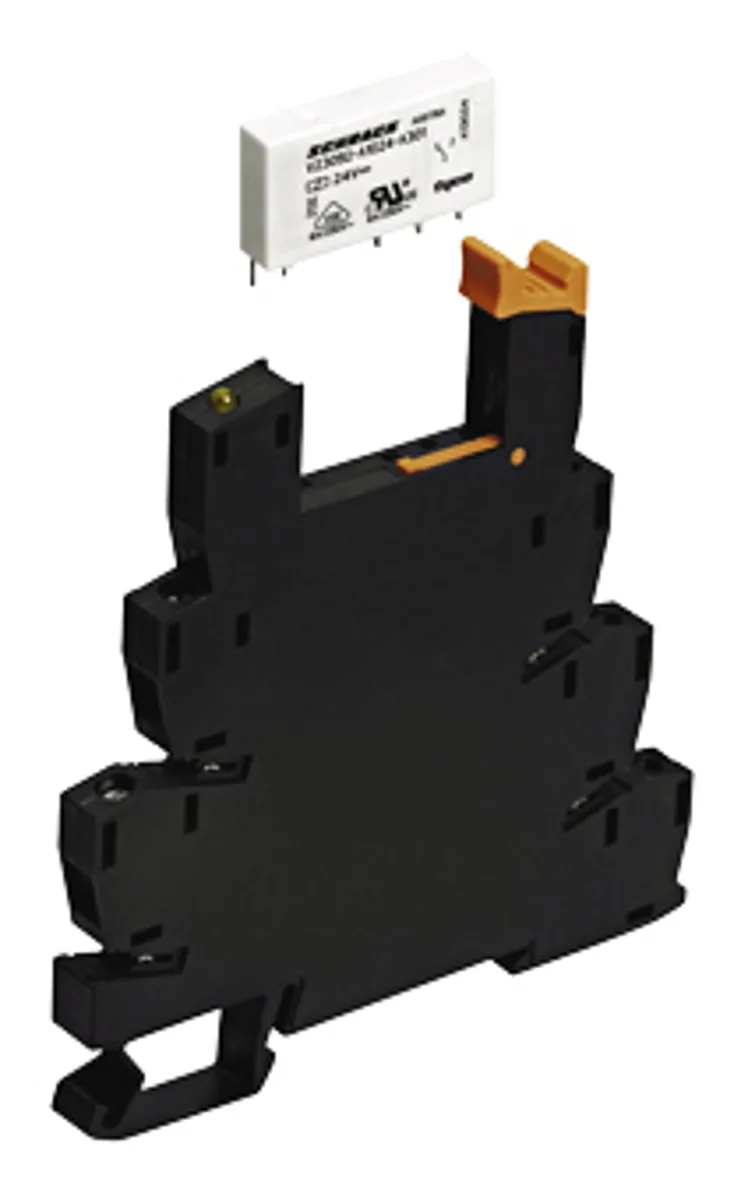

Electromagnetic relay SNR assembled with a base for mounting on DIN-rail or panel.
Technical Parameters:
- Control voltage: 230V DC/AC
- Contact working current: 6A
- Contact configuration: 1 changeover contact (NO/NC)
- Coil power supply: 220V DC or 230V AC
- Power consumption: 0.17W
- Indication: built-in status LED
Construction and Installation:
- Screw-type terminal connection
- Compact dimensions: 5.0mm (width) × 80.0mm (height)
- Weight: 30g
- Family: SNR
Operating Conditions:
- Temperature range: -25°C to +55°C
- Intended for dry premises and control panel equipment
Packaging: 1 or 10 pieces per package
Application: Load control, switching of direct and alternating current circuits in automation systems, relay circuits, control panels.
| EAN Code | 9004840408577 |
|---|---|
| Width Net | 5.00mm |
| Height Net | 80.00mm |
| Weight Net | 0.03kg |
| Power Loss | 0.17W |
| Min. Ambient Temperature | -25°C |
| Max. Ambient Temperature | 55°C |
| Product Family | SNR |
| Working Contacts | 1 relay with changeover contact |
| Contact Current | 6A |
| DC Coil | 220V |
| AC Coil | 230VAC |
| Equipment | LED |
| Packaging | 1 piece, 10 pieces |
