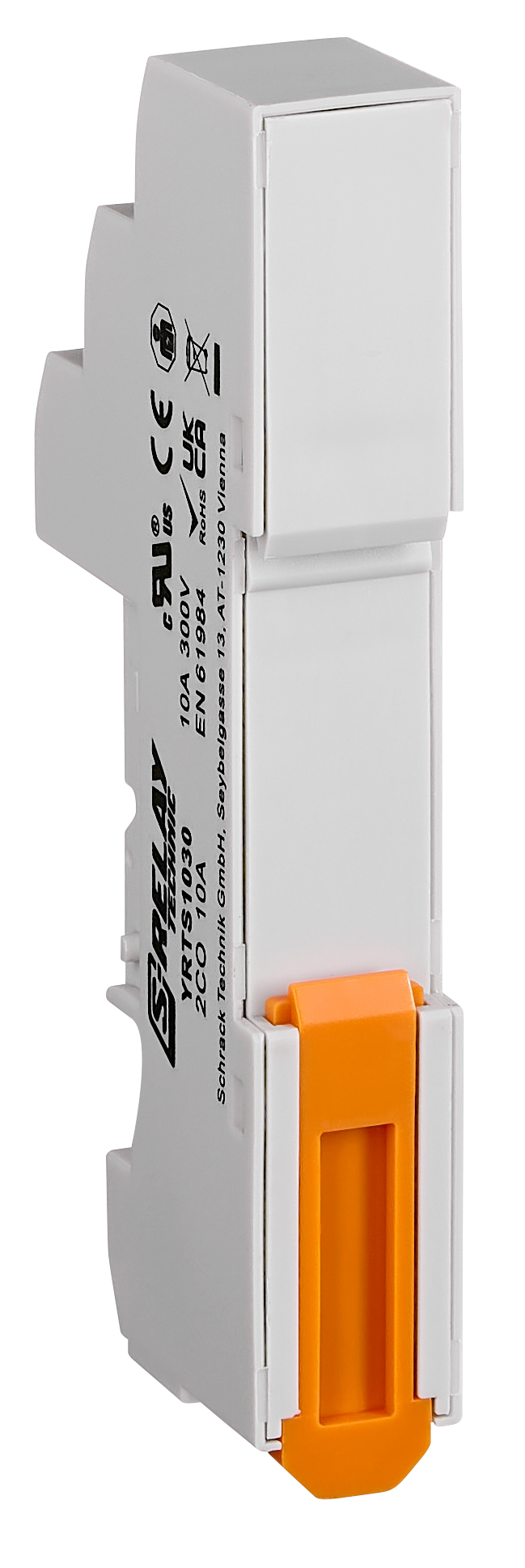

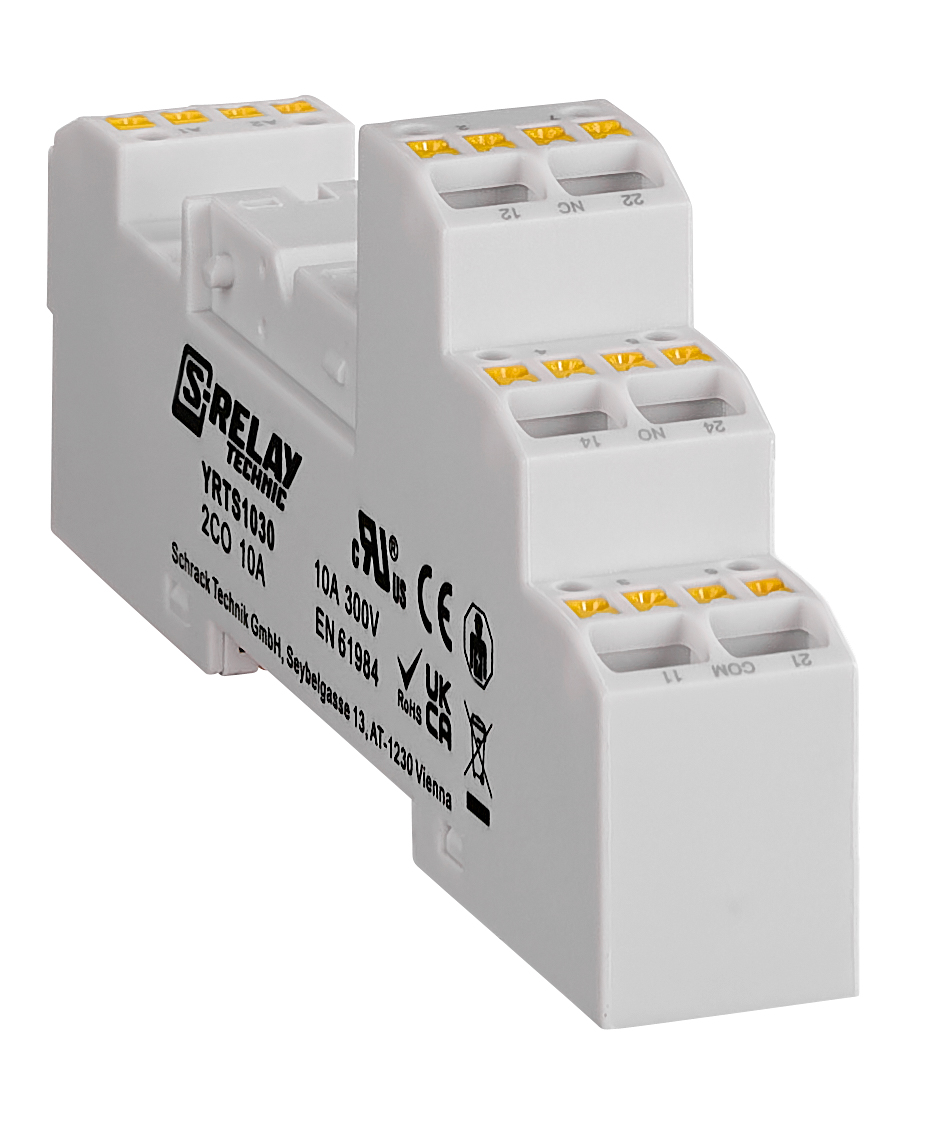

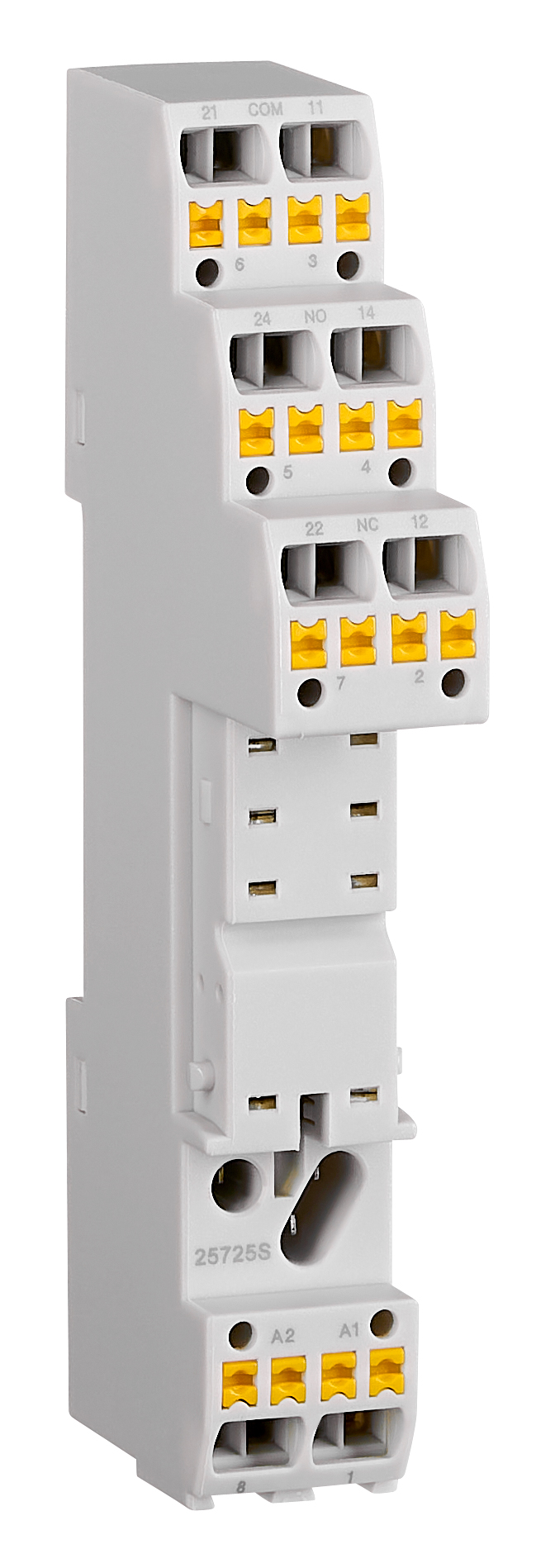

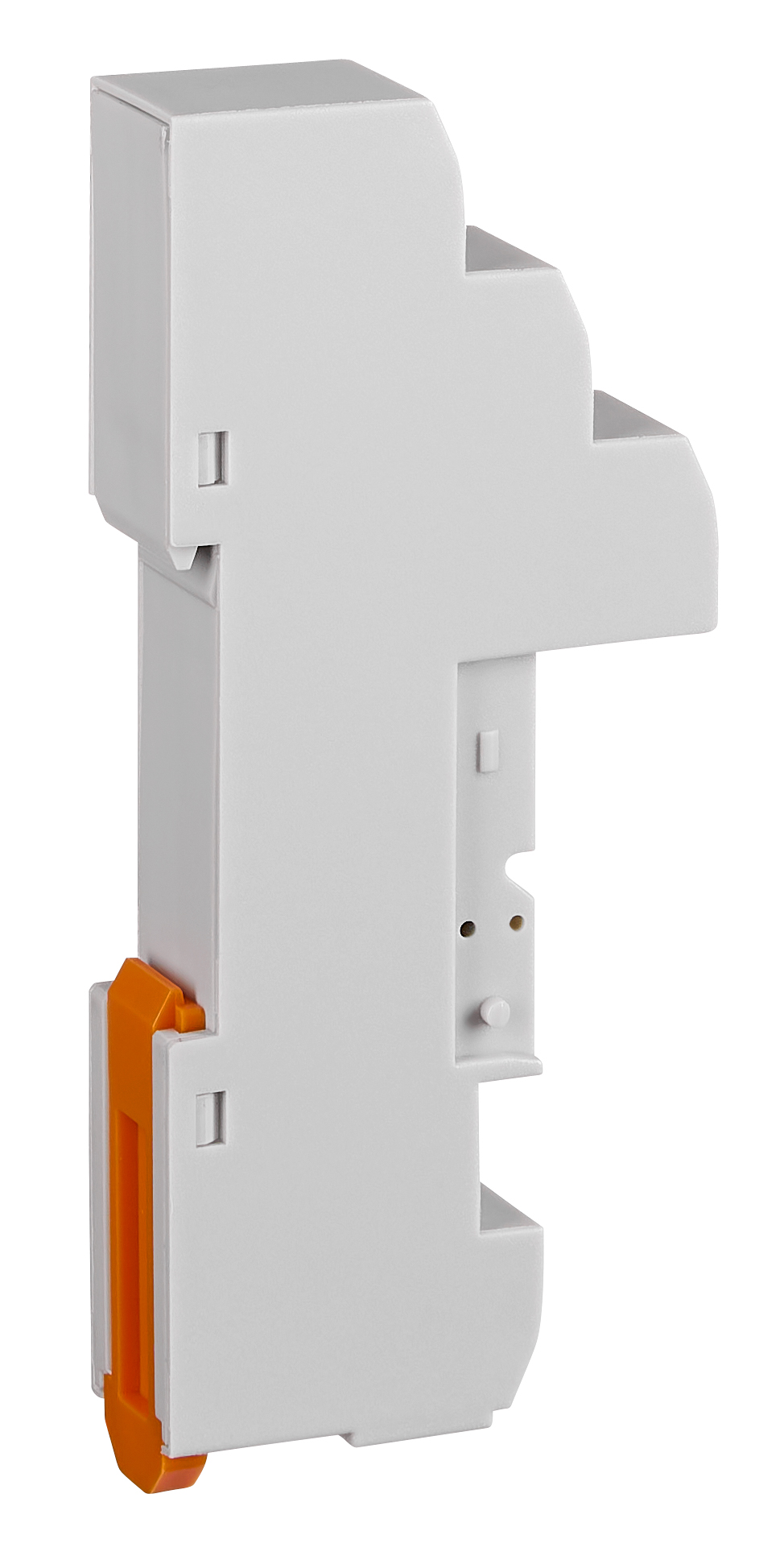

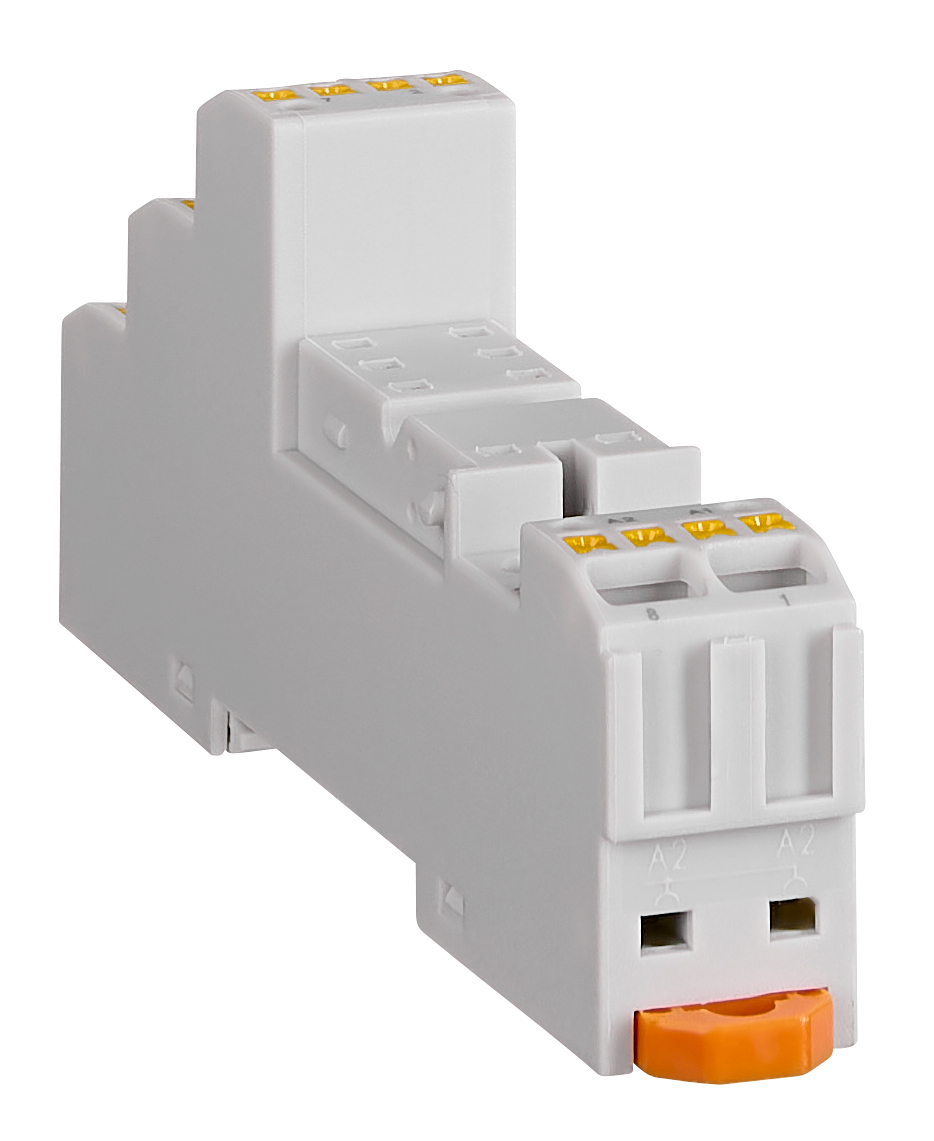

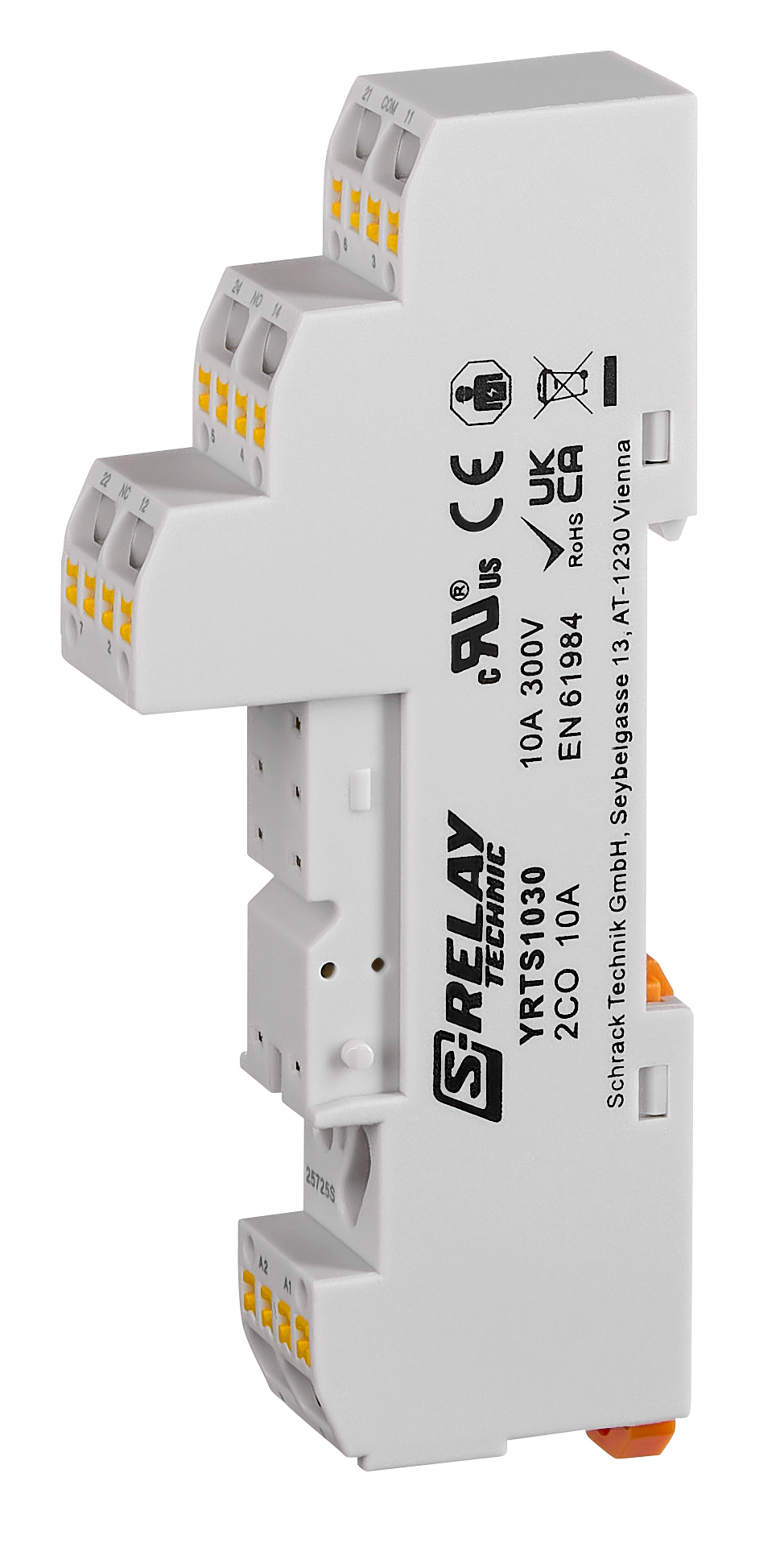

YRTS Socket — a modular disconnectable adapter for relay series XT/RT2/RT3/RT4 with logical circuit division.

Main Parameters:

  • Compatibility: XT, RT2, RT3, RT4 relays
  • Terminal type: spring terminals, allow direct connection without tools
  • Conductor cross-section: 0.5–2.5 mm² (solid, flexible and flexible with cable gland)
  • Temperature range: -40°C to +85°C
  • Dimensions: width 16 mm, height 102 mm
  • Weight: 0.04 kg

Features:

Logical circuit division provides clear isolation of power and signal circuits, which is important for the reliability of an automation system. The design allows easy assembly and reconfiguration of circuits without relay disassembly.

Packaging: 1, 20 or 400 pcs.

EAN: 9004840922295

EAN Code9004840922295
Width Net16.00 mm
Height Net102.00 mm
Weight Net0.04 kg
Minimum Ambient Temperature-40°C
Maximum Ambient Temperature85°C
Cross-section Solid0.5 - 2.5 mm²
Cross-section Flexible0.5 - 2.5 mm²
Cross-section Flexible with Cable Gland0.5 - 2.5 mm²
Packaging1 pcs., 20 pcs., 400 pcs.
