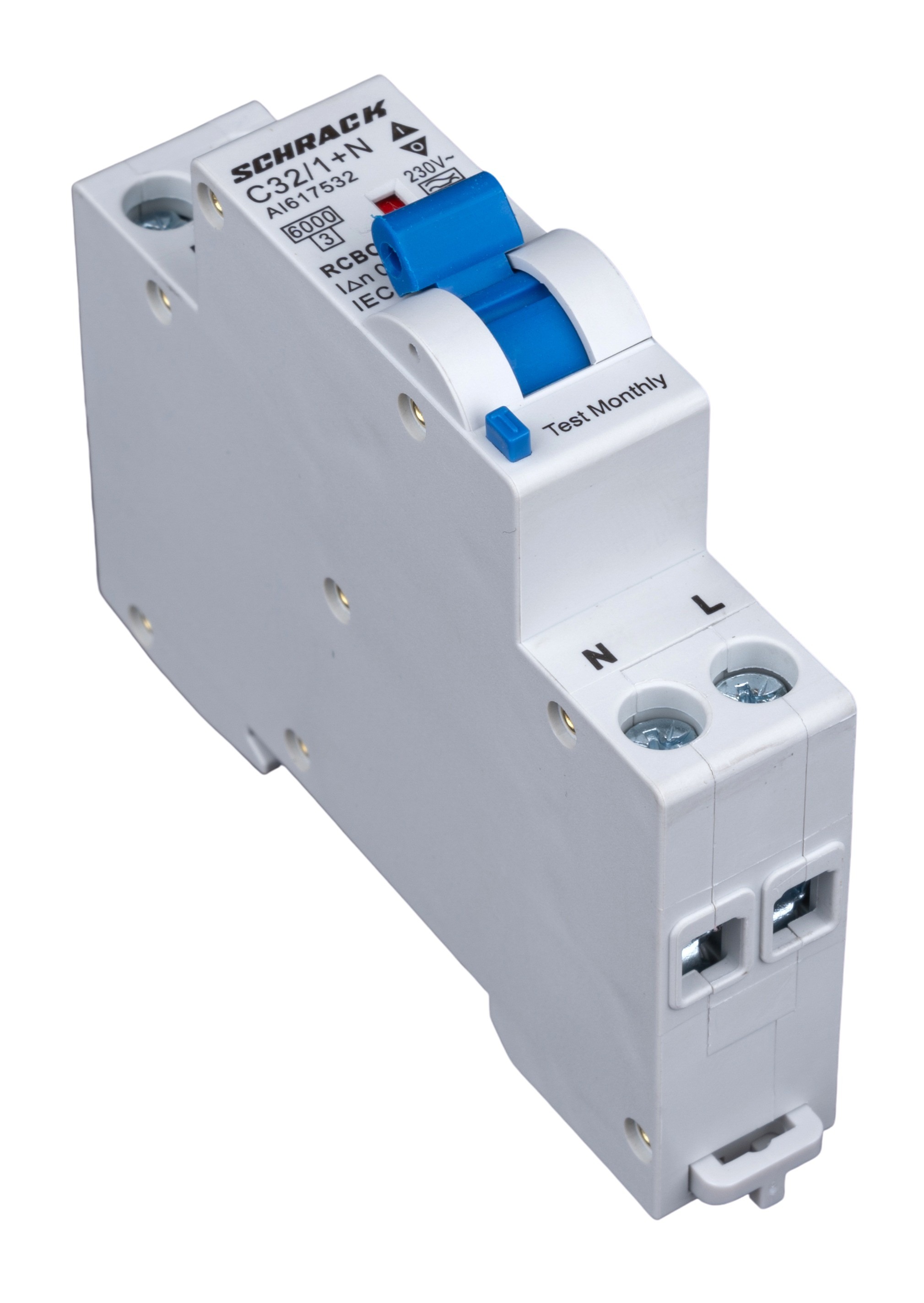

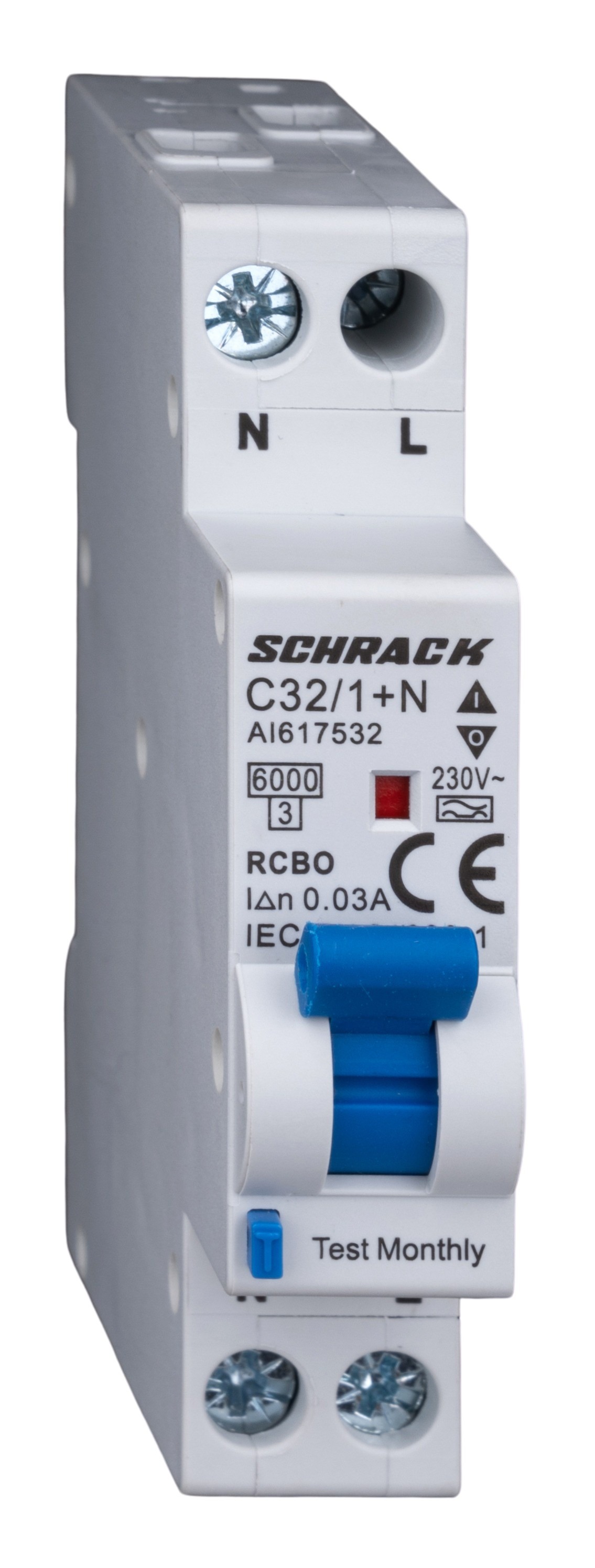

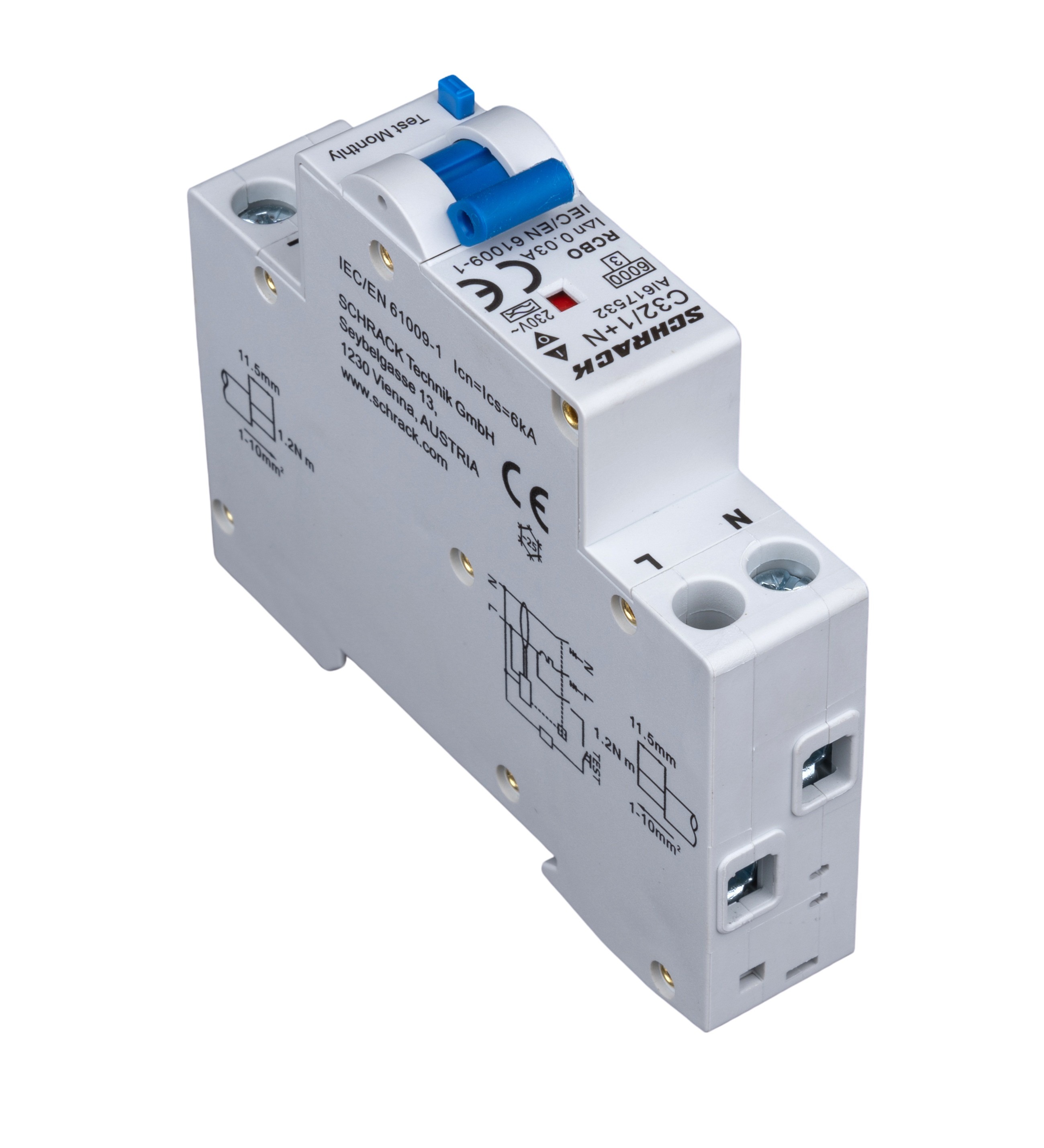

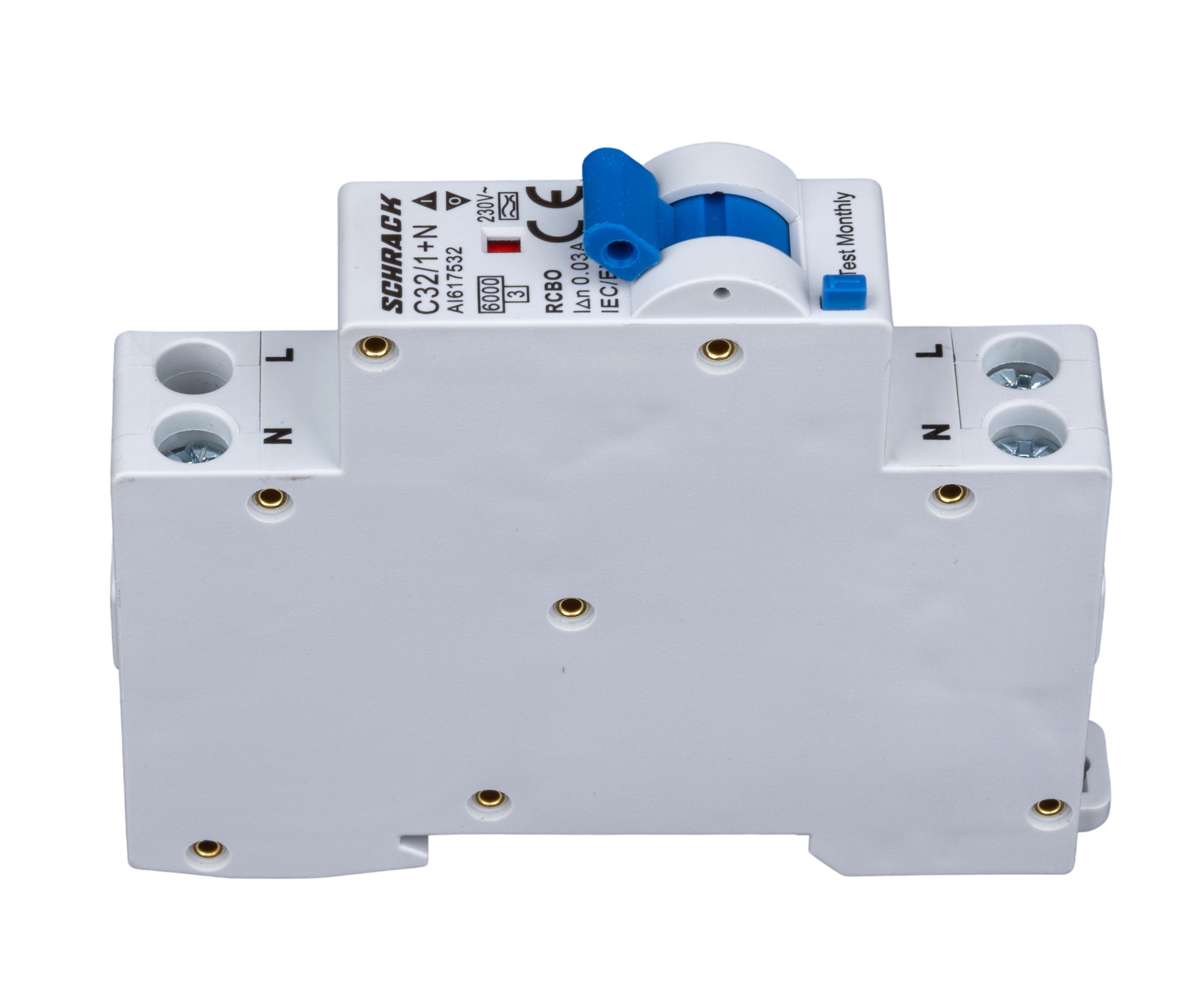

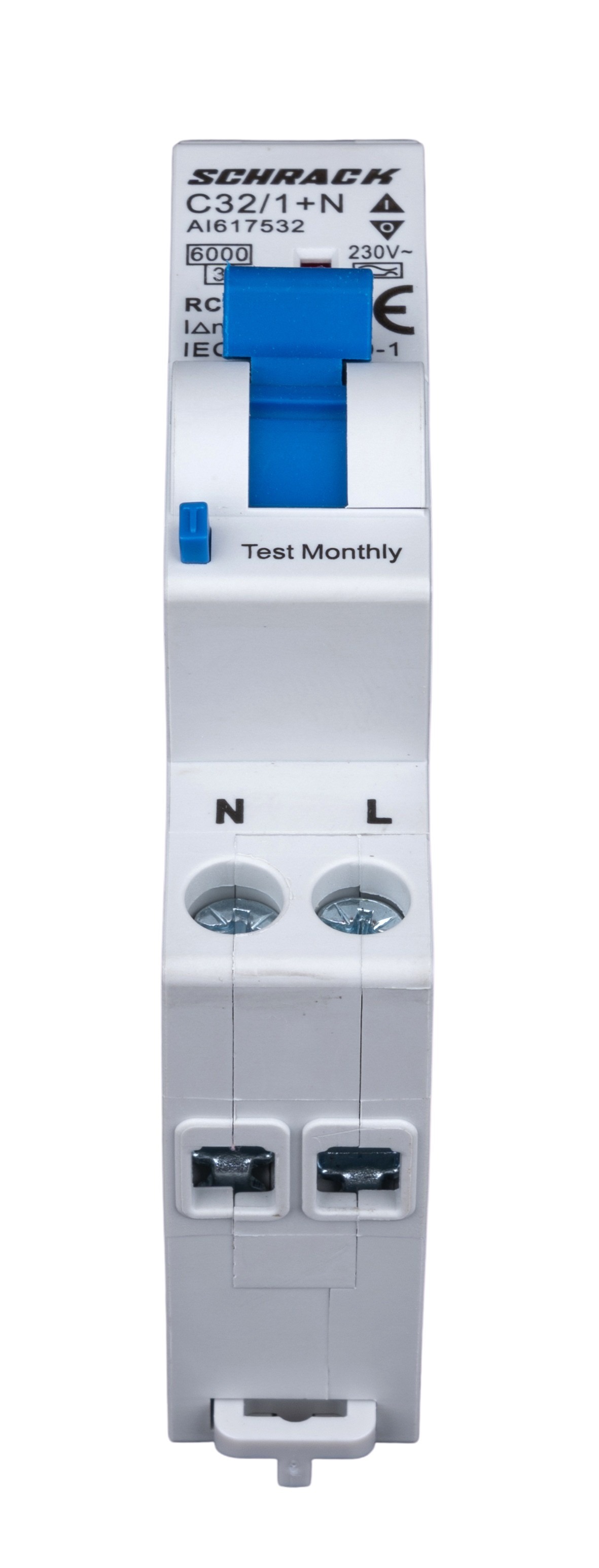

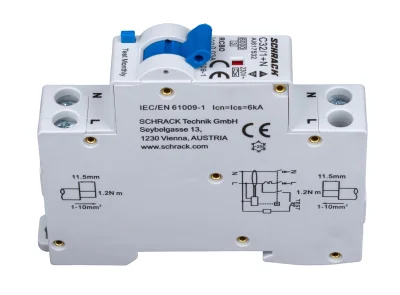

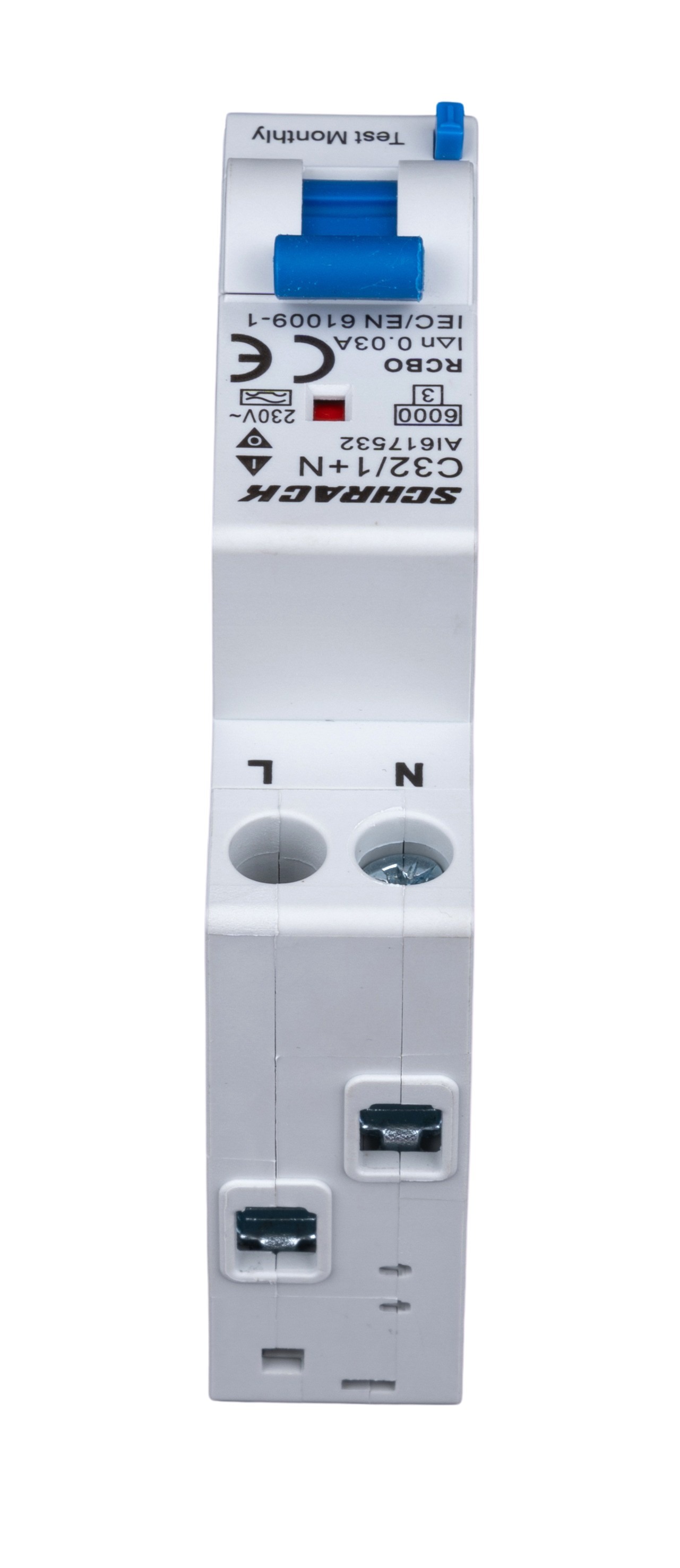

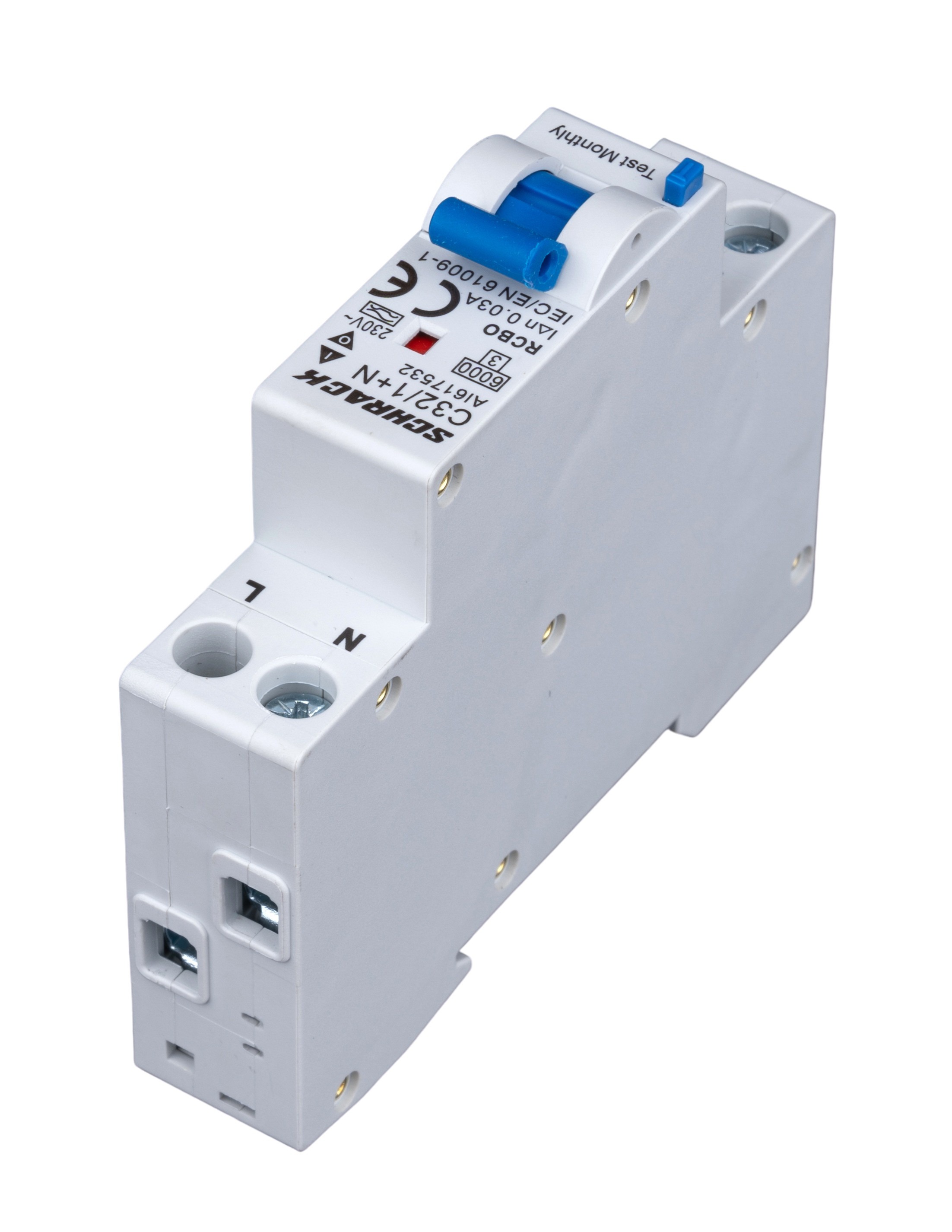

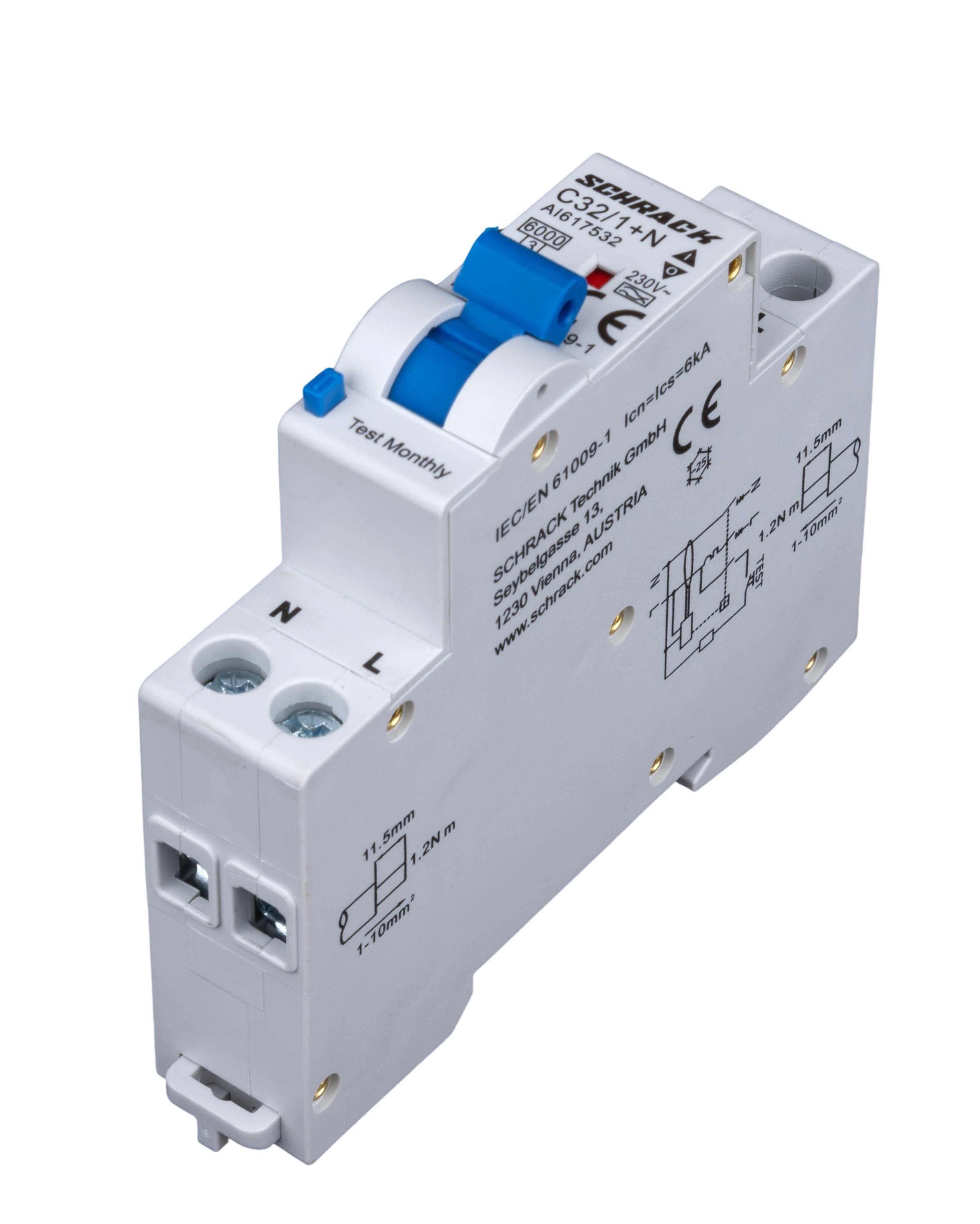

RCCB C32A/1+N/6kA/30mA/A, Series AI 1M

RCCB (Residual Current Circuit Breaker) of the AI 1M series is designed to protect electrical circuits from leakage currents and overloads. The device provides reliable disconnection when a differential current occurs.

Main characteristics:

• Rated current: 32 A
• Pole configuration: 1N (single-phase with neutral)
• Breaking capacity: 6 kA
• Leakage current tripping: 30 mA
• Tripping characteristic: C (for circuits with inductive loads)
• Sensitivity type: A (sensitive to pulsating DC and AC differential currents)
• Tripping time: instantaneous
• Standard compliance: EN 61009-1

Technical parameters:

• Power loss: 11 W
• Operating temperature range: from −25 °C to +55 °C
• Mounting width: 18 mm (DIN rail width)
• Height: 88 mm
• Depth: 73.3 mm
• Net weight: 0.14 kg

Manufacturer: Schrack

Series: AMPARO

The device is intended for installation on DIN rails in distribution boards and electrical panels of residential, commercial and industrial facilities.
