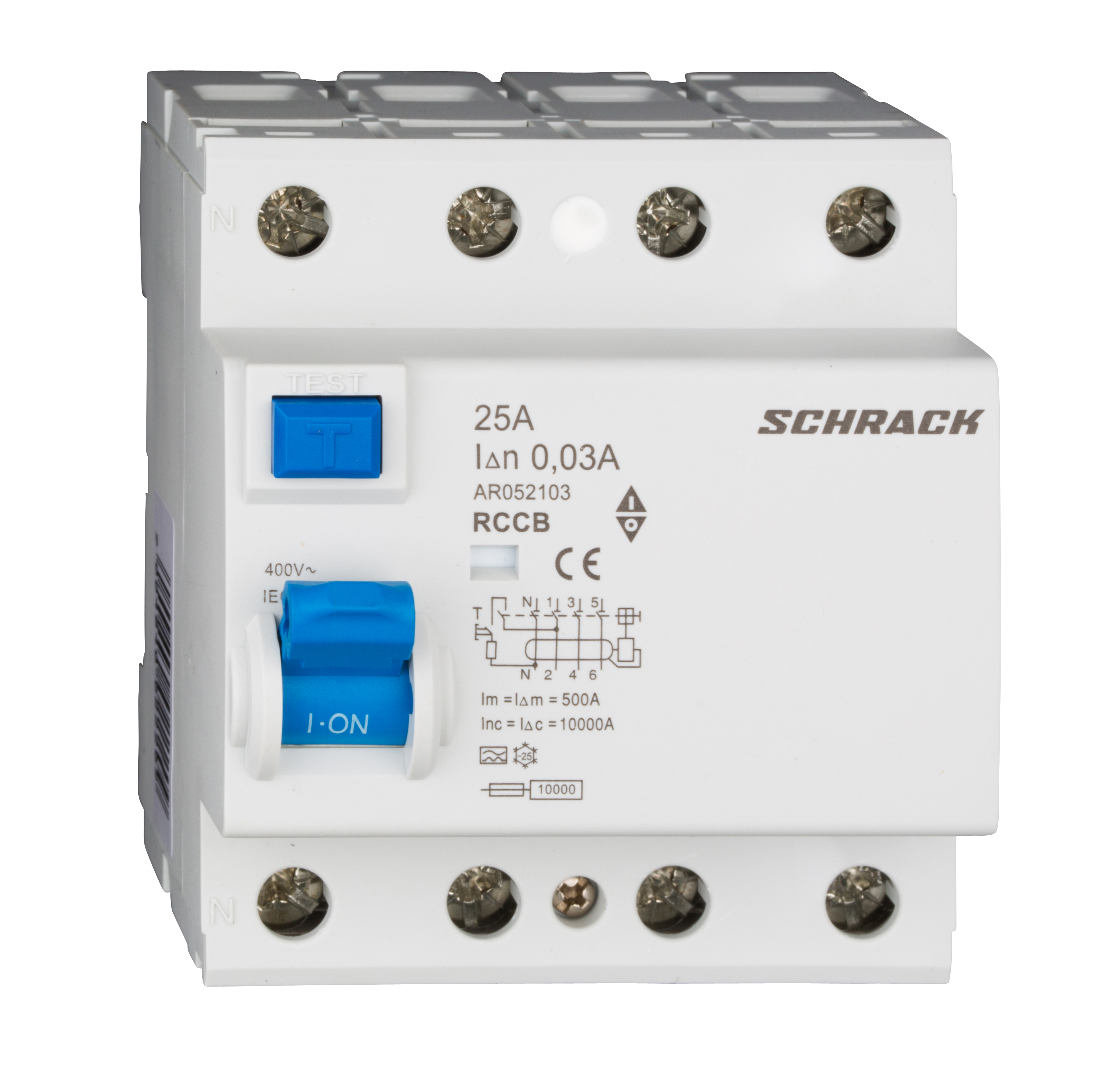

RCD (Residual Current Device) 25A/4, nominal residual current 30mA, Type A, designed to protect electrical circuits from dangerous residual currents in alternating current networks.
Main Technical Parameters:
- Nominal Current: 25A
- Operating Current (IΔn): 30mA
- Sensitivity Type: A (responds to sinusoidal and pulsating direct current)
- Switching Capacity: 10kA
- Configuration: N+3 (four-pole with neutral)
- Operating Time: instantaneous
Operating Conditions:
- Temperature Range: from -25°C to +60°C
- Power Loss: 13W
- Dimensions: 49.5 × 72 × 84 mm
- Mass: 0.37 kg
Regulatory Basis:
Complies with standards EN 61008-1:2012 (with amendments), EN 61008-2-1:1994, IEC 61008-1, IEC 61008-2-1, as well as the Australian-New Zealand standard AS/NZS 61008.1.
Manufacturer: Schrack (AMPARO series)
Packaging: 1 unit or in multiples of 45 units (by order)
The RCD is designed for installation in distribution boards and is used in electrical installations of residential, commercial, and industrial facilities.
| EAN Code | 9004840022209 |
|---|---|
| Net Length | 49.50 mm |
| Net Width | 72.00 mm |
| Net Height | 84.00 mm |
| Net Weight | 0.37 kg |
| Power Loss | 13.00 W |
| Min. Ambient Temperature | -25°C |
| Max. Ambient Temperature | 60°C |
| Type | A (sensitive to pulsating current) |
| Operating Type | Instantaneous |
| Nominal Current | 25A |
| Current Rating | 25A |
| Operating Current | 30mA |
| Nominal Sensitivity IΔn | 30mA |
| Poles | N+3 |
| Switching Capacity | 10kA |
| Standard | AS/NZS 61008.1, EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, IEC 61008-1, IEC 61008-2-1 |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 unit, 45 units |
