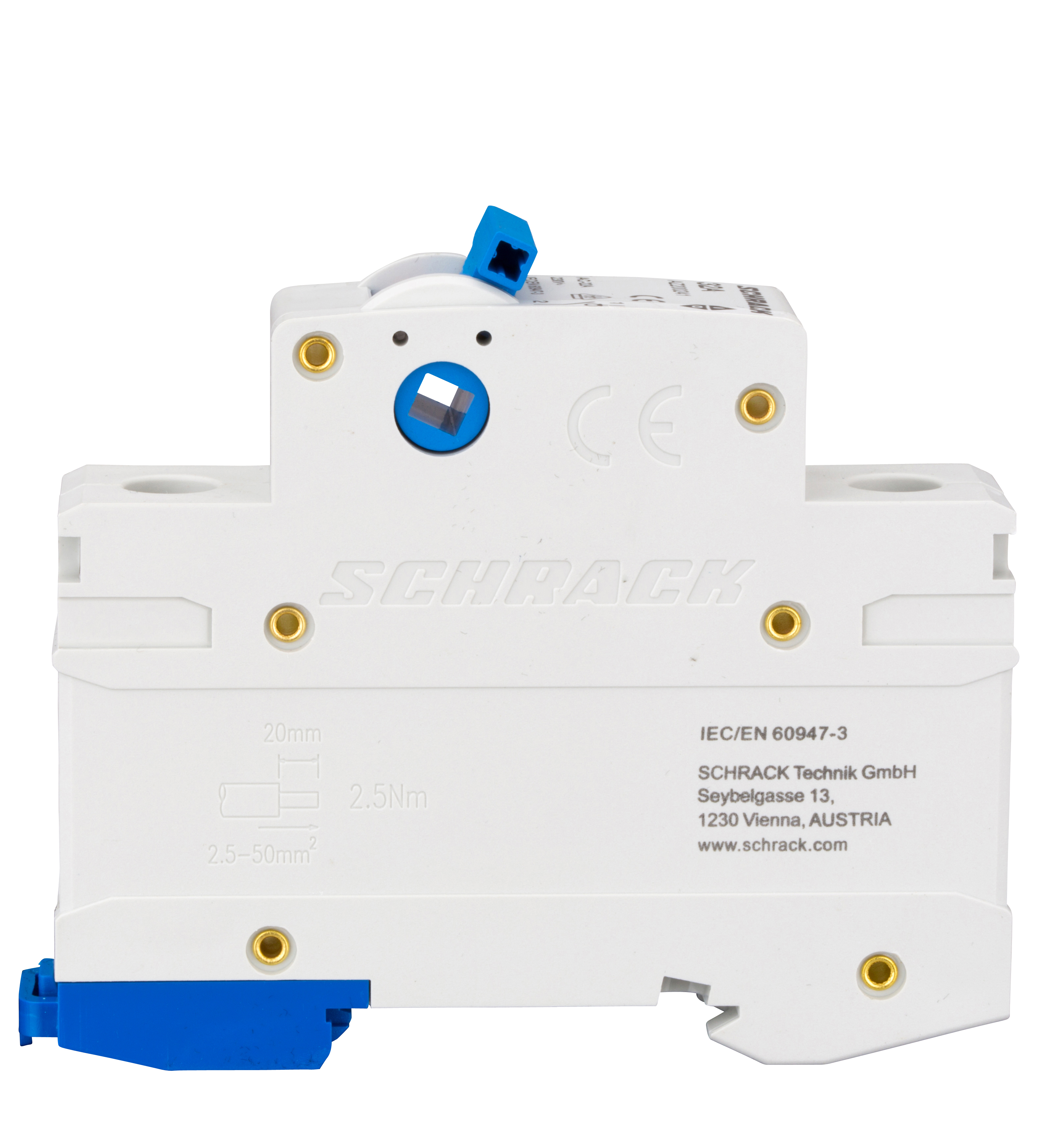

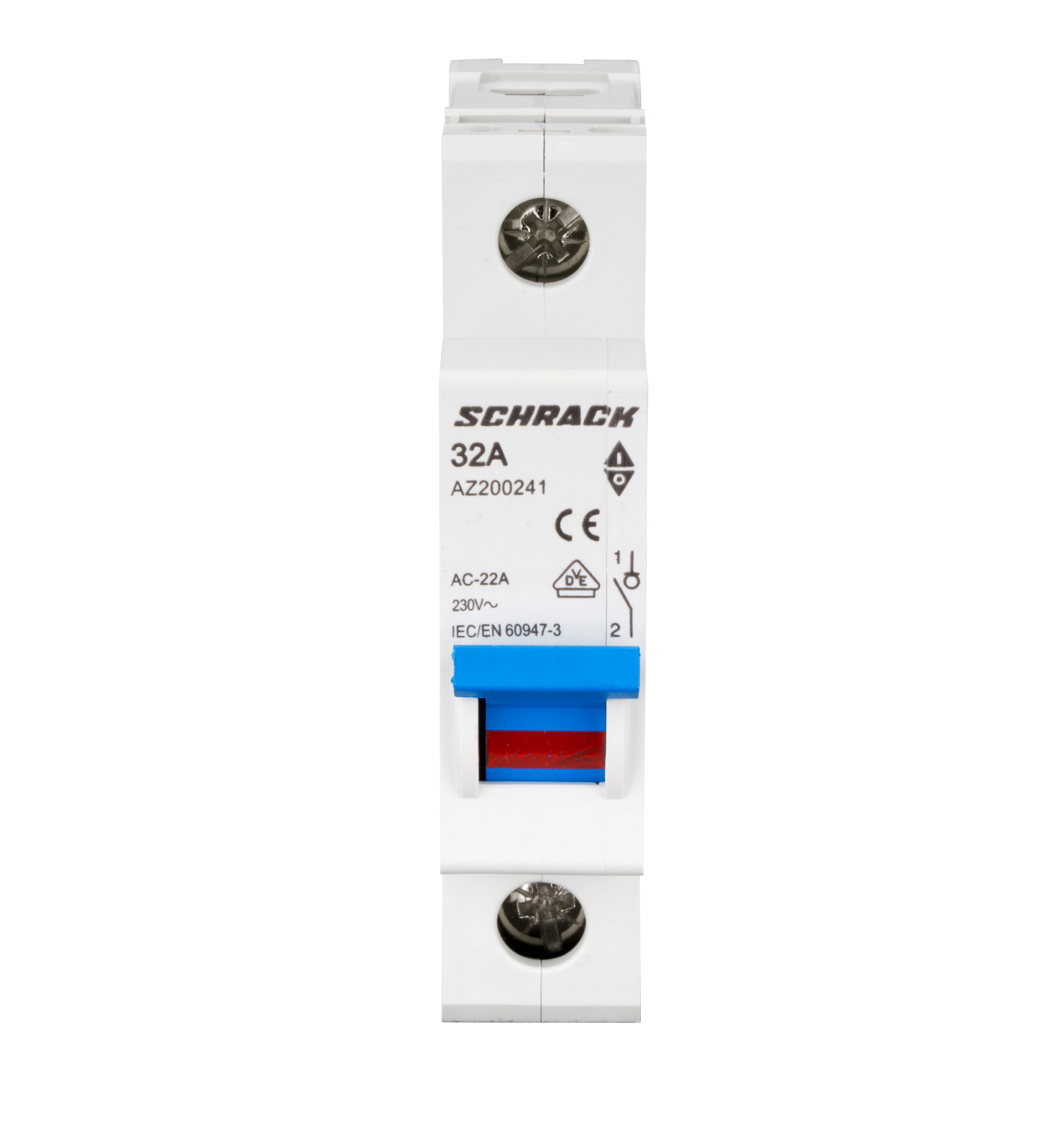

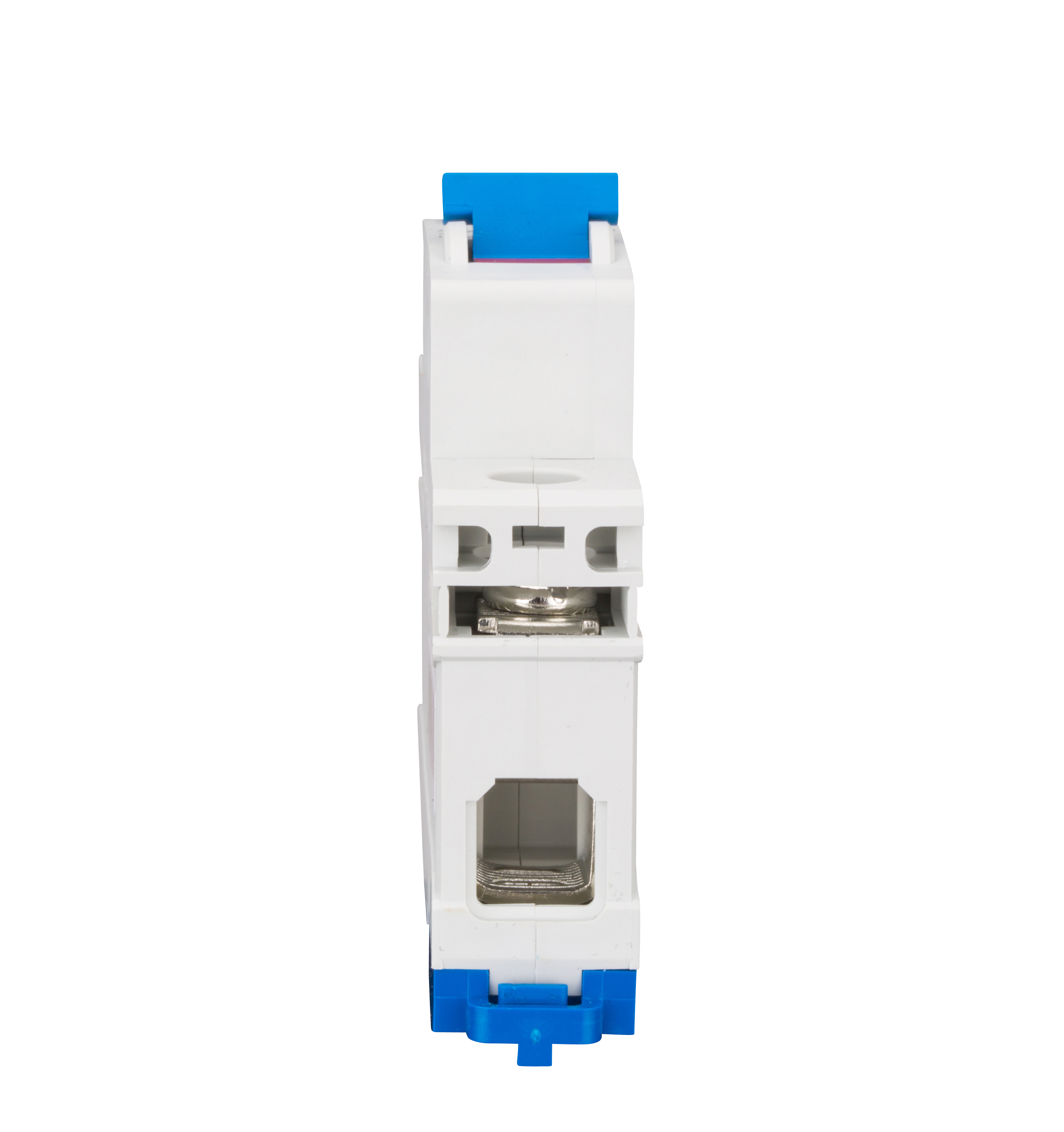

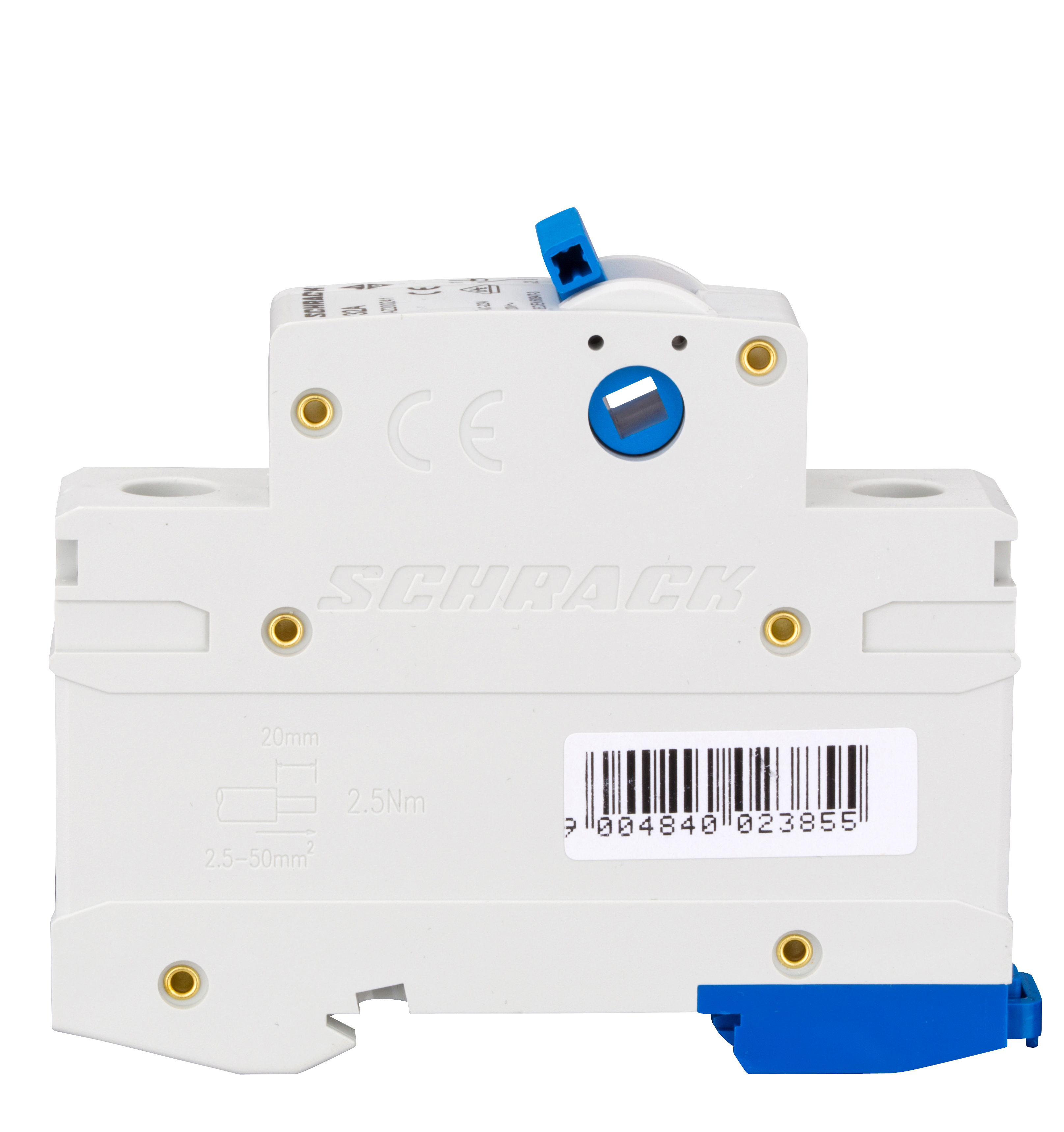

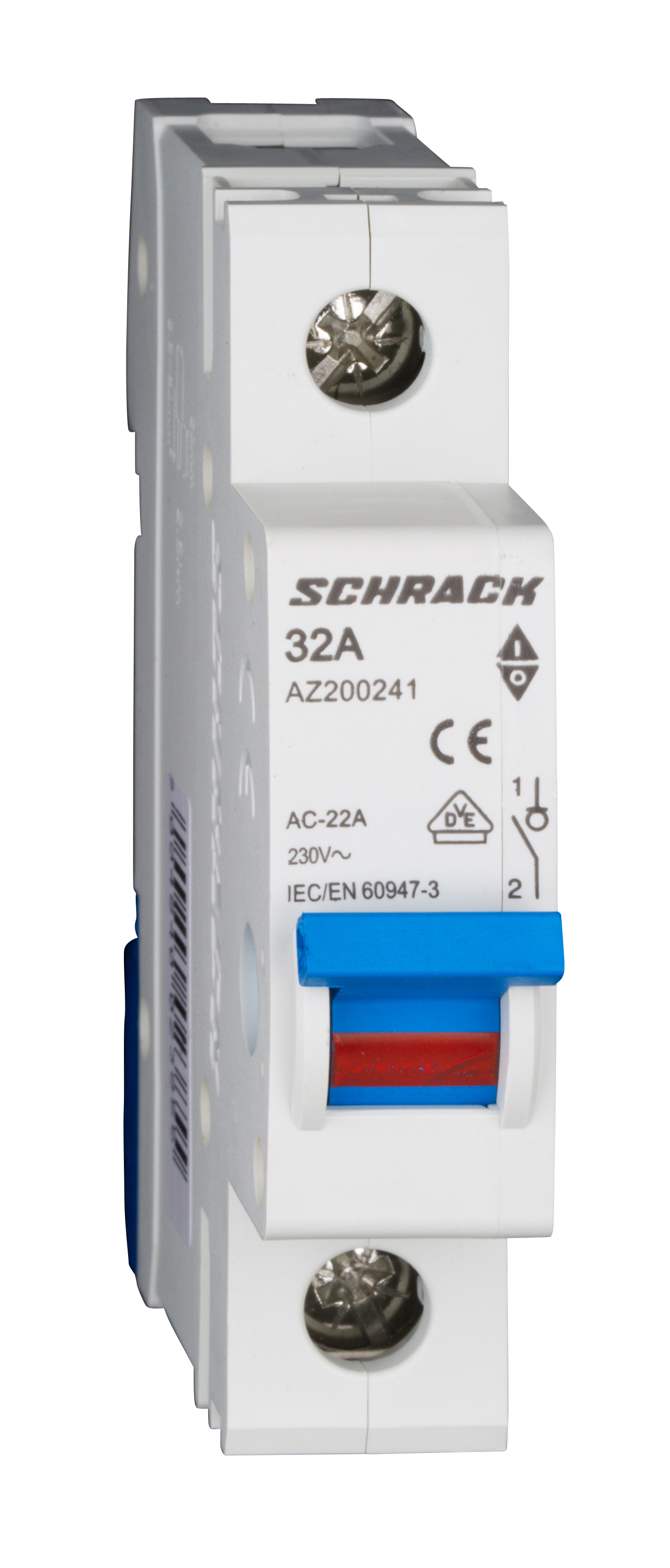

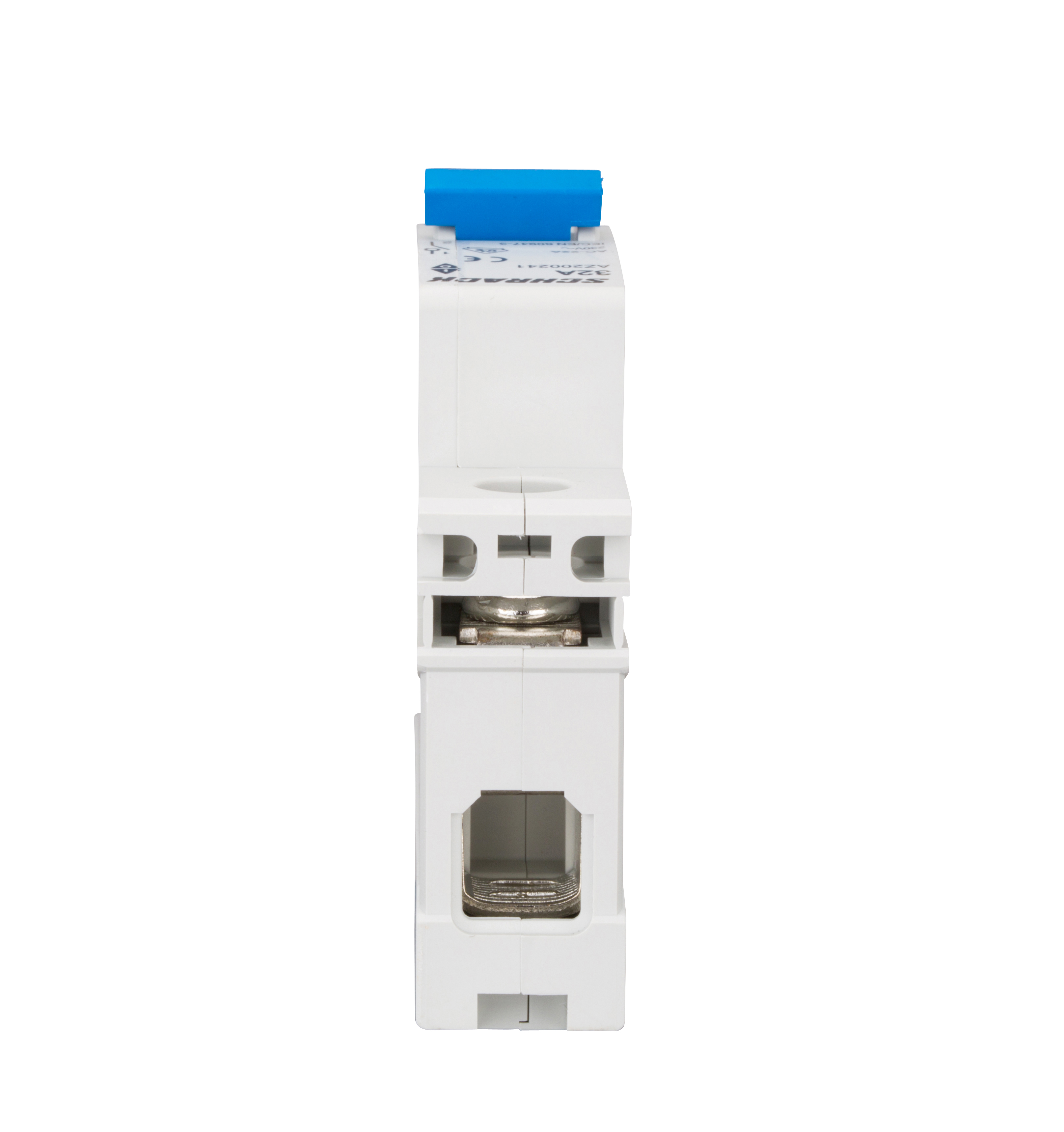

AMPARO Load Switch is a device designed for switching and disconnecting electrical circuits in distribution systems. Single-pole configuration with a nominal current of 32 A ensures reliable load control in AC networks.
Key Features:
- Nominal current: 32 A
- Number of poles: 1
- Design: Isolator-disconnector for main load
- Manufacturer: Schrack
- Series: AMPARO
Technical Parameters:
- Power loss: 3 W
- Operating temperature range: -25°C to +55°C
- Overall dimensions (net): 75 × 18 × 77 mm
- Weight: 0.09 kg
- EAN code: 9004840023855
Packaging options: 1 pcs, 12 pcs, 180 pcs.
The equipment is intended for use in electrical engineering systems with requirements for safe load management and disconnection.
| EAN code | 9004840023855 |
|---|---|
| Net length | 75.00 mm |
| Net width | 18.00 mm |
| Net height | 77.00 mm |
| Net weight | 0.09 kg |
| Power loss | 3.00 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 55°C |
| Design | Isolator disconnector main load |
| Poles | 1 |
| Series | AMPARO |
| Current | 32 A |
| Manufacturer | Schrack |
| Packaging | 1 pcs, 12 pcs, 180 pcs |
