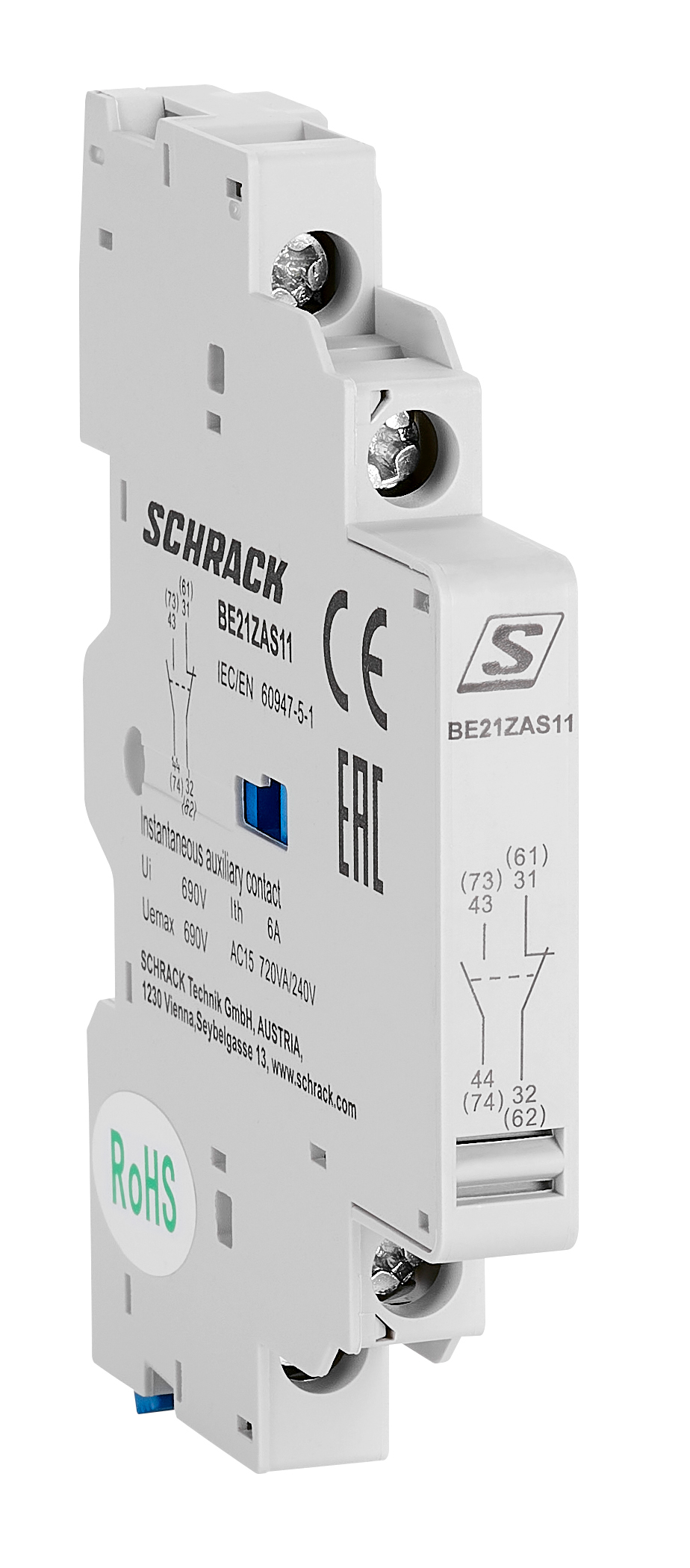

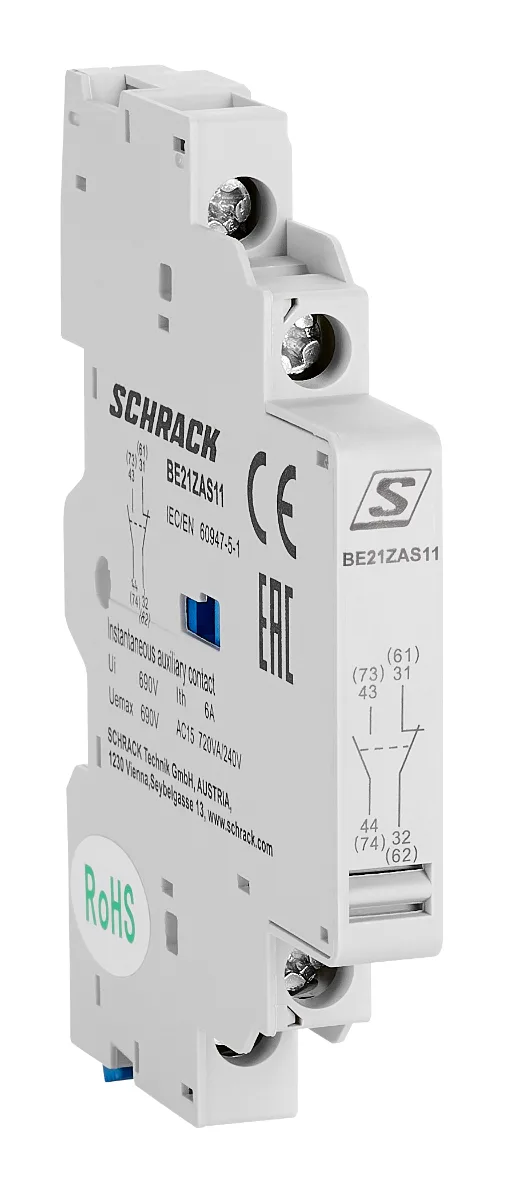

Additional contact 1NO+1NC, side mounting, for BE21
Article: BE21ZAS11-
2 756 ₸
To order
An additional contact module designed to expand the functionality of BE21 relays. The module contains one normally open (1NO) and one normally closed (1NC) contact group, providing flexibility in building control and signaling circuits.
Mounting: side attachment to the main device, which allows compact placement of contacts without increasing the occupied space.
Key characteristics:
- Contact configuration: 1NO + 1NC
- Mounting method: side mounting
- Compatibility: designed for BE21 series devices
- Power dissipation: 1.00 W
- Ambient temperature range: from -5°C to +40°C
- Group size: 1
- Manufacturer: Schrack (reliable European manufacturer of electrical equipment)
The module is classified as an auxiliary contact and is supplied in packages of 1, 20, or 1200 pcs.
| EAN code | 9004840878837 |
|---|---|
| Net width | 15.20 mm |
| Net height | 65.50 mm |
| Net depth | 87.00 mm |
| Net weight | 0.02 kg |
| Power dissipation | 1.00 W |
| Min. ambient temperature | -5°C |
| Max. ambient temperature | 40°C |
| Size | 1 |
| Type | Accessories |
| Accessories | Auxiliary contact |
| Manufacturer | Schrack |
| Packaging | 1 pcs, 20 pcs, 1200 pcs |
