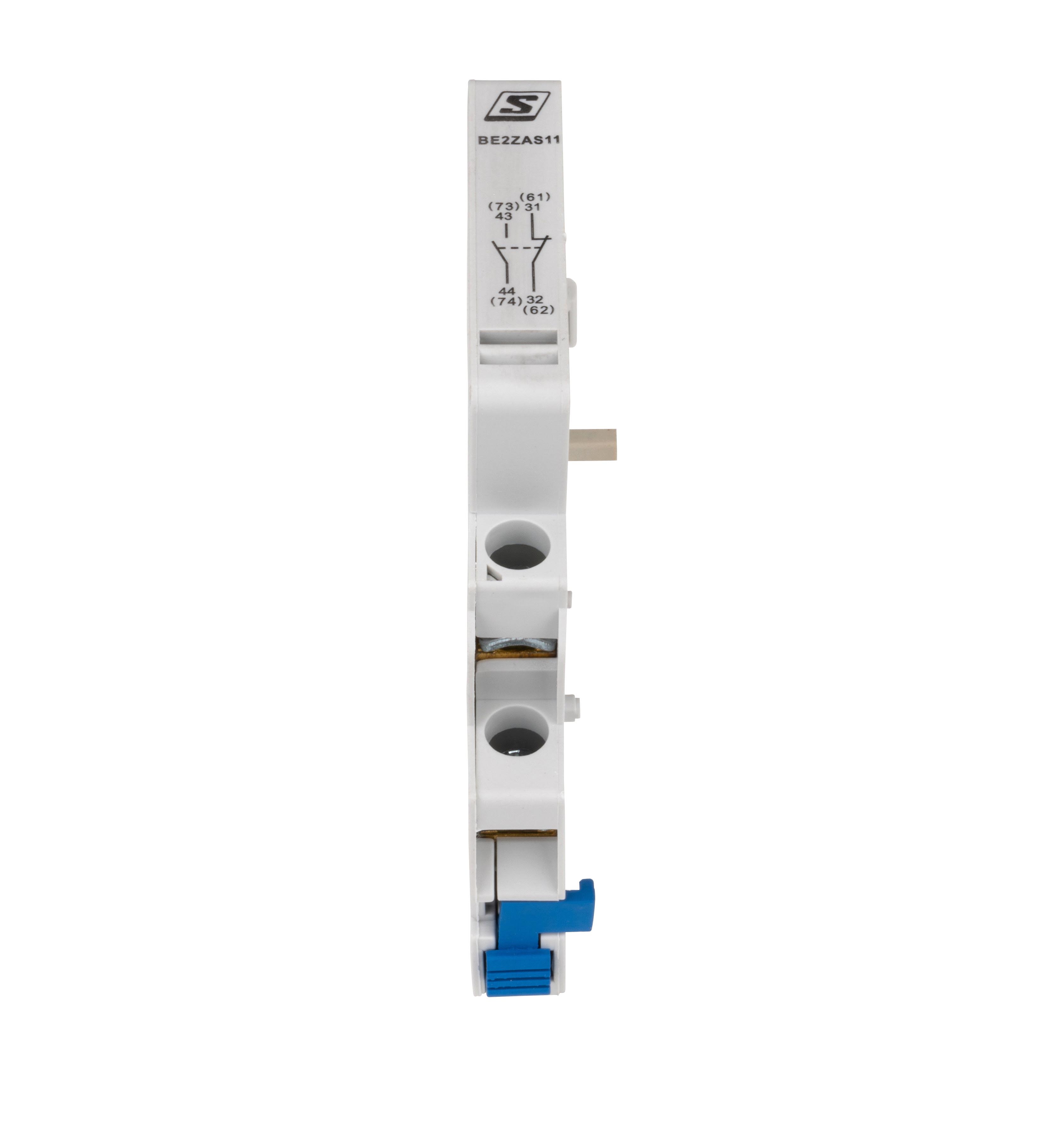

Auxiliary Contact 1NO+1NC for BE20, Side-Mounted
Article: BE2ZAS11--
2 756 ₸
In stock
An auxiliary contact designed to expand the functionality of the BE20 contactor. The 1NO+1NC type contact (1 normally open + 1 normally closed) is mounted on the side of the device.
Main Parameters:
- Configuration: 1 normally open contact + 1 normally closed contact
- Mounting Position: Side-mounted
- Compatibility: BE20 series contactors
- Power Loss: 1.00 W
- Operating Temperature Range: from -5°C to +40°C
- Weight: 0.04 kg
Physical Dimensions:
- Width: 15.20 mm
- Height: 65.50 mm
- Depth: 87.00 mm
Delivery Information:
- Manufacturer: Schrack
- EAN Code: 9004840796599
- Available Packaging Options: 1 pcs., 4 pcs., 240 pcs.
| EAN Code | 9004840796599 |
|---|---|
| Net Width | 15.20 mm |
| Net Height | 65.50 mm |
| Net Depth | 87.00 mm |
| Net Weight | 0.04 kg |
| Power Loss | 1.00 W |
| Min. Ambient Temperature | -5°C |
| Max. Ambient Temperature | 40°C |
| Size | 0 |
| Type | Accessories |
| Accessories | Auxiliary Contact |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 4 pcs., 240 pcs. |
