IP54 Enclosure for Motor Protection Breaker BE4
Article: BE400001--
23 110 ₸
In stock

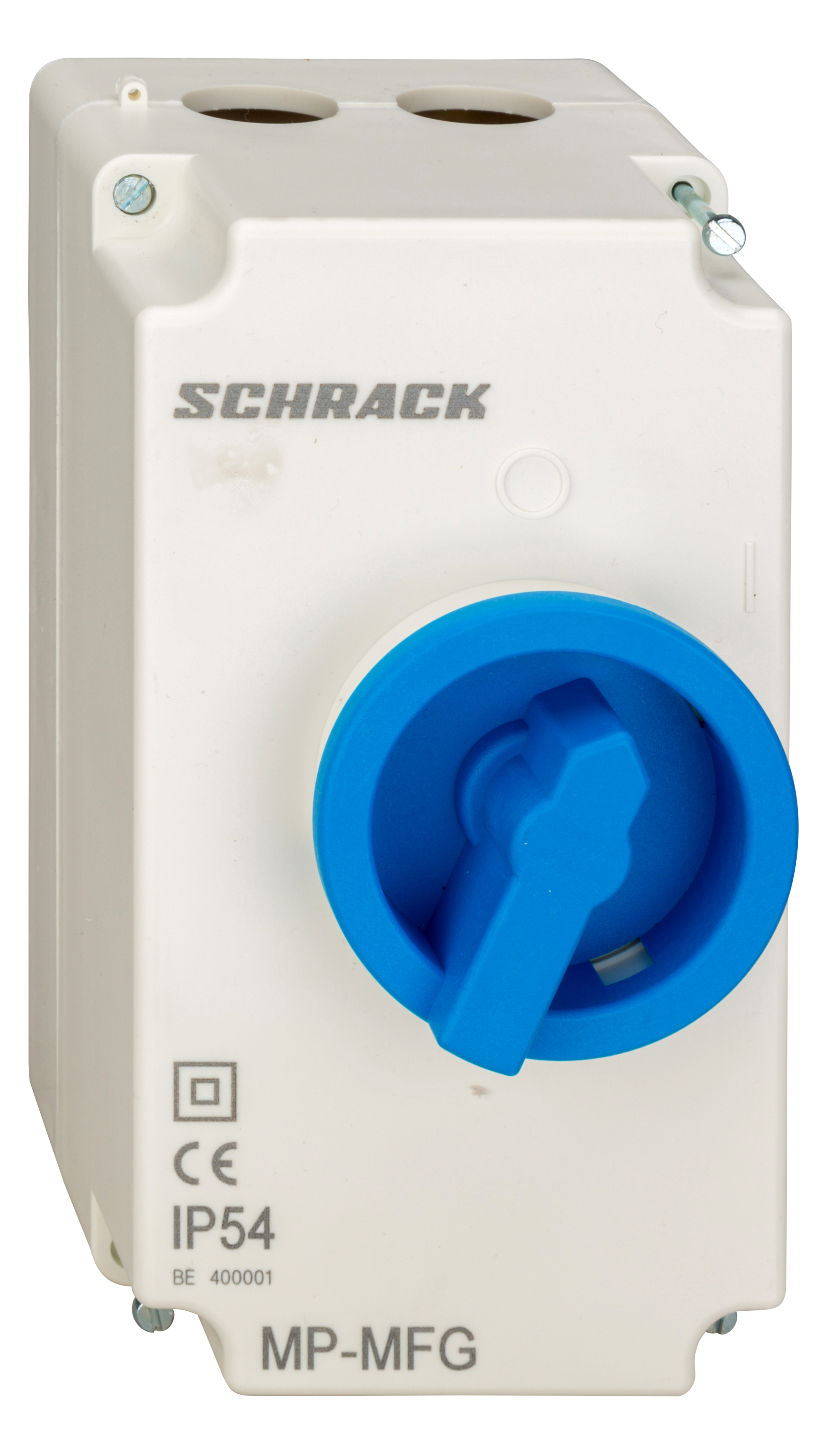

Plastic enclosure with IP54 degree of protection for installation of motor protection breaker BE4. The enclosure is designed to protect electrical equipment from dust and water splashes when operating in variable climate conditions.
Key Characteristics:
- Degree of Protection: IP54 (protection against dust and splashes of water)
- Compatibility: Motor Protection Breaker BE4
- Material: Plastic
- Design: 2, 3
- Operating Temperature Range: -35°C to +70°C

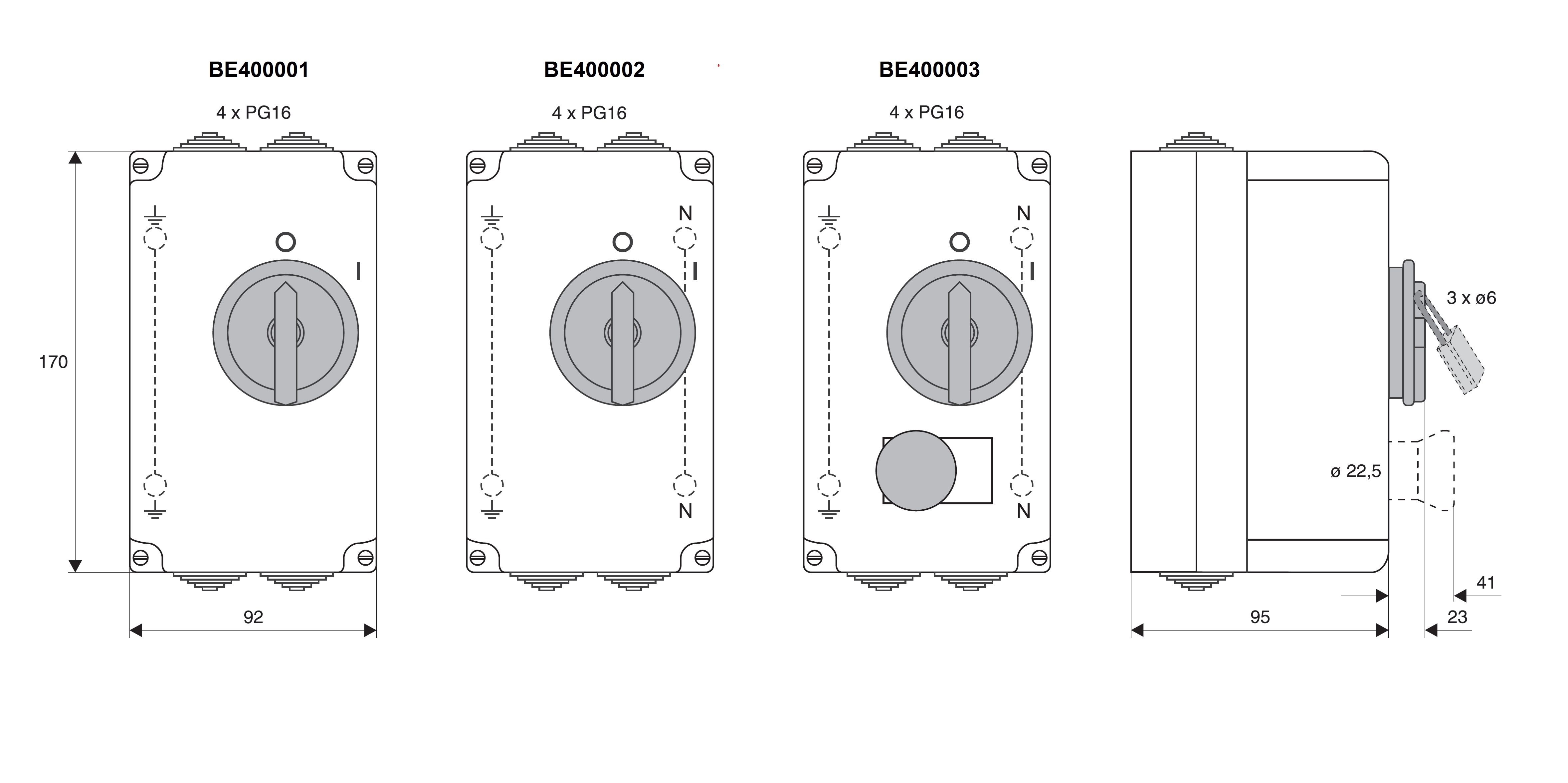

- Internal Dimensions: 125 × 95 × 185 mm
- Weight: 0.41 kg
- Manufacturer: Schrack
- EAN Code: 9004840165418
The enclosure is used in industrial installations where reliable protection against external factors is required with standard configuration of drive control equipment.
| EAN Code | 9004840165418 |
|---|---|
| Net Length | 125.00 mm |
| Net Width | 95.00 mm |
| Net Height | 185.00 mm |
| Net Weight | 0.41 kg |
| Minimum Ambient Temperature | -35°C |
| Maximum Ambient Temperature | 70°C |
| Design | 2, 3 |
| Accessories | Enclosure |
| Manufacturer | Schrack |
| Packaging | 1 pcs. |
