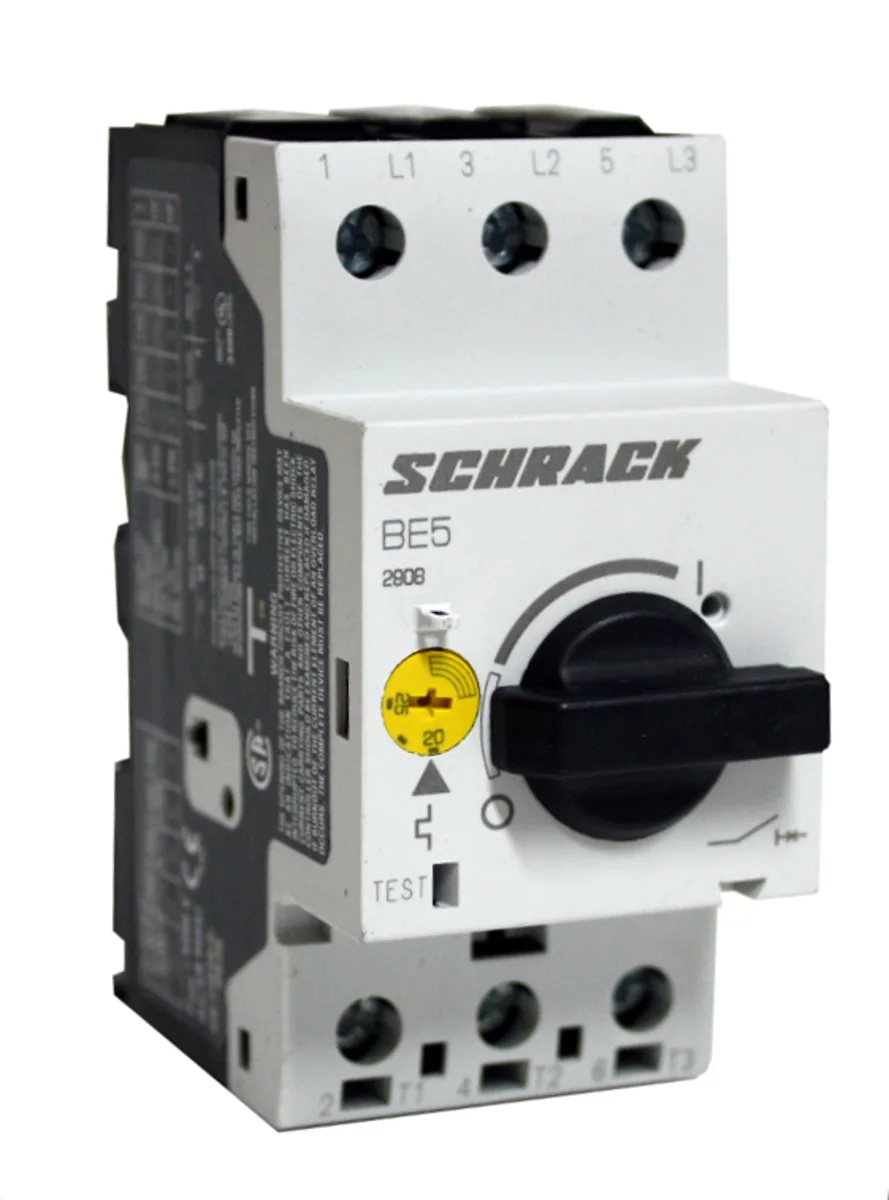

Transformer Protection Circuit Breaker 16-20A/3 BE5
Article: BE520005-A
46 020 ₸
To order
Transformer Protection Circuit Breaker 16-20A/3 BE5 — a specialized switching protection device designed to protect transformers and similar equipment from overload and current surges.
Technical Parameters:
- Rated current range: 16.0-20.0 A
- Device type: Motor protection circuit breaker
- Standard size: BE5 (modular assembly on DIN rail)
- Power loss at rated current: 6.0 W
- Manufacturer: Schrack (reliable Austrian brand)
Constructive Characteristics:
- Width: 45 mm
- Height: 93 mm
- Depth: 76 mm
- Weight: 0.30 kg
- EAN code: 9004840844962
Application:
The device is mounted on a standard DIN rail in electrical cabinets and distribution panels. It provides reliable protection of primary and secondary windings of transformers, preventing damage when the set current parameters are exceeded.
Packaging: supplied as 1 unit in standard packaging or in bulk orders of 70 units.
| EAN code | 9004840844962 |
|---|---|
| Width net | 45.00 mm |
| Height net | 93.00 mm |
| Depth net | 76.00 mm |
| Weight net | 0.30 kg |
| Power loss | 6.00 W |
| Current range | 16.0-20.0 A |
| Type | Motor protection circuit breaker |
| Size | BE5 |
| Manufacturer | Schrack |
| Packaging | 1 unit, 70 units |
