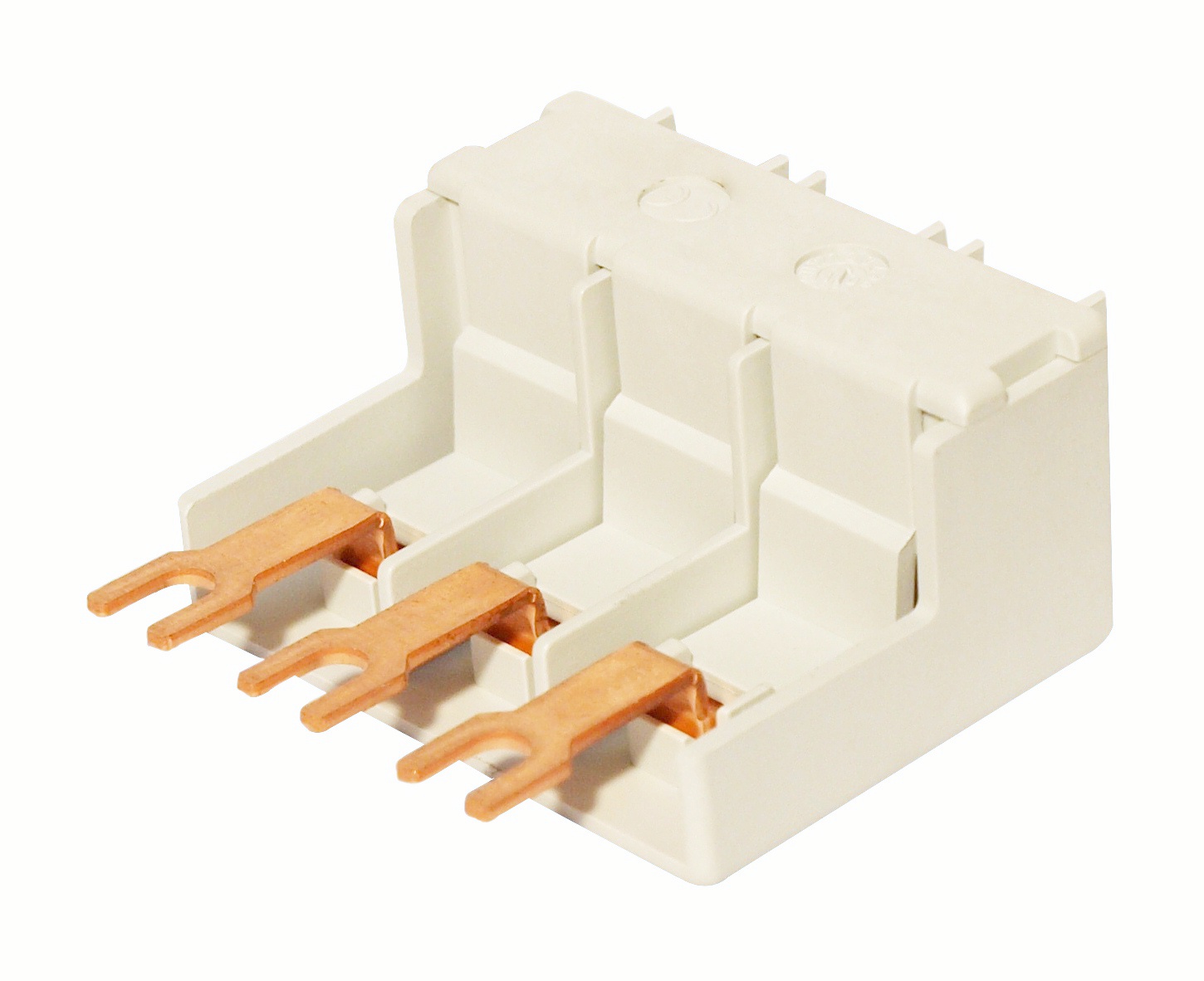

Connection connector 3-pole for BE5, with cover
Article: BE590002--
6 115 ₸
To order
Three-pole connection connector for the BE5 system with protective cover. Designed for reliable electrical connection in distribution systems. Manufactured with copper contacts to ensure low resistance and minimal power loss during energy transmission.
Key specifications:
- Number of poles: 3
- Compatibility: BE5 system
- Contact material: Copper (content 59.0 g)
- Power loss: 1.80 W
- Operating temperature range: -25°C to +40°C
- Protection: Cover included
- Manufacturer: Schrack
Dimensions:
- Width: 48.00 mm
- Height: 53.50 mm
- Depth: 27.00 mm
| EAN code | 9004840264500 |
|---|---|
| Width net | 48.00 mm |
| Height net | 53.50 mm |
| Depth net | 27.00 mm |
| Copper content | 59.0000 g |
| Power loss | 1.80 W |
| Min ambient temperature | -25°C |
| Max ambient temperature | 40°C |
| Type | Accessories |
| Size | BE5 |
| Accessories | Busbars |
| Manufacturer | Schrack |
| Packaging | 1 pc |
