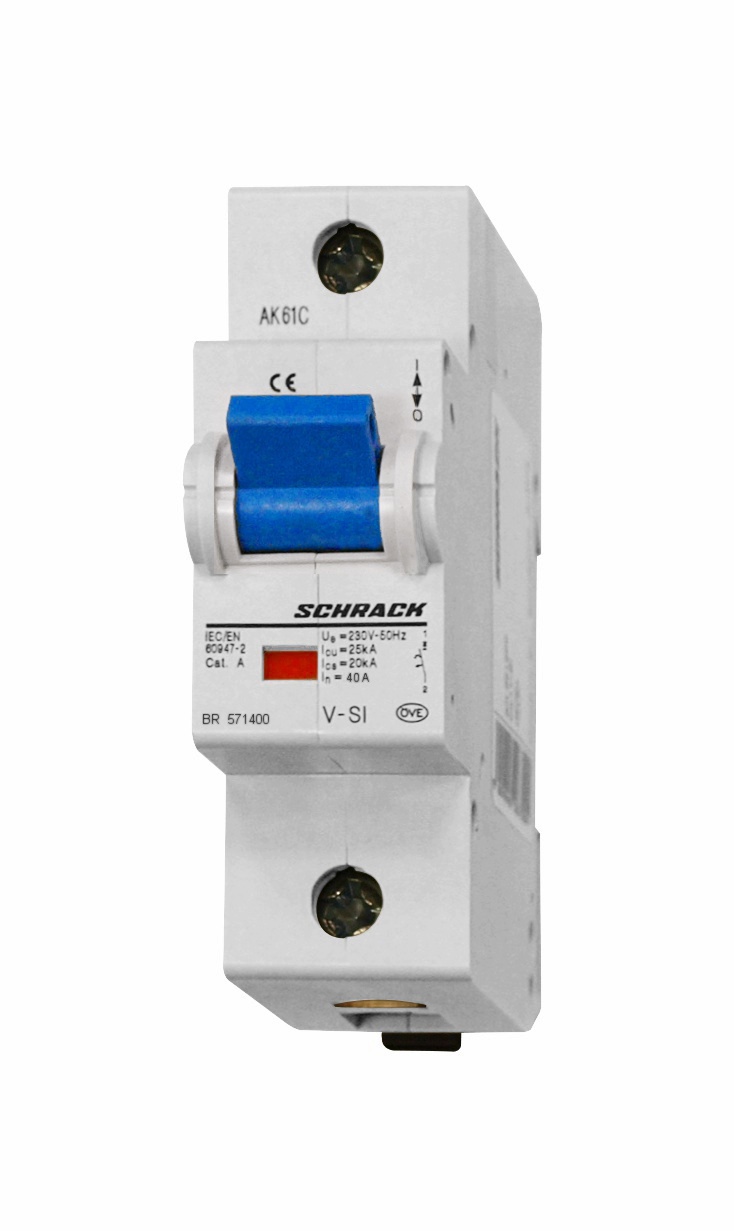

Automatic Circuit Breaker C40/1, 25kA
Article: BR571400--
Автоматические выключатели BR 80-125A
27 320 ₸
To order
Single-pole automatic circuit breaker C40/1 with rated current 40A and breaking capacity 25 kA. Designed to protect electrical circuits from overloads and short-circuit currents.
Main Characteristics:
- Rated Current: 40A
- Tripping Characteristic: C (for general application)
- Number of Poles: 1
- Breaking Capacity: 25 kA
- Operating Temperature Range: from -30°C to +55°C
- Power Loss: 4.42W
- Installation Width: 27.00 mm
- Installation Height: 91.00 mm
- Installation Depth: 77.00 mm
- Net Weight: 0.24 kg
Technical Parameters:
The breaker complies with standards EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018. Belongs to the BR series manufactured by Schrack. Class C characteristic provides optimal tripping on short-term current surges, making it a universal solution for industrial and residential electrical installations.
EAN Code: 9004840266696. Available in packaging of 1 or 12 units.
| EAN Code | 9004840266696 |
|---|---|
| Width Net | 27.00 mm |
| Height Net | 91.00 mm |
| Depth Net | 77.00 mm |
| Weight Net | 0.24 kg |
| Power Loss | 4.42 W |
| Min. Ambient Temperature | -30°C |
| Max. Ambient Temperature | 55°C |
| Characteristic | C |
| Pole | 1 |
| Rated Current | 40 A |
| Type | Low Voltage Automatic Circuit Breaker |
| Series | BR |
| Breaking Capacity | 25 kA |
| Design | Low Voltage Automatic Breaker |
| Standard | EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 piece, 12 pieces |
