Automatic Circuit Breaker C125/2, 15kA
1 / 6
Automatic Circuit Breaker C125/2, 15kAAutomatic Circuit Breaker C125/2, 15kAAutomatic Circuit Breaker C125/2, 15kAAutomatic Circuit Breaker C125/2, 15kAAutomatic Circuit Breaker C125/2, 15kAAutomatic Circuit Breaker C125/2, 15kA

Automatic Circuit Breaker C125/2, 15kA

Article: BR572912--

Автоматические выключатели BR 80-125A

75 460 ₸

To order
WhatsAppTelegram

Automatic Circuit Breaker C125/2, 15kA — a two-pole high-voltage automatic breaker of the BR series manufactured by Schrack, designed to protect electrical circuits from overloads and short circuits.

Main characteristics:

  • Rated current: 125A
  • Breaking capacity: 15kA
  • Number of poles: 2
  • Tripping characteristic: C
  • Type of design: High-voltage automatic circuit breaker
  • Operating temperature range: from -30°C to +55°C
  • Power loss at rated current: 23.80W

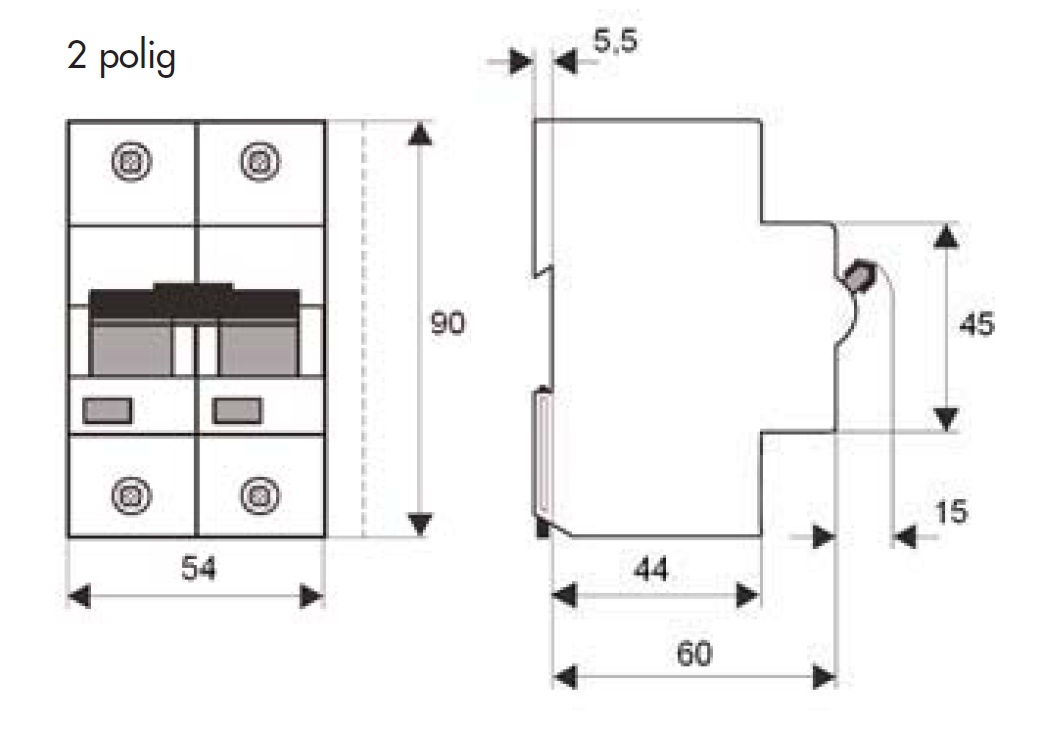

Dimensions and weight:

  • Width: 54.00mm
  • Height: 91.00mm
  • Depth: 77.00mm
  • Net weight: 0.48kg

Compliance with standards:

The device is developed in accordance with the requirements of EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020 and EN 63000:2018, which ensures reliability and safety of operation.

Package contents: 1 pcs.

EAN code: 9004840266870

EAN code9004840266870
Width net54.00mm
Height net91.00mm
Depth net77.00mm
Net weight0.48kg
Power loss23.80W
Min. ambient temperature-30°C
Max. ambient temperature55°C
CharacteristicC
Poles2
Rated current125A
TypeHigh-voltage automatic circuit breaker
SeriesBR
Breaking capacity15kA
DesignHigh-voltage automatic breaker
StandardEN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018
ManufacturerSchrack
Packaging1 pcs.
