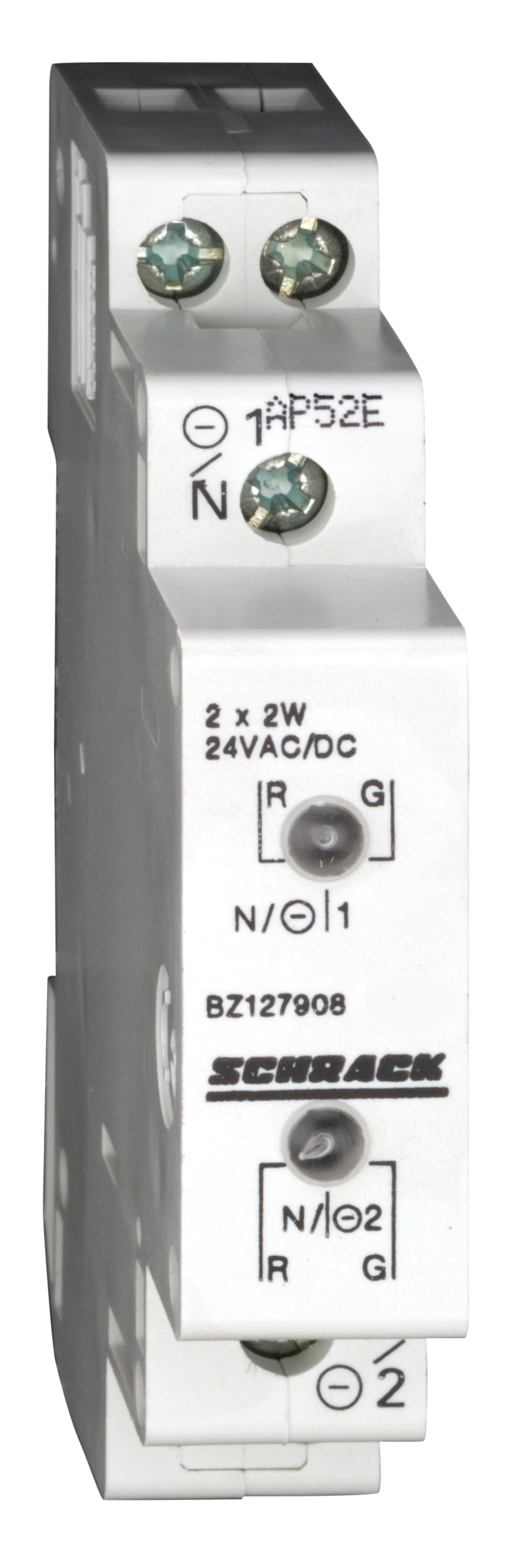

Modular LED Indicator 12-24VAC/DC, 2 Indicators, Red/Green
13 680 ₸
The modular LED indicator is designed for visual monitoring of electrical circuit states in control and automation systems. The device is equipped with two independent LED indicators — red and green, allowing simultaneous display of two different states or functions.
Key Characteristics:
- Supply Voltage: 12-24V AC/DC
- Number of Indicators: 2 (red/green)
- Power Consumption: 1.20W
- Operating Temperature Range: -25°C to +55°C
- Series: BZ (Schrack)
- Housing Material: modular plastic enclosure

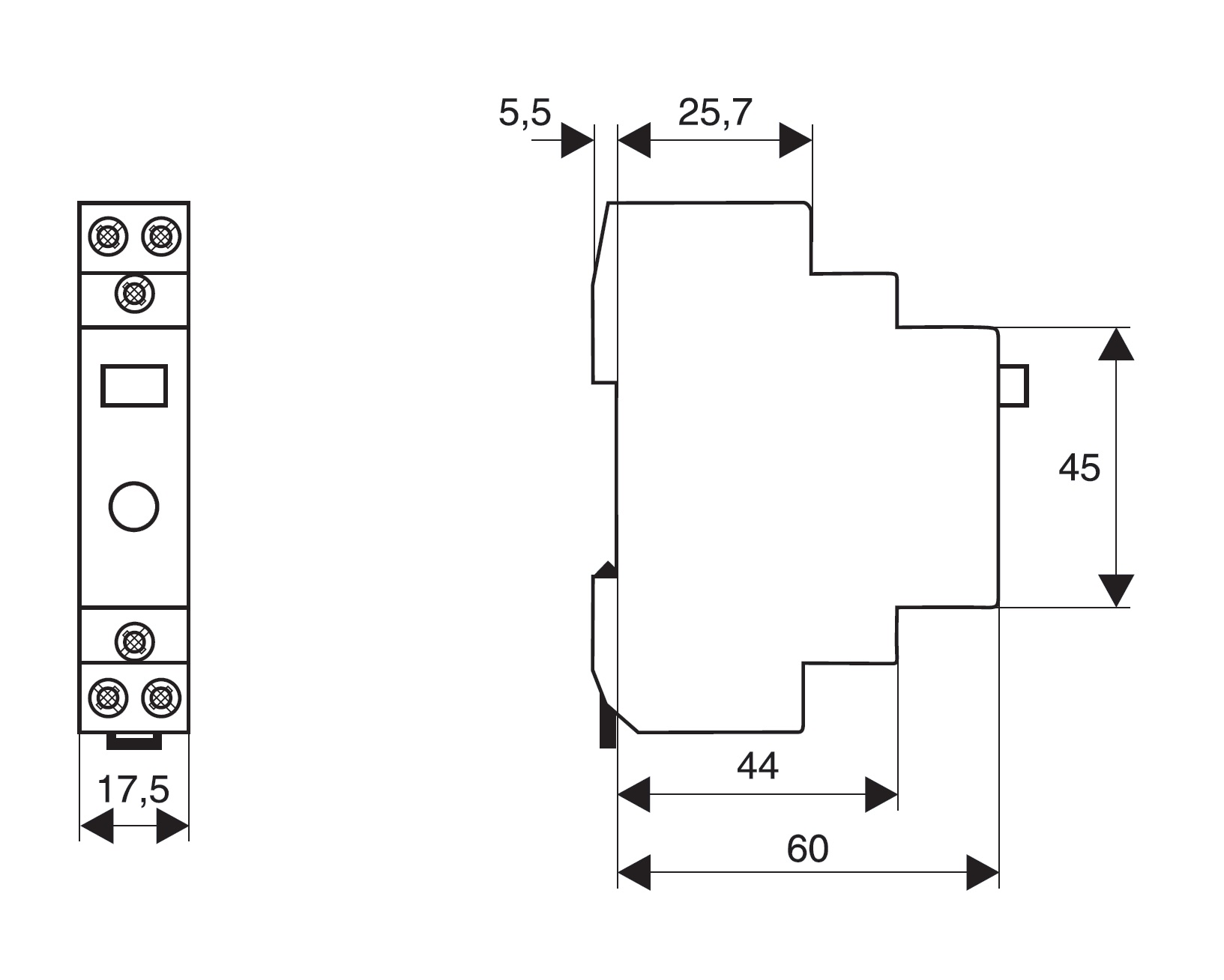

Dimensions:
- Length: 73 mm
- Width: 18 mm
- Height: 90 mm
- Weight: 0.07 kg
Design Features:
The indicator is manufactured in standard modular format, compatible with 18 mm DIN rail. LEDs provide bright visibility under various lighting conditions. Universal power supply (12-24V AC/DC) allows the device to be used in different applications without circuit modification. Low power consumption ensures economical operation.
Applications:
Ideal for control panels, industrial equipment, monitoring and alarm systems, electrical distribution devices, and automation panels.
| EAN Code | 9004840406580 |
|---|---|
| Net Length | 73.00 mm |
| Net Width | 18.00 mm |
| Net Height | 90.00 mm |
| Net Weight | 0.07 kg |
| Power Loss | 1.20 W |
| Min. Ambient Temperature | -25°C |
| Max. Ambient Temperature | 55°C |
| Series | BZ |
| Rated Voltage | 12-24V AC/DC |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 12 pcs., 120 pcs. |
