Light indicator with LED for installation on control panels or equipment. Designed for operation from 230 VAC mains power supply, and also compatible with 230 VDC direct current source connection. The housing is made of materials with protection against dust and moisture in accordance with IP65 classification, which allows using the indicator in humid and contaminated industrial environments.
Technical Specifications:
- Nominal Voltage: 230 VAC / 230 VDC
- Power Consumption: 1.93 W
- LED Brightness: 60 cd/m²

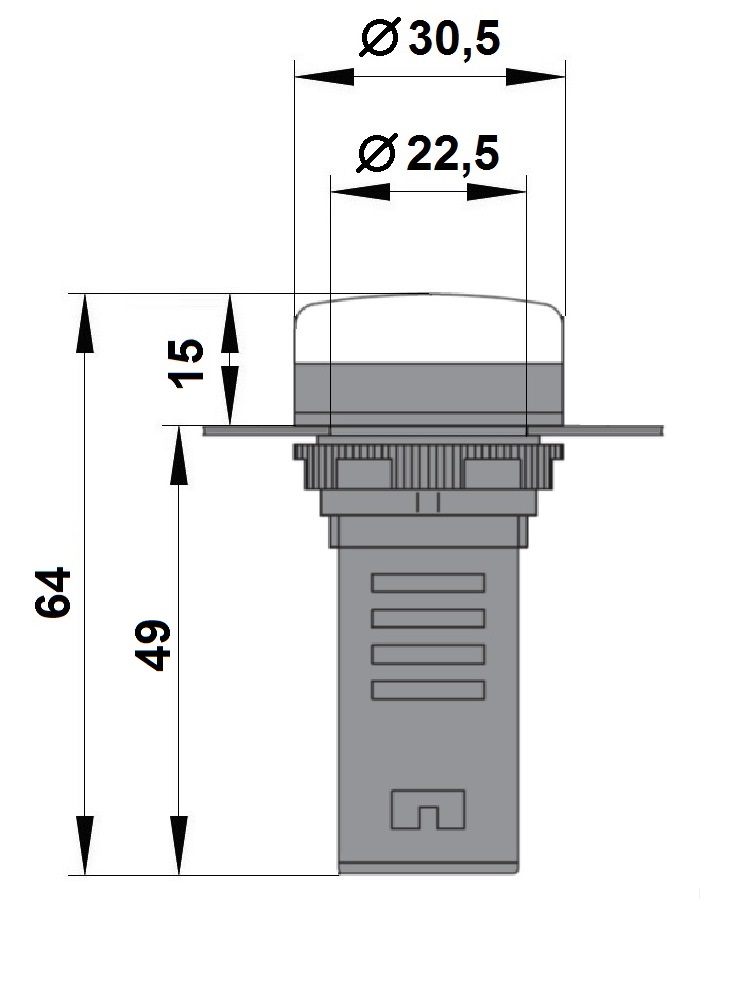

- Diameter: 30 mm
- Height: 64 mm
- Weight: 0.03 kg
- Light Color: green
- Operating Temperature Range: -5°C to +70°C
- Permissible Humidity: 50% at 40°C, 90% at 20°C
- Degree of Protection: IP65
- Overvoltage Category / Pollution Degree: III / 3
- Standards Compliance: IEC EN 60947-5-1
- Series: BZ
- Manufacturer: Schrack
- EAN Code: 9004840569384
The indicator is designed for visual monitoring of equipment operating status. The LED construction ensures reliability and long service life with minimal power consumption. Can be supplied in packages of 1, 10, or 480 units depending on customer requirements.
| EAN Code | 9004840569384 |
|---|---|
| Net Weight | 0.03 kg |
| Net Diameter | 30.00 mm |
| Net Height | 64.00 mm |
| Power Loss | 1.93 W |
| Min. Ambient Temperature | -5°C |
| Max. Ambient Temperature | 70°C |
| Series | BZ |
| Lighting | LED |
| Color | Green |
| Operating Voltage AC | 230 V |
| Operating Voltage DC | 230 V |
| Form | LED |
| Degree of Protection | IP65 |
| Brightness | 60 cd/m² |
| Operating Temperature | -5°C to +70°C |
| Humidity Level | 50% humidity at 40°C, 90% humidity at 20°C |
| Overvoltage Category / Pollution Degree | III / 3 |
| Standard | IEC EN 60947-5-1 |
| Manufacturer | Schrack |
| Packaging | 1 pcs, 10 pcs, 480 pcs |
