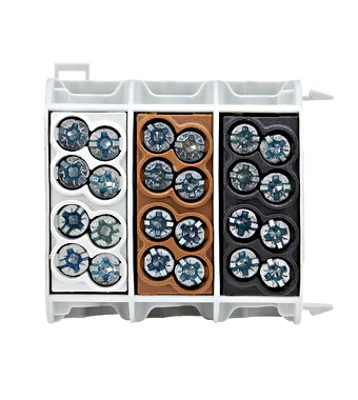

Terminal aluminum/copper 3-pole/1 branch-2×25+2×16mm², black/brown/gray
Article: IKA26183-A
9 285 ₸
To order
Three-pole aluminum-copper terminal with one branch connection. Designed for connecting cables with cross-sections of 2×25 mm² and 2×16 mm² using separate clamping contacts. Manufactured from high-quality materials incorporating aluminum and copper to ensure reliable electrical contact and minimal power loss.
Main Parameters:
- Configuration: 3 poles / 1 branch
- Main circuit cable cross-section: 2×25 mm²
- Branch cable cross-section: 2×16 mm²
- Material: aluminum / copper
- Power loss at nominal load: 2.10 W
- Operating temperature range: -35°C to +70°C
- Manufacturer: Schrack
Net Dimensions:
- Depth: 55.70 mm
- Width: 63.30 mm
- Height: 49.30 mm
- Weight: 0.07 kg
Available color options: black, brown, gray.
Packaging options: 1 pcs., 2 pcs., 24 pcs.
Identification codes: EAN 9004840876888, 9004840493863, 9004840576986.
| EAN code | 9004840876888, 9004840493863, 9004840576986 |
|---|---|
| Net depth | 55.70 mm |
| Net width | 63.30 mm |
| Net height | 49.30 mm |
| Net weight | 0.07 kg |
| Power loss | 2.10 W |
| Min. ambient temperature | -35°C |
| Max. ambient temperature | 70°C |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 2 pcs., 24 pcs. |

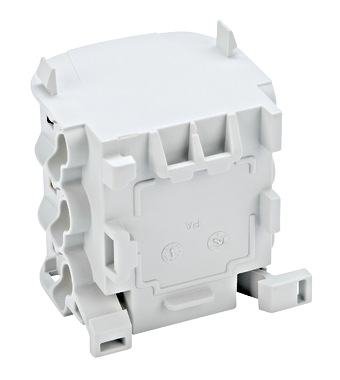

- Photo 1: Terminal aluminum/copper 3-pole/1 branch-2×25+2×16mm², black/brown/gray (JPG, 30 KB)

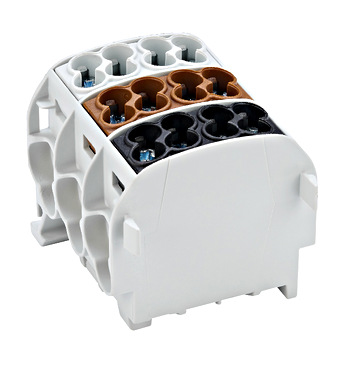

- Photo 2: Terminal aluminum/copper 3-pole/1 branch-2×25+2×16mm², black/brown/gray (JPG, 990 KB)

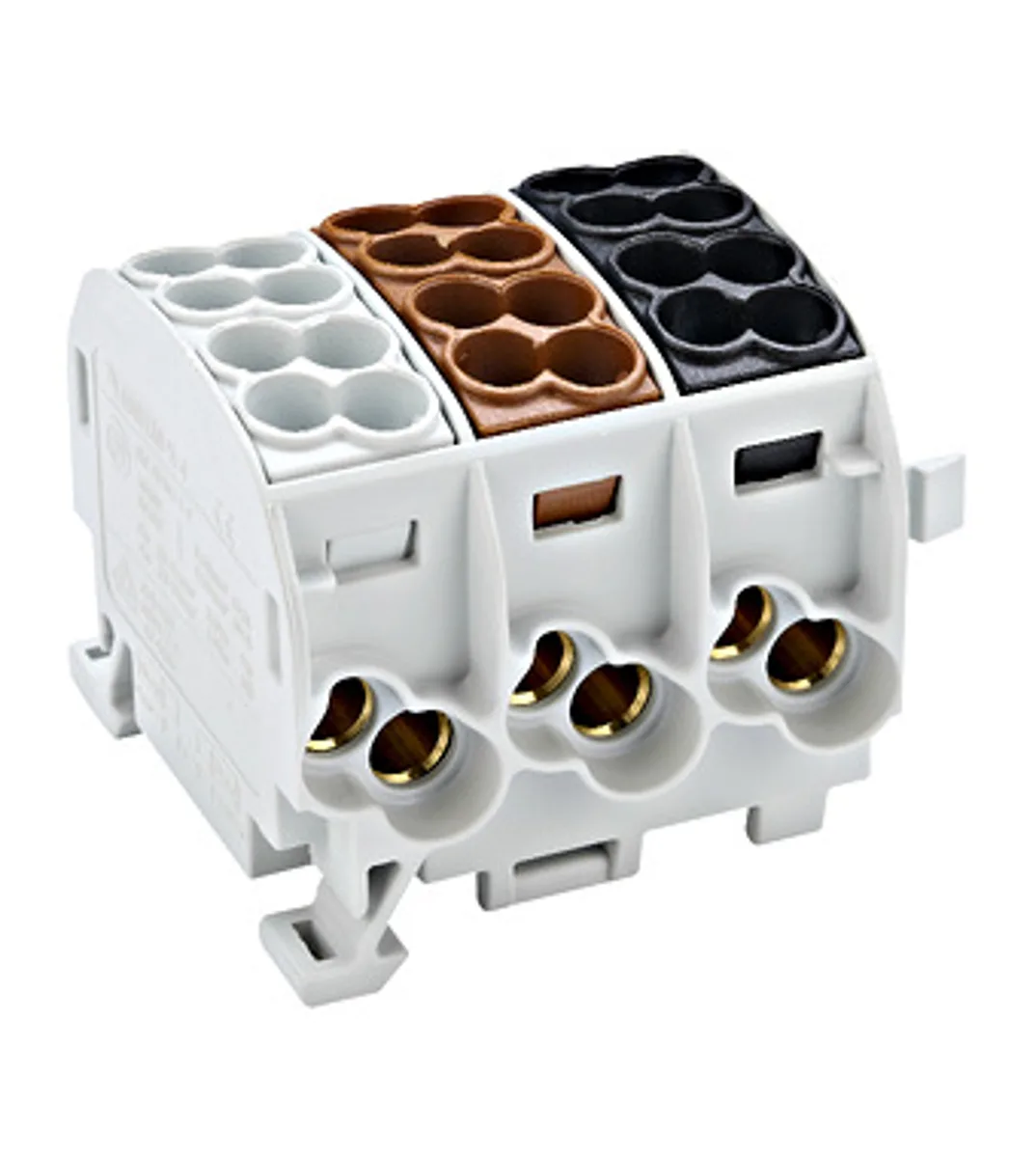

- Photo 3: Terminal aluminum/copper 3-pole/1 branch-2×25+2×16mm², black/brown/gray (JPG, 40 KB)

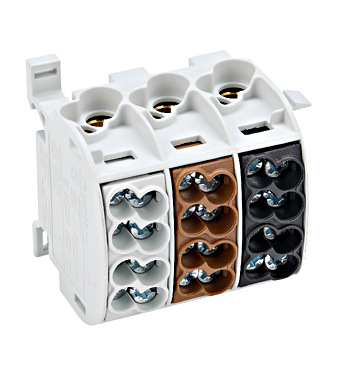

- Photo 4: Terminal aluminum/copper 3-pole/1 branch-2×25+2×16mm², black/brown/gray (JPG, 25 KB)

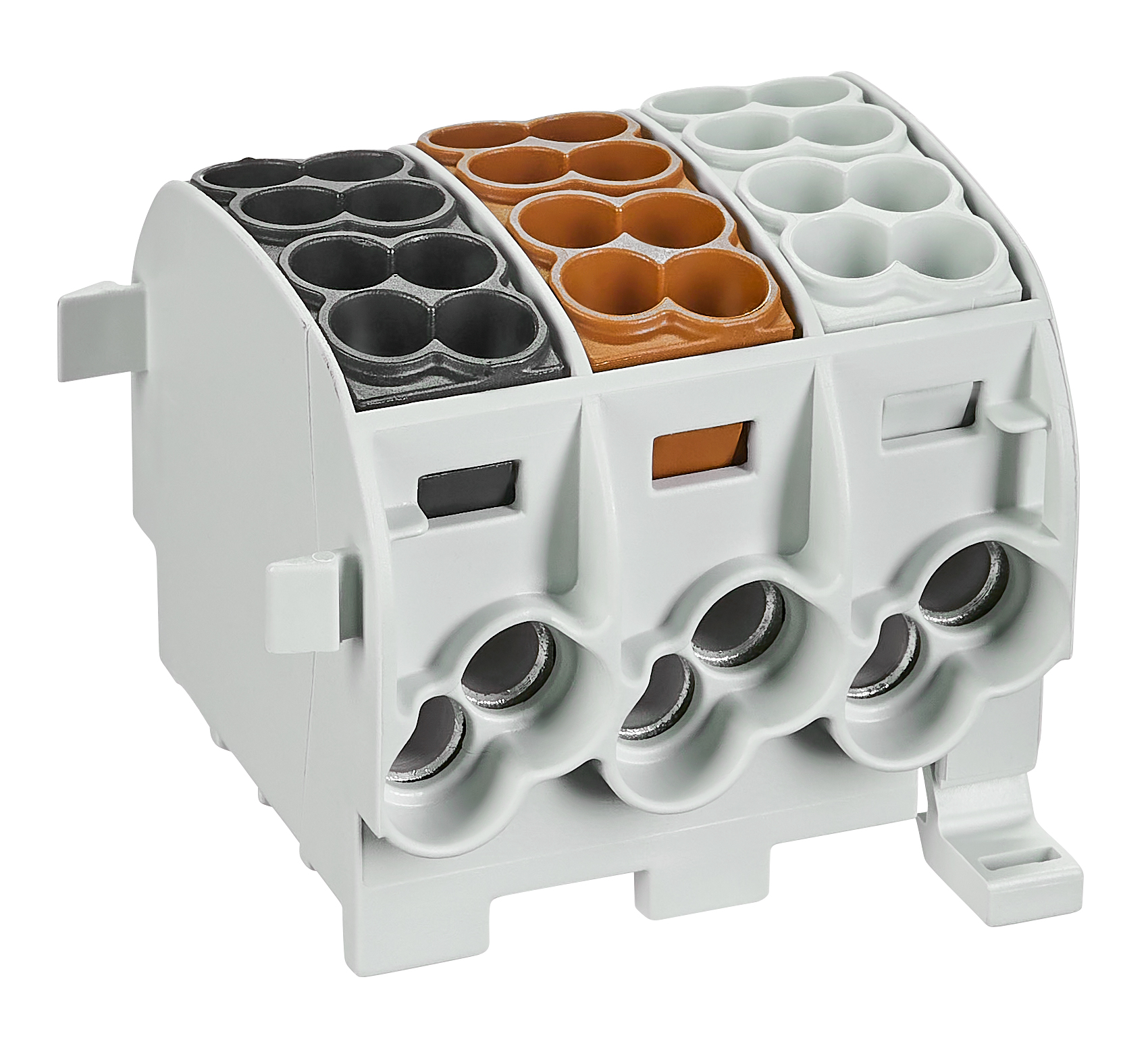

- Photo 5: Terminal aluminum/copper 3-pole/1 branch-2×25+2×16mm², black/brown/gray (JPG, 33 KB)

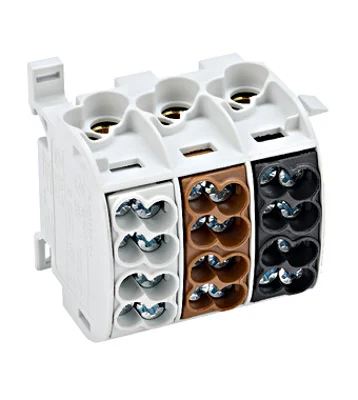

- Photo 6: Terminal aluminum/copper 3-pole/1 branch-2×25+2×16mm², black/brown/gray (JPG, 18 KB)
