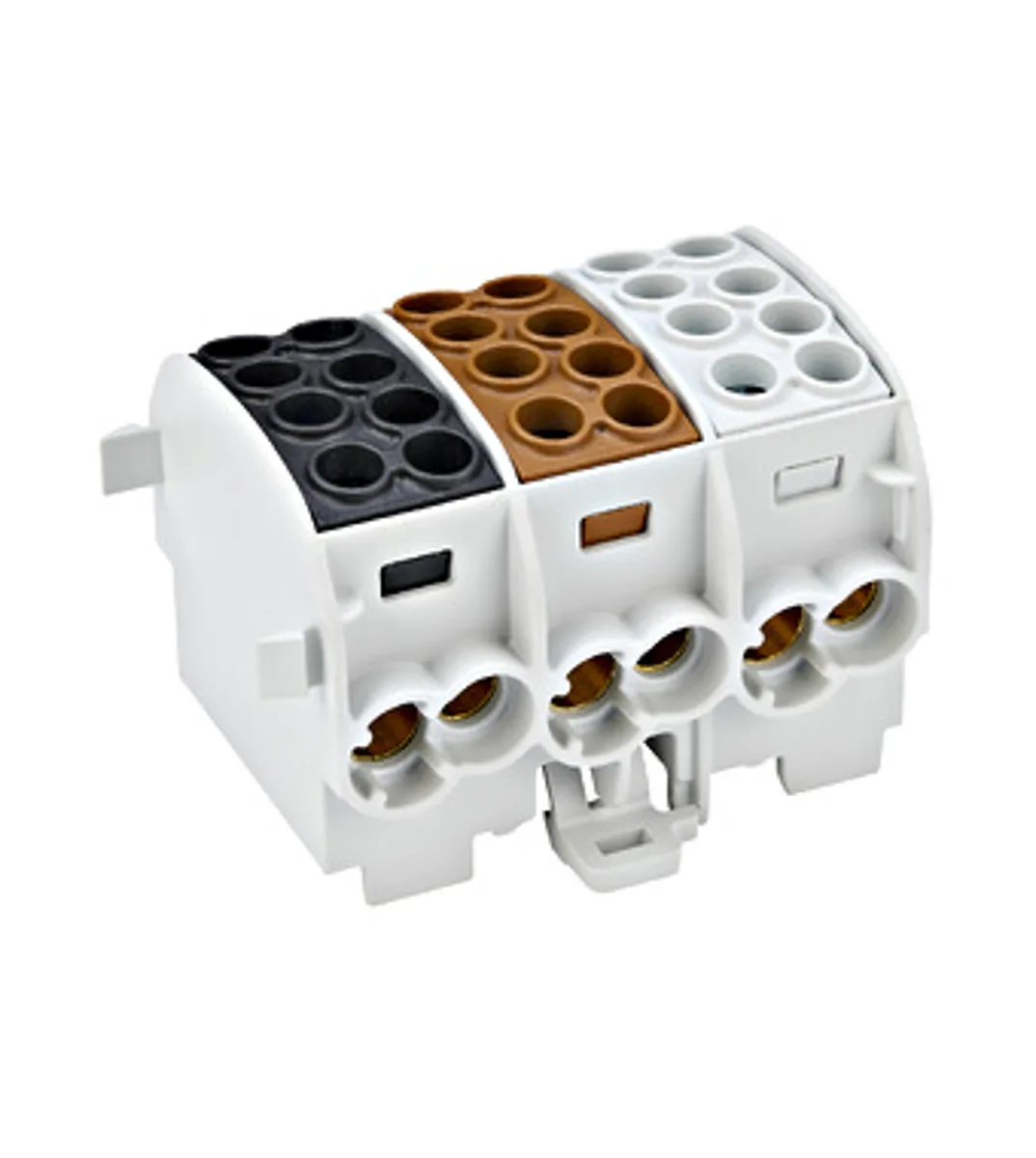

Copper terminal block 3-pole/1p-2×35+2×25mm², black/gray/brown
Article: IKA26283-A
14 320 ₸
To order
Three-pole copper terminal block with two contact receptacles rated for 2×35 mm² and two contact receptacles rated for 2×25 mm². Designed for reliable connection of power conductors in electrical installations and distribution systems.
Technical Specifications:
- Contact material: copper with antioxidant coating
- Number of poles: 3
- Contact cross-section: 2×35 mm² and 2×25 mm²
- Power loss: 2.10 W
- Operating temperature range: -35°C to +70°C
- Dimensions (net): 73.10 × 55.40 × 49.30 mm
- Weight: 0.07 kg
- Manufacturer: Schrack (Austria)
- Supply options: 1 pc., 2 pc., 24 pc. per package
- Article numbers: 9004840876895, 9004840578188, 9004840578300
The terminal block provides reliable contact and minimal energy losses during operation across a wide temperature range.
| EAN codes | 9004840876895, 9004840578188, 9004840578300 |
|---|---|
| Depth (net) | 55.40 mm |
| Width (net) | 73.10 mm |
| Height (net) | 49.30 mm |
| Weight (net) | 0.07 kg |
| Power loss | 2.10 W |
| Min. ambient temperature | -35°C |
| Max. ambient temperature | 70°C |
| Manufacturer | Schrack |
| Packaging | 1 pc., 2 pc., 24 pc. |
