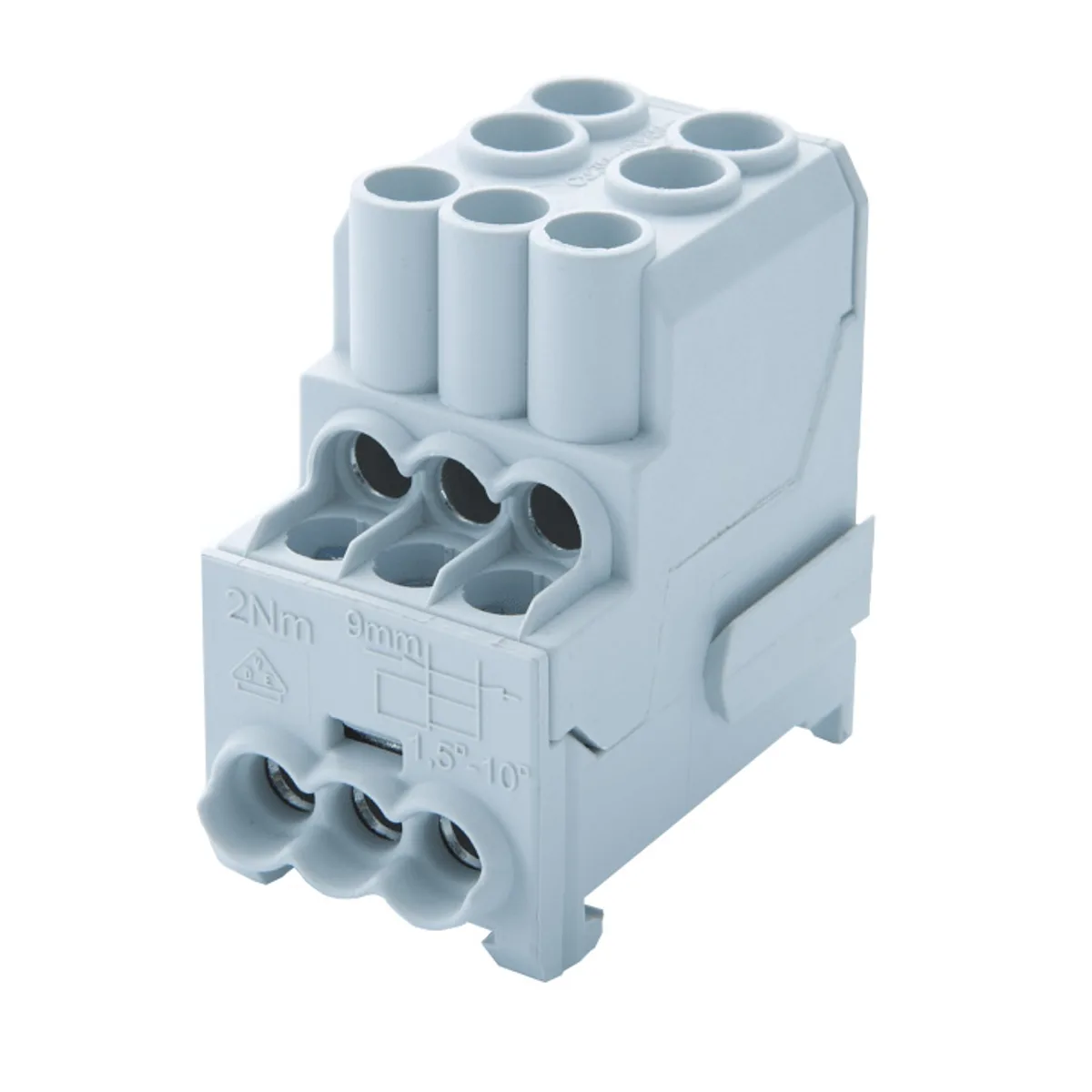

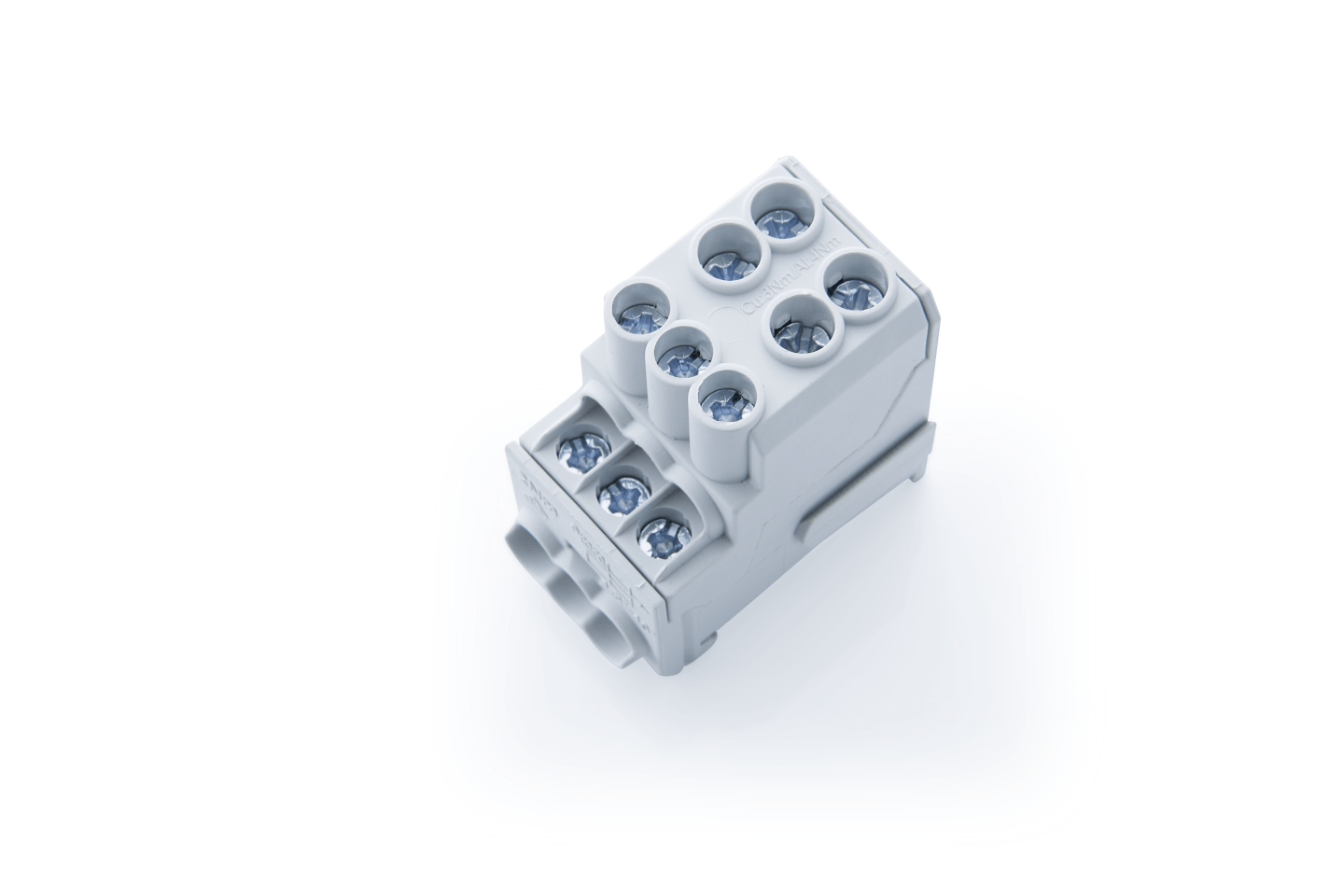

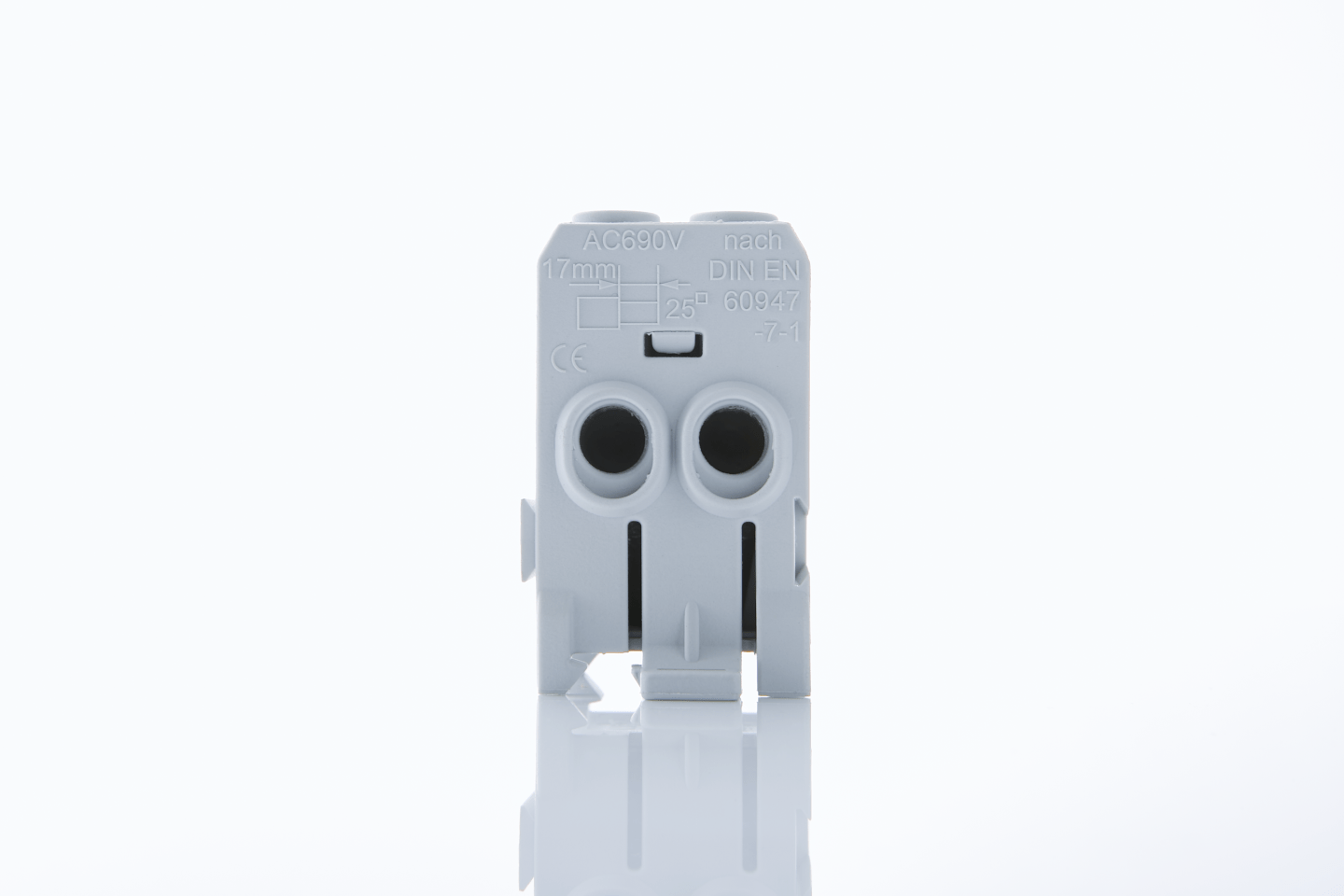

Terminal block, 1-pole 100A, 2×25mm² 6×10mm²

Single-pole terminal block of distribution type designed for switching and distribution of electrical circuits in electrical cabinets and distribution devices. The block is rated for a nominal current of 100 A and allows connection of conductors with cross-section from 6 to 25 mm². The design provides two input terminals with cross-section 2×25 mm² and six output terminals with cross-section 6×10 mm², ensuring flexibility in load distribution circuits.

Main characteristics:

• Nominal current: 100 A
• Number of poles: 1
• Maximum conductor cross-section: 25 mm²
• Contact material: copper (ensures low transition resistance)
• Power loss: 0.30 W at nominal current
• Housing color: grey
• Overall dimensions (H×W×D): 54×29×50 mm
• Weight: 0.10 kg
• Manufacturer: Schrack (Austria)

The terminal block is manufactured from high-quality materials with a reliable copper contact system, ensuring minimal energy losses and durability under industrial operating conditions.
