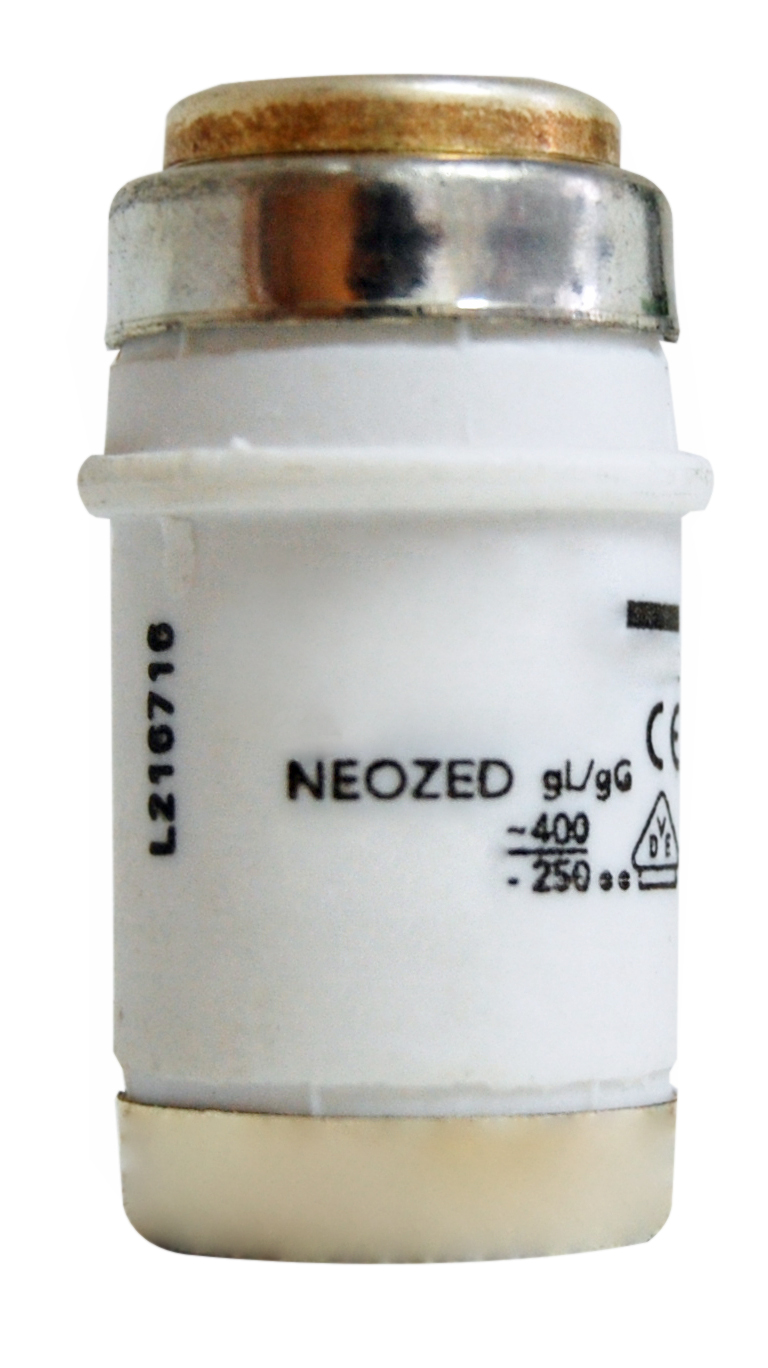

Neozed series D02 fuse insert with a rated current of 35A and characteristic gG (gL) is designed to protect electrical circuits from overload and short circuit conditions.
Technical Characteristics:
- Rated Current: 35A
- Characteristic Type: gG (gL) — general purpose, for protection of wiring and electrical apparatus
- Size: Neozed D02 (diameter 15 mm, height 36 mm)
- Power Loss: 4 W at rated current
- Operating Temperature Range: −40 °C to +60 °C
- Manufacturer: Jean Müller
- Weight: 0.01 kg
Area of Application:
The fuse is used in low-voltage distribution boards, industrial electrical equipment, and public utility networks with a rated voltage of up to 690 V alternating current (depending on the installation design).
Packaging: 1 pc., 10 pc., 50 pc.
| EAN Code | 9004840686371 |
|---|---|
| Net Width | 15.00 mm |
| Net Height | 36.00 mm |
| Net Weight | 0.01 kg |
| Power Loss | 4.00 W |
| Minimum Ambient Temperature | −40 °C |
| Maximum Ambient Temperature | 60 °C |
| Type | Fuse Insert |
| Fuse Size | 35A |
| Manufacturer | Jean Müller |
| Packaging | 1 pc., 10 pc., 50 pc. |
