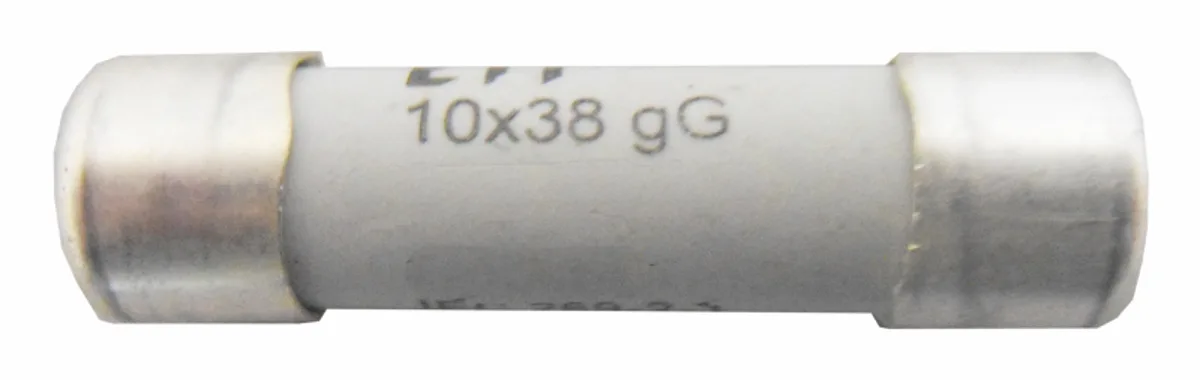

General-purpose fuse link designed for protection of electrical circuits against overloads and short circuits. Intended for installation in standard cartridge holders of 10x38 mm size.
Technical Specifications:
- Rated Current: 6A
- Rated Voltage: 500VAC
- Trip Characteristic: gG (general purpose, trips on overload and short circuit)
- Size: 10x38 mm
- Power Loss: 0.95W
- Operating Temperature Range: -40°C to +60°C
- Weight: 0.01 kg
- EAN Code: 9004840518184
Application:
The fuse link is used in distribution boards, electrical panels and control devices for reliable protection of circuits with rated current up to 6A at voltage up to 500VAC. The gG characteristic provides complete protection both under rated loads and in short-circuit conditions.
Packaging: 1 pc or 10 pcs.
| EAN Code | 9004840518184 |
|---|---|
| Net Height | 38.00 mm |
| Net Diameter | 10.00 mm |
| Net Weight | 0.01 kg |
| Power Loss | 0.95 W |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 60°C |
| Design | Fuse Link |
| Fuse Size | 10x38 |
| Current Rating | 6 A |
| Characteristic | gG |
| Accessories | Fuse Link |
| Rated Voltage | 500 VAC |
| Packaging | 1 pc, 10 pcs |
