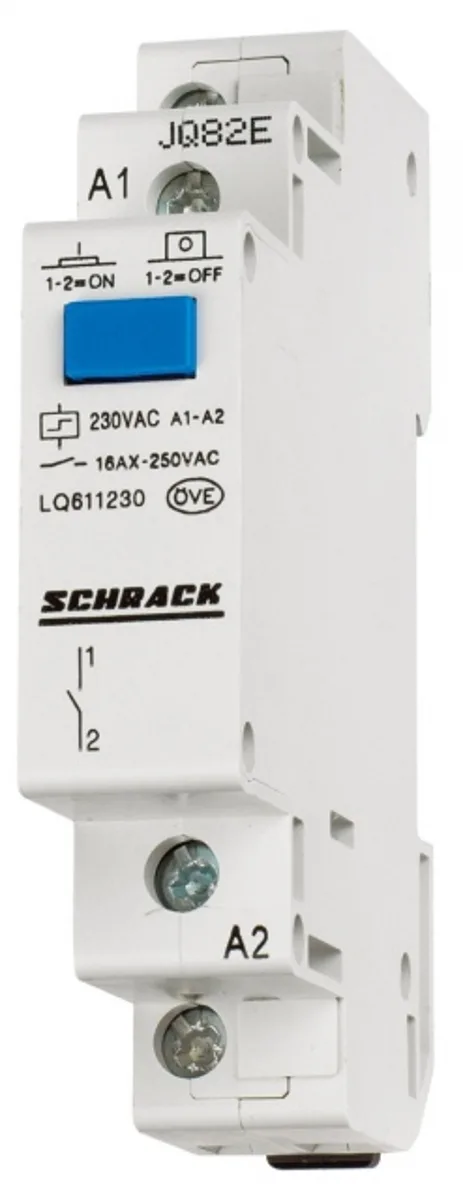

An impulse relay designed for controlling electrical circuits in remote control systems for lighting and other loads. The relay responds to an impulse and switches contacts without the need for continuous voltage supply to the coil, ensuring energy efficiency and reliable operation.
Main Parameters:
- Rated switching current: 16 A
- Number of switching contacts: 1 pole changeover contact (1CO)
- Rated control voltage: 230 V AC
- Power consumption: 1.50 W
- Operating temperature range: from -25°C to +45°C
- Manufacturer: Schrack (reliable electrotechnical equipment manufacturer)
Physical Dimensions:
- Length: 73 mm
- Width: 18 mm
- Height: 90 mm
- Net weight: 0.12 kg
The relay is distinguished by its compact dimensions, low power consumption, and versatility in applications for automation and control systems of electrical loads.
| EAN code | 9004840375084 |
|---|---|
| Net length | 73.00 mm |
| Net width | 18.00 mm |
| Net height | 90.00 mm |
| Net weight | 0.12 kg |
| Power loss | 1.50 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 45°C |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 12 pcs., 120 pcs. |
