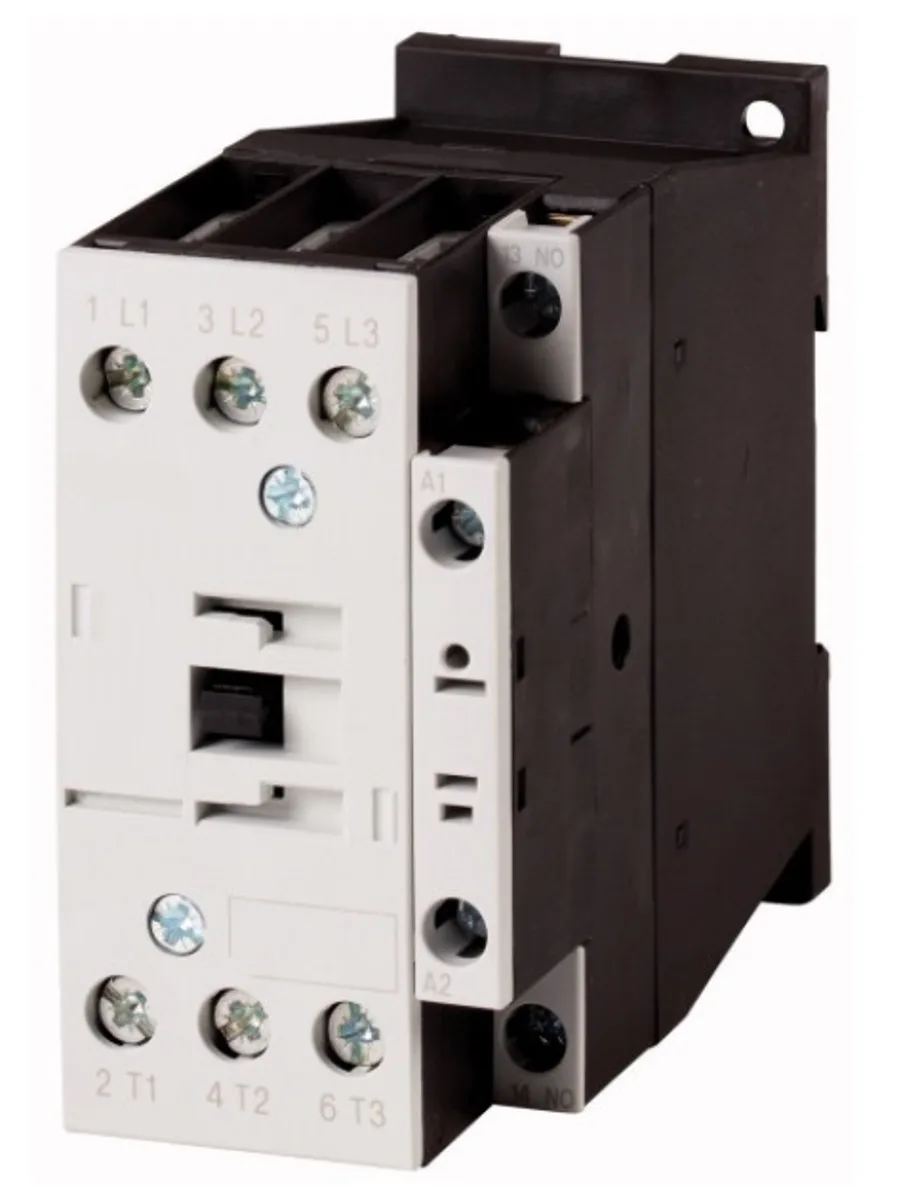

Contactor 11kW/400V/25A/1NO, coil 230VAC

Contactor 11kW/400V/25A/1NO, coil 230VAC

Article: LTD12513--

Контакторы ALEA II LT

33 760 ₸

In stock
WhatsAppTelegram

Power contactor designed for switching three-phase AC circuits in industrial installations. The contactor provides reliable control of electrical loads up to 11 kW at 400 V voltage.

Main parameters:

  • Rated current: 25 A
  • Coil supply voltage: 230 V AC
  • Main contacts: 3 NO (normally open) contacts
  • Auxiliary contacts: 1 NO (normally open) contact
  • Power rating (AC-3 at 380/400 V): 11 kW
  • Power loss in contactor: 12.90 W

Constructive characteristics:

  • Dimensions (net): 45 × 85 × 97.40 mm
  • Weight: 0.43 kg
  • Manufacturer: Schrack
  • EAN code: 9004840840551

Package contents and packaging:

The contactor is supplied in packages of 1 piece or bulk batches of 64 pieces.

Used in control systems for electric drives, compressors, pumps and other medium-power industrial equipment.

EAN code9004840840551
Width net45.00 mm
Height net85.00 mm
Depth net97.40 mm
Weight net0.43 kg
Power loss12.90 W
Size1
TypePower contactor
Auxiliary contacts included1 NO contact
Coil voltage AC230 V AC
Rated current25 A
Main contacts3 NO contacts
ManufacturerSchrack
AC-3 380 V 400 V [P]11 kW
Packaging1 piece, 64 pieces
